C1155 BRAKE FLUID LEVEL SWITCH

YES

>> GO TO 3

NO

>> Repair or replace malfunctioning components.

3.

CHECK BRAKE FLUID LEVEL SWITCH GROUND

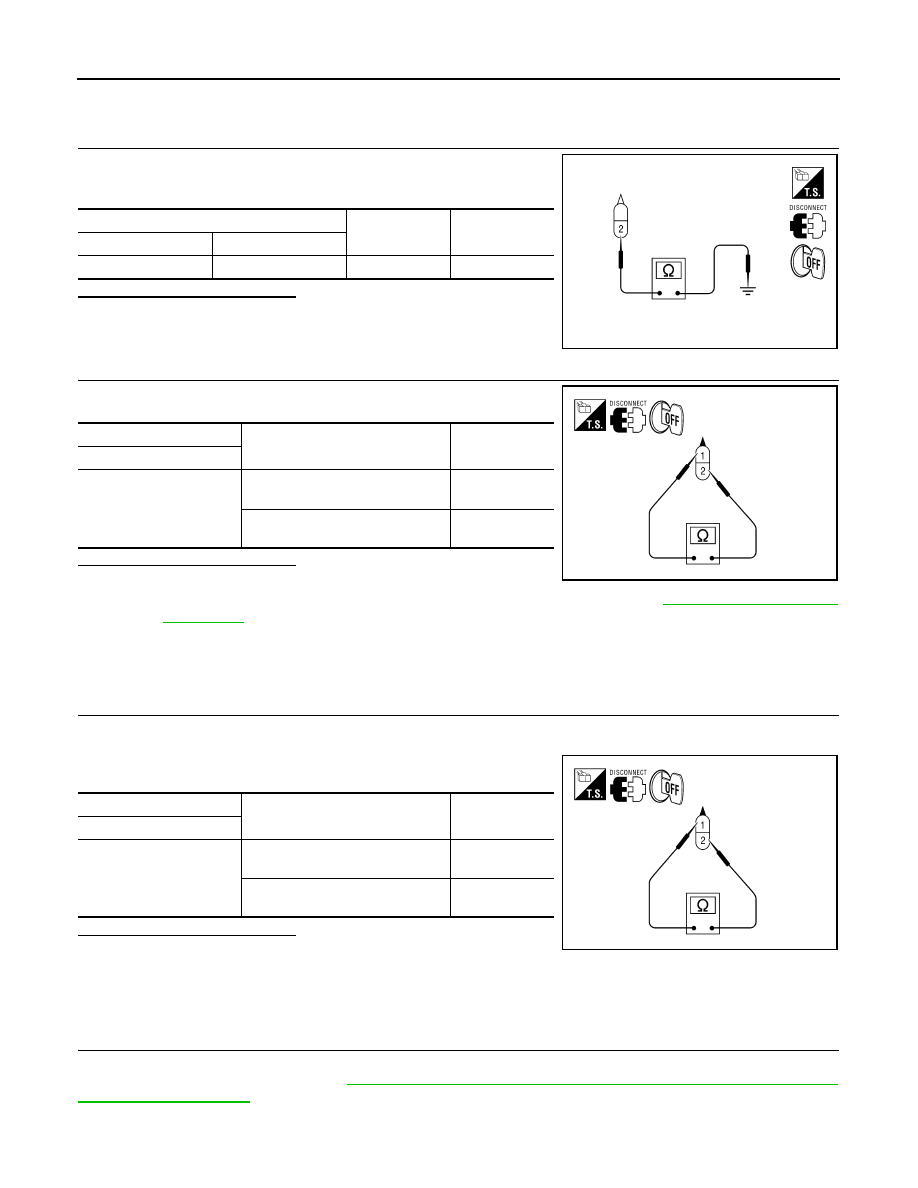

Check continuity between brake fluid level switch harness connector
E21 and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace malfunctioning components.

4.

CHECK BRAKE FLUID LEVEL SWITCH

Check continuity between brake fluid level switch terminals.

Is the inspection result normal?

YES

>> Perform self-diagnosis again. If the same results

appear, replace ABS actuator and electric unit (control unit). Refer to

BRC-184, "Removal and

Installation"

.

NO

>> Replace brake fluid level switch.

Component Inspection

INFOID:0000000001731150

1.

CHECK BRAKE FLUID LEVEL SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect brake fluid level switch connector.

3.

Check continuity between brake fluid level switch terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace brake fluid level switch.

Special Repair Requirement

INFOID:0000000001731151

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to

BRC-90, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL

POSITION : Description"

.

Brake fluid level switch

—

Continuity

Connector

Terminal

E21

2

Ground

Yes

AWFIA0026ZZ

Brake fluid level switch

Condition

Continuity

Terminal

1

−

 2

When brake fluid is full in the reser-
voir tank.

No

When brake fluid is empty in the
reservoir tank.

Yes

ALFIA0026ZZ

Brake fluid level switch

Condition

Continuity

Terminal

1

−

 2

When brake fluid is full in the reser-
voir tank.

No

When brake fluid is empty in the
reservoir tank.

Yes

ALFIA0026ZZ

C1155 BRAKE FLUID LEVEL SWITCH

BRC-147

< COMPONENT DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to

BRC-91, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

BRC-148

< COMPONENT DIAGNOSIS >

[ESP/TCS/ABS]

C1156 ST ANG SEN COM CIR

C1156 ST ANG SEN COM CIR

Description

INFOID:0000000001731152

The steering angle sensor is connected to the ABS actuator and electric unit (control unit) in addition to CAN
lines. CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle
multiplex communication line with high data communication speed and excellent error detection ability. Many
electronic control units are equipped onto a vehicle, and each control unit shares information and links with
other control units during operation (not independent). In CAN communication, control units are connected
with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less
wiring. Each control unit transmits/receives data but selectively reads required data only.

DTC Logic

INFOID:0000000001731153

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-148, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000001731154

INSPECTION PROCEDURE

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E125,
check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.

2.

Reconnect connector and perform self-diagnosis.

Is above displayed on the self-diagnosis display?

YES

>> Refer to

BRC-86, "Work Flow"

.

NO

>> INSPECTION END

DTC

Display item

Malfunction detected condition

Possible cause

C1156

ST ANG SEN COM CIR

When steering angle sensor is not transmitting CAN
communication signal to the ABS actuator and electric
unit (control unit).

• Harness or connector
• CAN communication line
• Steering angle sensor
• ABS actuator and electric unit

(control unit)

Self-diagnosis results

ST ANG SEN COM CIR

Self-diagnosis results

CAN COMM CIRCUIT

ST ANG SEN COM CIR

C1160 DECEL G SEN SET

BRC-149

< COMPONENT DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1160 DECEL G SEN SET

Description

INFOID:0000000001731155

The yaw rate/side/decel G sensor detects the yaw rate/side/decel G affecting the vehicle, and transmits the
data to the ABS actuator and electric unit (control unit) as an analog voltage signal.

DTC Logic

INFOID:0000000001731156

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-149, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000001731157

INSPECTION PROCEDURE

1.

PERFORM SELF-DIAGNOSIS

Perform ABS actuator and electric unit (control unit) self-diagnosis.

Do self-diagnosis results indicate anything other than shown above?

YES

>> Perform repair or replacement for the item indicated.

NO

>> Perform calibration of decel G sensor. Refer to

BRC-91, "CALIBRATION OF DECEL G SENSOR

: Description"

. GO TO 2

2.

PERFORM SELF-DIAGNOSIS AGAIN

1.

Turn the ignition switch to OFF and then to ON and erase self-diagnosis results.

2.

Perform ABS actuator and electric unit (control unit) self-diagnosis again.

Are any self-diagnosis results displayed?

YES

>> Replace yaw rate/side/decel G sensor. Refer to

BRC-185, "Removal and Installation"

.

NO

>> INSPECTION END

DTC

Display item

Malfunction detected condition

Possible cause

C1160

DECEL G SEN SET

ABS decel G sensor adjustment is incomplete.

• Decel G sensor calibration
• Yaw rate/side/decel G sensor
• ABS actuator and electric unit

(control unit)

Self-diagnosis results

DECEL G SEN SET

Self-diagnosis results

DECEL G SEN SET
