Nissan Tiida C11. Manual - part 92

BRC-134

< COMPONENT DIAGNOSIS >

[ESP/TCS/ABS]

C1121, C1123, C1125, C1127 OUT ABS SOL

NO

>> Go to diagnosis procedure. Refer to

BRC-49, "Diagnosis Procedure"

.

Special Repair Requirement

INFOID:0000000001731127

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to

BRC-90, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL

POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to

BRC-91, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

C1130, C1131, C1132, C1133, C1136 ENGINE SIGNAL

BRC-135

< COMPONENT DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1130, C1131, C1132, C1133, C1136 ENGINE SIGNAL

Description

INFOID:0000000001731128

ABS actuator and electric unit (control unit) and ECM exchange the engine signal with CAN communication
line.

DTC Logic

INFOID:0000000001731129

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-52, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000001731130

INSPECTION PROCEDURE

1.

CHECK ENGINE SYSTEM

1.

Perform ECM self-diagnosis. Repair or replace items indicated, then perform ECM self-diagnosis again.
Refer to:

-

EC-107, "CONSULT-III Function"

 (HR16DE with EURO-OBD)

-

EC-462, "CONSULT-III Function"

 (HR16DE without EURO-OBD)

-

EC-772, "CONSULT-III Function"

 (MR18DE)

-

EC-1104, "Diagnosis Description"

 (K9K)

2.

Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to

BRC-25, "CONSULT-III Func-

tion (ABS)"

.

Is any item indicated on the self-diagnosis display?

YES

>> Repair or replace the affected part.

NO

>> INSPECTION END

Special Repair Requirement

INFOID:0000000001731131

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

DTC

Display item

Malfunction detected condition

Possible cause

C1130

ENGINE SIGNAL 1

Based on the signal from ECM, ABS actuator and electric
unit (control unit) judges that engine fuel cut system is
malfunctioning.

• Harness or connector
• ABS actuator and electric unit

(control unit)

• ECM
• CAN communication line

C1131

ENGINE SIGNAL 2

C1132

ENGINE SIGNAL 3

C1133

ENGINE SIGNAL 4

C1136

ENGINE SIGNAL 6

Self-diagnosis results

ENGINE SIGNAL 1

ENGINE SIGNAL 2

ENGINE SIGNAL 3

ENGINE SIGNAL 4

ENGINE SIGNAL 6

BRC-136

< COMPONENT DIAGNOSIS >

[ESP/TCS/ABS]

C1130, C1131, C1132, C1133, C1136 ENGINE SIGNAL

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator
and electric unit (control unit). Refer to

BRC-90, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL

POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).
Refer to

BRC-91, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

C1140 ACTUATOR RLY

BRC-137

< COMPONENT DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1140 ACTUATOR RLY

Description

INFOID:0000000001731132

Activates or deactivates each solenoid valve according to the signals transmitted by the ABS actuator and
electric unit (control unit).

DTC Logic

INFOID:0000000001731133

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-54, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000001731134

INSPECTION PROCEDURE

1.

CHECK CONNECTOR

1.

Turn ignition switch OFF.

2.

Disconnect ABS actuator and electric unit (control unit) connector.

3.

Check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.

4.

Reconnect connectors and then perform the self-diagnosis. Refer to

BRC-25, "CONSULT-III Function

(ABS)"

.

Is any item indicated on the self-diagnosis display?

YES

>> GO TO 2

NO

>> Poor connection of connector terminal. Repair or replace connector.

2.

CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACTUATOR RELAY POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect ABS actuator and electric unit (control unit) connec-
tor.

3.

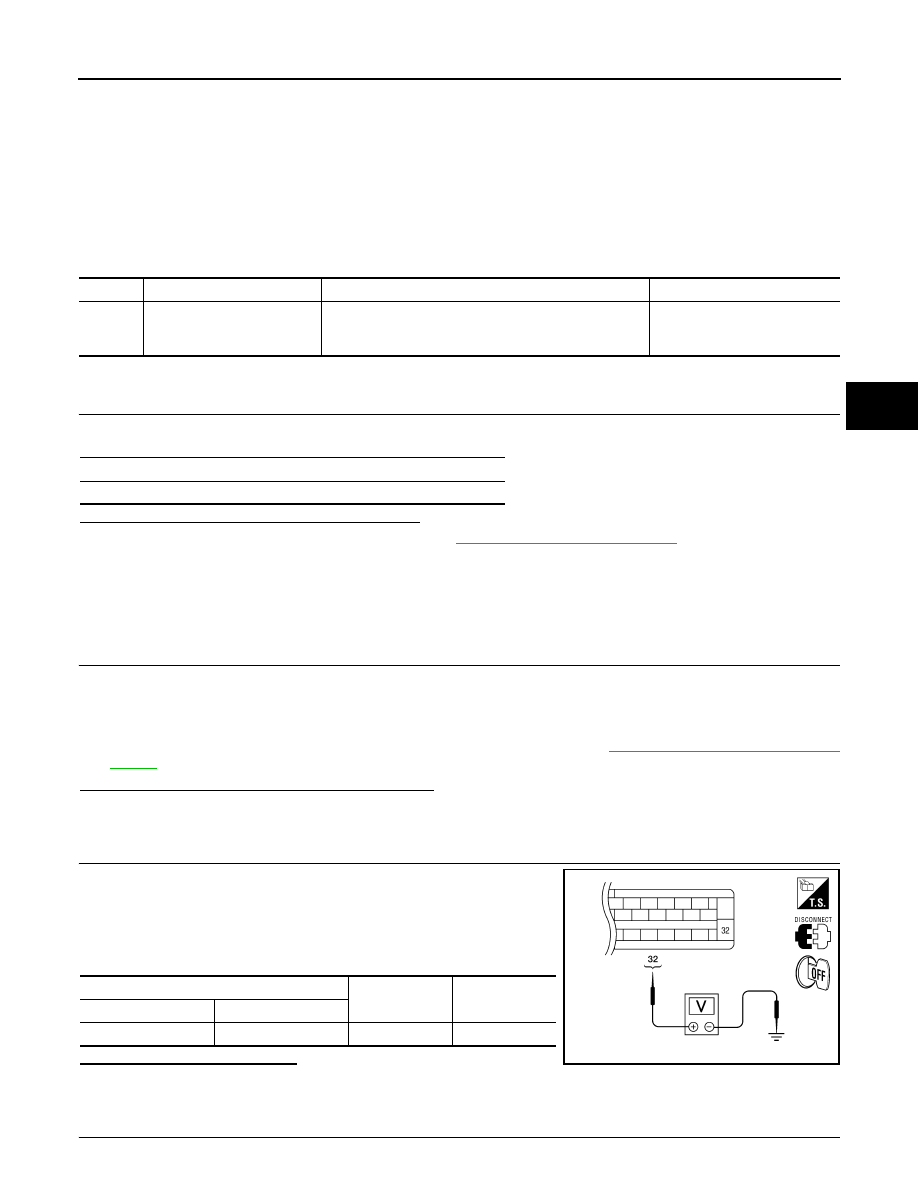

Check voltage between ABS actuator and electric unit (control
unit) harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace malfunctioning components.

3.

CHECK SOLENOID, VDC SWITCH-OVER VALVE AND ACUATOR RELAY GROUND CIRCUIT

DTC

Display item

Malfunction detected condition

Possible cause

C1140

ACTUATOR RLY

ABS actuator relay or circuit malfunction.

• Harness or connector
• ABS actuator and electric unit

(control unit)

Self-diagnosis results

ACTUATOR RLY

ABS actuator and electric unit (control unit)

—

Voltage

Connector

Terminal

E125

32

Ground

Battery voltage

AWFIA0018ZZ
