BRC-98

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

TCS

Component Description

INFOID:0000000001731072

1.

Front wheel sensor
LH E18
RH E117

2.

ABS actuator and electric unit (con-
trol unit) E125

3.

Combination meter M24

4.

Rear wheel sensor
LH C11
RH C10

5.

Yaw rate/side/decel G sensor M108

6.

Steering angle sensor M17 (view
with steering wheel removed)

7.

VDC OFF switch M257

8.

Active booster E49

9.

Delta stroke sensor E114

10. Brake fluid level switch E21

11.

Front pressure sensor E31

12. Rear pressure sensor E32

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-39, "Description"

Motor

Actuator relay

BRC-54, "Description"

Solenoid valve

BRC-46, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

XX-XX, "*****"

Wheel sensor

BRC-30, "Description"

Yaw rate/side/decel G sensor

XX-XX, "*****"

Steering angle sensor

XX-XX, "*****"

VDC OFF switch

XX-XX, "*****"

ABS warning lamp

BRC-60, "Description"

Brake warning lamp

BRC-61, "Description"

VDC OFF indicator lamp

XX-XX, "*****"

SLIP indicator lamp

XX-XX, "*****"

Front pressure sensor

XX-XX, "*****"

Rear pressure sensor

Active booster

XX-XX, "*****"

Delta stroke sensor

XX-XX, "*****"

ABS

BRC-99

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABS

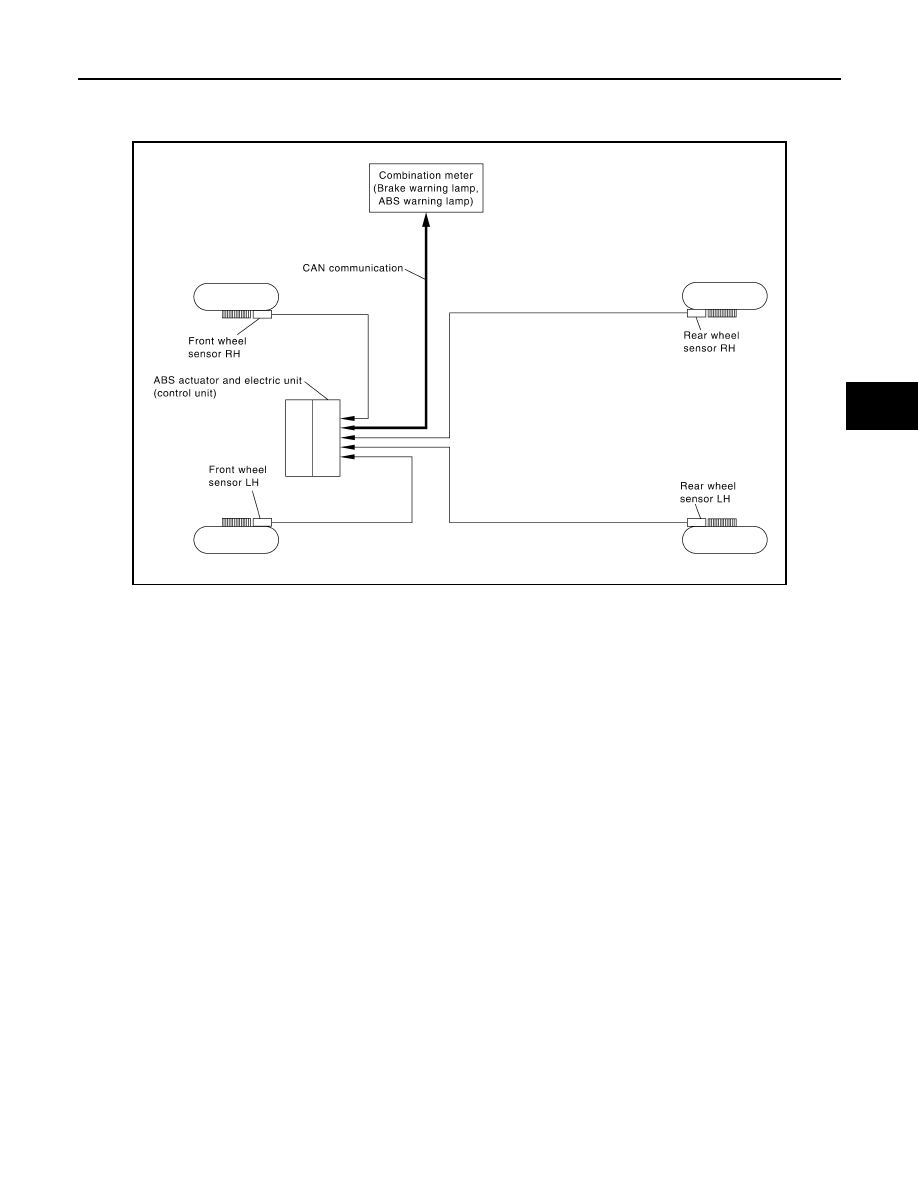

System Diagram

INFOID:0000000001731073

System Description

INFOID:0000000001731074

• Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls

braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-
verability for avoiding obstacles.

• Electrical system diagnosis by CONSULT-III is available.

AWFIA0014GB

BRC-100

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

ABS

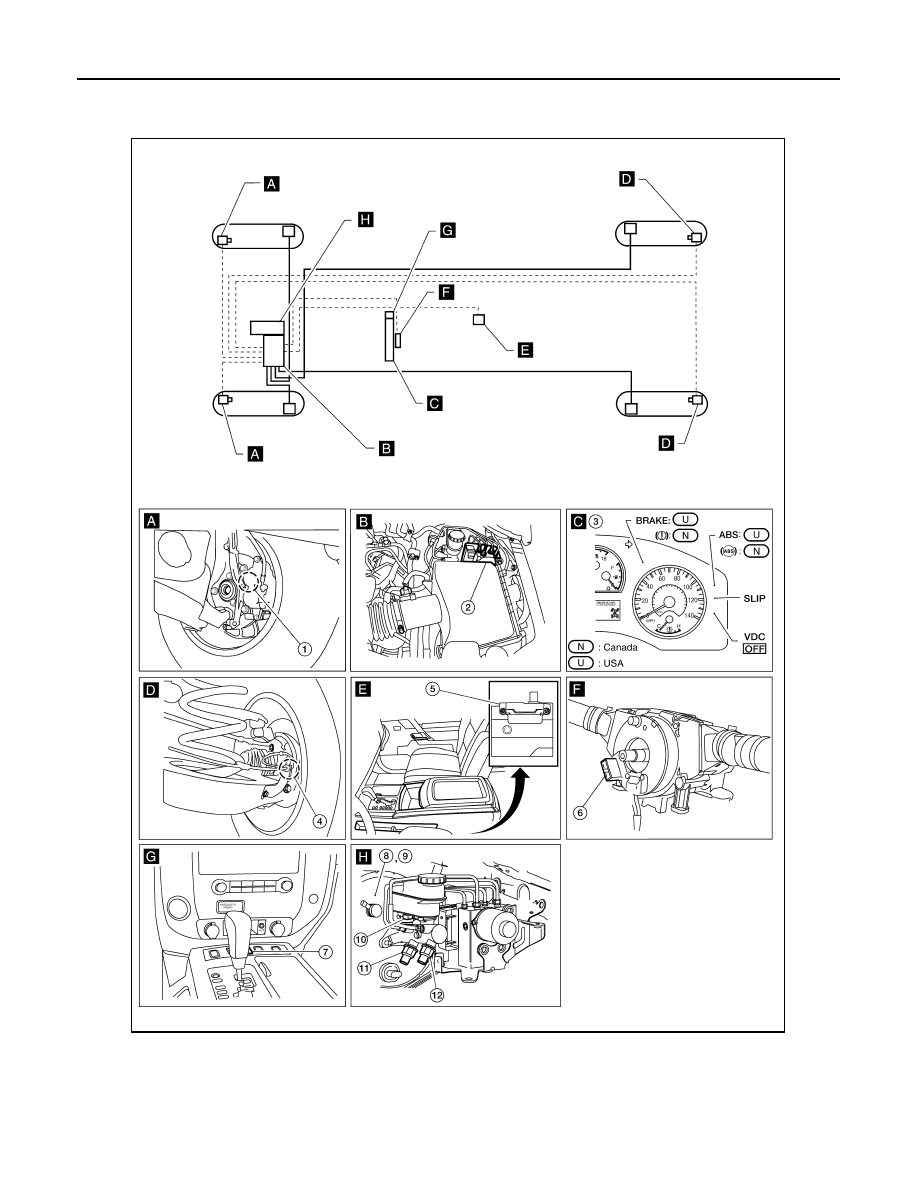

Component Parts Location

INFOID:0000000001731075

AWFIA0013GB

ABS

BRC-101

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000001731076

1.

Front wheel sensor
LH E18
RH E117

2.

ABS actuator and electric unit (con-
trol unit) E125

3.

Combination meter M24

4.

Rear wheel sensor
LH C11
RH C10

5.

Yaw rate/side/decel G sensor M108

6.

Steering angle sensor M17 (view
with steering wheel removed)

7.

VDC OFF switch M257

8.

Active booster E49

9.

Delta stroke sensor E114

10. Brake fluid level switch E21

11.

Front pressure sensor E31

12. Rear pressure sensor E32

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-39, "Description"

Motor

Actuator relay

BRC-54, "Description"

Solenoid valve

BRC-46, "Description"

Wheel sensor

BRC-30, "Description"

ABS warning lamp

BRC-60, "Description"

Brake warning lamp

BRC-61, "Description"
