Nissan Tiida C11. Manual - part 82

BRC-94

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

VDC

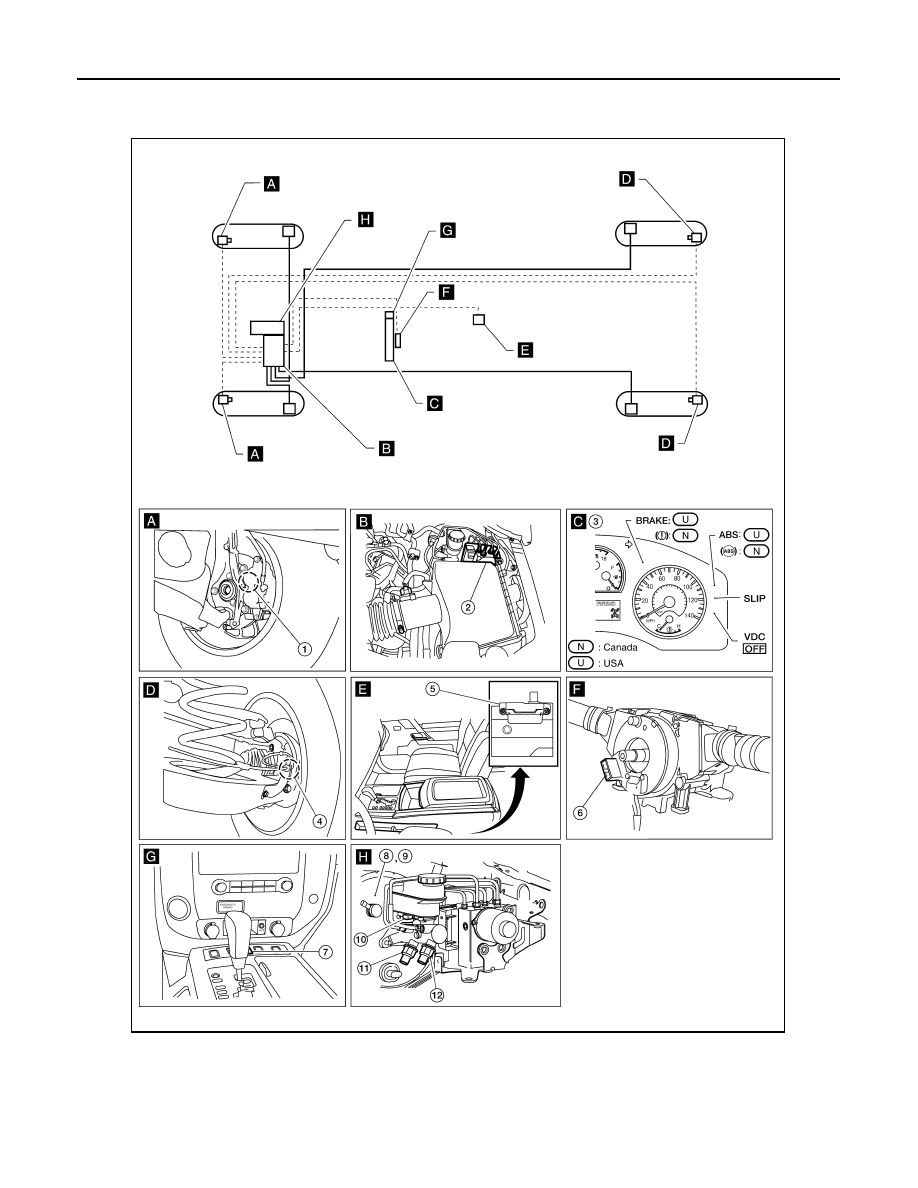

Component Parts Location

INFOID:0000000001731067

AWFIA0013GB

VDC

BRC-95

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000001731068

1.

Front wheel sensor
LH E18
RH E117

2.

ABS actuator and electric unit (con-
trol unit) E125

3.

Combination meter M24

4.

Rear wheel sensor
LH C11
RH C10

5.

Yaw rate/side/decel G sensor M108

6.

Steering angle sensor M17 (view
with steering wheel removed)

7.

VDC OFF switch M257

8.

Active booster E49

9.

Delta stroke sensor E114

10. Brake fluid level switch E21

11.

Front pressure sensor E31

12. Rear pressure sensor E32

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-39, "Description"

Motor

Actuator relay

BRC-54, "Description"

Solenoid valve

BRC-46, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

XX-XX, "*****"

Wheel sensor

BRC-30, "Description"

Yaw rate/side/decel G sensor

XX-XX, "*****"

Steering angle sensor

XX-XX, "*****"

VDC OFF switch

XX-XX, "*****"

ABS warning lamp

BRC-60, "Description"

Brake warning lamp

BRC-61, "Description"

VDC OFF indicator lamp

XX-XX, "*****"

SLIP indicator lamp

XX-XX, "*****"

Front pressure sensor

XX-XX, "*****"

Rear pressure sensor

Active booster

XX-XX, "*****"

Delta stroke sensor

XX-XX, "*****"

BRC-96

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

TCS

TCS

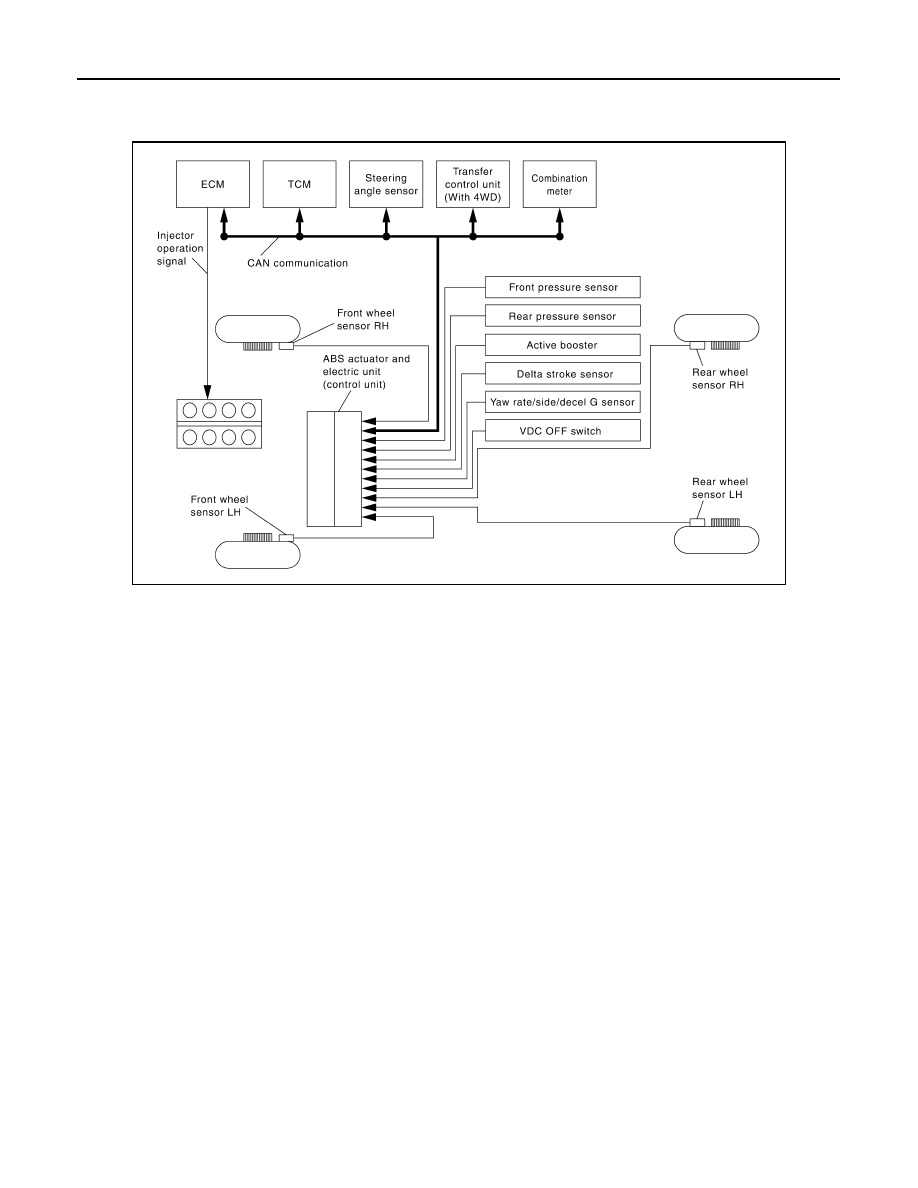

System Diagram

INFOID:0000000001731069

System Description

INFOID:0000000001731070

• Traction Control System is a function that electronically controls engine torque, brake fluid pressure and A/T

gear position to ensure the optimum slippage ratio at drive wheels by computing wheel speed signals from 4
wheel sensors. When ABS actuator and electric unit (control unit) detects a spin at drive wheels (rear
wheels), it compares wheel speed signals from all 4 wheels. At this time, LH and RH rear brake fluid pres-
sure are controlled, while fuel being cut to engine and throttle valve being closed to reduce engine torque by
the control unit. Further more, throttle position is continuously controlled to ensure the optimum engine
torque at all times.

• During TCS operation, it informs driver of system operation by flashing SLIP indicator lamp.
• Electrical system diagnosis by CONSULT-III is available.

AWFIA0012GB

TCS

BRC-97

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

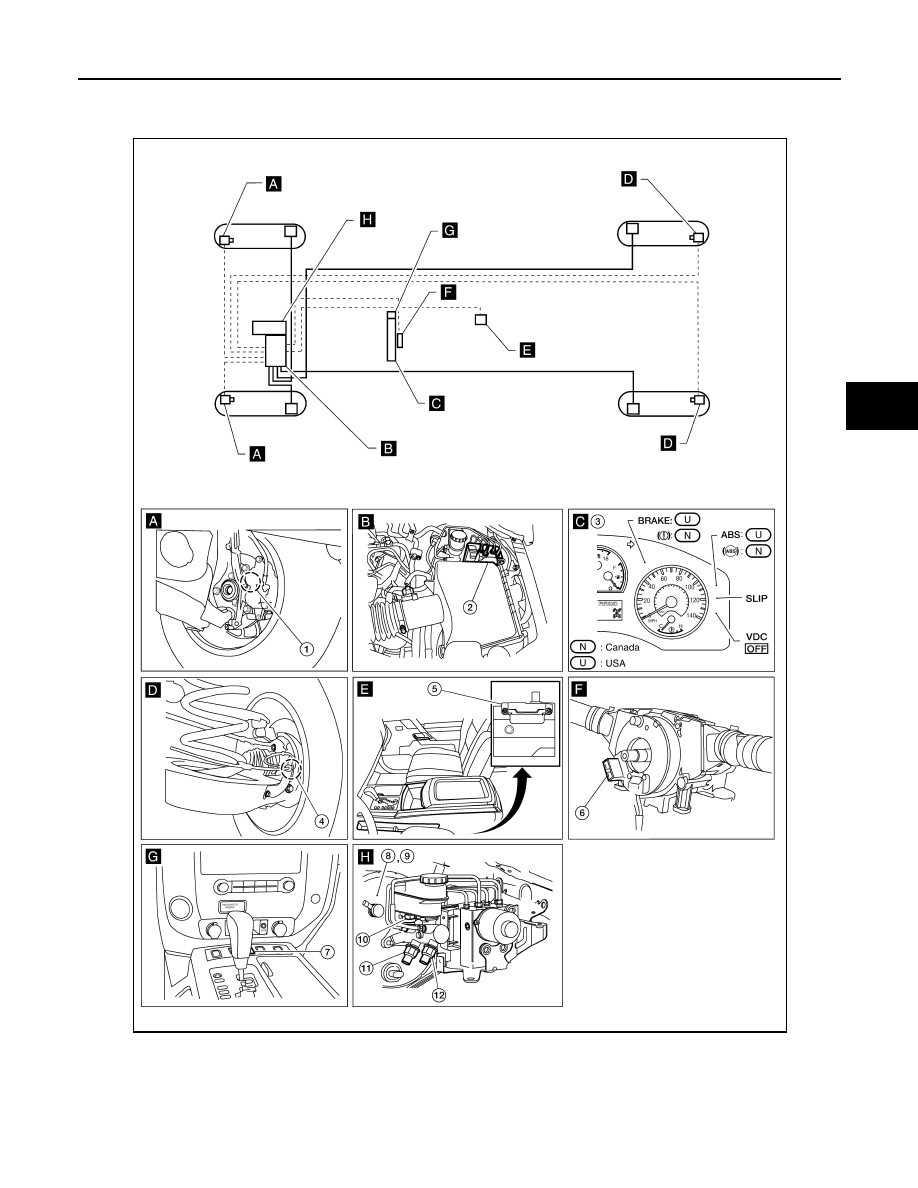

Component Parts Location

INFOID:0000000001731071

AWFIA0013GB
