BRC-90

< BASIC INSPECTION >

[ESP/TCS/ABS]

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description

INFOID:0000000001731361

After replacing the ABS actuator and electric unit (control unit), perform the following procedures:
• Neutral position adjustment for the steering angle sensor
• Calibration of the decel G sensor

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000001731362

1.

PERFORM THE NEUTRAL POSITION ADJUSTMENT FOR THE STEERING ANGLE SENSOR

Perform the neutral position adjustment for the steering angle sensor.

>> Refer to

BRC-90, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Spe-

cial Repair Requirement"

, GO TO 2

2.

PERFORM CALIBRATION OF THE DECEL G SENSOR

Perform calibration of the decel G sensor.

>> Refer to

BRC-92, "CALIBRATION OF DECEL G SENSOR : Special Repair Requirement"

.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Description

INFOID:0000000001731363

Refer to the table below to determine if adjustment of steering angle sensor neutral position is required.

×

: Required –: Not required

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Re-
pair Requirement

INFOID:0000000001731364

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

CAUTION:

To adjust neutral position of steering angle sensor, make sure to use CONSULT-III
(Adjustment cannot be done without CONSULT-III)

1.

ALIGN THE VEHICLE STATUS

Stop vehicle with front wheels in straight-ahead position.

Situation

Adjustment of steering angle sensor neutral position

Removing/Installing ABS actuator and electric unit (control unit)

Replacing ABS actuator and electric unit (control unit)

×

Removing/Installing steering angle sensor

×

Replacing steering angle sensor

×

Removing/Installing steering components

×

Replacing steering components

×

Removing/Installing suspension components

×

Replacing suspension components

×

Change tires to new ones

Tire rotation

Adjusting wheel alignment

×

INSPECTION AND ADJUSTMENT

BRC-91

< BASIC INSPECTION >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

>> GO TO 2

2.

PERFORM THE NEUTRAL POSITION ADJUSTMENT FOR THE STEERING ANGLE SENSOR

1.

On the CONSULT-III screen, touch “WORK SUPPORT” and “ST ANG SEN ADJUSTMENT” in order.

2.

Touch “START”.

CAUTION:

Do not touch steering wheel while adjusting steering angle sensor.

3.

After approximately 10 seconds, touch “END”.
NOTE:
After approximately 60 seconds, it ends automatically.

4.

Turn ignition switch OFF, then turn it ON again.

CAUTION:

Be sure to perform above operation.

>> GO TO 3

3.

CHECK DATA MONITOR

1.

Run vehicle with front wheels in straight-ahead position, then stop.

2.

Select “DATA MONITOR”. Then make sure “STR ANGLE SIG” is within 0

±

2.5

°

.

Is the steering angle within the specified range?

YES

>> GO TO 4

NO

>> Perform the neutral position adjustment for the steering angle sensor again, GO TO 1

4.

ERASE THE SELF-DIAGNOSIS MEMORY

Erase the self-diagnosis memory of the ABS actuator and electric unit (control unit) and ECM.
• ABS actuator and electric unit (control unit): Refer to

BRC-25, "CONSULT-III Function (ABS)"

.

• ECM, refer to:
-

EC-107, "CONSULT-III Function"

 (HR16DE with EURO-OBD)

-

EC-462, "CONSULT-III Function"

 (HR16DE without EURO-OBD)

-

EC-772, "CONSULT-III Function"

 (MR18DE)

-

EC-1104, "Diagnosis Description"

 (K9K)

Are the memories erased?

YES

>> INSPECTION END

NO

>> Check the items indicated by the self-diagnosis.

CALIBRATION OF DECEL G SENSOR

CALIBRATION OF DECEL G SENSOR : Description

INFOID:0000000001731365

Refer to the table below to determine if calibration of the decel G sensor is required.

×

: Required –: Not required

Situation

Calibration of decel G sensor

Removing/Installing ABS actuator and electric unit (control unit)

Replacing ABS actuator and electric unit (control unit)

×

Removing/Installing steering angle sensor

×

Replacing steering angle sensor

×

Removing/Installing steering components

×

Replacing steering components

×

Removing/Installing suspension components

×

Replacing suspension components

×

Change tires to new ones

Tire rotation

Adjusting wheel alignment

×

BRC-92

< BASIC INSPECTION >

[ESP/TCS/ABS]

INSPECTION AND ADJUSTMENT

CALIBRATION OF DECEL G SENSOR : Special Repair Requirement

INFOID:0000000001731366

CALIBRATION OF DECEL G SENSOR

CAUTION:

To calibrate the decel G sensor, make sure to use CONSULT-III
(Calibration cannot be done without CONSULT-III)

1.

ALIGN THE VEHICLE STATUS

Stop vehicle with front wheels in straight-ahead position.

>> GO TO 2

2.

PERFORM CALIBRATION OF DECEL G SENSOR

1.

On the CONSULT-III screen, touch “WORK SUPPORT” and “DECEL G SEN CALIBRATION” in order.

2.

Touch “START”.

3.

After approximately 10 seconds, touch “END”.
NOTE:
After approximately 60 seconds, it ends automatically.

4.

Turn ignition switch OFF, then turn it ON again.

CAUTION:

Be sure to perform above operation.

>> GO TO 3

3.

CHECK DATA MONITOR

1.

Run vehicle with front wheels in straight-ahead position, then stop.

2.

Select “DATA MONITOR”. Then make sure “DECEL G SEN” is within

±

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Perform calibration of decel G sensor again, GO TO 1

4.

ERASE THE SELF-DIAGNOSIS MEMORY

Erase the self-diagnosis memory of the ABS actuator and electric unit (control unit) and ECM.
• ABS actuator and electric unit (control unit): Refer to

BRC-25, "CONSULT-III Function (ABS)"

.

• ECM, refer to:
-

EC-107, "CONSULT-III Function"

 (HR16DE with EURO-OBD)

-

EC-462, "CONSULT-III Function"

 (HR16DE without EURO-OBD)

-

EC-772, "CONSULT-III Function"

 (MR18DE)

-

EC-1104, "Diagnosis Description"

 (K9K)

Are the memories erased?

YES

>> INSPECTION END

NO

>> Check the items indicated by the self-diagnosis.

VDC

BRC-93

< FUNCTION DIAGNOSIS >

[ESP/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

FUNCTION DIAGNOSIS

VDC

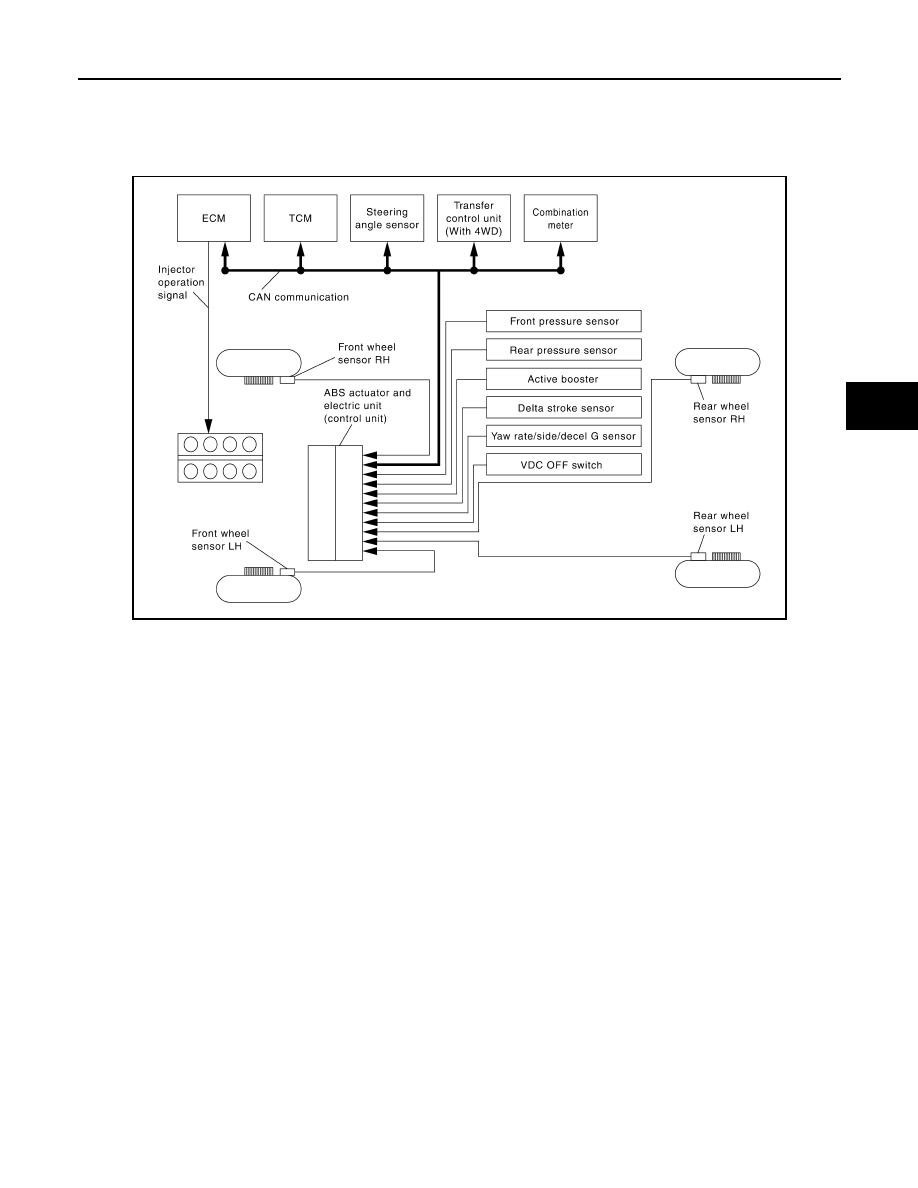

System Diagram

INFOID:0000000001731065

System Description

INFOID:0000000001731066

• Vehicle Dynamics Control system detects driver

s steering operation amount and brake pedal travel from

steering angle sensor and pressure sensors. Using information from yaw rate/side/decel G sensor and
wheel sensor, VDC judges driving condition (conditions of under steer and over steer) to improve vehicle
driving stability by controlling brake application to 4 wheels and engine output.

• During VDC operation, it informs driver of system operation by flashing SLIP indicator lamp.
• Electrical system diagnosis by CONSULT-III is available.

AWFIA0012GB
