Nissan Tiida C11. Manual - part 48





BCS-56

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001523305

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

BCS

BCM (BODY CONTROL MODULE)

BCS-57

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ON-VEHICLE REPAIR

BCM (BODY CONTROL MODULE)

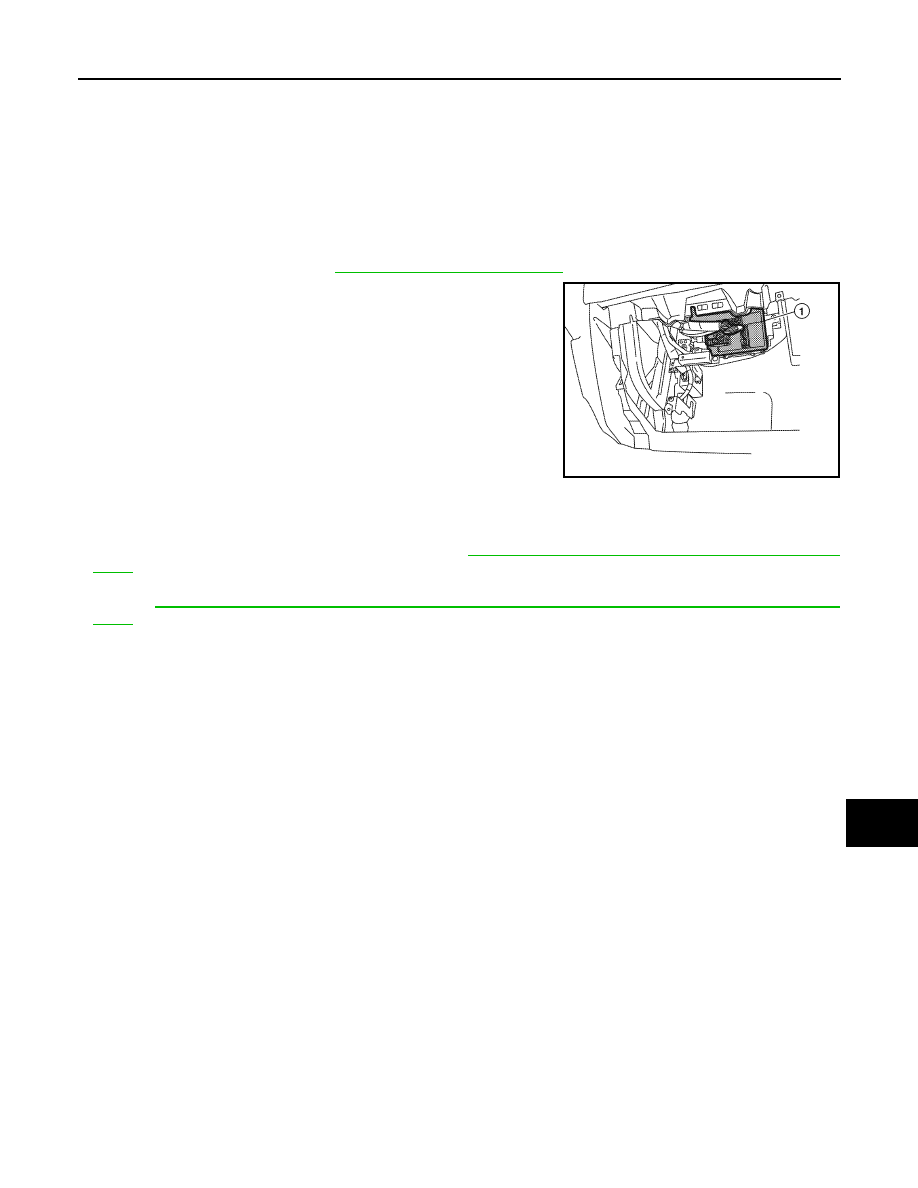

Removal and Installation of BCM

INFOID:0000000001523223

NOTE:
The LHD model shown, RHD model similar.

REMOVAL

1.

Remove the glove box. Refer to

IP-11, "Removal and Installation"

.

2.

Remove the BCM screws, disconnect the connectors and
remove the BCM (1).

INSTALLATION

Installation is in the reverse order of removal.
NOTE:
• When replacing BCM, it must be configured. Refer to

BCS-4, "CONFIGURATION : Special Repair Require-

ment"

.

• When replacing BCM, perform initialization of NATS system and registration of all NATS ignition key IDs.

Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.

• When replacing BCM, if new BCM does not come with keyfobs attached, all existing keyfobs must be re-reg-

istered.

WKIA5672E

BR-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

BR

A

B

BR

N

O

P

CONTENTS

BRAKE SYSTEM

PRECAUTION ...............................................

3

PRECAUTIONS ...................................................

3

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

3

Precaution for Brake System  ....................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Commercial Service Tool  ..........................................

4

SYMPTOM DIAGNOSIS  ...............................

5

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

5

NVH Troubleshooting Chart  ......................................

5

ON-VEHICLE MAINTENANCE .....................

6

BRAKE PEDAL  ...................................................

6

Inspection and Adjustment ........................................

6

BRAKE FLUID .....................................................

8

On Board Inspection  .................................................

8

Drain and Refill ..........................................................

8

Bleeding Brake System .............................................

8

FRONT DISC BRAKE ........................................

10

Inspection ................................................................

10

REAR DISC BRAKE ..........................................

11

Inspection ................................................................

11

ON-VEHICLE REPAIR .................................

12

BRAKE PEDAL  ..................................................

12

Removal and Installation .........................................

12

BRAKE TUBE AND HOSE  ................................

14

Hydraulic Circuit  ......................................................

14

Front Brake Tube and Hose ....................................

14

Rear Brake Tube and Hose .....................................

15

Inspection After Installation  .....................................

15

DUAL PROPORTIONING VALVE  ....................

17

Removal and Installation  .........................................

17

Inspection ................................................................

17

BRAKE MASTER CYLINDER  ..........................

18

On-Board Inspection ................................................

18

Removal and Installation  .........................................

18

BRAKE BOOSTER  ...........................................

19

On Board Inspection ................................................

19

Removal and Installation  .........................................

19

VACUUM LINES  ...............................................

22

Component ..............................................................

22

Removal and Installation  .........................................

22

Inspection ................................................................

22

FRONT DISC BRAKE .......................................

24

Component ..............................................................

24

Removal and Installation of Brake Pad  ...................

24

Removal and Installation of Brake Caliper Assem-
bly ............................................................................

25

Brake Burnishing  .....................................................

26

REAR DISC BRAKE .........................................

27

Component ..............................................................

27

Removal and Installation of Brake Pad  ...................

28

Removal and Installation of Brake Caliper Assem-
bly ............................................................................

28

Brake Burnishing  .....................................................

29

DISASSEMBLY AND ASSEMBLY ..............

30

BRAKE MASTER CYLINDER  ..........................

30

Disassembly and Assembly .....................................

30

FRONT DISC BRAKE .......................................

34

Disassembly and Assembly of Brake Caliper As-
sembly .....................................................................

34
