loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Are  rear  height  sensor  connector  D-118  and  headlight

automatic  leveling-ECU  connector  C-110  in  good

condition?

YES:

 Go to Step 5.

NO:

 Repair the damaged parts.

STEP 5. Check the wiring harness between rear height
sensor connector D-118 (terminal No. 1/3) and headlight
automatic leveling-ECU connector C-110 (terminal No.
16/20).

NOTE:

Before the wiring harness check, check the

intermediate connectors C-129 and D-117, and then repair
that if necessary.

Q:Is wiring harness between rear height sensor connector

D-118  (terminal  No.  1/3)  and  the  headlight  automatic

leveling-ECU connector C-110 (terminal No 15/19) in good

condition?

YES:

 Go to Step 6.

NO:

 Repair the wiring harness.

STEP 6. Using scan tool MB991958, Check whether the
diagnostic trouble code is reset.

(1)

Turn the ignition switch to the "ON" position.

(2)

Erase the DTC.

(3)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(4)

Check if DTC is set.

Q:Is DTC 23 set?

YES:

 Go to Step 7.

NO:

 The trouble, such as a poor connector connection from

the rear height sensor to headlight automatic leveling-
ECU or an open circuit of wiring harness, can be an
intermittent malfunction. (Refer to GROUP 00 - How to use
Troubleshooting/inspection Service Points - How to cope
with Intermittent Malfunction P.00-15.)

STEP 7. Check front height sensor.
Check  that  the  front  height  sensor  is  normal  (Refer  to  P.
54Ac-180).

Q:Do front height sensor work normal?

YES:

 Go to Step 8.

NO:

 Replace the front height sensor.

STEP 8. Using scan tool MB991958, Check whether the
diagnostic trouble code is reset.

(1)

Turn the ignition switch to the "ON" position.

(2)

Erase the DTC.

(3)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(4)

Check if DTC is set.

LIGHTING

54Ac-69

DIAGNOSIS

Q:Is DTC 23 set?

YES:

 Go to Step 9.

NO:

 The procedure is complete.

STEP 9. Check rear height sensor.
Check  that  the  rear  height  sensor  is  normal  (Refer  to  P.
54Ac-180).

Q:Does the rear height sensor work normal?

YES:

 Go to Step 10.

NO:

 Replace the rear height sensor.

STEP 10. Using scan tool MB991958, Check whether the
diagnostic trouble code is reset.

(1)

Turn the ignition switch to the "ON" position.

(2)

Erase the DTC.

(3)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(4)

Check if DTC is set.

Q:Is DTC 23 set?

YES:

 Replace the headlight automatic leveling-ECU.

NO:

 The procedure is complete.

DTC 24: Pitch angle abnormality

M15410900084USA0000010000

Before  replacing  the  ECU,  ensure  that  the
communication circuit is normal.

54Ac-70

LIGHTING

DIAGNOSIS

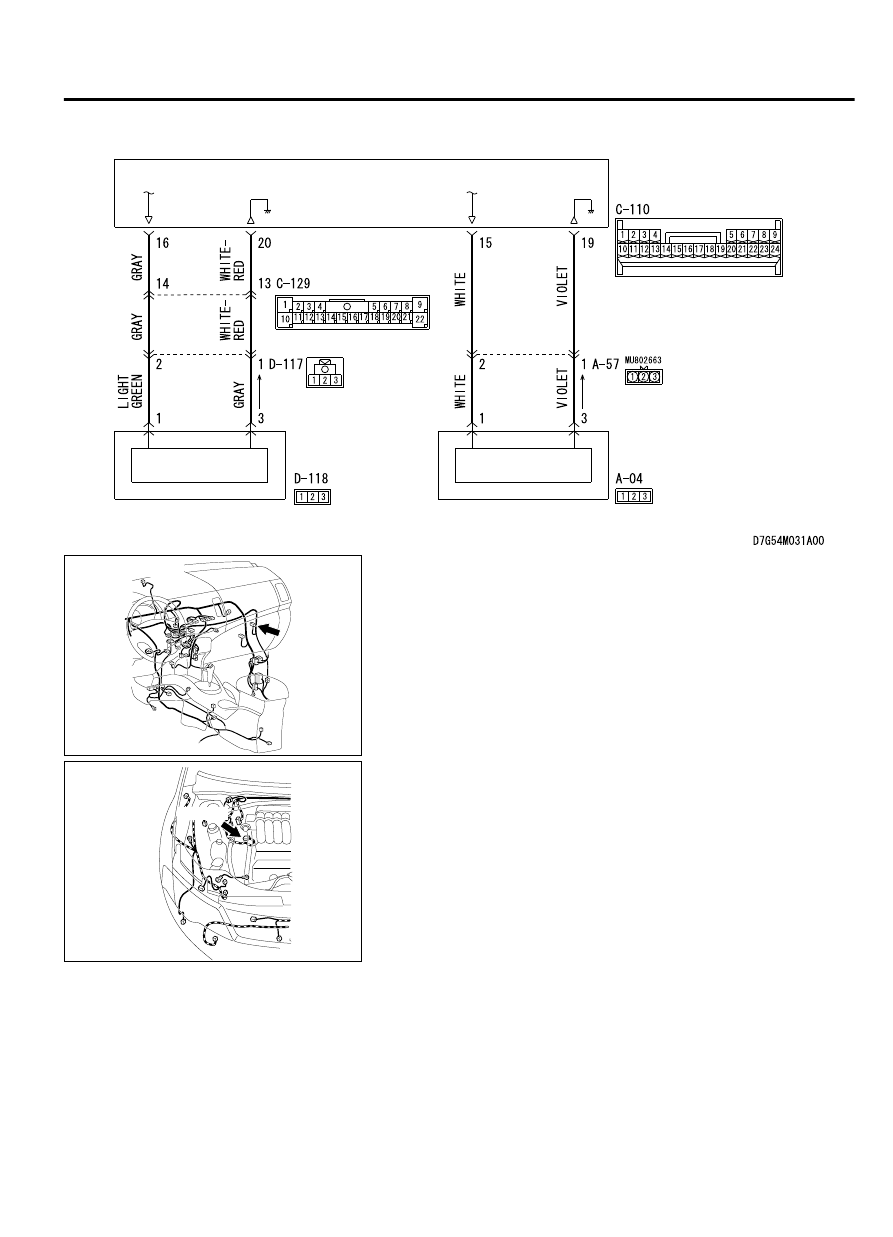

Height Sensor Power Supply Circuit

HEADLAMP
AUTOMATIC
LEVELING-ECU

HALL IC

REAR
HEIGHT
SENSOR

FRONT
HEIGHT
SENSOR

HALL IC

ZC6008760030

Connector: C-110

ZC600871

Connector: A-04

A-04 (B)

LIGHTING

54Ac-71

DIAGNOSIS

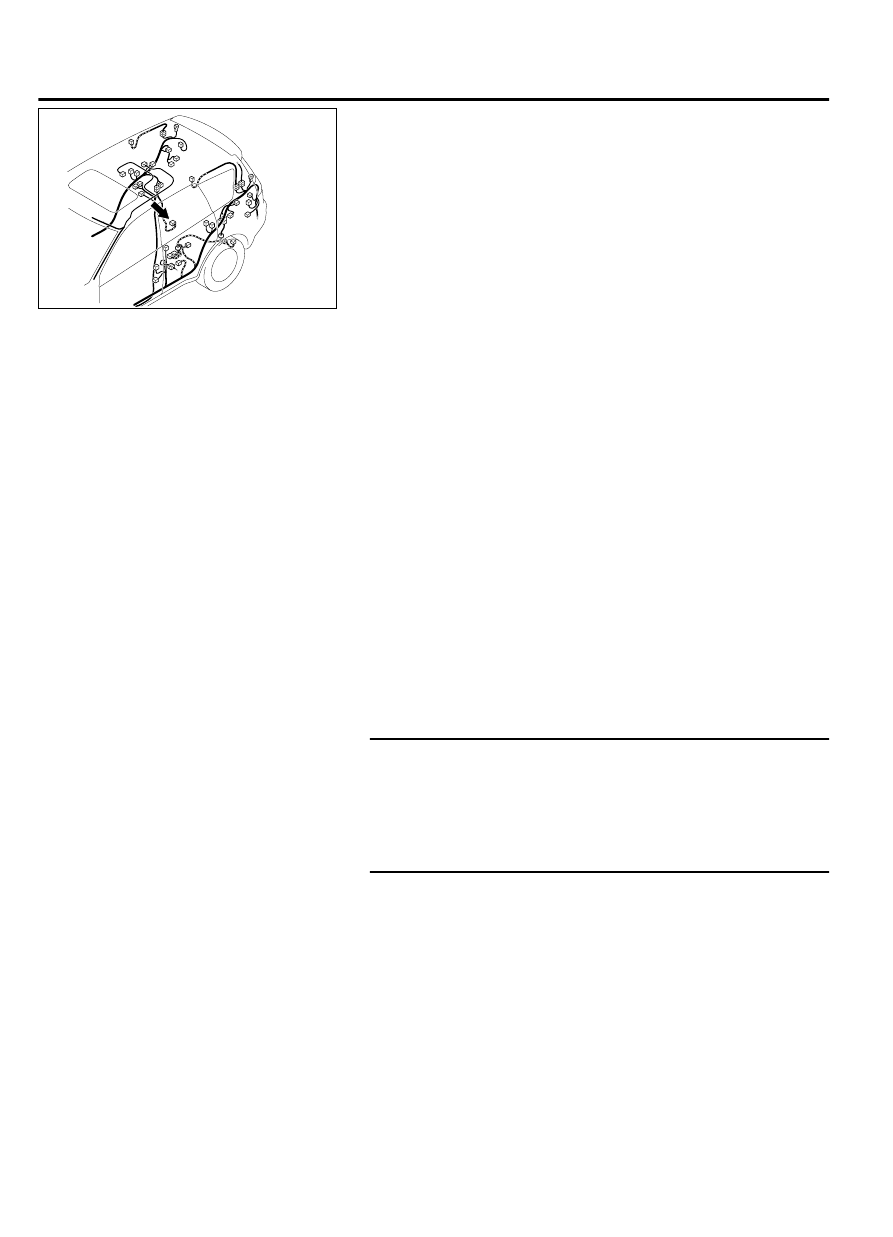

ZC6008800024

Connector: D-118

TROUBLE JUDGMENT
The  headlight  automatic  leveling-ECU  receives  a
vehicle  height  signal  from  the  front  and  rear  height
sensors  and  calculates  the  headlight  leveling  pitch
angle. If an abnormal pitch angle is calculated, DTC
24 is set.

TECHNICAL DESCRIPTION (COMMENT)
The front height sensor, the rear height sensor or the
headlight  automatic  leveling-ECU  may  have  a
problem.

TROUBLESHOOTING HINTS

Malfunction of the front height sensor

Malfunction of the rear height sensor

Malfunction  of  the  headlight  automatic  leveling-
ECU

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Check front height sensor connector A-04 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is the check result normal?

YES:

 Go to Step 2.

NO:

 Repair the damaged parts.

STEP 2. Check front height sensor.
Check  that  the  front  height  sensor  is  normal  (Refer  to  P.
54Ac-180).

Q:Do front height sensor work normal?

YES:

 Go to Step 3.

NO:

 Replace the front height sensor.

54Ac-72

LIGHTING

DIAGNOSIS
