STEP 3. Using scan tool MB991958, Check whether the
diagnostic trouble code is reset.
ZC501967
AC404789
ZC5019680000
MB991824
MB991827
MB991910
Data link
connector

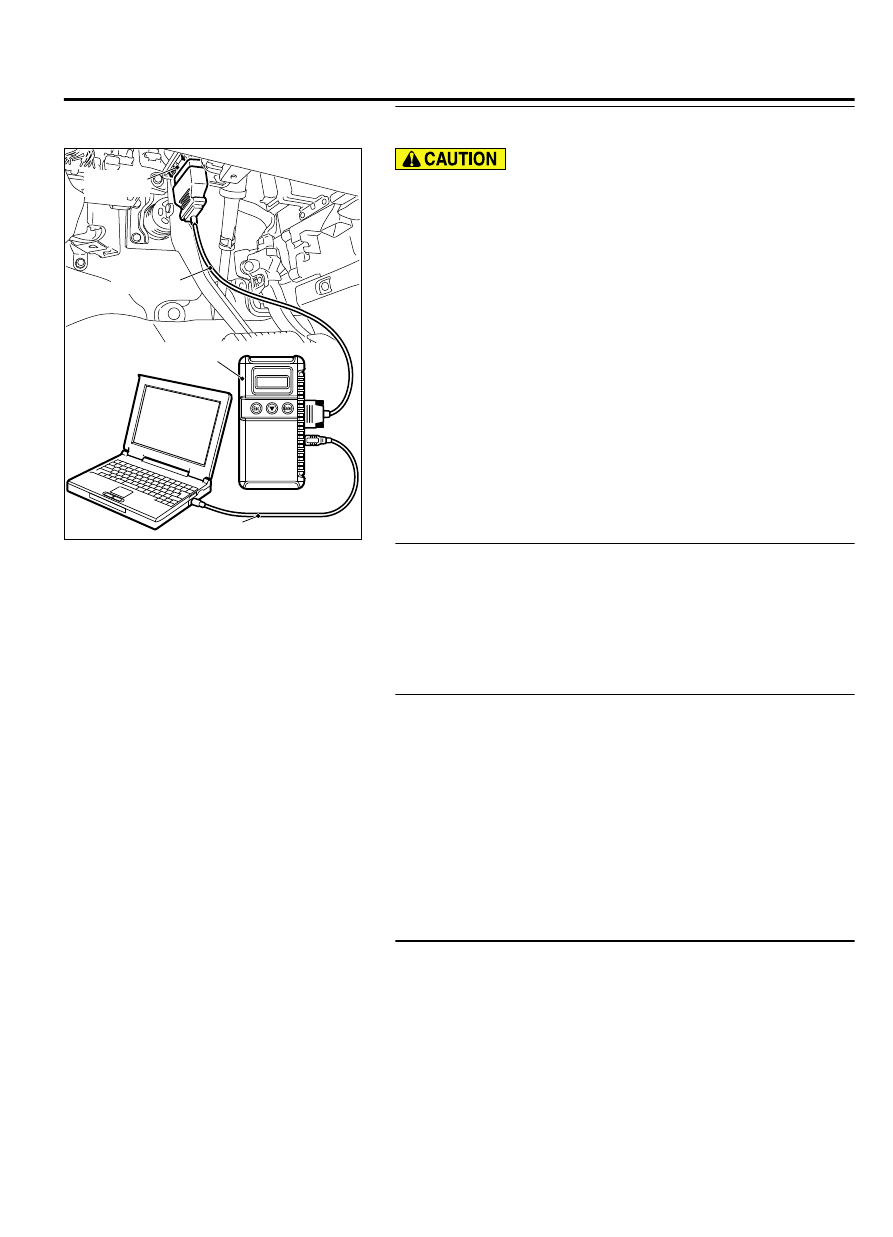

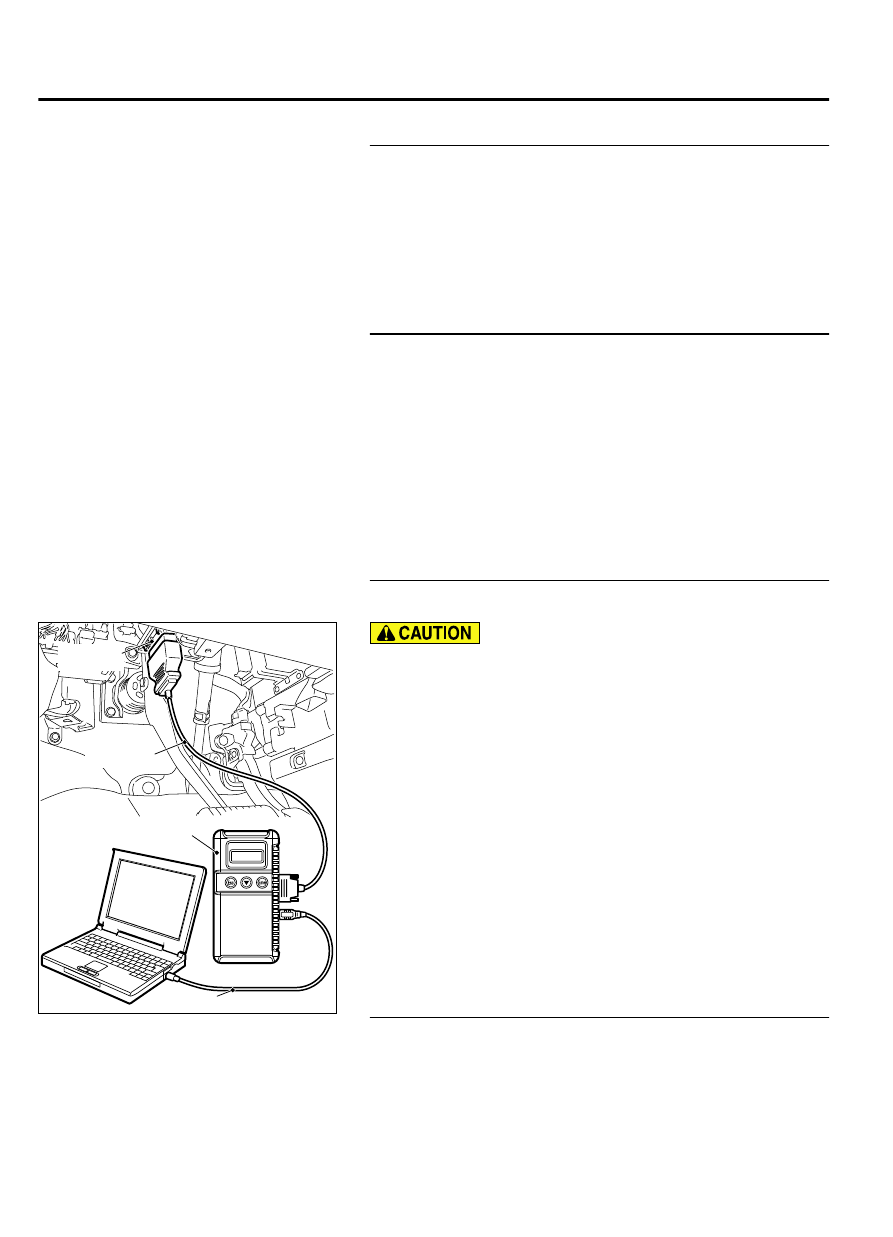

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.
(1)
Connect scan tool MB991958. Refer to "How to connect scan
tool P.54Ac-58."
(2)
Turn the ignition switch to the "ON" position.
(3)
Erase the DTC.
(4)
Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.
(5)
Check if DTC is set.
Q:Is DTC 22 set?
YES:
Go to Step 4.
NO:
The procedure is complete.
STEP 4. Check headlight automatic leveling-ECU connector
C-110 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q:Is headlight automatic leveling-ECU connector C-110 in
good condition?
YES:
Go to Step 5.
NO:
Repair the damaged parts.

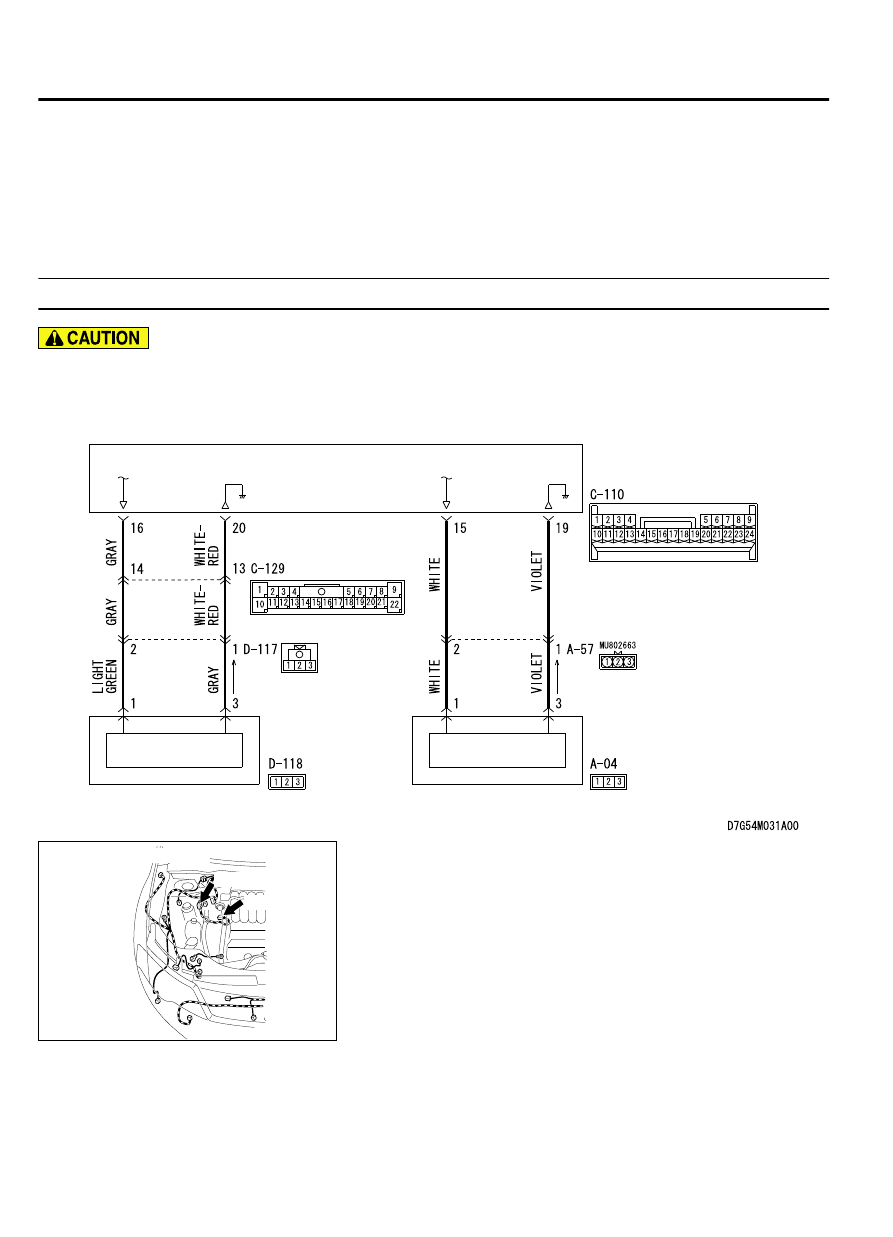

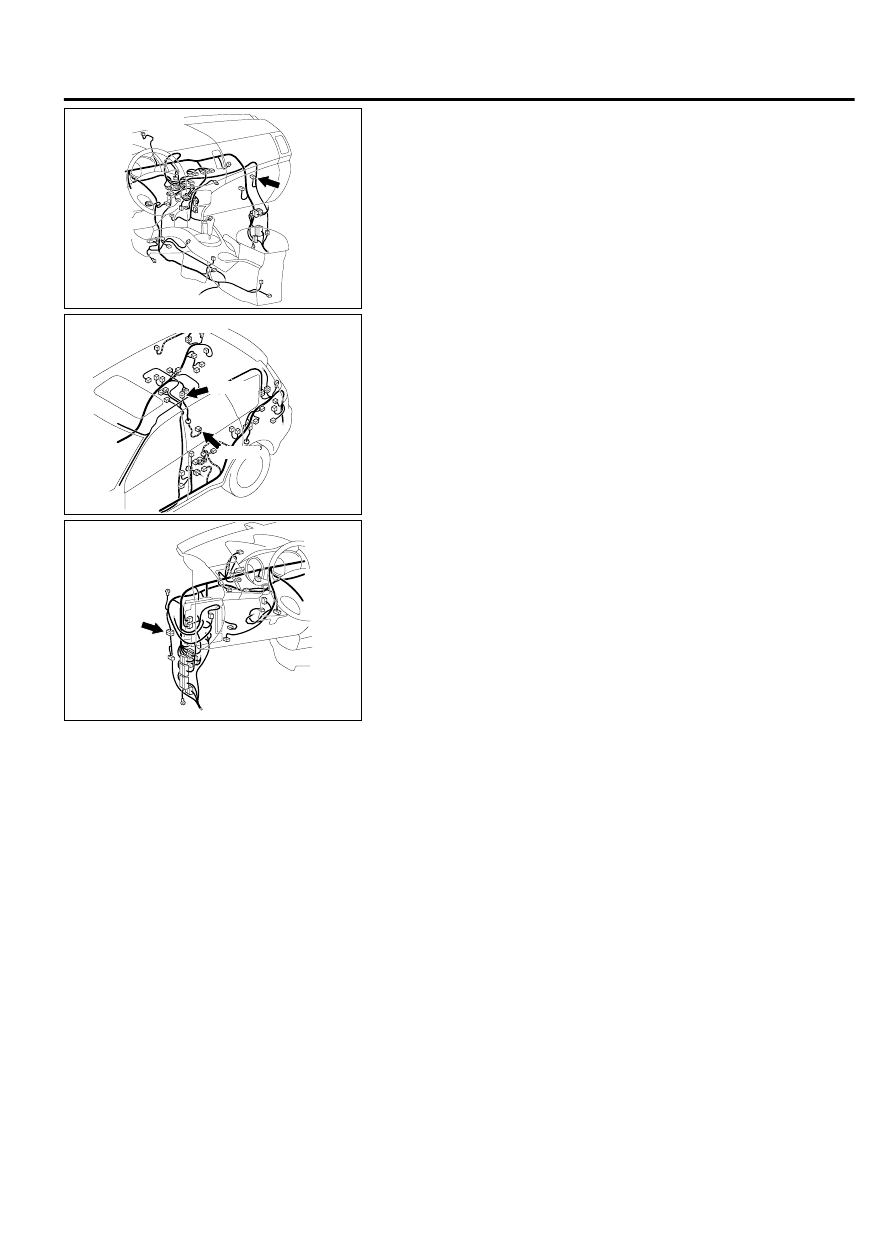

STEP 5. Check the wiring harness between front height
sensor connector A-04 (terminal No. 1/2/3) and the headlight
automatic leveling-ECU connector C-110 (terminal No.
15/17/19).
NOTE:
Before the wiring harness check, check the
intermediate connector A-57, and repair that if necessary.
Q:Is wiring harness between front height sensor connector
A-04 (terminal No. 1/2/3) and the headlight automatic
leveling-ECU connector C-110 (terminal No 15/17/19) in
good condition?
YES:
Go to Step 6.
NO:
Repair the wiring harness.
STEP 6. Using scan tool MB991958, Check whether the
diagnostic trouble code is reset.
(1)
Turn the ignition switch to the "ON" position.
(2)
Erase the DTC.
(3)
Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.
(4)
Check if DTC is set.
Q:Is DTC 22 set?
