Mitsubishi Outlander XL. Manual - part 994





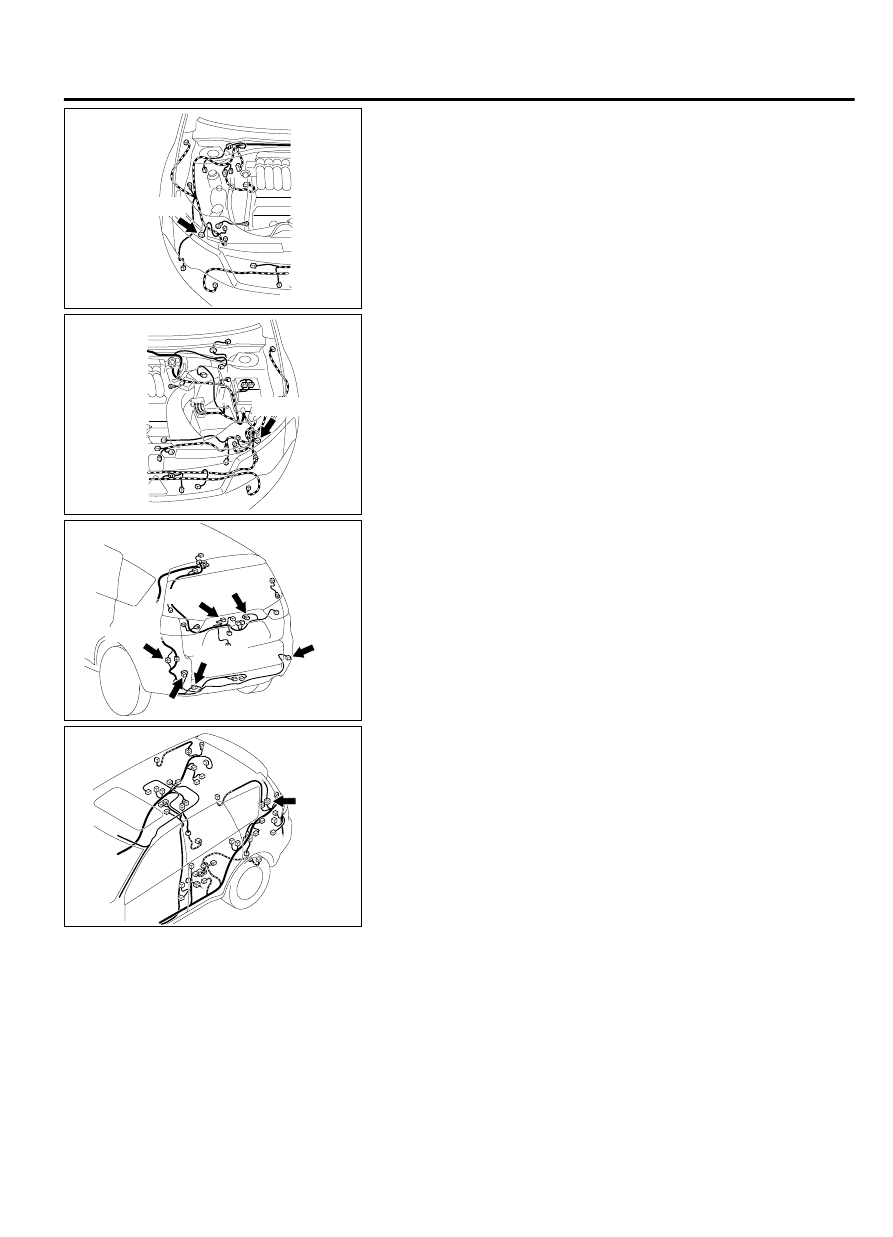

ZC6008710011

Connector: A-56

A-56 (B)

ZC6008720008

Connector: A-37

A-37 (B)

ZC6008820007

Connector: F-03, F-07, F-10, F-16, F-15, F-18

F-03

F-07

F-10

F-16

F-15 (B)

F-18 (B)

ZC6008800025

Connector: D-12

D-12

LIGHTING

54Ac-49

DIAGNOSIS

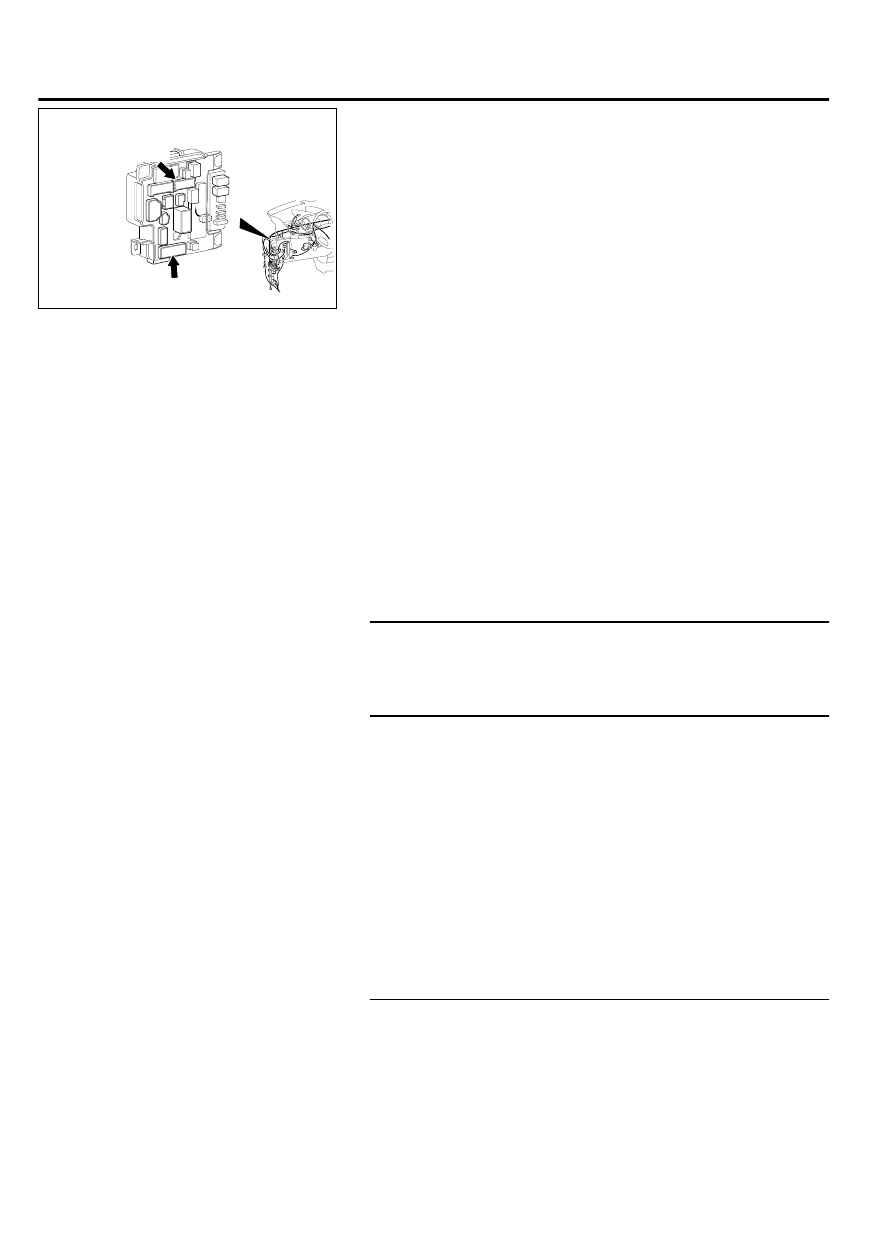

ZC6008780026

Connector: C-304, C-311

C-304

C-311

TECHNICAL DESCRIPTION (COMMENT)
If any position light, side marker light or license plate
light  do  not  illuminate  normally,  the  harness,
connector(s), or bulb(s) may have a problem, or the
fuse may be burned out.

TROUBLESHOOTING HINTS

Malfunction of bulbs

Malfunction of rear combination light

Malfunction of rear combination light harness

Malfunction of license plate light

Malfunction of headlight

Malfunction of rear side maker light

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSIS

Required Special Tools:

MB992006: Extra fine probe

MB991223: Harness set

STEP 1. Rear combination light check.

Q:Does the rear combination light illuminate normally?

YES:

 Go to Step 2.

NO:

 Refer to P.54Ac-108.

STEP 2. Check headlight assembly connector A-56
(position light RH and front side maker RH) or A-37 (position
light LH and front side maker LH), license plate light
connector F-07 (RH) or F-03 (LH), or rear side marker light
connector F-10 (RH) or F-16 (LH) for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q:Is headlight assembly connector A-56 (position light RH

and front side maker RH) or A-37 (position light RH and

front side maker LH), license plate light connector F-07

(RH) or F-03 (LH), or rear side marker light connector F-10

(RH) or F-16 (LH) in good condition?

YES:

 Go to Step 3.

NO:

 Repair the damaged parts.

STEP 3. Bulb check.
Check the bulb(s) of the light that does not illuminate.

Q:Is the check result normal?

YES:

 Go to Step 4.

54Ac-50

LIGHTING

DIAGNOSIS

NO:

 Replace the bulb(s) of the light that does not

illuminate.

STEP 4. Resistance measurement at headlight assembly
connector A-56 (position light RH and front side maker RH)
or A-37 (position light LH and front side maker LH), license
plate light connector F-07 (RH) or F-03 (LH), or rear side
marker light connector F-10 (RH) or F-16 (LH).

(1)

Disconnect the connector, and measure at the wiring harness
side.

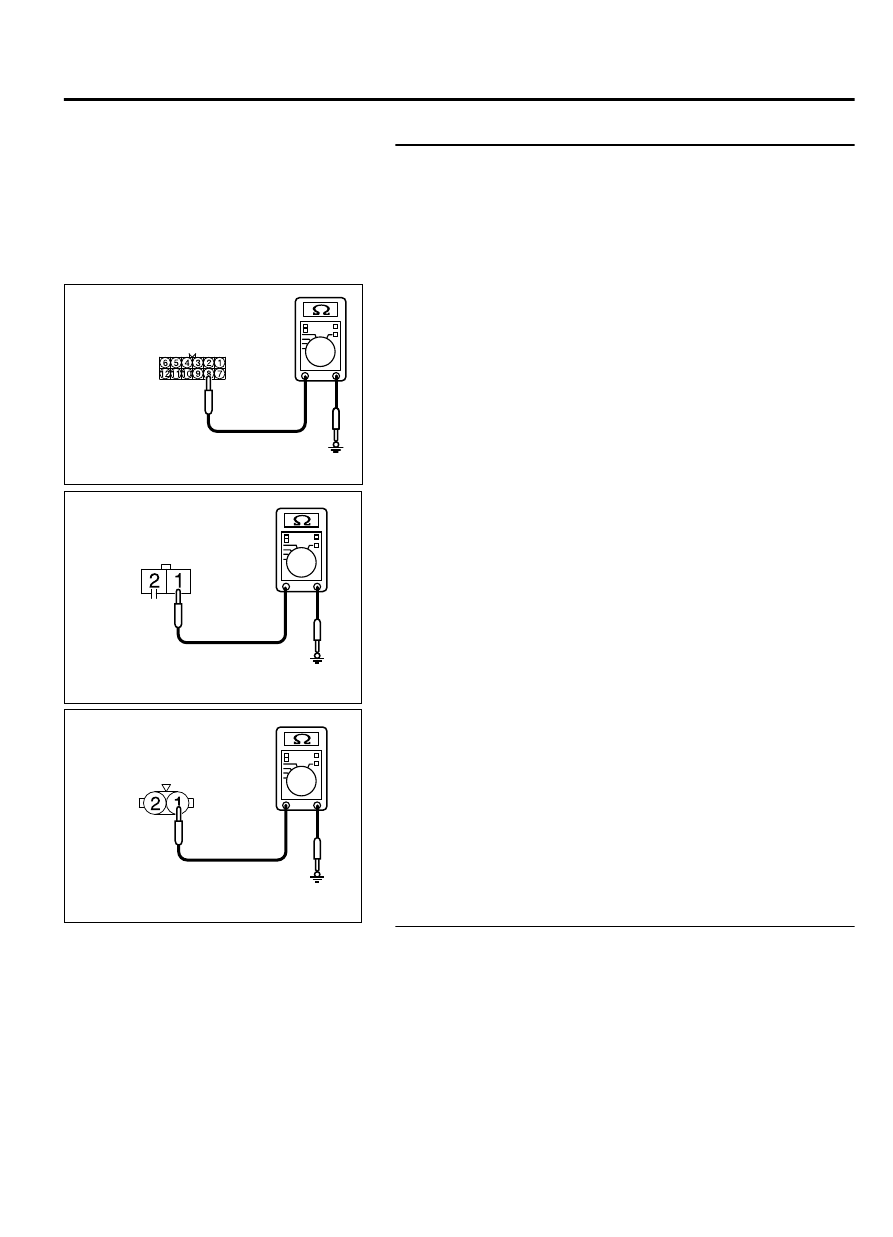

ZC5010410050

Harness side: A-37, A-56

ZC5015310008

Harness side: F-03, F-07

ZC5015310009

Harness side: F-10, F-16

(2)

Measure the resistance between the connector of light which
does not illuminate and the body ground.

Measure  the  resistance  between  headlight  assembly
connector A-37 (LH), A-56 (RH) (terminal No. 8) and body
ground.

Measure  the  resistance  between  license  plate  light
connector F-03 (LH), F-07 (RH) (terminal No. 1) and body
ground.

Measure  the  resistance  between  rear  side  marker  light
connector F-16 (LH), F-10 (RH) (terminal No. 1) and body
ground.

The measured value should be continuity exists (2
Ω or less).

Q:Does the measured resistance value correspond with this

range?

YES:

 Go to Step 6.

NO:

 Go to Step 5.

STEP 5. Check wiring harness between headlight assembly
connector A-56 (position light RH and front side maker RH)
or A-37 (position light LH and front side maker LH) (terminal
No. 8),license plate light connector F-07 (RH) or F-03 (LH)
(terminal No. 1), or rear side marker light connector F-10
(RH) or F-16 (LH) (terminal No. 1) and the body ground.

NOTE:

Before the wiring harness check, check the F-15 rear

side light, or and repair that if necessary.

LIGHTING

54Ac-51

DIAGNOSIS

Q:Is  the  wiring  harness  between  headlight  assembly

connector A-56 (position light RH and front side maker

RH) or A-37 (position light LH and front side maker LH)

(terminal No. 8),license plate light connector F-07 (RH) or

F-03  (LH)  (terminal  No.  1),  or  rear  side  marker  light

connector F-10 (RH) or F-16 (LH) (terminal No. 1) and the

body ground in good condition?

YES:

 Go to Step 8.

NO:

 Repair the wiring harness.

STEP 6. Check ETACS-ECU connector C-304 <headlight
assembly> or C-311 <license plate light and rear side
marker light> for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

Q:Is ETACS-ECU connector C-304 <headlight assembly> or

C-311 <license plate light and rear side marker light> in

good condition?

YES:

 Go to Step 7.

NO:

 Repair the damaged parts.

STEP 7. Check Wiring harness between headlight assembly
connector A-56 (position light RH and front side maker RH)
or A-37 (position light and front side maker LH) (terminal
No. 6),license plate light connector F-07 (RH) or F-03 (LH)
(terminal No. 2), or rear side marker light connector F-10
(RH) or F-16 (LH) (terminal No. 2) and ETACS-ECU
connector C-304 <headlight assembly>, C-311 <license
plate light and rear side marker light>.

NOTE:

Before the wiring harness check, check the D-12

<license plate light>, or F-15, F-18 <rear side marker
light> and repair that if necessary.

Q:Is  the  wiring  harness  between  headlight  assembly

connector A-56 (position light RH and front side maker

RH)  or  A-37  (position  light  and  front  side  maker  LH)

(terminal No. 6),license plate light connector F-07 (RH) or

F-03  (LH)  (terminal  No.  2),  or  rear  side  marker  light

connector  F-10  (RH)  or  F-16  (LH)  (terminal  No.  2)  and

ETACS-ECU  connector  C-304  <headlight  assembly>,

C-311 <license plate light and rear side marker light> in

good condition?

YES:

 Go to Step 8.

NO:

 Repair the wiring harness.

STEP 8. Retest the system.
Check that the position light, front side marker light, rear side
marker light, or license plate light illuminate normally.

Q:Do  the  position  light,  front  side  marker  light,  rear  side

marker light, or license plate light work normally?

YES:<The light illuminate normally at both high and low
beams.>:

 The trouble can be an intermittent malfunction

(Refer to GROUP 00 - How to use Troubleshooting/
inspection Service Points - How to Cope with Intermittent
Malfunction P.00-15).

54Ac-52

LIGHTING

DIAGNOSIS
