Mitsubishi Outlander XL. Manual - part 995

NO:<When the position light does not illuminate>:

Replace the position light socket.

NO:<When the front side marker lights do not
illuminate>:

 Replace the front side marker light socket.

NO:<When the license plate light does not illuminate>:

Replace the license plate light socket.

NO:<When the rear side marker lights do not
illuminate>:

 Replace the rear side maker light socket.

Inspection Procedure 10: The turn-signal lights do not illuminate.

M15410900119USA0000010000

TECHNICAL DESCRIPTION (COMMENT)
If all the turn-signal lights do not illuminate, the ignition
switch (IG1), the turn-signal light switch input circuit or
the ETACS-ECU may have a problem.

TROUBLESHOOTING HINTS

｠

Malfunction of column switch

｠

Malfunction of the ETACS-ECU

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

LIGHTING

54Ac-53

DIAGNOSIS

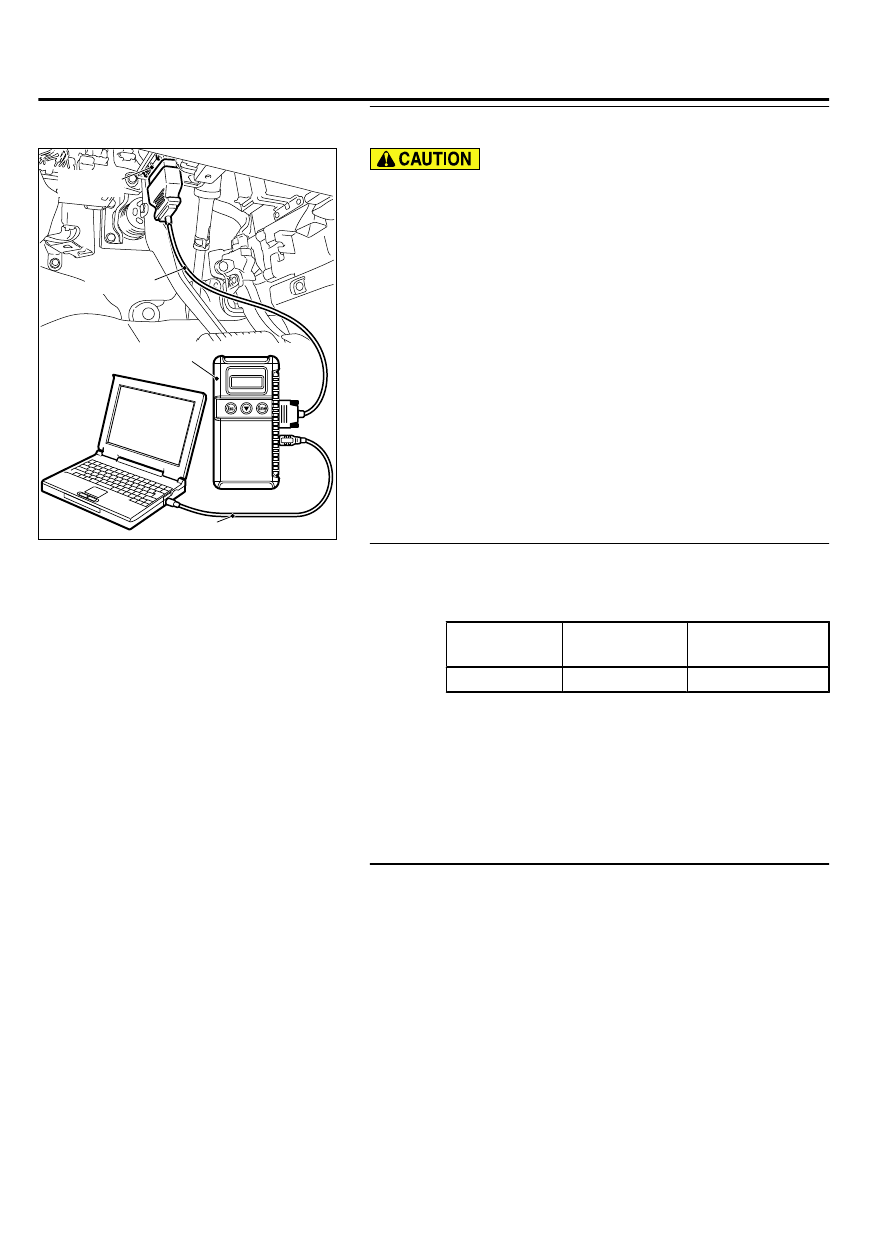

STEP 1. Using scan tool MB991958, read the ETACS-ECU
diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect scan
tool (M.U.T.-III) P.54Ac-11."

(2)

Turn the ignition switch to the "ON" position.

(3)

Check whether the ETACS-ECU DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Diagnose the ETACS-ECU (Refer to GROUP 54Ad,

Diagnosis P.54Ad-8).

NO:

 Go to Step 2.

STEP 2. Using scan tool MB991958, check data list.
Using the ETACS-ECU service data, check the signals related
to the illumination of turn-signal light.

｠

Turn the ignition switch to the "ON" position.

Item No.

Item name

Normal
conditions

Item 254

IG voltage

Battery voltage

Q:Does scan tool MB991958 display the item "IG voltage"

as normal condition?

YES<Normal conditions is displayed for item.>:

 Go to

Step 3.

NO:

 Troubleshoot the ETACS-ECU.Refer to GROUP 54Ad,

Diagnosis - Inspection Procedure 2 "ETACS-ECU does not
receive any signal from the ignition switch (IG1)" P.
54Ad-62.

STEP 3. Retest the system.
Check that turn-signal lights illuminate.

Q:Do turn-signal lights work normal?

YES:

 The trouble can be an intermittent malfunction

(Refer to GROUP 00 - How to use Troubleshooting/
inspection Service Points - How to Cope with Intermittent
Malfunction P.00-15).

NO:

 Replace the ETACS-ECU.

54Ac-54

LIGHTING

DIAGNOSIS

Inspection Procedure 11: The comfort flashing function does not work normally.

M15410900123USA0000010000

TECHNICAL DESCRIPTION (COMMENT)
If  the  comfort  flashing  function  does  not  work
normally,  the  turn-signal  light  switch  input  circuit(s)
and ETACS-ECU may have a problem.

TROUBLESHOOTING HINTS

｠

Malfunction of column switch

｠

Malfunction of the ETACS-ECU

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

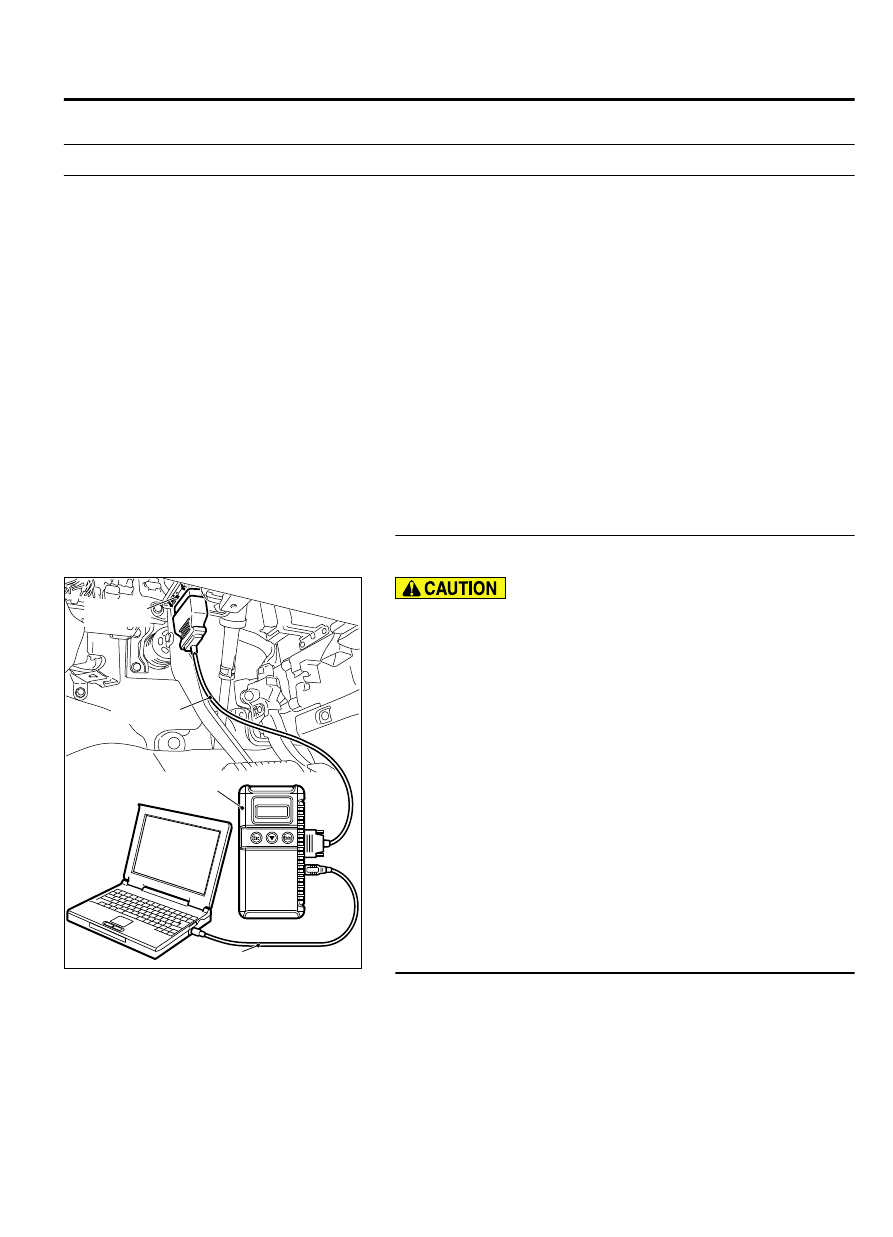

STEP 1. Using scan tool MB991958, Check the configuration
function.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect scan
tool (M.U.T.-III) P.54Ac-11."

(2)

Turn the ignition switch to the "ON" position.

(3)

Use the ETACS-ECU configuration function to check that the
"Comfort flasher" is set to "Enable".

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the "Comfort flasher" set to "Enable"?

YES:

 Go to Step 2.

NO:

 Use the ETACS-ECU customize function to set the

"Comfort flasher" to "Enable" (Refer to P.54Ac-170).

STEP 2. Using scan tool MB991958, read the ETACS-ECU
diagnostic trouble code.

(1)

Turn the ignition switch to the "ON" position.

(2)

Check whether the ETACS-ECU DTC is set.

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

LIGHTING

54Ac-55

DIAGNOSIS

YES:

 Diagnose the ETACS-ECU (Refer to GROUP 54Ad,

Diagnosis P.54Ad-8).

NO:

 Go to Step 3.

STEP 3. Check that the turn-signal light operate.
Check that the turn-signal light work normally when the ignition
switch is in the "ON" position.

Q:Do turn-signal lights work normally?

YES:

 Go to Step 4.

NO:

 Refer to Inspection Procedure 10 "The turn-signal

lights do not illuminate" P.54Ac-53.

STEP 4. Retest the system
Check that the comfort flashing function works normally.

Q:Does comfort flashing function works normally?

YES:

 The trouble can be an intermittent malfunction

(Refer to GROUP 00 - How to use Troubleshooting/
inspection Service Points - How to Cope with Intermittent
Malfunction P.00-15).

NO:

 Replace the ETACS-ECU.

Inspection Procedure 12: The turn-signal indicator light do not illuminate.

M15410900120USA0000010000

Whenever  the  ECU  is  replaced,  ensure  that  the
power supply circuit, the ground circuit and the
communication circuit are normal.

TECHNICAL DESCRIPTION (COMMENT)
If  the  turn-signal  light  indicator  does  not  illuminate
normally, the harness in the CAN bus lines, connector
(s), ETACS-ECU, or combination meter may have a
problem.

TROUBLESHOOTING HINTS

｠

Malfunction of the ETACS-ECU

｠

Malfunction of combination meter

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Check turn-signal light.
Check that the turn-signal light flashes normally when the turn-
signal switch is operated.

Q:Do Turn-signal light work normally?

YES:

 Go to Step 2.

NO:

 Refer to Inspection Procedure 10 "The turn-signal

lights do not illuminate" P.54Ac-53.

54Ac-56

LIGHTING

DIAGNOSIS
