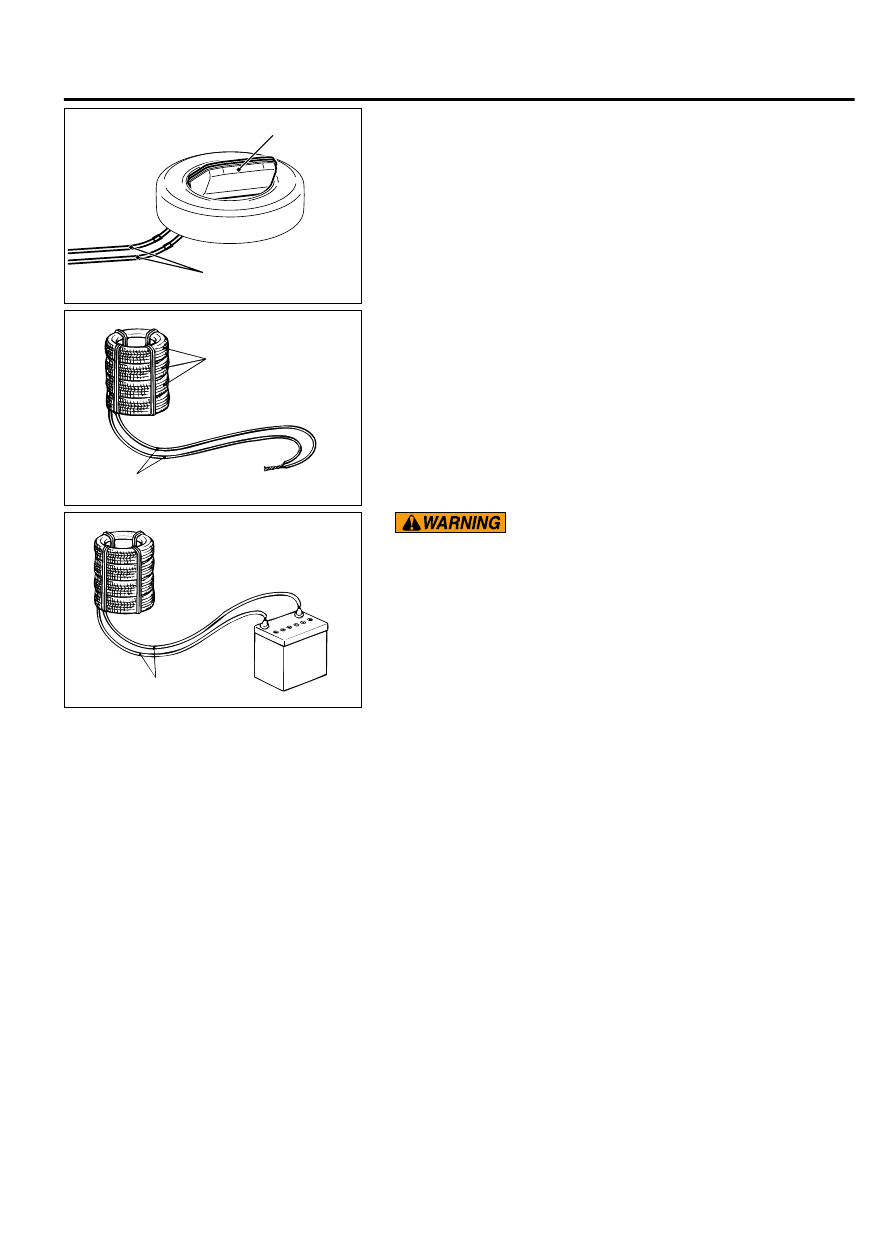

ZC600285

Side-air bag module

Deployment wires

0000

6.

Pass  the  deployment  wire  under  the  tire  with  wheel,  and
connect it to the side-airbag module connector.

7.

Install a surplus nut to the side-airbag module bolt. Then, tie
a thick wire for fixing the wheel to the bolt. Fix the side-airbag
module to the wheel of old tire with the module deployment
surface facing upward.

ZC500637

Old tires
without wheels

Deployment wires

0000

8.

Place three old tires without wheels on top of the tire secured
to the air bag module, and secure all tires together with ropes
(four locations).

ZC6018370000

Deployment wires

｠

Before deployment, check carefully to be sure that no one
is nearby.

｠

The  inflator  will  be  quite  hot  immediately  following  the
deployment, so wait at least 30 minutes to allow it to cool
before attempting to handle it. Although not poisonous,
do not inhale gas from air bag deployment. See Deployed
Air  Bag  Module  and  Operated  Seat  Belt  Pre-tensioner
Disposal  (Refer  to  P.52B-371)  for  post-deployment
handling instructions.

｠

If the air bag fails to deploy, do not go near the module.

9.

At a location as far away from the air bag module as possible,
and from a shielded position, disconnect the two connected
wires from each other, and connect them to the two terminals
of the battery (which has been removed from the vehicle) to
deploy the air bag.

10.

Discard  the  deployed  air  bag  module  as  specified  in
Deployed  Air  Bag  Module  and  Operated  Seat  Belt  Pre-
tensioner Disposal (Refer to).



SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-367

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

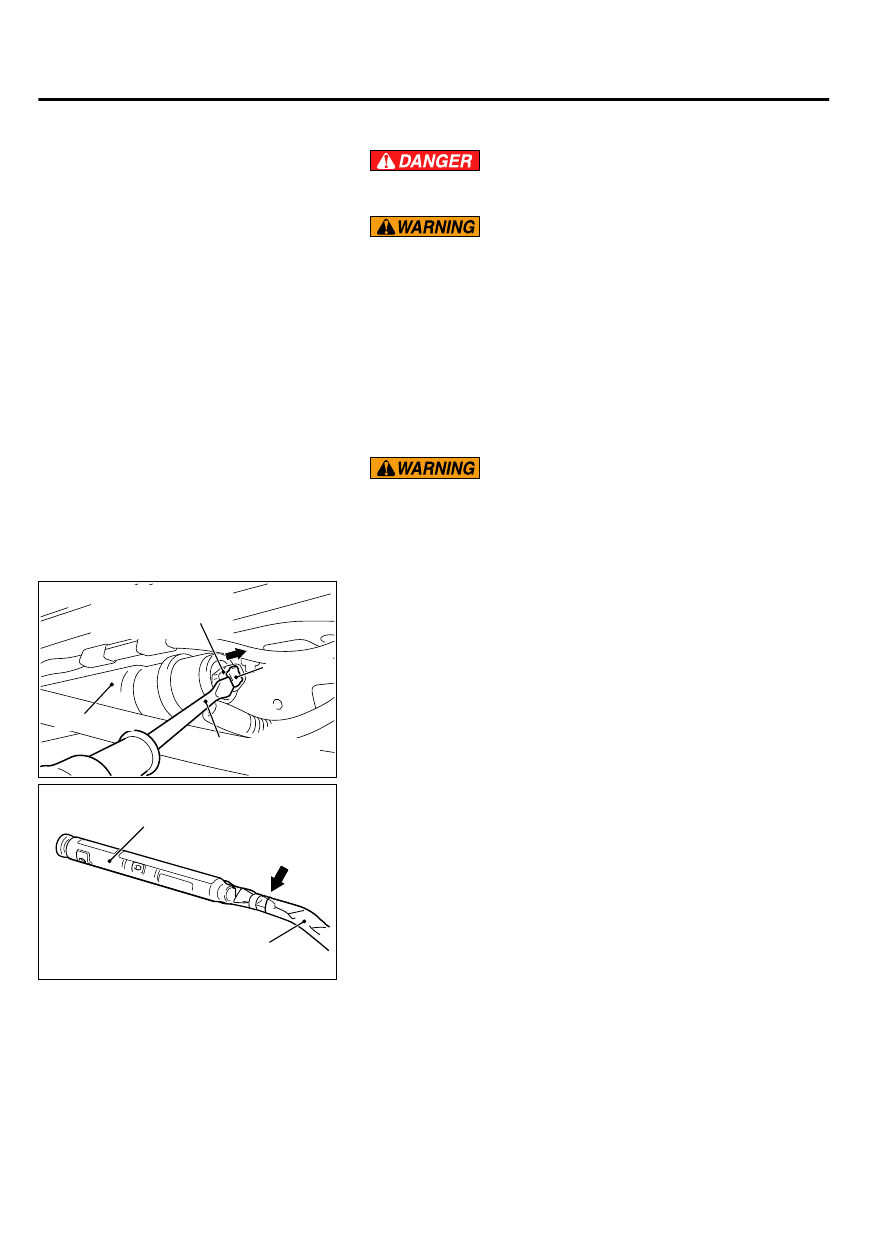

DEPLOYMENT OUTSIDE THE VEHICLE <CURTAIN AIR BAG
MODULE>

Wait  at  least  60  seconds  after  disconnecting  the  battery
cables before doing any further work (Refer to P.52B-28).

｠

Battery posts, terminals and related accessories contain
lead  and  lead  compounds.  WASH  HANDS  AFTER
HANDLING.

｠

Deploy the air bag in a wide, flat area at least 6 meters (20
feet) away from obstacles and other people.

｠

Do  not  perform  deployment  outside  if  a  strong  wind  is
blowing.  If  there  is  a  slight  breeze,  place  the  air  bag
module downwind from the battery.

1.

Disconnect  the  negative  (-)  and  positive  (+)  battery  cables
from the battery terminals, and then remove the battery from
the vehicle.

Store the seat belt pre-tensioner on a flat surface with its
operation surface facing up. Do not place anything on top
of them.

2.

Remove the curtain air bag module from the vehicle (Refer
to P.52B-341).

ZC6018430000

Curtain air bag wiring
harness side connector
 (2-pin, black)

Locking
button

Flat-tipped screwdriver

Inflator

3.

Use the flat-tipped screwdriver to pull out the locking button of
curtain  air  bag  harness  side  connector.  After  releasing  the
lock, disconnect the connector.

ZC600286

Inflator

Air bag

0000

4.

Cut the inflator from the air bag as shown in the figure using
a cutter or a similar tool.

52B-368

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

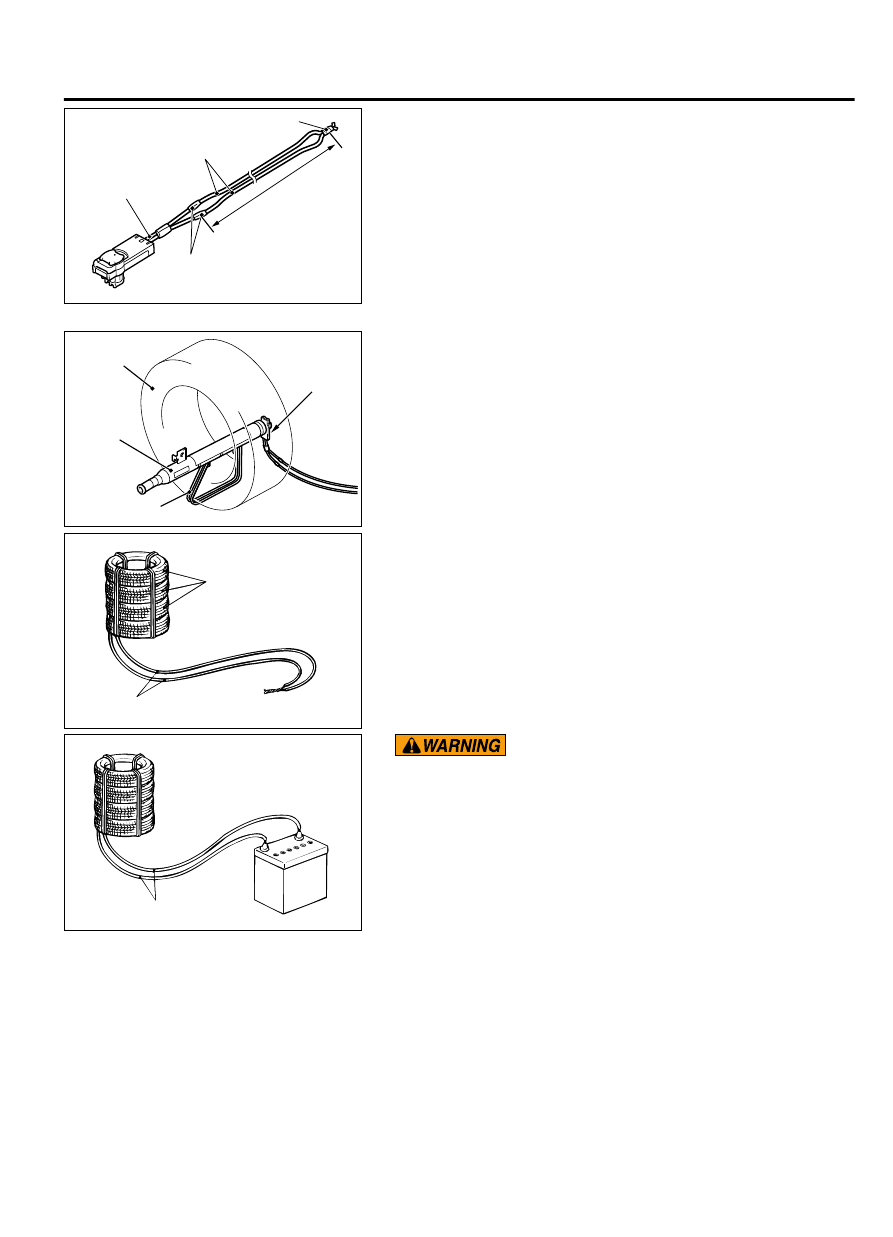

ZC500489

MB991885

Connection

Deployment wires

Insulator tape

6 m (20 ft) or longer

0000

5.

Connect deployment wires, each 6 meters (20 feet) or longer,
to  the  two  leads  of  special  tool  MB991885,  and  cover  the
connections  with  insulation  tape.  The  other  ends  of  the
deployment wires should be connected to each other (short-
circuited), to prevent sudden unexpected deployment of the
air bag module.

NOTE:

This prevents the air bags from being

unintentionally deployed because of the static and
others.

6.

Connect  the  special  tool  MB991885  to  the  curtain  air  bag
module.

ZC600287

MB991885

Inflator

Wire

Old tire
without wheel

0000

7.

Feed  a  thick  wire  through  the  bracket  of  the  inflator,  and
connect it to an old tire without a wheel.

ZC500637

Old tires
without wheels

Deployment wires

0000

8.

Place the tyre to which the inflator is fixed onto the two stacked
tyres. Then, place 1 or more old tyres without wheel onto the
stacked  tyres,  and  tie  and  fix  all  the  tyres  with  rope.  (4
positions)

ZC6018370000

Deployment wires

｠

Before operation, check carefully to be sure that no one
is nearby.

｠

The  inflator  will  be  quite  hot  immediately  following  the
deployment, so wait at least 30 minutes to allow it to cool
before attempting to handle it. Although not poisonous,
do not inhale gas from air bag deployment. See Deployed
Air  Bag  Module  and  Operated  Seat  Belt  Pre-tensioner
Disposal  (Refer  to  P.52B-371)  for  post-operation
handling instructions.

｠

If the air bag fails to deploy, do not go near the module.

9.

At a location as far away from the air bag module as possible,
and from a shielded position, disconnect the two connected
wires from each other, and connect them to the two terminals
of the battery (which has been removed from the vehicle) to
deploy the air bag.

10.

Discard  the  deployed  air  bag  module  as  specified  in
Deployed  Air  Bag  Module  and  Seat  Belt  Pre-tensioner
Disposal (Refer to P.52B-371).

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-369

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

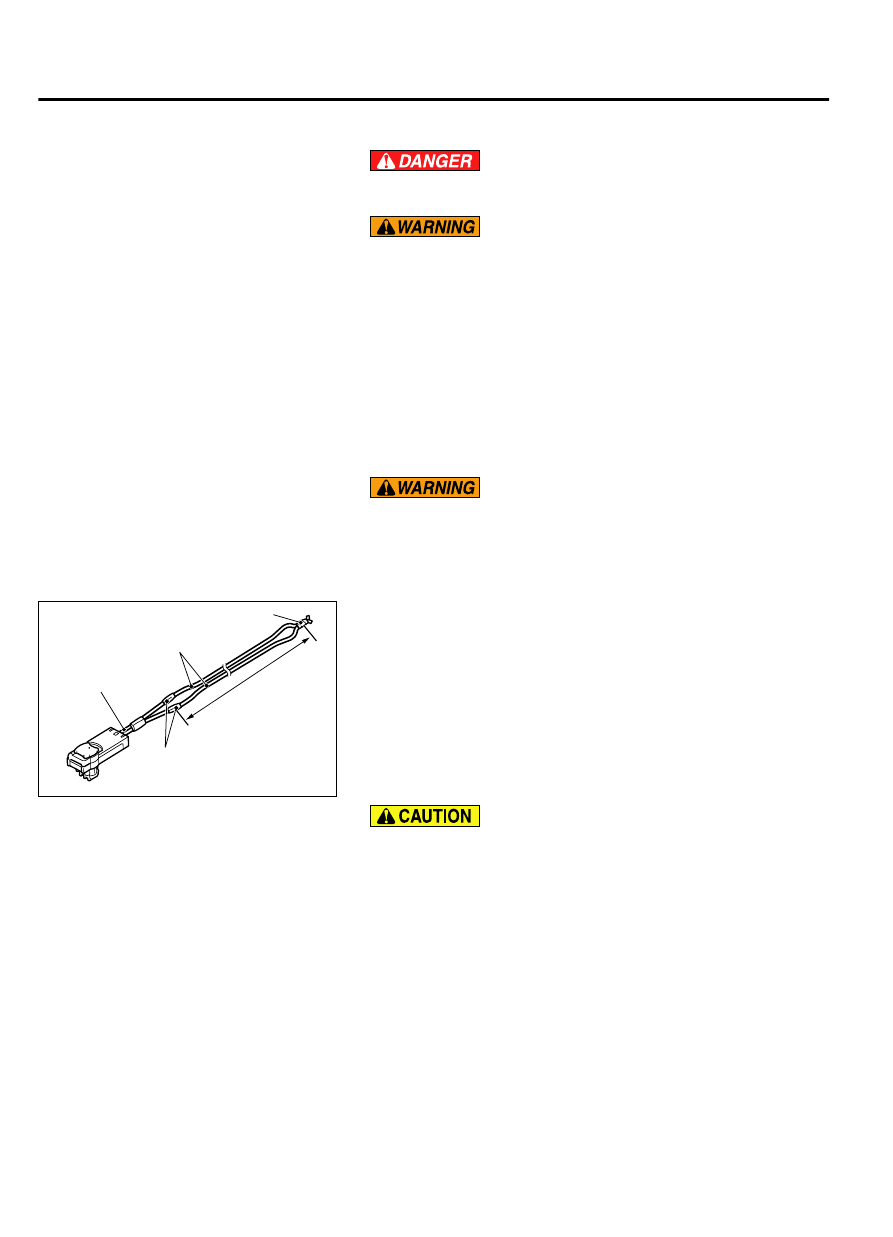

DEPLOYMENT OUTSIDE THE VEHICLE <SEAT BELT PRE-
TENSIONER>

Wait  at  least  60  seconds  after  disconnecting  the  battery
cables before doing any further work (Refer to P.52B-28).

｠

Battery posts, terminals and related accessories contain
lead  and  lead  compounds.  WASH  HANDS  AFTER
HANDLING.

｠

Operate the seat belt pre-tensioner in a wide, flat area at
least  6  meters  (20  feet)  away  from  obstacles  and  other
people.

｠

Do  not  perform  operation  outside  if  a  strong  wind  is
blowing. If there is a slight breeze, place the seat belt pre-
tensioner downwind from the battery.

1.

Disconnect  the  negative  (-)  and  positive  (+)  battery  cables
from the battery terminals, and then remove the battery from
the vehicle.

Store the seat belt pre-tensioner on a flat surface with its
operation surface facing up. Do not place anything on top
of them.

2.

Remove the seat belt pre-tensioner from the vehicle (Refer
to P.52B-345).

ZC500489

MB991885

Connection

Deployment wires

Insulator tape

6 m (20 ft) or longer

0000

3.

Connect deployment wires, each 6 meters (20 feet) or longer,
to  the  two  leads  of  special  tool  MB991885,  and  cover  the
connections  with  insulation  tape.  The  other  ends  of  the
deployment wires should be connected to each other (short-
circuited), to prevent sudden unexpected operation of the seat
belt pre-tensioner.

NOTE:

This prevents the unintentional activation of

inflator caused by the static or others.

4.

Connect  the  special  tool  MB991885,  which  the  deployment
wires is attached to, to the seat belt pre-tensioner connector.

The adapter harness below the wheel should be loose. If it
is too tight, the reaction when the seat belt pre-tensioner
operates could damage the adapter harness.

5.

Pass  the  thick  wires  through  the  hole  on  the  seat  belt  pre-
tensioner bracket and secure them to the front (raised part) of
the wheel in two places.

52B-370

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES
