Mitsubishi Outlander XL. Manual - part 957

ZC500489

MB991885

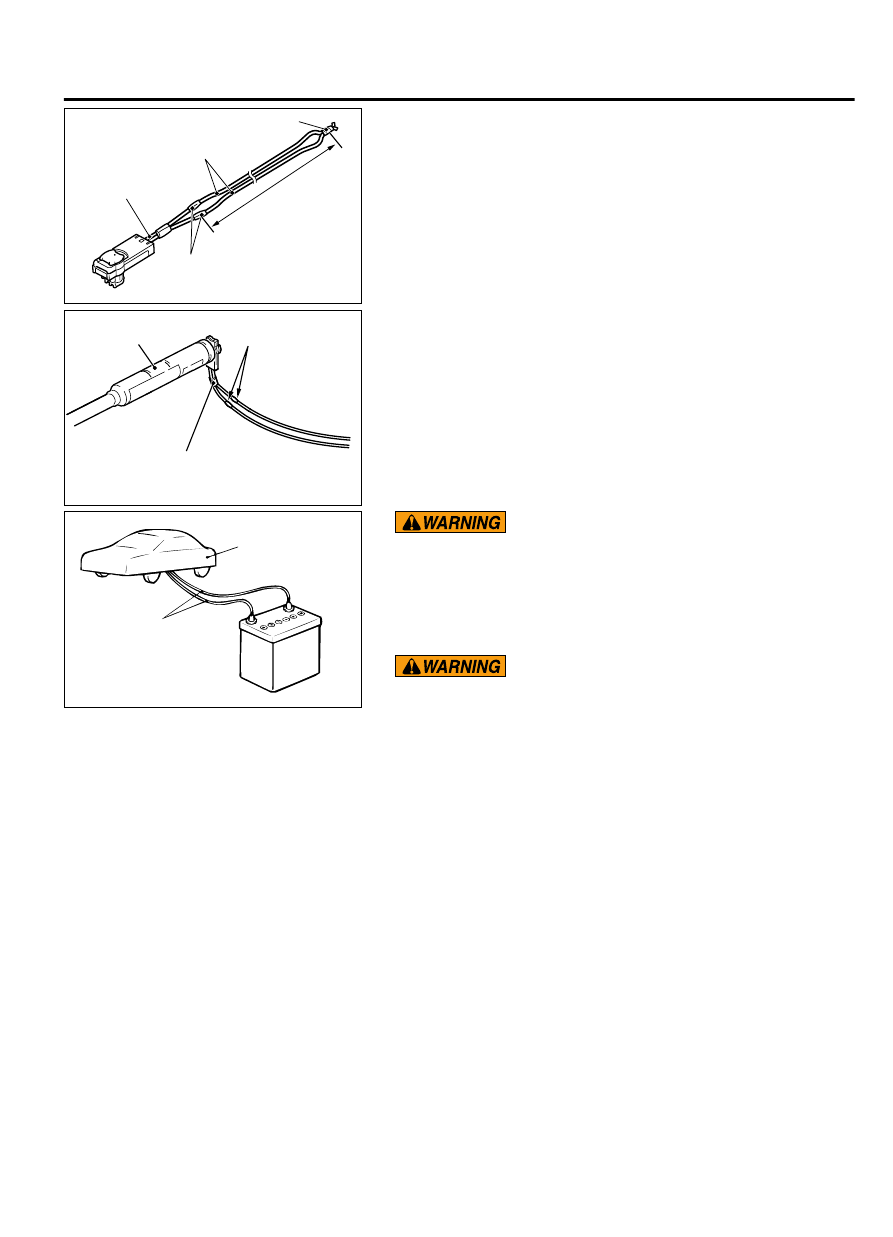

Connection

Deployment wires

Insulator tape

6 m (20 ft) or longer

0000

Connect deployment wires, each 6 meters (20 feet) or longer,
to the two leads of special tool MB991885, and cover the
connections with insulation tape. The other ends of the
deployment wires should be connected to each other (short-
circuited), to prevent sudden unexpected deployment of the
curtain air bag module.

ZC6002810000

MB991885

Inflator

Deployment wires

Connect the special tool MB991885 to the inflator, and then
pull out the deployment wire to outside the vehicle.

ZC600280

Cover

Deployment wire
6 m (20 ft) or longer

0000

If the glass is scratched, air bag deployment could cause it
to crack and fly out of the vehicle, so always put a cover
over the vehicle.

To suppress the deployment sound as much as possible,
completely close all door windows, close the doors and put the
cover on the vehicle.

｠

Before deploying the air bag in this manner, first check to
be sure that there is no one in or near the vehicle. Wear
safety glasses.

｠

The  inflator  will  be  quite  hot  immediately  following  the
deployment, so wait at least 30 minutes to allow it to cool
before attempting to handle it. Although not poisonous,
do  not  inhale  gas  from  the  air  bag  deployment.  See
Deployed  Air  Bag  Module  and  Operated  Seat  Belt  Pre-
tensioner  Disposal  (Refer  to  P.52B-371)  for  post-
operation handling instructions.

｠

If the air bag module fails to deploy, do not go near the air
bag module.

At a location as far away from the vehicle as possible,
disconnect the two connected wires from each the, and
connect them to the two terminals of the battery (which has
been removed from the vehicle) to deploy the air bag.

After deployment, dispose of the air bag module according to
the Deployed Air Bag Module and Operated Seat belt Pre-
tensioner Disposal (Refer to).

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-359

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

DEPLOYMENT INSIDE THE VEHICLE (WHEN DISPOSING
OF A VEHICLE) <SEAT BELT PRE-TENSIONER>

Move the vehicle to an isolated spot.

Wait at least 60 seconds after disconnecting the battery
cables before doing any further work (Refer to P.52B-28).

Battery posts, terminals and related accessories contain
lead and lead compounds. WASH HANDS AFTER
HANDLING.

Disconnect the negative (-) and positive (+) battery cables
from the battery terminals, and then remove the battery from
the vehicle.

Remove the center pillar trim, lower (Refer to GROUP 52A,
TRIMS P.52A-10).

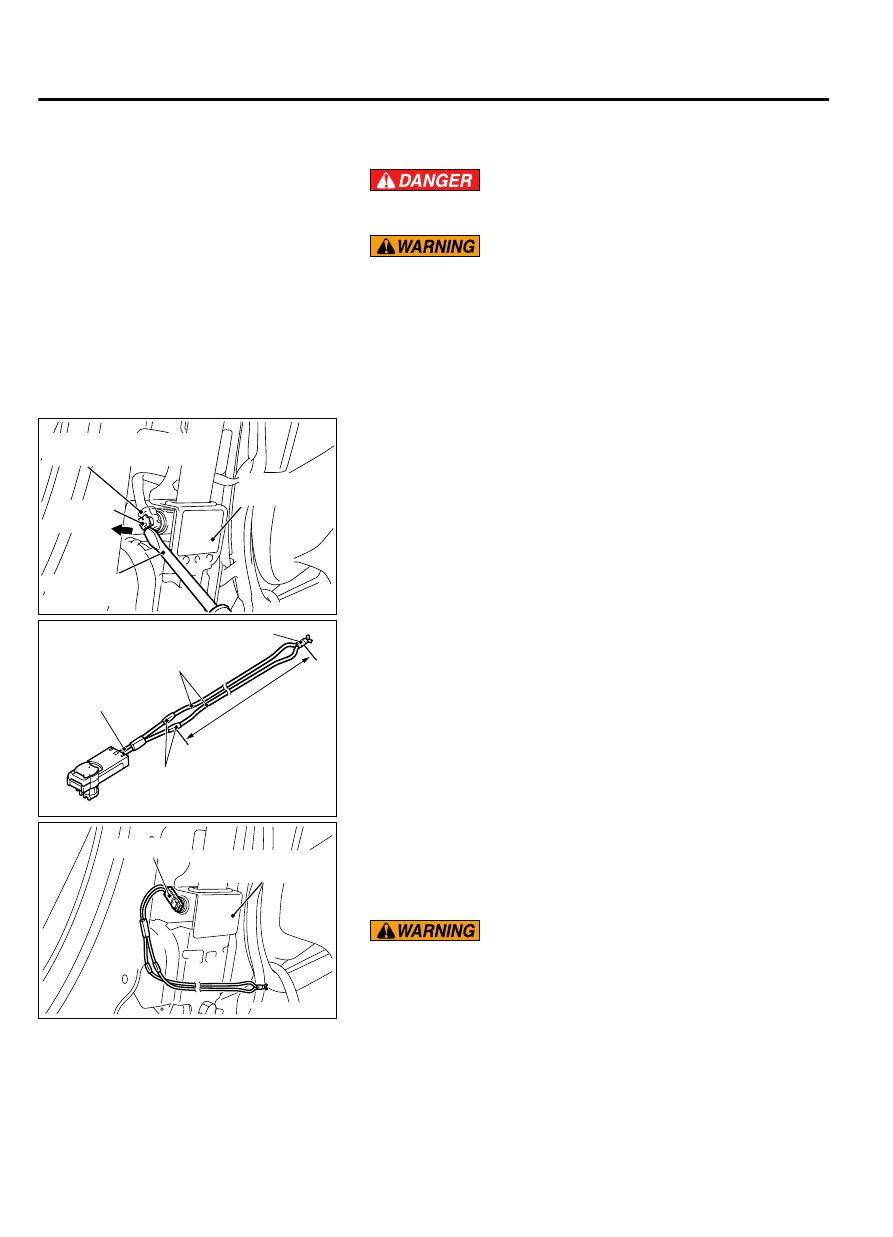

ZC6018230000

Seat belt
pre-tensioner

Floor wiring harness side
connector (2-pin, black)

Locking
button

Flat-tipped
screwdriver

Use the slotted (-) screwdriver to pull out the locking button of
floor harness side connector. After releasing the lock,
disconnect the connector.

NOTE:

If the seat belt pre-tensioner connector is

disconnected from the floor wiring harness side
connector, both electrodes of the seat belt pre-tensioner
connector will be automatically shorted to prevent
unintended operation of the seat belt pre-tensioner due
to static electricity, etc.

ZC500489

MB991885

Connection

Deployment wires

Insulator tape

6 m (20 ft) or longer

0000

ZC6018240000

MB991885

Seat belt pre-tensioner
connector

Connect the special tool MB991885 to the two-pin connector
of seat belt pre-tensioner, and then pull out the deployment
wire to outside the vehicle.

In order to suppress the operation sound as much as possible,
fully close all the door windows and close the doors.

｠

Before operating the seat belt pre-tensioner in this
manner, first check to be sure that there is no one in or
near the vehicle. Wear safety glasses.

52B-360

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

｠

The  inflator  will  be  quite  hot  immediately  following  the
operation, so wait at least 30 minutes to allow it to cool
before attempting to handle it. Although not poisonous,
do  not  inhale  gas  from  the  seat  belt  pre-tensioner
operation.  See  Deployed  Air  Bag  Module  and  Operated
Seat Belt Pre-tensioner Disposal (Refer to P.52B-371) for
post-operation handling instructions.

｠

If the seat belt pre-tensioner fails to operate, do not go
near the seat belt pre-tensioner.

After operation, dispose of the seat belt pre-tensioner
according to the Deployed Air Bag Module operated Seat Belt
Pre-tensioner Disposal (Refer to).

DEPLOYMENT INSIDE THE VEHICLE (WHEN DISPOSING
OF A VEHICLE) <LAP PRE-TENSIONER>

Move the vehicle to an isolated spot.

Wait at least 60 seconds after disconnecting the battery
cables before doing any further work (Refer to P.52B-28).

Battery posts, terminals and related accessories contain
lead and lead compounds. WASH HANDS AFTER
HANDLING.

Disconnect the negative (-) and positive (+) battery cables
from the battery terminals, and then remove the battery from
the vehicle.

Remove the center pillar trim lower cover (Refer to GROUP
52A, TRIMS P.52A-10).

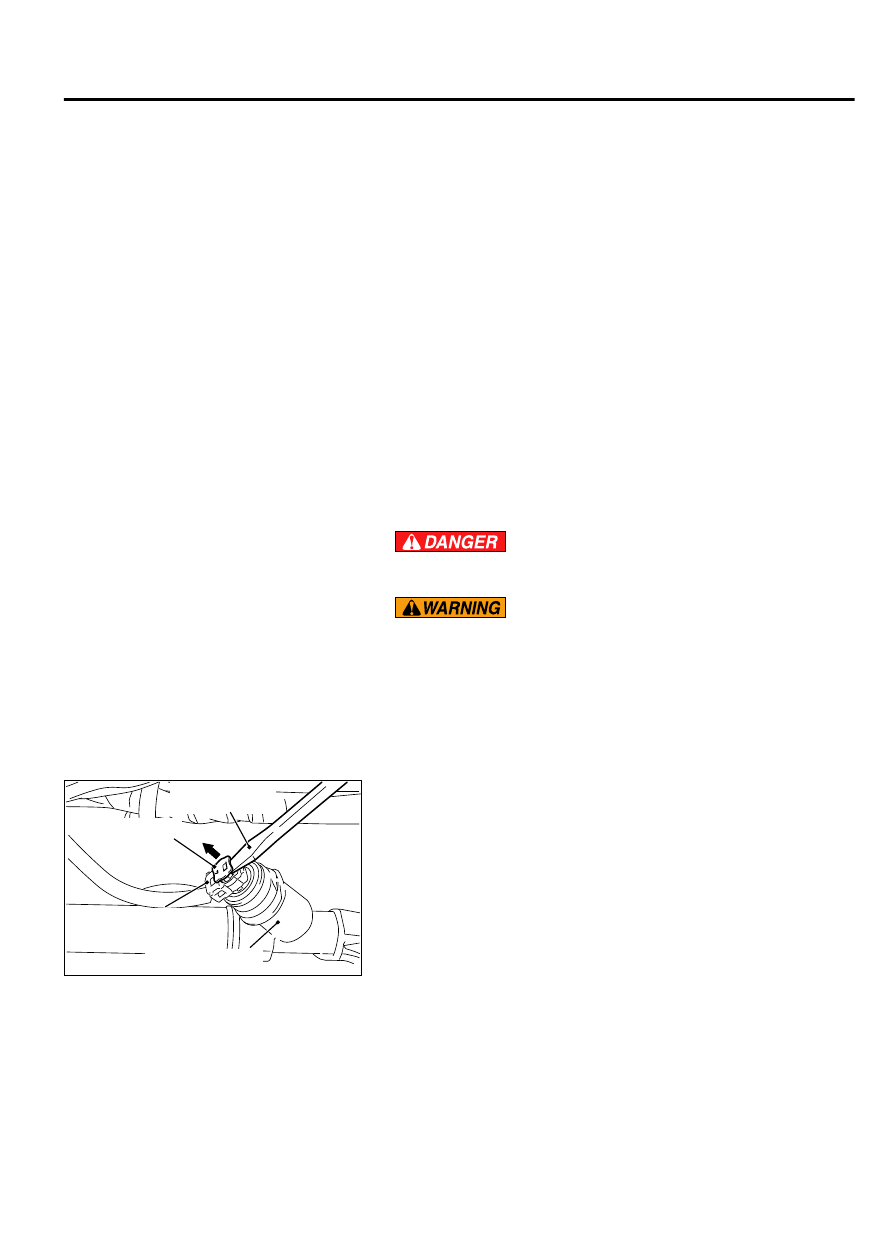

ZC6018320000

Floor wiring harness side
connector (2-pin, black)

Locking button

Flat-tipped
screwdriver

Lap pre-tensioner

Use the slotted (-) screwdriver to pull out the locking button of
floor wiring harness side connector. After releasing the lock,
disconnect the connector.

NOTE:

If the lap pre-tensioner connector is disconnected

from the floor wiring harness side connector, both
electrodes of the lap pre-tensioner connector will be
automatically shorted to prevent unintended operation of
the lap pre-tensioner due to static electricity, etc.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-361

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

ZC500489

MB991885

Connection

Deployment wires

Insulator tape

6 m (20 ft) or longer

0000

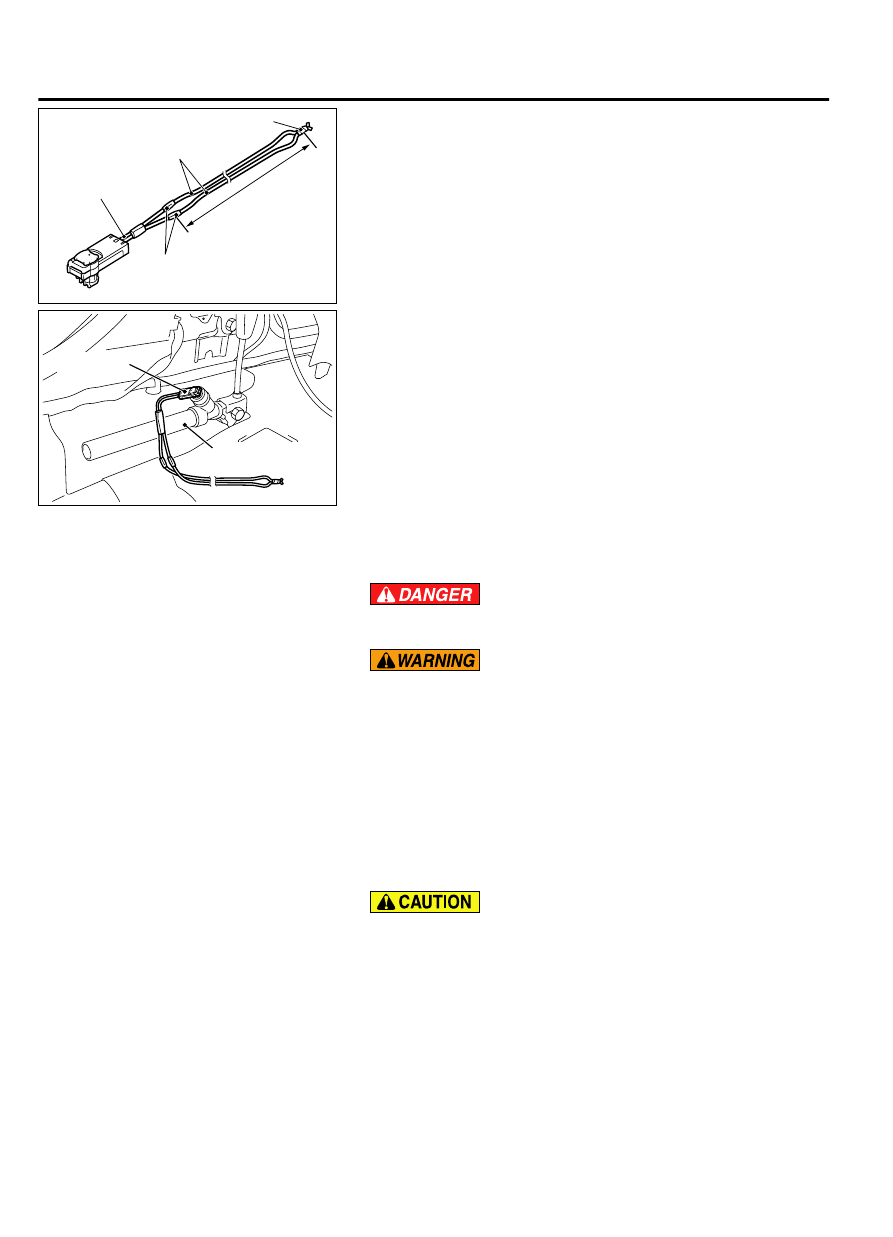

ZC6018330000

MB991885

Lap pre-tensioner

Connect the special tool MB991885 to the two-pin connector
of lap pre-tensioner, and then pull out the deployment wire to
outside the vehicle.

In order to suppress the operation sound as much as possible,
fully close all the door windows and close the doors.

DEPLOYMENT OUTSIDE THE VEHICLE <DRIVER'S AIR
BAG MODULE>

Wait at least 60 seconds after disconnecting the battery
cables before doing any further work (Refer to P.52B-28).

｠

Battery posts, terminals and related accessories contain
lead and lead compounds. WASH HANDS AFTER
HANDLING.

｠

Deploy the air bag in a wide, flat area at least 6 meters (20
feet) away from obstacles and other people.

｠

Do not perform deployment outside if a strong wind is
blowing. If there is a slight breeze, place the air bag
module downwind from the battery.

Disconnect the negative (-) and positive (+) battery cables
from the battery terminals, and then remove the battery from
the vehicle.

Once disconnected, both electrodes of the driver’s air bag
module connector short automatically to prevent accidental
deployment caused by static etc. Still, in consideration of
the accidental deployment, store the air bag module on a
flat place with deployment surface facing up. Do not put
anything on it.

Remove the air bag module from the vehicle (Refer P.
52B-329

52B-362

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES
