Mitsubishi Outlander XL. Manual - part 956

Wait at least 60 seconds after disconnecting the battery
cables before doing any further work (Refer to P.52B-28).

Battery posts, terminals and related accessories contain
lead and lead compounds. WASH HANDS AFTER
HANDLING.

Disconnect the negative (-) and positive (+) battery cables
from the battery terminals, and then remove the battery from
the vehicle.

Remove the glove box (Refer to GROUP 52A, Instrument
Panel P.52A-2).

ZC6018160000

Outer housing of
the passenger's (front)
air bag module connector
(4-pin, yellow)

Heater unit

Instrument panel
wiring harness side
connector
(4-pin, yellow)

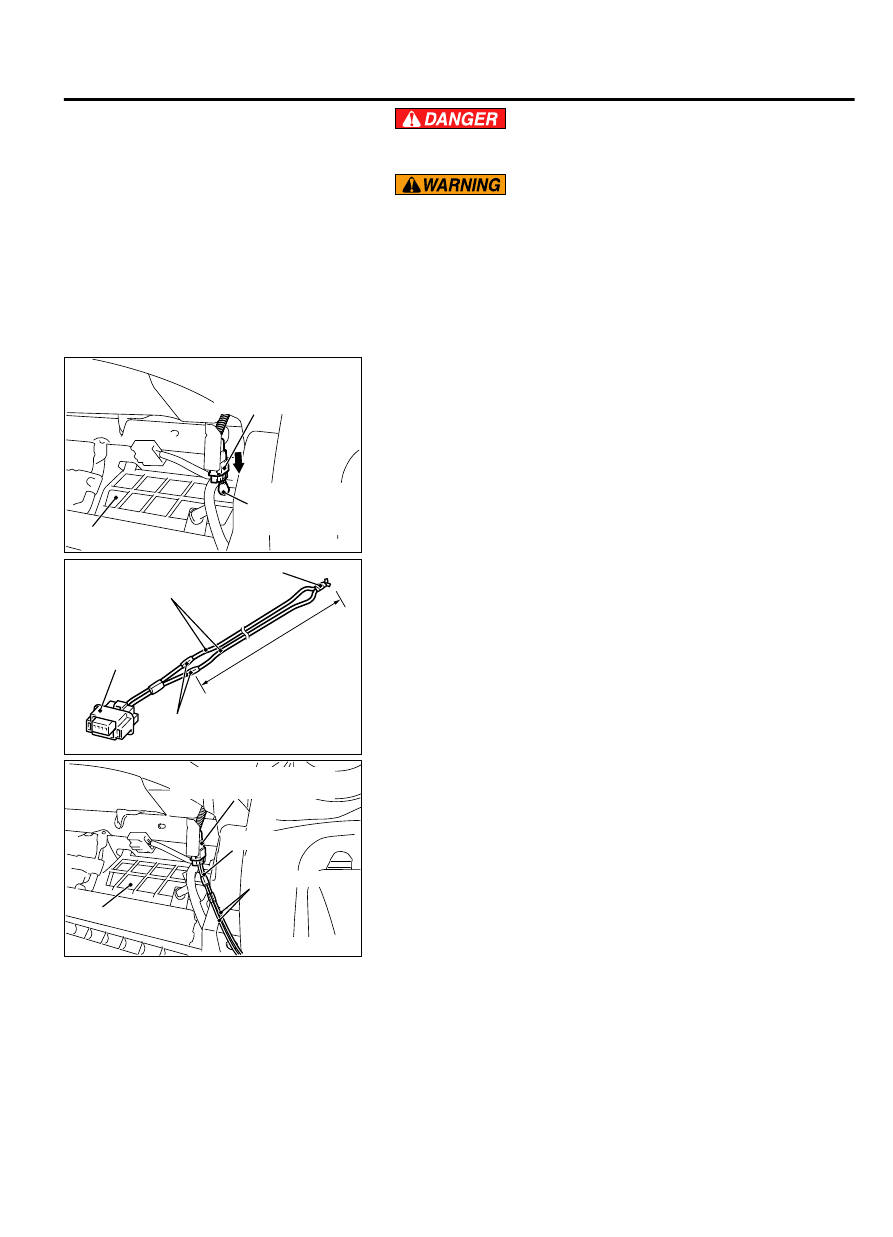

Slide the outer housing of passenger’s (front) air bag module
connector in the arrow direction shown, and disconnect the
connector.

NOTE:

When the passenger's (front) air bag module

connector is disconnected from the instrument panel
wiring harness side connector, the four pins of inflator
connector are automatically shorted. This prevents the
unintentional deployment of front passenger's air bags
caused by the static or others.

ZC600279

MB992102

Connection

Deployment wires

Insulator tape

6 m (20 ft) or longer

0000

Connect deployment wires, each 6 meters (20 feet) or longer,
to the two leads of SRS air bag adapter harness
(MB9921020), and cover the connections with insulator tape.
The other ends of the deployment wires should be connected
to each other (short-circuited), to prevent sudden unexpected
deployment of the air bag module.

NOTE:

This prevents the unintentional deployment of

passenger's (front) air bags caused by the static or
others.

ZC6018170000

MB992102

Passenger's (front) air bag
module connector

Deployment wires

Heater unit

Connect the special tool MB992102 to the passenger's (front)
air bag module, and then pull out the deployment wire to
outside the vehicle.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-355

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

ZC600280

Cover

Deployment wire
6 m (20 ft) or longer

0000

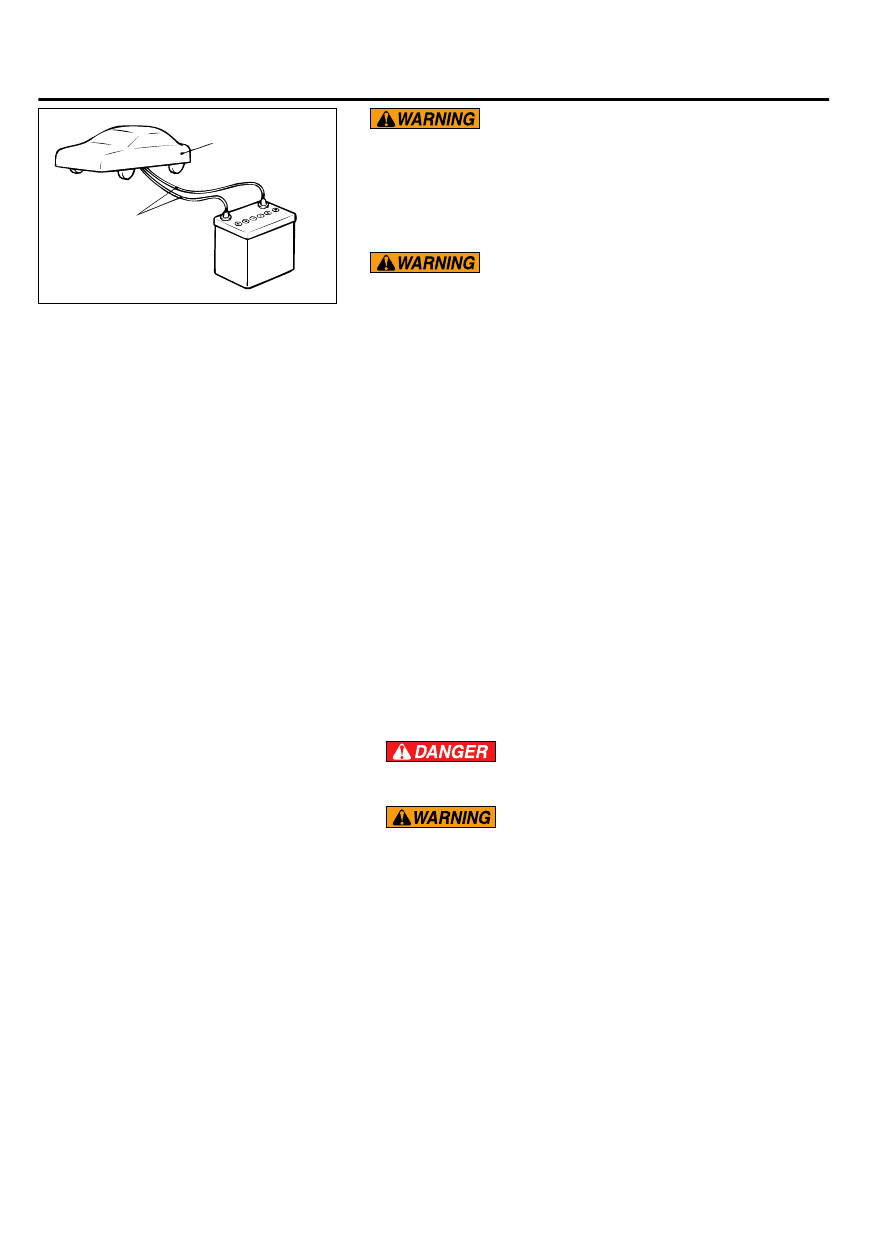

If the glass is scratched, air bag deployment could cause it
to crack and fly out of the vehicle, so always put a cover
over the vehicle.

To suppress the operation sound as much as possible,
completely close all door windows, close the doors and put a
cover on the vehicle.

｠

Before deploying the air bag in this manner, first check to
be sure that there is no one in or near the vehicle. Wear
safety glasses.

｠

The  inflator  will  be  quite  hot  immediately  following  the
deployment, so wait at least 30 minutes to allow it to cool
before attempting to handle it. Although not poisonous,
do  not  inhale  gas  from  the  air  bag  deployment.  See
Deployed  Air  Bag  Module  and  Operated  Seat  Belt  Pre-
tensioner  Disposal  (Refer  to  P.52B-371)  for  post-
deployment handling instructions.

｠

If the air bag module fails to deploy, do not go near the
module.

At a location as far away from the vehicle as possible,
disconnect the two connected wires from each other, and
connect them to the two terminals of the battery (which has
been removed from the vehicle) to deploy the air bag.

After deployment, dispose of the air bag module according to
the Deployed Air Bag Module and Operated Seat Belt Pre-
tensioner Disposal (Refer to P.52B-371).

DEPLOYMENT INSIDE THE VEHICLE (WHEN DISPOSING
OF A VEHICLE) <SIDE-AIRBAG MODULE>

Move the vehicle to an isolated spot.

Wait at least 60 seconds after disconnecting the battery
cables before doing any further work (Refer to P.52B-28).

Battery posts, terminals and related accessories contain
lead and lead compounds. WASH HANDS AFTER
HANDLING.

Disconnect the (-) and (+) terminals of battery cable, and then
remove the battery from the vehicle.

52B-356

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

ZC601818

Side-airbag module
connector
(2-pin, yellow)

Floor wiring
harness side
connector
(2-pin, yellow)

0000

Disconnect the connections of the side-airbag module
connector (two-pin: yellow) and the floor harness side
connector (two-pin: yellow).

Make sure to deploy both driver's and front passenger's
side air bags.

NOTE:

When the side-airbag module connector is

disconnected from the floor wiring harness side
connector, the two pins of side air bag module connector
are automatically shorted. This prevents the
unintentional deployment of side-airbags caused by the
static or others.

ZC500628

Connection

Deployment wires

6 m (20 ft) or longer

0000

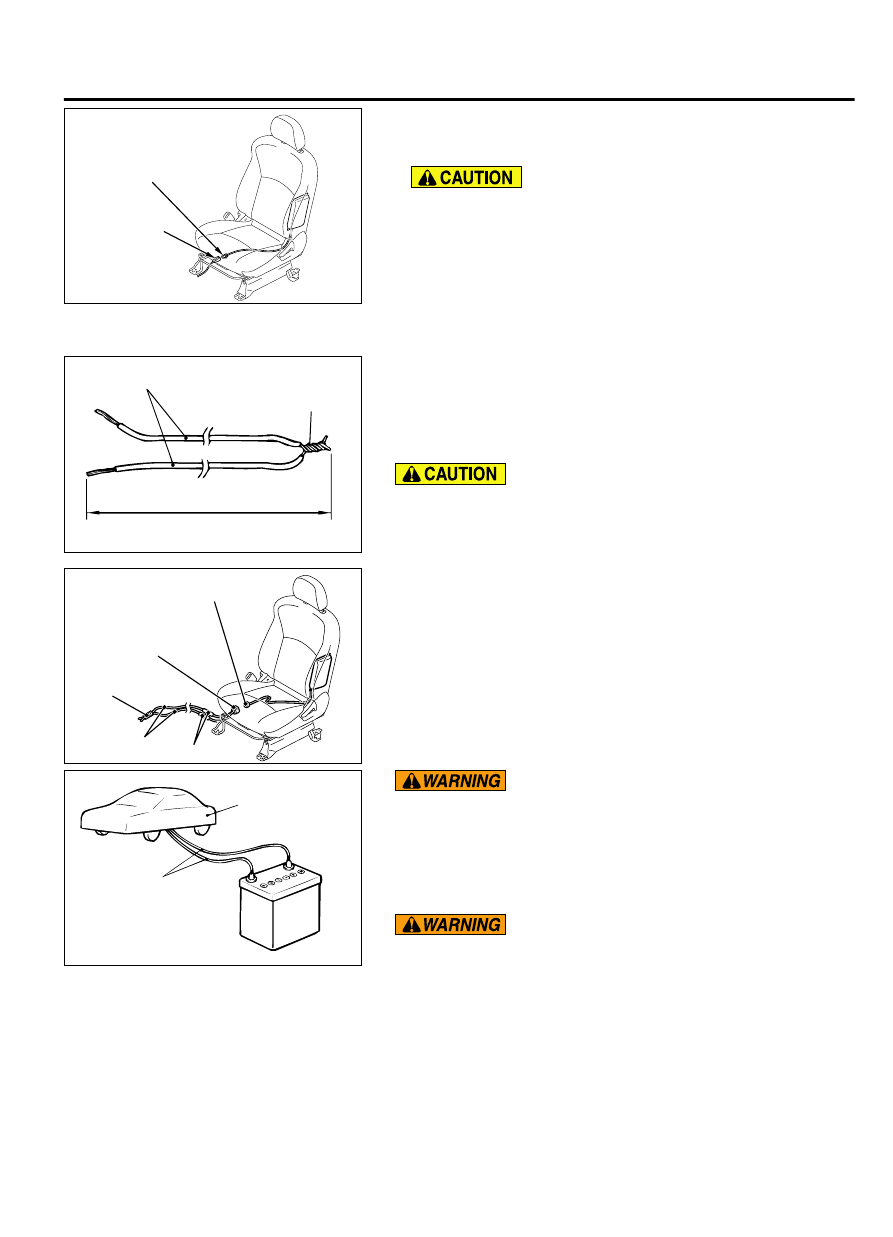

Obtain two suitable wires, which are 6 meters (20 feet) or
longer, as deployment wires. Then connect the wires at one
end to short.

NOTE:

This prevents the air bags from unintentional

deployment caused by static electricity, etc.

Never fail to do Step 5 in order to prevent accidental
deployment caused by static.

Touch the vehicle body with bare hands to release the charged
static.

ZC600303

Connection

Deployment
wires

Insulator tape

Air bag module connector
(2-pin, yellow)

Harness side connector
(2-pin, yellow)

0000

With the side-airbag module connector disconnected, cut the
floor harness using a nipper or similar tools.

Connect the deployment wire to each of two cut wiring
harnesses. After covering the connection areas with insulation
tape, pull out the deployment wire to outside the vehicle.

Connect the floor harness, to which the deployment wire is
connected, to the side-airbag module connector.

ZC600280

Cover

Deployment wire
6 m (20 ft) or longer

0000

If the glass is scratched, air bag deployment could cause it
to crack and fly out of the vehicle, so always put a cover
over the vehicle.

To suppress the operation sound as much as possible
completely close all door windows, close the doors and put the
cover on the vehicle.

｠

Before deploying the air bag in this manner, first check to
be sure that there is no one in or near the vehicle. Wear
safety glasses.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-357

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES

｠

If the air bag module fails to deploy, do not go near the
module.

10.

11.

After deployment, dispose of the front seatback assembly (air
bag module) according to the Deployed Air Bag Module and
Operated Seat Belt Pre-tensioner Disposal (Refer to).

DEPLOYMENT INSIDE THE VEHICLE (WHEN DISPOSING
OF A VEHICLE) <CURTAIN AIR BAG MODULE>

Move the vehicle to an isolated spot.

Wait at least 60 seconds after disconnecting the battery
cables before doing any further work (Refer to P.52B-28).

Battery posts, terminals and related accessories contain
lead and lead compounds. WASH HANDS AFTER
HANDLING.

Disconnect the negative (-) and positive (+) battery cables
from the battery terminals, and then remove the battery from
the vehicle.

Remove the headlining (Refer to GROUP 52A,
HEADLINING P.52A-15).

ZC6018190000

Curtain air bag wiring
harness side connector
(2-pin, black)

Locking
button

Flat-tipped screwdriver

Inflator

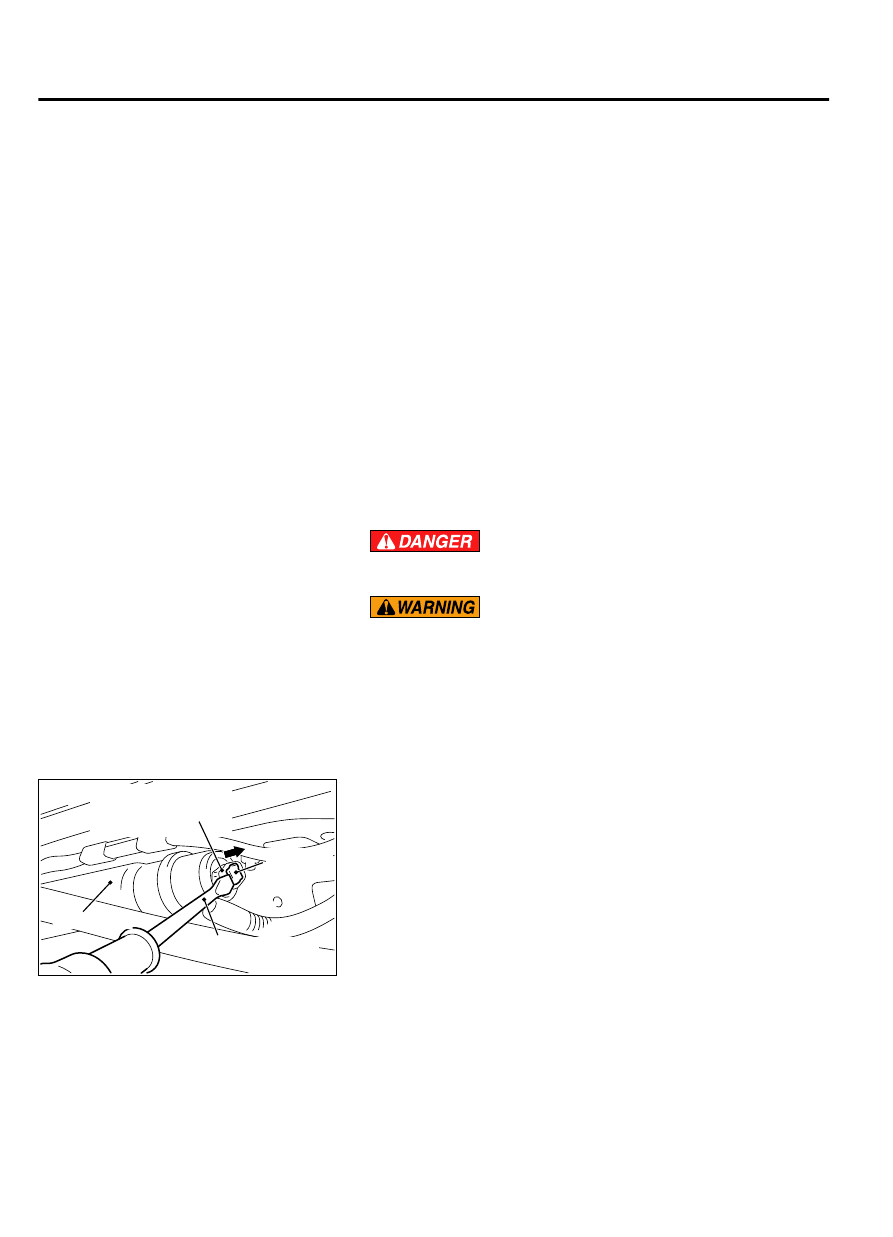

Use the flat-tipped screwdriver to pull out the locking button of
curtain air bag harness side connector. After releasing the
lock, disconnect the connector.

NOTE:

If the curtain air bag module connector is

disconnected from the floor wiring harness side
connector, both electrodes of the curtain air bag module
connector will be automatically shorted to prevent
unintended deployment of the curtain air bag module due
to static electricity, etc.

52B-358

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

AIR BAG MODULE AND SEAT BELT PRE-TENSIONER DISPOSAL PROCEDURES
