Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824:Vehicle  Communication  Interface
(V.C.I.)

｠

MB991827:M.U.T.-III USB Cable

｠

MB991910:M.U.T.-III Main Harness A

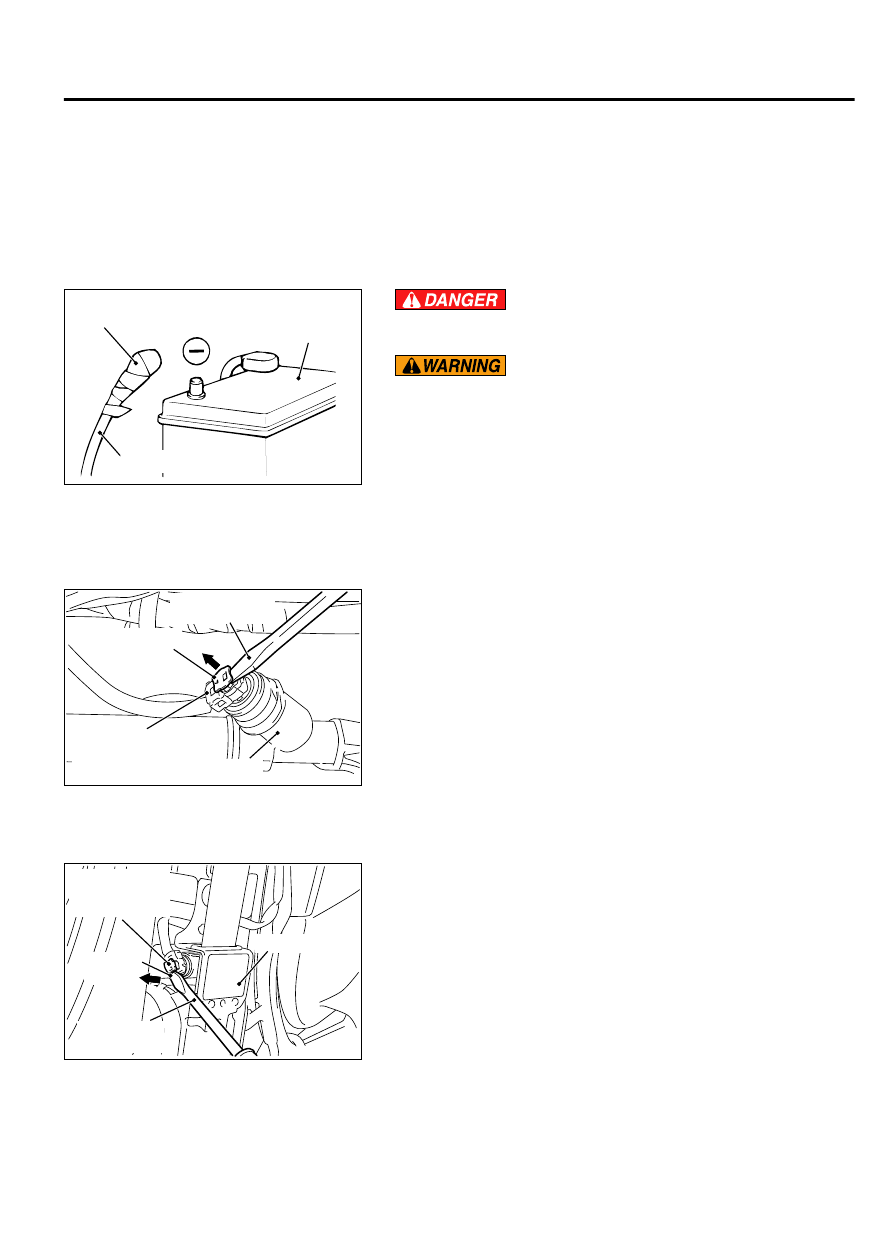

REMOVAL SERVICE POINTS

<<A>> NEGATIVE (-) BATTERY CABLE DISCONNECTION

ZC500608

Battery

Insulating tape

0000

Battery cable

Wait  at  least  60  seconds  after  disconnecting  the  battery
cable before doing any further work. (Refer to P.52B-28).

Battery  posts,  terminals  and  related  accessories  contain
lead  and  lead  compounds.  WASH  HANDS  AFTER
HANDLING.
Disconnect the negative (-) battery cable from the battery and
tape the terminal to prevent accidental connection and seat belt
pre-tensioner operation.



<<B>> LAP PRE-TENSIONER CONNECTOR
DISCONNECTION

ZC6017760000

Floor wiring harness
side connector

Locking button

Flat-tipped
screwdriver

Lap pre-tensioner

Use a flat-tipped screwdriver to unlock the locking button of the
floor  wiring  harness  side  connector.  After  releasing  the  lock,
disconnect the connector.

<<C>> SEAT BELT PRE-TENSIONER CONNECTOR
DISCONNECTION

ZC6017770000

Pre-tensioner

Floor wiring
harness side
connector

Locking
button

Flat-tipped
screwdriver

Use a flat-tipped screwdriver to unlock the locking button of the
floor  wiring  harness  side  connector.  After  releasing  the  lock,
disconnect the connector.



SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-347

SEAT BELTS WITH PRE-TENSIONER

<<D>> SEAT BELT WITH PRE-TENSIONER REMOVAL

When discarding the seat belt with pre-tensioner, discard
after operating the pre-tensioner as specified in the service
procedure. (Refer to P.52B-352.)

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION

Dispose  of  seat  belt  pre-tensioner  only  according  to  the
specified procedure. (Refer to P.52B-352).

1.

When  installing  the  new  seat  belt  pre-tensioner,  refer  to
“INSPECTION” ( P.52B-349).

2.

Connect the negative (-) battery cable.

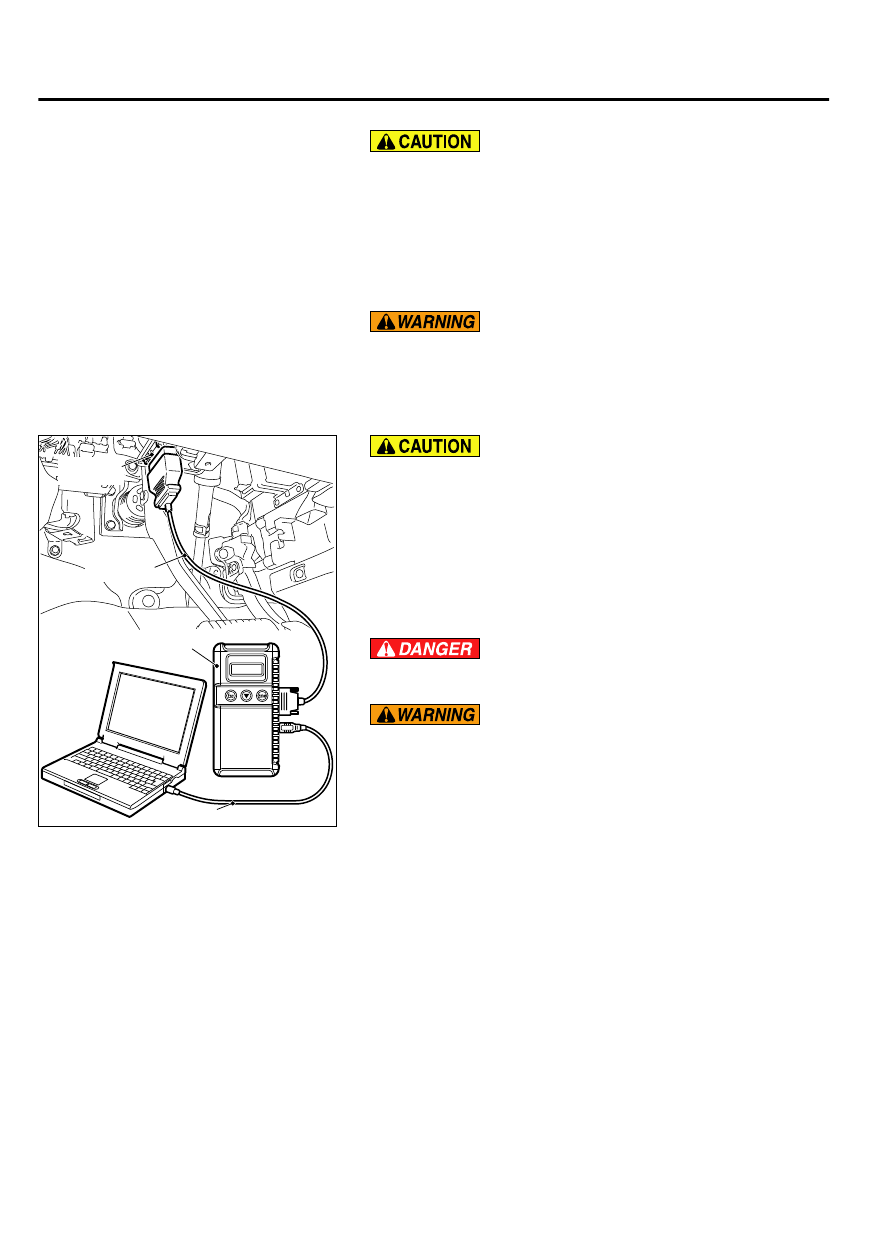

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

3.

Connect scan tool MB991958 to the data link connector.

4.

Turn the ignition switch to the “ON” position.

5.

Check DTCs using scan tool MB991958 to ensure entire SRS
operates properly.
At this time, check that no DTC except B1C35, B1C3A and
B1C49 are set.

Wait  at  least  60  seconds  after  disconnecting  the  battery
cable before doing any further work. (Refer to P.52B-28).

Battery  posts,  terminals  and  related  accessories  contain
lead  and  lead  compounds.  WASH  HANDS  AFTER
HANDLING.

6.

Turn  the  ignition  switch  to  the  "LOCK"  (OFF)  position.
Disconnect the negative (-) battery cable and tape the terminal
to prevent accidental connection and seat belt pre-tensioner
operation.



>>B<< PRE-TENSIONER CONNECTOR CONNECTION
Connect  the  pre-tensioner  connector  then  securely  lock  the
locking button of the harness-side connector.



>>C<< POST-INSTALLATION INSPECTION

1.

Reconnect the negative (-) battery cable.

2.

Turn the ignition switch to the “ON” position.

52B-348

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SEAT BELTS WITH PRE-TENSIONER

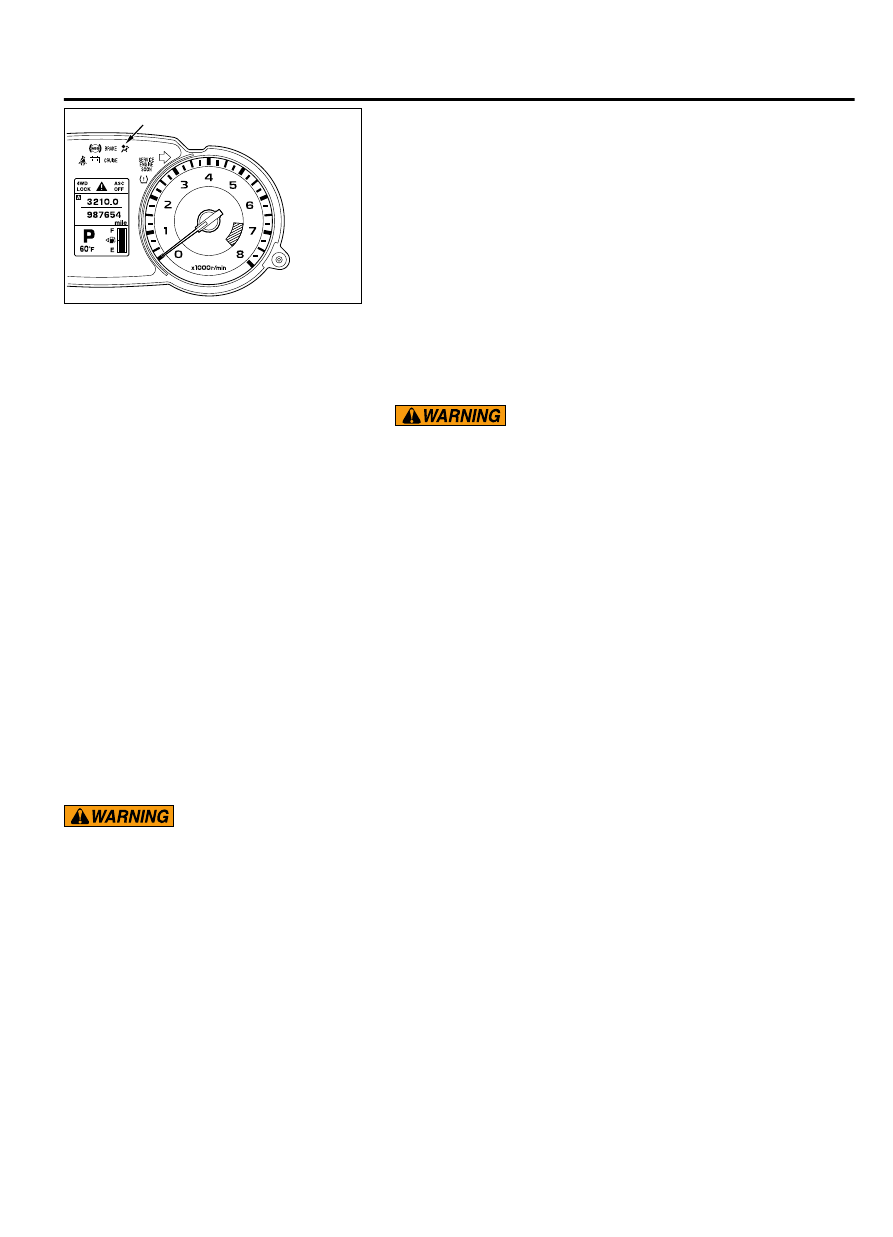

ZC601295

SRS Warning light

0000

3.

Does  the  "SRS"  warning  light  illuminate  for  approximately
seven seconds, and go out?

4.

If  yes,  the  SRS  system  is  functioning  properly.  If  not,  refer
to P.52B-33.

INSPECTION

M15204000042USA0000010000

SEAT BELT WITH PRE-TENSIONER CHECK

｠

If any component damage is found during the following
inspection, replace the seat belt with pre-tensioner with a
new  one.  Dispose  of  the  old  one  according  to  the
specified procedure. (Refer to P.52B-352).

｠

Never  attempt  to  measure  the  circuit  resistance  of  the
seat belt pre-tensioner even if you are using the specified
tester. If the circuit resistance is measured with a tester,
accidental seat belt pre-tensioner operation will result in
serious personal injury.

1.

Check  seat  belt  pre-tensioner  for  dents,  cracks  or
deformation.

2.

Check  the  connectors  for  damage,  the  terminals  for
deformation, and the harness for binding.

SEAT SLIDE SENSOR

REMOVAL AND INSTALLATION

M15204000253USA0000010000

｠

Never attempt to disassemble or repair the seat
slide sensor. If faulty, replace it.

｠

Do not drop or subject the seat slide sensor to
impact  or  vibration.  Replace  the  seat  slide

sensor, if dents, cracking, deformation, or rust
are present.

Pre-removal Operation

｠

Turn the ignition key to the "LOCK" (OFF) position.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-349

SEAT BELTS WITH PRE-TENSIONER

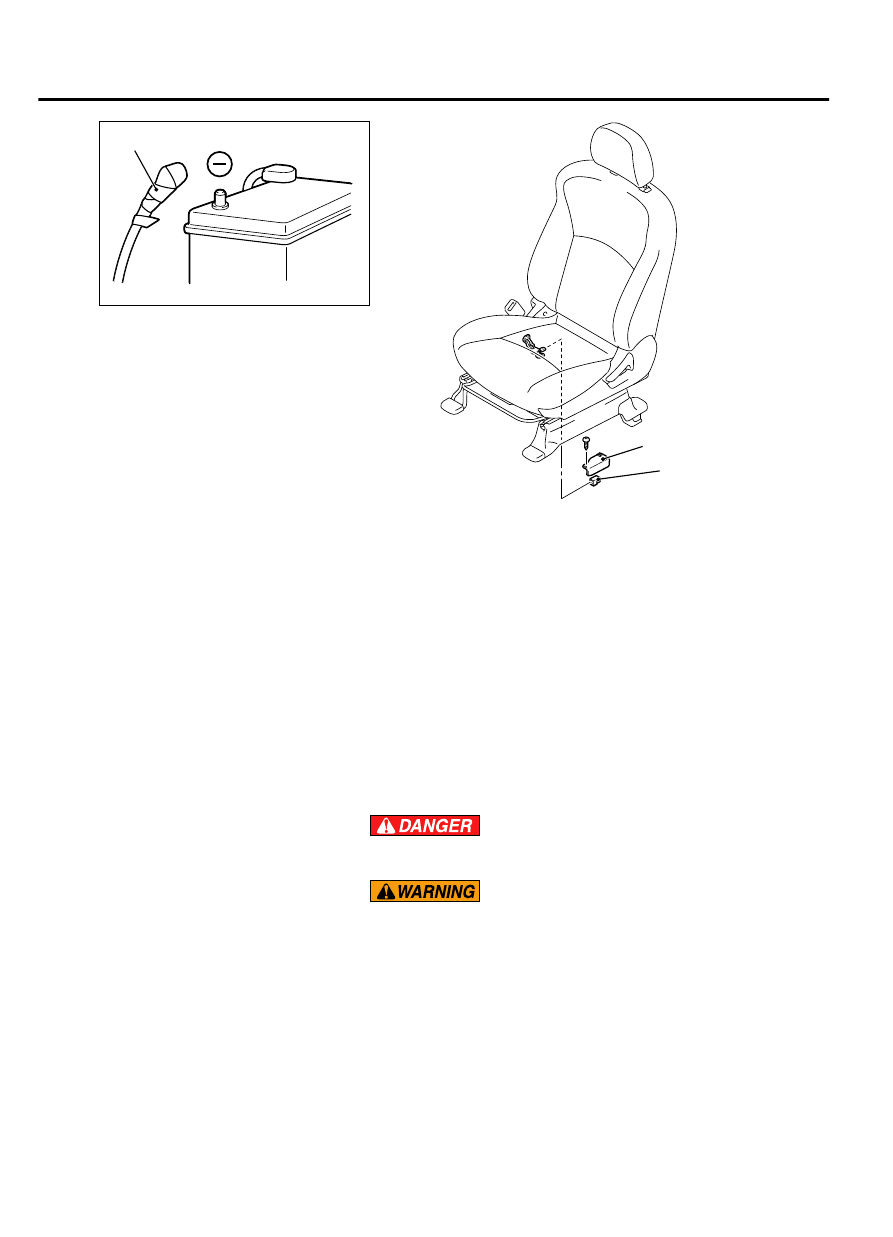

ZC601791

1

2

3

AA00

Removal steps

<<A>>

1.

Negative (-) battery cable connection

·

Front  seat  <driver’s  side>  (Refer  to
52A, Front seat assembly P.52A-18).

2.

Seat slide sensor cover

3.

Seat slide sensor
Installation steps

>>A<<

Pre-installation inspection

Installation steps

>>B<<

3.

Seat slide sensor

2.

Seat slide sensor cover

·

Front  seat  <driver’s  side>  (Refer  to
52A, Front seat assembly P.52A-18).

1.

Negative (-) battery cable connection

>>C<<

·

Post-installation inspection



REMOVAL SERVICE POINT

<<A>> NEGATIVE (-) BATTERY CABLE DISCONNECTION

Wait  at  least  60  seconds  after  disconnecting  the  battery
cable before doing any further work. (Refer to P.52B-28).

Battery  posts,  terminals  and  related  accessories  contain
lead  and  lead  compounds.  WASH  HANDS  AFTER
HANDLING.

52B-350

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SEAT SLIDE SENSOR
