<<B>> CURTAIN AIR BAG MODULE CONNECTOR
REMOVAL

ZC6015730000

Locking
button

Flat-tipped screwdriver

Inflator

Curtain air bag connector

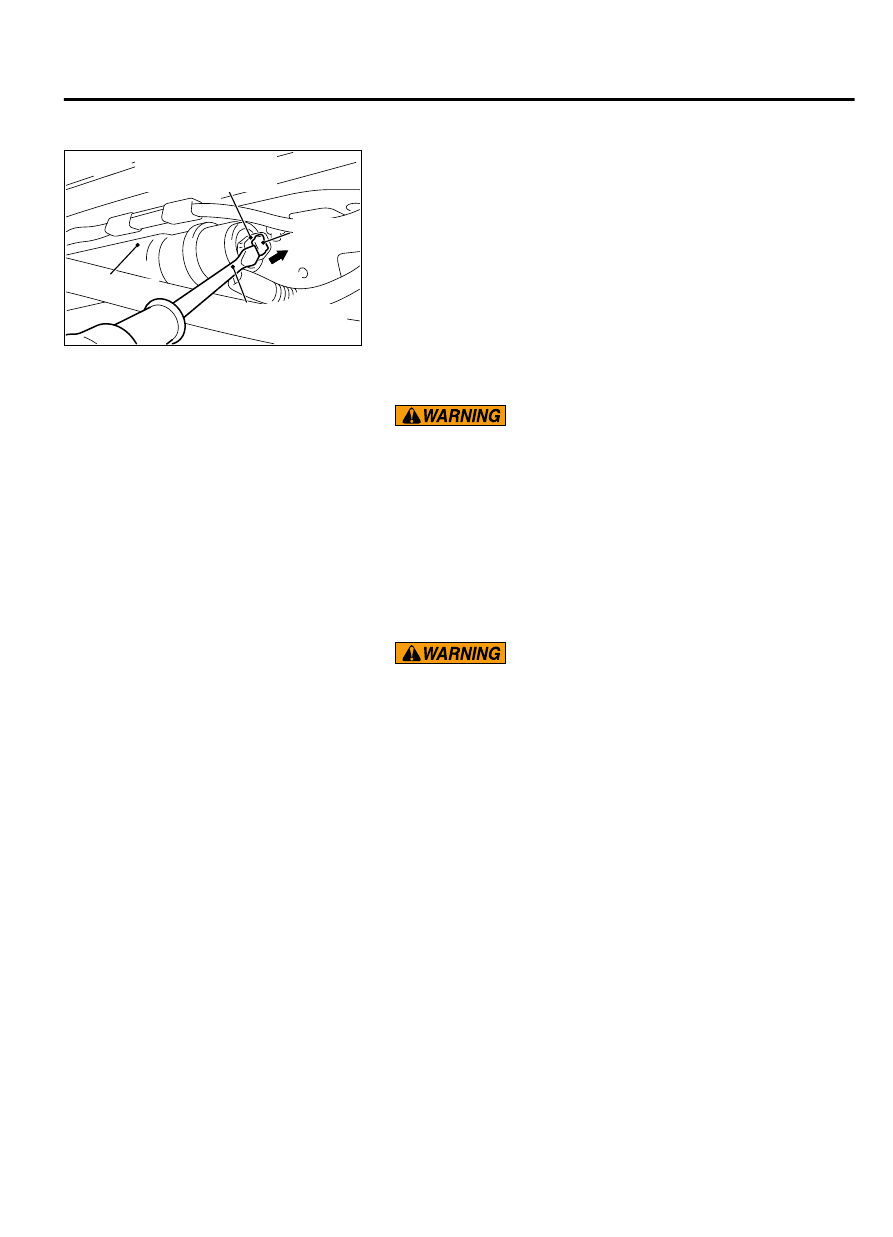

Use a flat-tipped screwdriver to unlock the locking button of the
curtain air bag harness side connector. After releasing the lock,
disconnect the connector.

<<C>> CURTAIN AIR BAG MODULE REMOVAL

｠

The air bag module must not be measured with such
equipment as an ohmmeter.

｠

The air bag module must not be disassembled.

｠

The removed air bag module should be stored in a clean,
dry place with the deployment surface facing up.

INSTALLATION SERVICE POINTS

>>A<< PRE-INSTALLATION INSPECTION

Dispose of curtain air bag module only according to the
specified procedure. (Refer to P.52B-28).

When installing the new curtain air bag module, refer to
“INSPECTION” ( P.52B-345).

Connect the negative (-) battery cable.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-343

CURTAIN AIR BAG MODULE

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

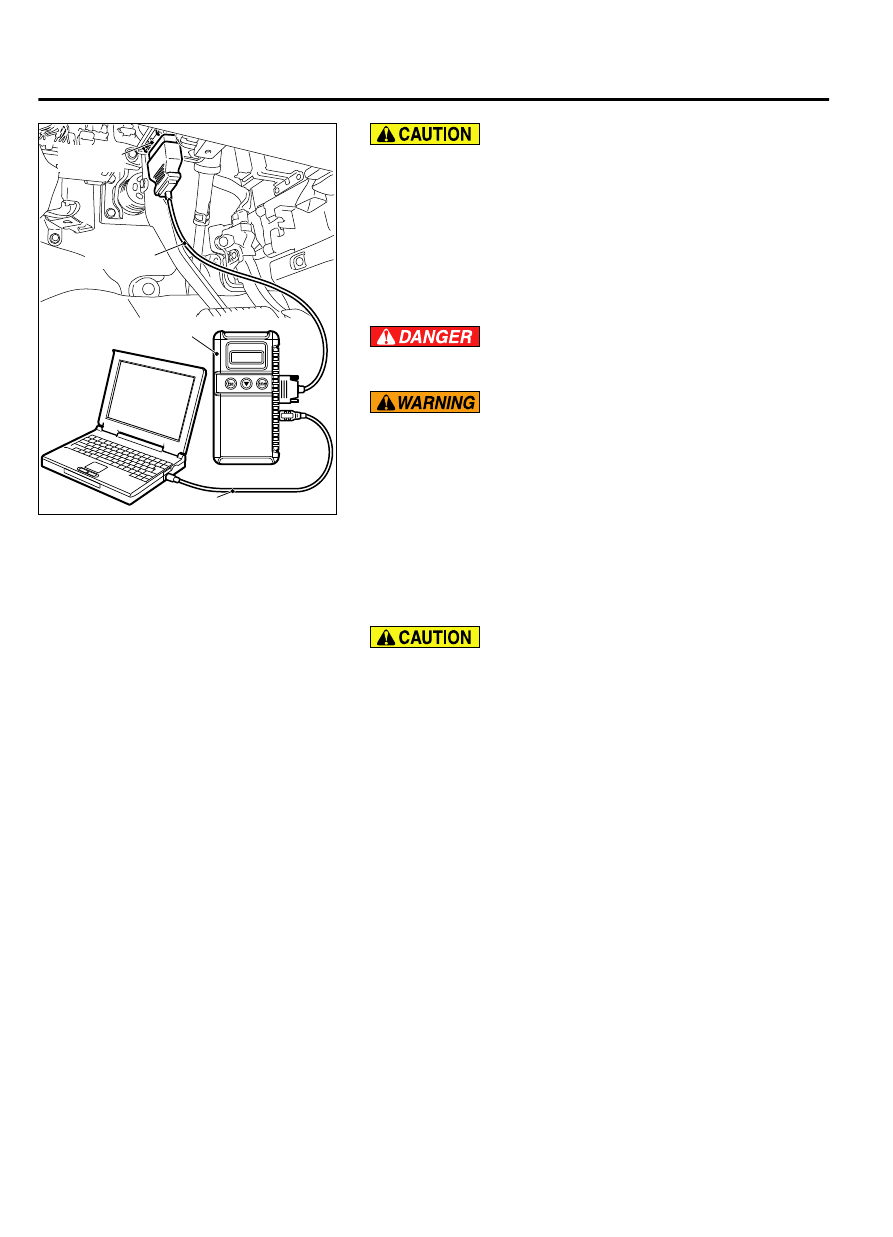

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

Connect scan tool MB991958 to the data link connector.

Turn the ignition switch to the “ON” position.

Check DTCs using scan tool MB991958 to ensure entire SRS
operates properly.
At this time, check that no DTC except B1B1A and B1B2C are
set.

Wait at least 60 seconds after disconnecting the battery
cable before doing any further work. (Refer to P.52B-28).

Battery posts, terminals and related accessories contain
lead and lead compounds. WASH HANDS AFTER
HANDLING.

Turn the ignition switch to the "LOCK" (OFF) position.
Disconnect the negative (-) battery cable and tape the terminal
to prevent accidental connection and seat belt pre-tensioner
operation.

>>B<< CURTAIN AIR BAG MODULE INSTALLATION

｠

Take care not to bend or distort the curtain air bag when
installing it.

｠

Take care that the surrounding components do not trap
the air bag.

｠

Take care that the front pillar trim clips or other parts do
not interfere with the strap.

>>C<< CURTAIN AIR BAG MODULE CONNECTOR
CONNECTION
Connect the curtain air bag module connector, then securely
lock the locking button of the harness-side connector.

>>D<< POST-INSTALLATION INSPECTION

Connect the negative (-) battery cable.

Turn the ignition switch to the “ON” position.

52B-344

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

CURTAIN AIR BAG MODULE

ZC601295

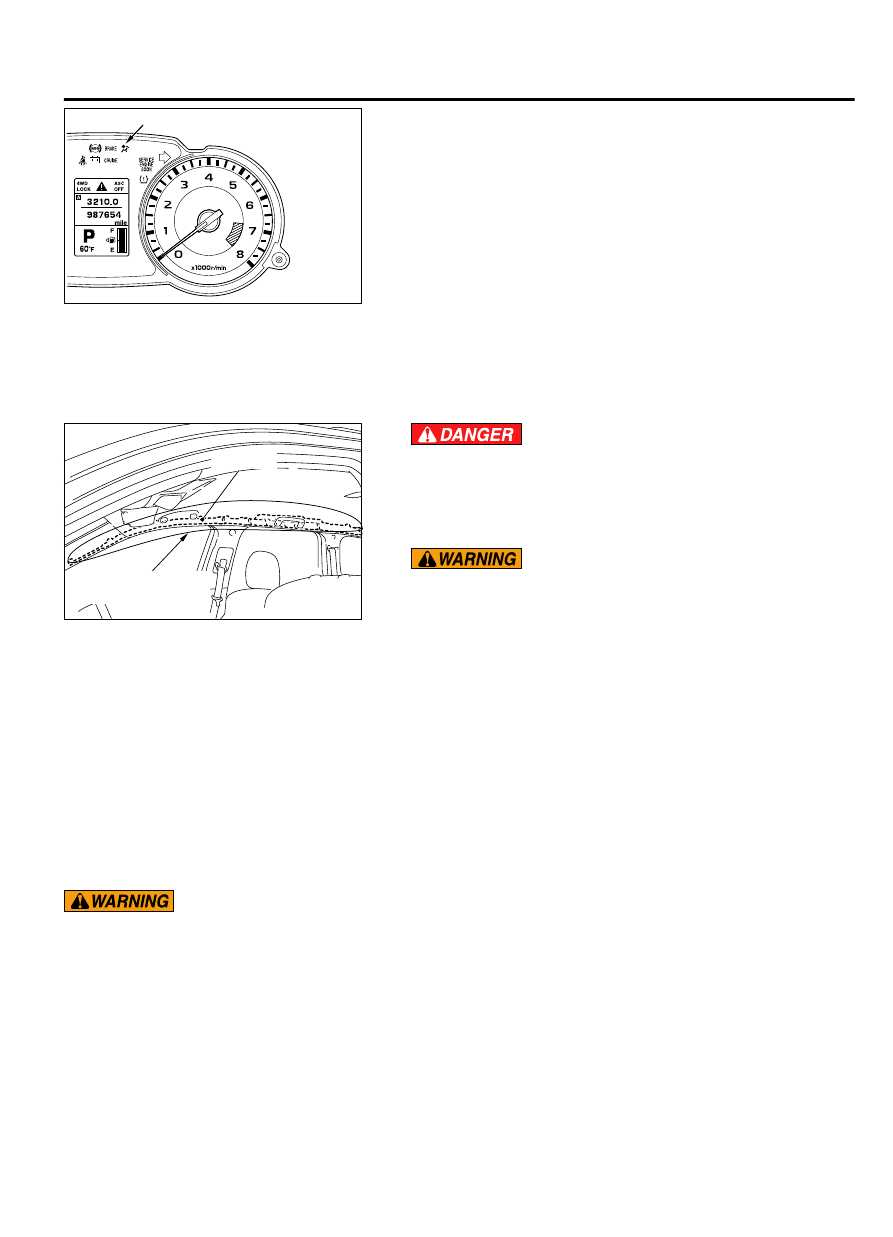

SRS Warning light

0000

Does the "SRS" warning light illuminate for approximately
seven seconds, and go out?

If yes, the SRS system is functioning properly. If not, refer
to P.52B-33.

INSPECTION

M15204000136USA0000010000

CURTAIN AIR BAG MODULE CHECK

ZC6015970000

Curtain air bag module
deployment section

Inflator

Never attempt to measure the circuit resistance of the air
bag modules (squib), even if you are using the specified
tester. If the circuit resistance is measured with a tester,
accidental air bag deployment will result, and possible
serious personal injury.

If any component damage is found during the following
inspection, replace the air bag module with a new one.
Dispose of the old one according to the specified
procedure (Refer to P.52B-352).

Check that the curtain air bag deployment part of the
headlining is normal.

Check the inflator surface for cracks, dents or deformations.

Check the air bag for breakage.

Check the connector for damage, the terminal for deformation
and the harness for binding.

SEAT BELTS WITH PRE-TENSIONER

REMOVAL AND INSTALLATION

M15204000041USA0000010000

｠

Never attempt to disassemble or repair the seat
belt pre-tensioner. If faulty, replace it.

｠

Be extremely careful when handling the seat
with pre-tensioner. Do not subject it to shocks,
drop it, bring it close to strong magnets or allow
contact with water, grease or oil. Always replace
it with a new part if any dents, cracks or
deformation is found.

｠

Do not place anything on the seat belt pre-
tensioner.

｠

Do not expose the seat belt pre-tensioner to
temperatures over 90°C (194°F).

｠

After operating the seat belt pre-tensioner,
replace the seat belt pre-tensioner with a new
part.

｠

Gloves and protective goggles must be worn
when handling a seat belt pre-tensioner once it
has been used.

｠

If disposing of a seat belt with pre-tensioner
which has not yet been operated, its seat belt
pre-tensioner must be operated first before
disposal. (Refer to P.52B-352).

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-345

CURTAIN AIR BAG MODULE

｠

When  removing  and  installing  the  front
passenger  seat  belt,  be  sure  to  carry  out
accuracy  check  of  the  occupant  classification

sensor after the seat has been installed in the
vehicle. (On-Vehicle Service P.52B-322.)

Pre-removal Operation

｠

Turn the ignition key to the "LOCK" (OFF) position.

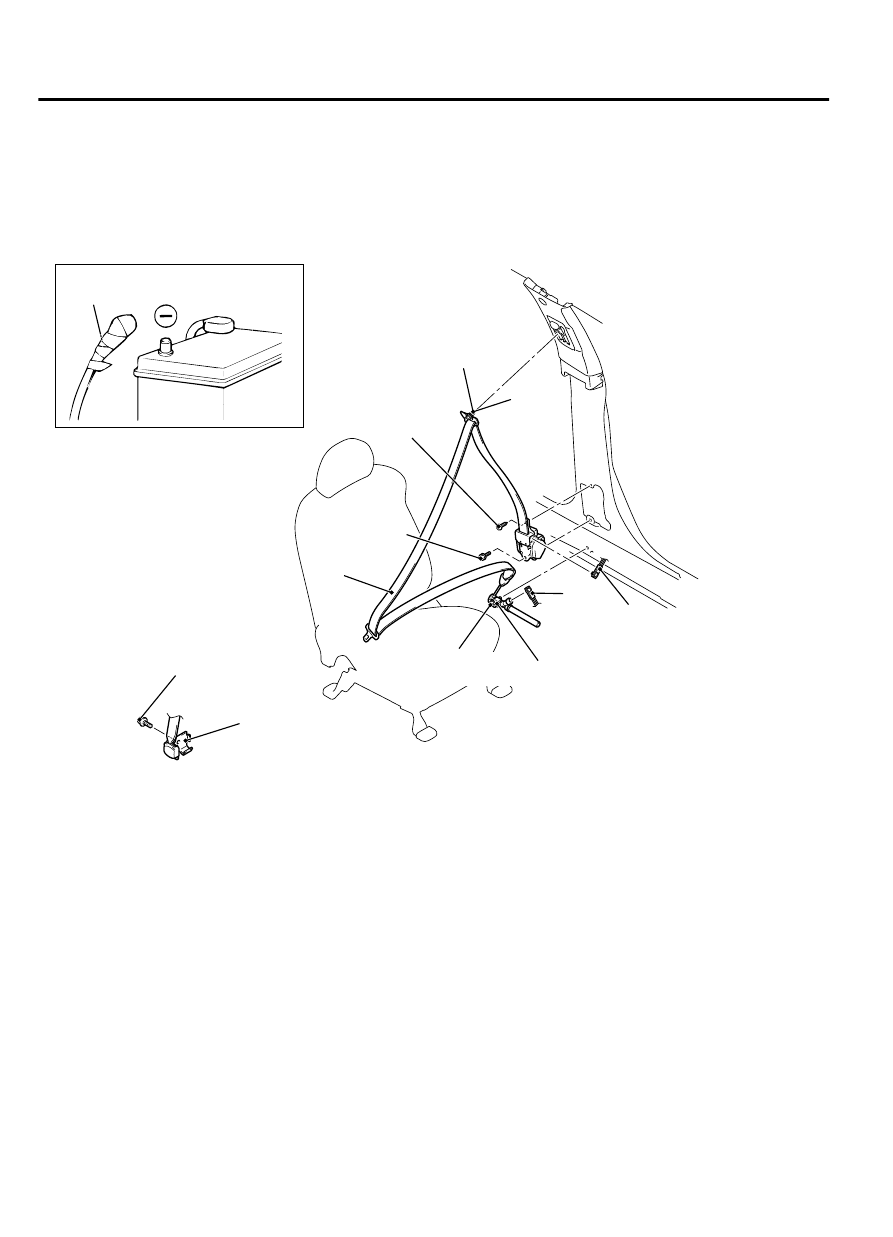

ZC601601

43 ± 8 N·m
32 ± 6 ft-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

43 ± 8 N·m
32 ± 6 ft-lb

AA00

Removal steps

<<A>>

1. Negative (-) battery cable connection
2. Seat belt shoulder anchor bolt
3. Seat belt lower anchor bolt <passenger’s

seat belt>

Center pillar trim lower (Refer to GROUP
52A, Interior Trim P.52A-10).

<<B>>

4. lap pre-tensioner connector connection

<Driver's seat belt>

5. lap pre-tensioner <Driver's seat belt>

<<C>>

6. Seat belt pre-tensioner connector

connection

<<D>>

7. Seat belt with pre-tensioner

Installation steps

>>A<< ·

Pre-installation inspection

Installation steps

7. Seat belt with pre-tensioner

>>B<< 6. Seat belt pre-tensioner connector

connection

5. lap pre-tensioner <Driver's seat belt>
4. lap pre-tensioner connector <Driver's

seat belt>

Center pillar trim lower (Refer to GROUP
52A, Interior Trim P.52A-10).

3. Seat belt lower anchor bolt <passenger’s

seat belt>

2. Seat belt shoulder anchor bolt
1. Negative (-) battery cable connection

>>C<< ·

Post-installation inspection

52B-346

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SEAT BELTS WITH PRE-TENSIONER
