Mitsubishi Outlander XL. Manual - part 947





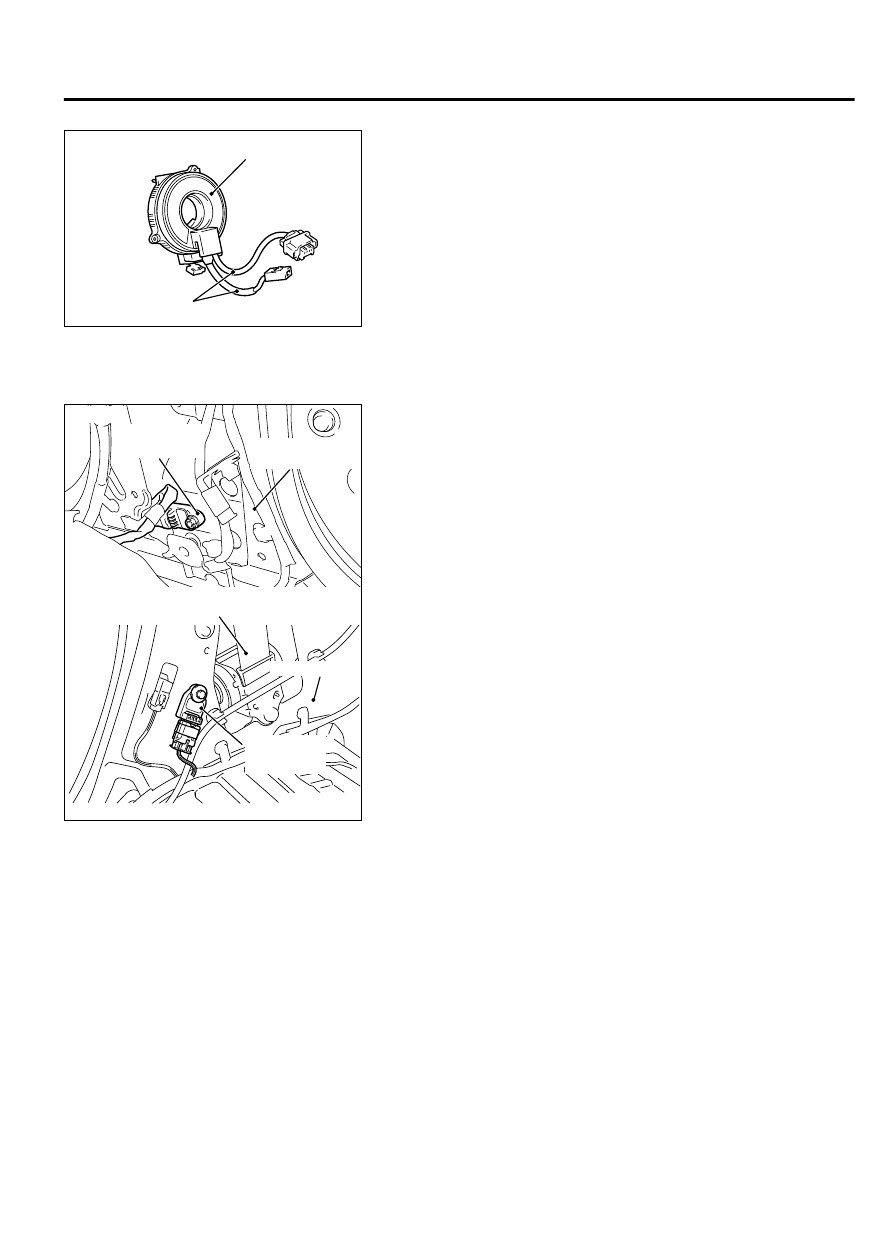

CLOCK SPRING

ZC600297

Protective tubes

Case

0000

1.

Check  the  clock  spring  connectors  and  protective  tube  for
damage, and the terminals for deformation.

2.

Visually check the case for damage.



SIDE IMPACT SENSOR

ZC6014420000

Center pillar

Second seat belt

<Rear>

Side impact
sensor (front)

Side impact
sensor (rear)

<Front>

Quarter panel

1.

Check that there is no bending or corrosion in the center pillar
and quarter panel.

2.

Check that there is no denting, breakage or bending of the side
impact sensor.

3.

Check that there is no harness crimping, connector damage
or bent terminals.

NOTE:

The illustration shows the side impact sensor (RH).

The position of the side impact sensor (LH) is symmetrical
to this.



SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-319

POST-COLLISION DIAGNOSIS

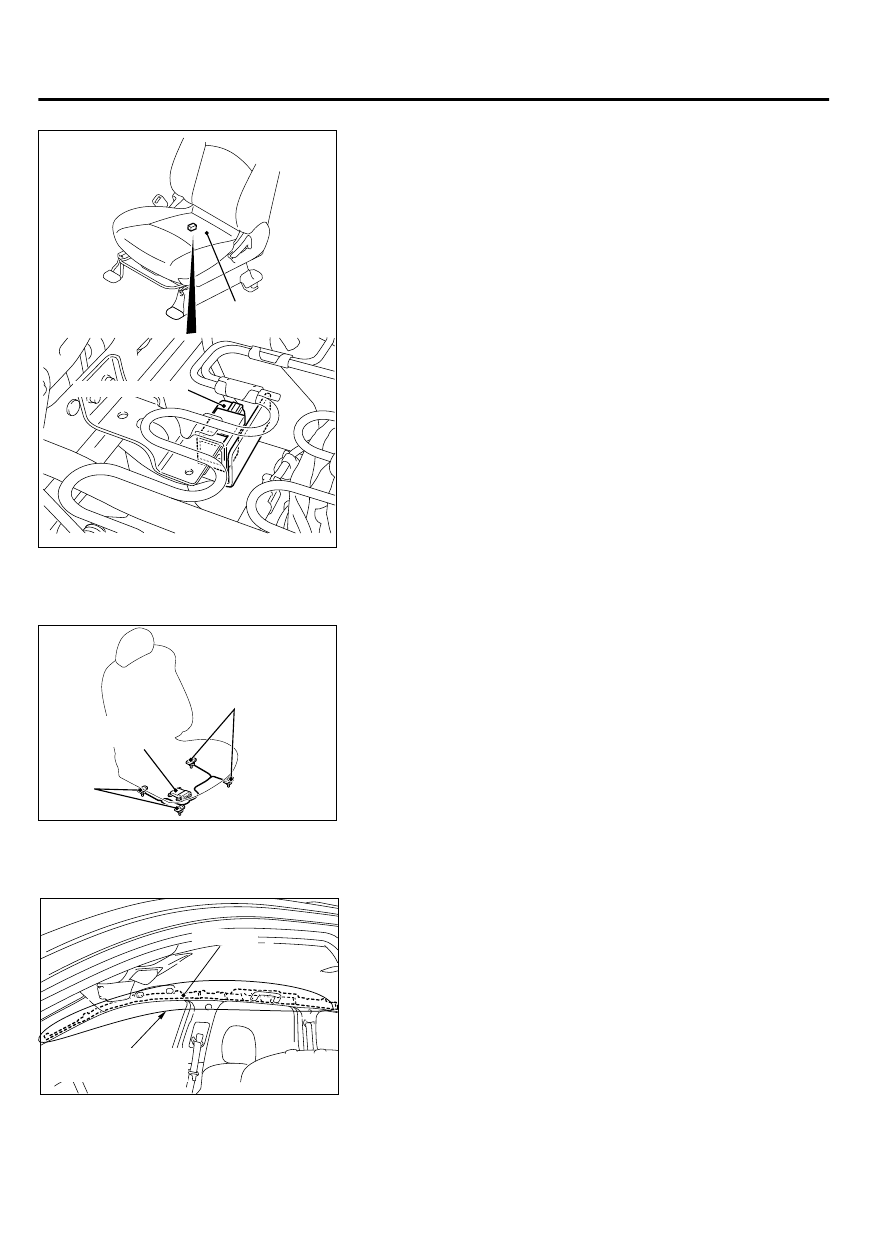

SEAT SLIDE SENSOR

ZC601689

Front seat (LH)

Seat sliide sensor

0000

1.

Check that there is no connector damage, bent terminals or
harness crimping.

2.

Check the installation of the seat slide sensor.



OCCUPANT CLASSIFICATION-ECU AND WEIGHT SENSOR

ZC601598

Weight
sensor

Weight sensor

Occupant
classification-ECU

0001

1.

Check  the  occupant  classification-ECU  case  and  weight
sensor for dents, cracks or deformation.

2.

Check  the  connector  for  damage,  and  the  terminals  for
deformation.

3.

Check the installation of the occupant classification-ECU and
weight sensor.



CURTAIN AIR BAG MODULE

ZC6014490000

Curtain air bag module
deployment section

Inflator

1.

Check  that  the  curtain  air  bag  deployment  part  of  the
headlining is normal.

2.

Check the inflator surface for cracks, dents or deformations.

3.

Check the connector for damage, the terminal for deformation,
and the harness for binding.

52B-320

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

POST-COLLISION DIAGNOSIS

STEERING WHEEL, STEERING COLUMN AND SHAFT
ASSEMBLY

1.

Check the wiring harness (built into the steering wheel) and
the connectors for damage, and the terminals for deformation.

2.

Install the air bag module to check fit or alignment with the
steering wheel.

3.

Check  the  steering  wheel  for  noise,  binding  or  difficult
operation and excessive free play.

4.

Check the steering column shaft shock absorbing mechanism
(Refer to GROUP 37A, On-Vehicle Service - Steering Column
Shaft  Assembly  Shock  Absorbing  Mechanism  Check  P.
37-19).



SEAT BELT WITH PRE-TENSIONER

1.

Check the seat belt for damage or deformation.

2.

Check  the  seat  belt  with  pre-tensioner  for  cracks  or
deformation.

3.

Check that the unit is installed correctly to the vehicle body.



HARNESS CONNECTOR (FRONT WIRING HARNESS,
INSTRUMENT PANEL WIRING HARNESS, AND FLOOR
WIRING HARNESS)
Check the harnesses for binding, the connectors for damage,
poor connection, and the terminals for deformation (Refer to P.
52B-28).

INDIVIDUAL COMPONENT SERVICE

M15204000029USA0000010000

If  heat  damage  occurs  during  paint  work,
remove the SRS-ECU, the air bag modules, the
clock spring, front seats, impact sensor and the
seat belt with pre-tensioner. Recheck the SRS
system operability after reinstalling them.

SRS-ECU,  air  bag  module,  clock  spring,
front seats, impact sensor: 93° C (200° F) or
more

Seat belt with pre-tensioner: 90°C (194° F)
or more

If  the  SRS  components  are  removed  for  the
purpose  of  inspection,  sheet  metal  repair,

painting, etc., they should be stored in a clean,
dry place until they are reinstalled.

If the SRS components are to be removed or replaced
as a result of maintenance, diagnosis, etc., follow the
appropriate  procedure  in  this  section.  (Front  impact
sensor:  refer  to  P.52B-324,  SRS-ECU:  refer  to  P.
52B-326
,  Air  bag  modules  and  clock  spring:  refer
to P.52B-329, Side-airbag module: refer to GROUP
52A,  Front  Seat  Assembly  P.52A-18,  Side  impact
sensor: refer to P.52B-338, Curtain air bag module:
refer to P.52B-341, Seat belt with pre-tensioner: refer
to P.52B-345).

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-321

INDIVIDUAL COMPONENT SERVICE

ON-VEHICLE SERVICE

ACCURACY CHECK OF OCCUPANT CLASSIFICATION SENSOR

M15204000988USA0000010000

The following precaution must be observed when executing
accuracy testing and calibration.

Perform the occupant classification sensor calibration at
room  temperature.  (Proposal:  20  ±  15°C  (68  ±  27°  F))
(Before the calibration, place the occupant classification
sensor more than 30 minutes at room temperature.)

Do not apply any load or vibration while the weight check
and the calibration is performed.

Perform the weight check and the calibration after seat
components are all assembled.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

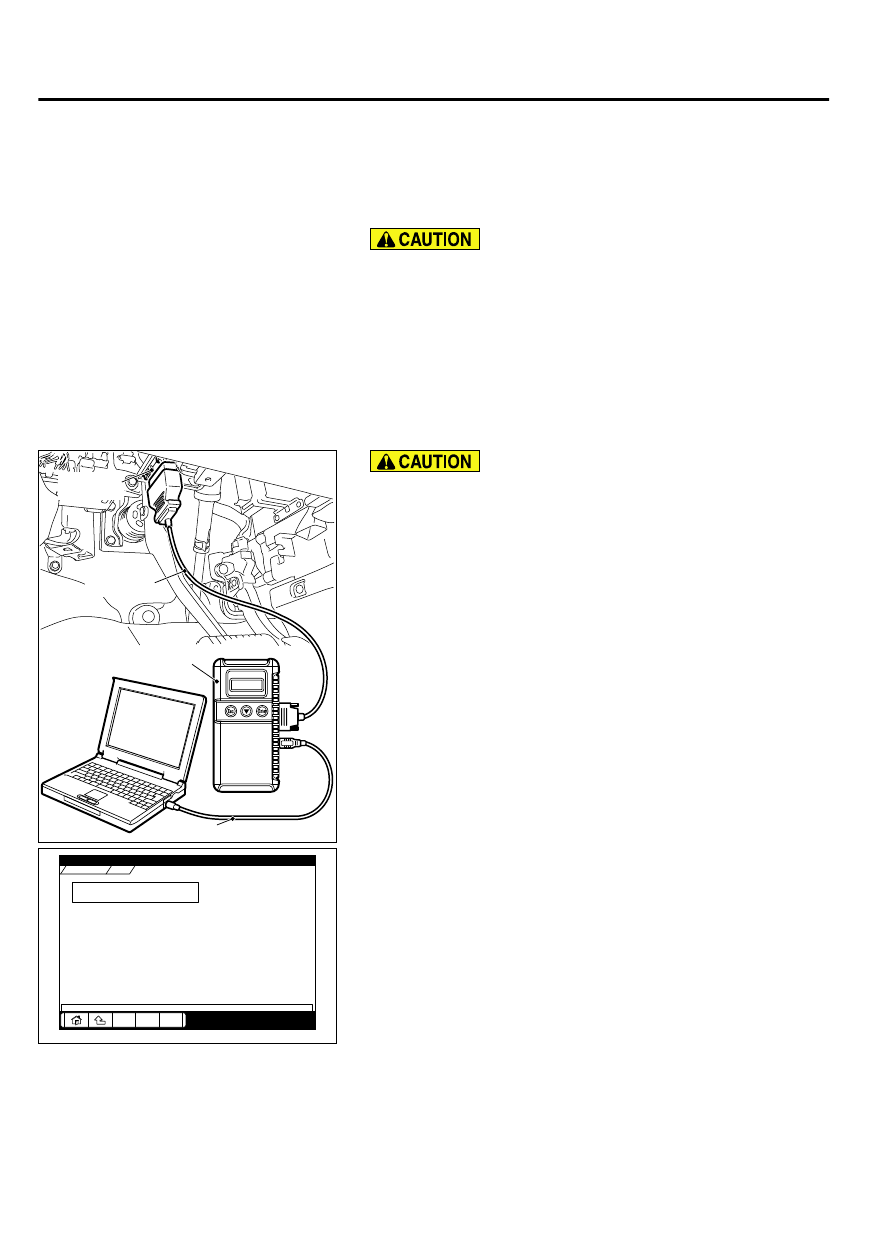

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

1.

Connect scan tool MB991958 to the data link connector.



Seat  Weight Sensor Accura

cy Che ck

Please select function.

System Select

OCM

Special Function

Special Function

NXXXXXXXXX

ZC6045190000

2.

To execute accuracy check and calibration, operate scan tool
MB991958 (M.U.T.-III Sub Assembly) as follows.

(1)

Select "OCM".

(2)

Select "Special Function".

(3)

Select "Zero Calibration & System Test".

(4)

The start of the zero calibration.

(5)

The execution check of the zero calibration.

(6)

The zero calibration has been completed when the screen
as shown in the illustration is displayed. The OK button is
pushed and it progresses to the next.

(7)

The start of 30 kg (66 pounds) system test.

(8)

The execution check of the 30 kg (66 pounds) system test.

52B-322

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

ON-VEHICLE SERVICE
