ZC603601

A

Lock lever

0000

(2)

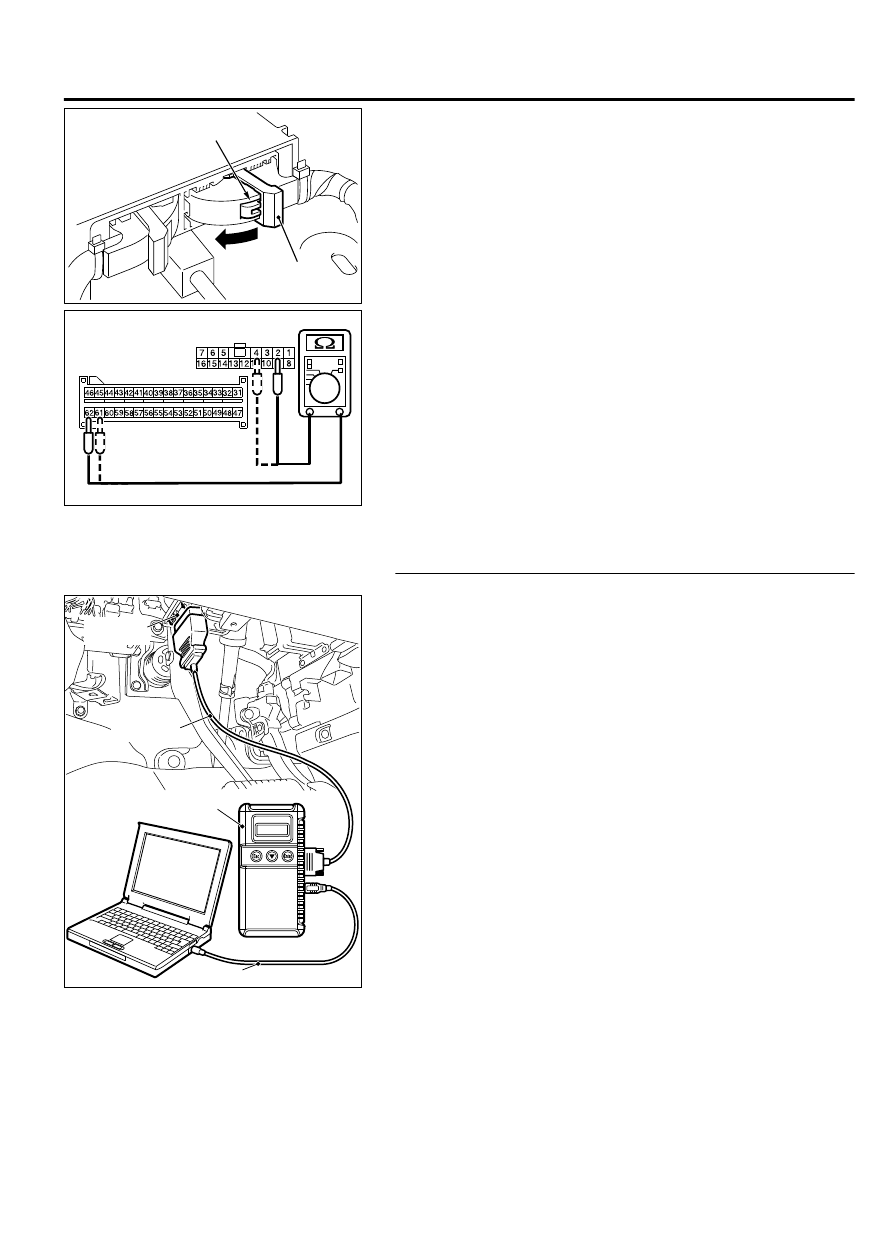

While  pushing  the  part  "A"  indicated  in  the  figure  of  the
harness side connector, turn the lock lever to the direction of
the arrow to release the lock lever, and disconnect the C-27
SRS-ECU connector.

(3)

Disconnect the ETACS-ECU connector C-313.

ZC5007880048

C-317 Harness side
connector (front view)

C-27 Harness
side connector
(front view)

(4)

Check  for  continuity  between  the  following  terminals.  It
should be less than 2 ohms.

<Fuse No.12>

SRS-ECU  connector  C-27  (terminal  No.62)  and  the
ETACS-ECU connector C-313 (terminal No.2)

<Fuse No.18>

SRS-ECU  connector  C-27  (terminal  No.61)  and  the
ETACS-ECU connector C-313 (terminal No.4)

Q:Does continuity exist?

YES:

 Go to Step 5.

NO:

 Replace the harness wire between SRS-ECU connector

C-27 and the ETACS-ECU connector C-313.

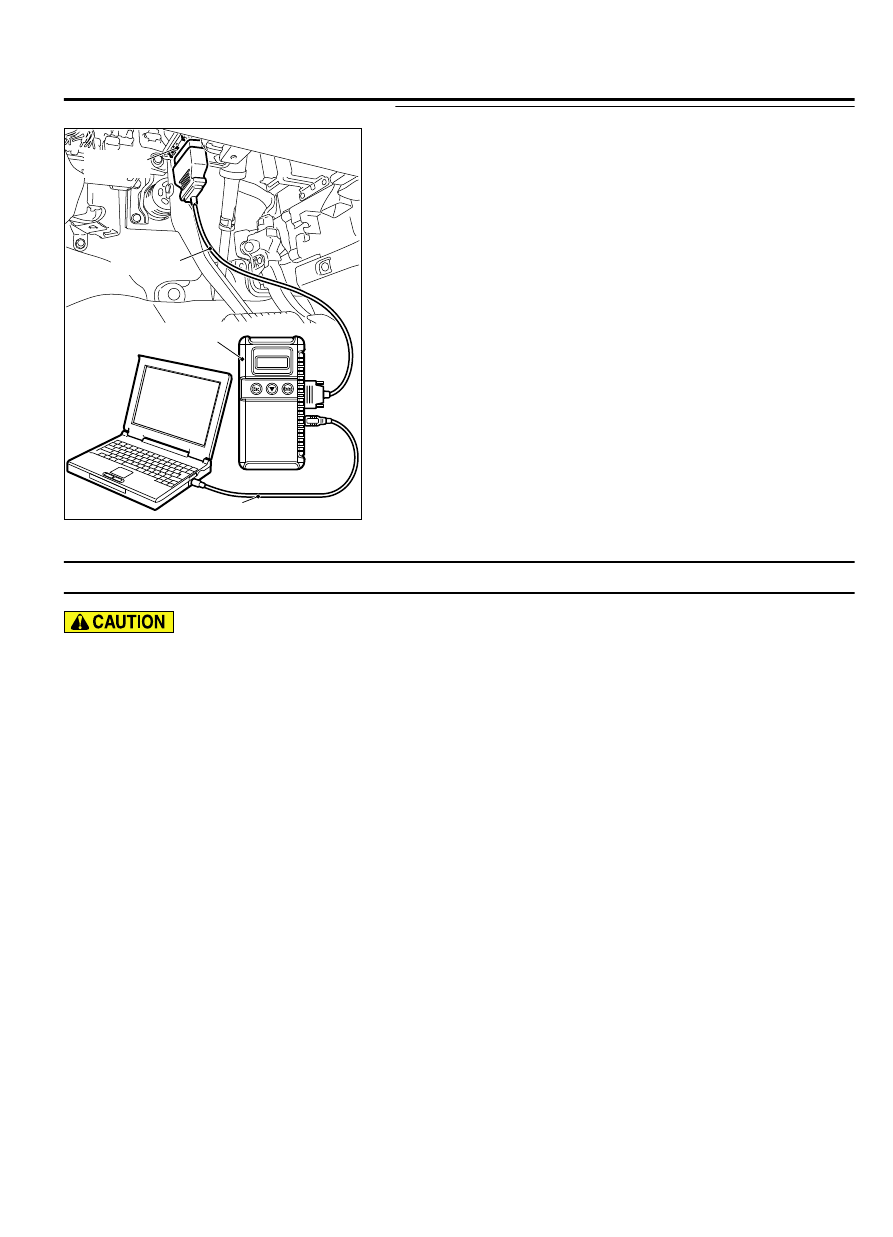

STEP 5. Recheck for diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Check again if the DTC is set.

(1)

Erase the DTC.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC B212C <Fuse No.12 circuit> or B212D <Fuse No.

18 circuit> set?

YES:

 Return to Step 1.

NO:

 The procedure is complete.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-263

SRS AIR BAG DIAGNOSIS

DTC B223D: OCM DTC Present

M15204001002USA0000010000

If  DTC  B223D  is  set  in  the  SRS-ECU,  always
diagnose the CAN main bus line.

DTC SET CONDITION
It is set if a DTC occurs in the occupant classification-
ECU.

TROUBLESHOOTING HINTS

Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tool:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

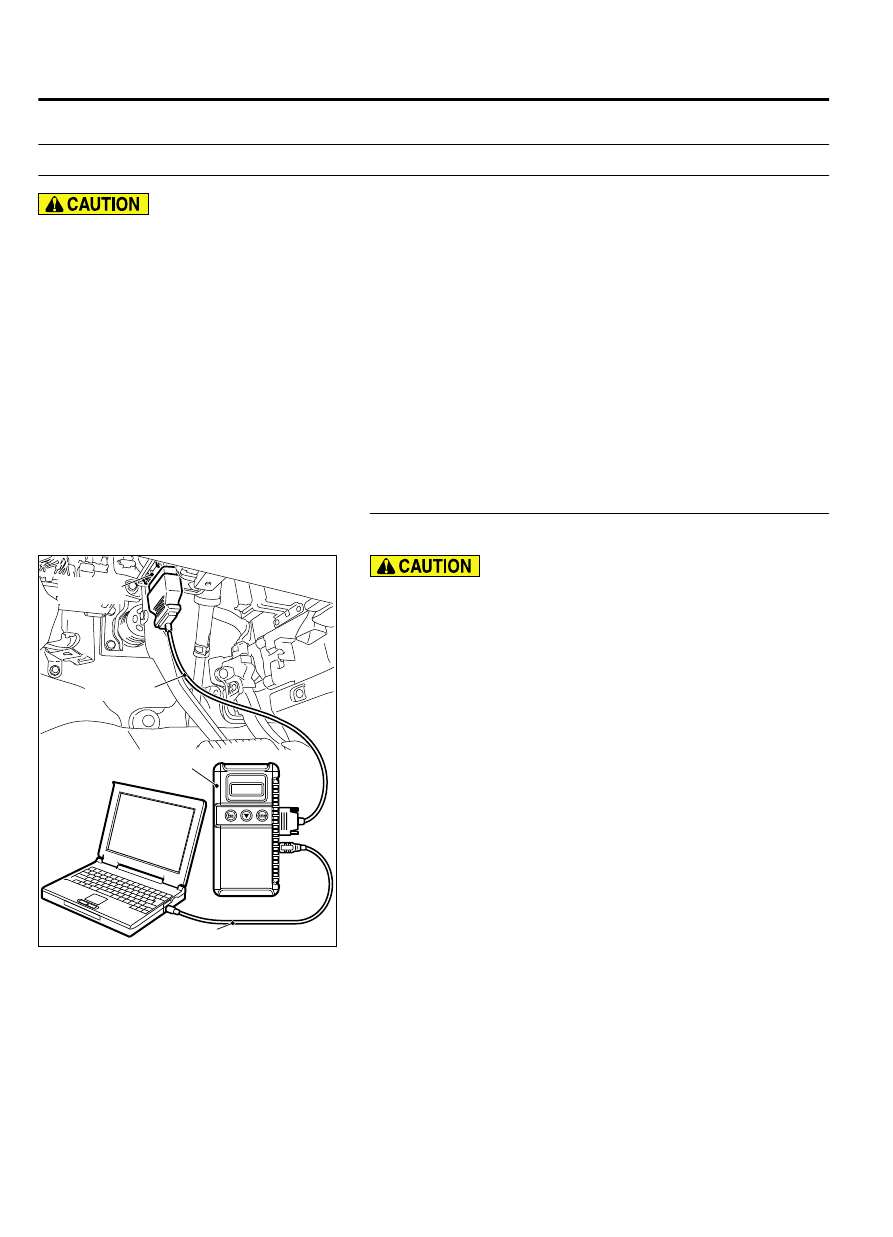

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
scan tool P.52B-31."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

52B-264

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS

STEP 2. Recheck for diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Check again if the DTC is set.

(1)

Erase the DTC.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC B223D set?

YES:

 Check the occupant classification-ECU. If no

abnormality is found, replace the SRS-ECU. (Refer to P.
52B-326).

NO:

 There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to GROUP 00,
How to Cope with Intermittent Malfunction P.00-15).

DTC U0019: Bus Off (CAN-B)

M15204000971USA0000010000

If the DTC U0019 is set, be sure to diagnose the
CAN main bus line.

When replacing the ECU, always check that the
communication circuit is normal.

DIAGNOSTIC FUNCTION
If the CAN-B circuit malfunction occurs, the SRS-ECU
sets the DTC U0019.

JUDGMENT CRITERIA
Because of the CAN-B bus circuit malfunction, if SRS-
ECU  becomes  unable  to  perform  the  normal  data
transmission,  SRS-ECU  determines  that  an
abnormality is present.

TROUBLESHOOTING HINTS
The CAN bus line may be defective

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicles Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-265

SRS AIR BAG DIAGNOSIS

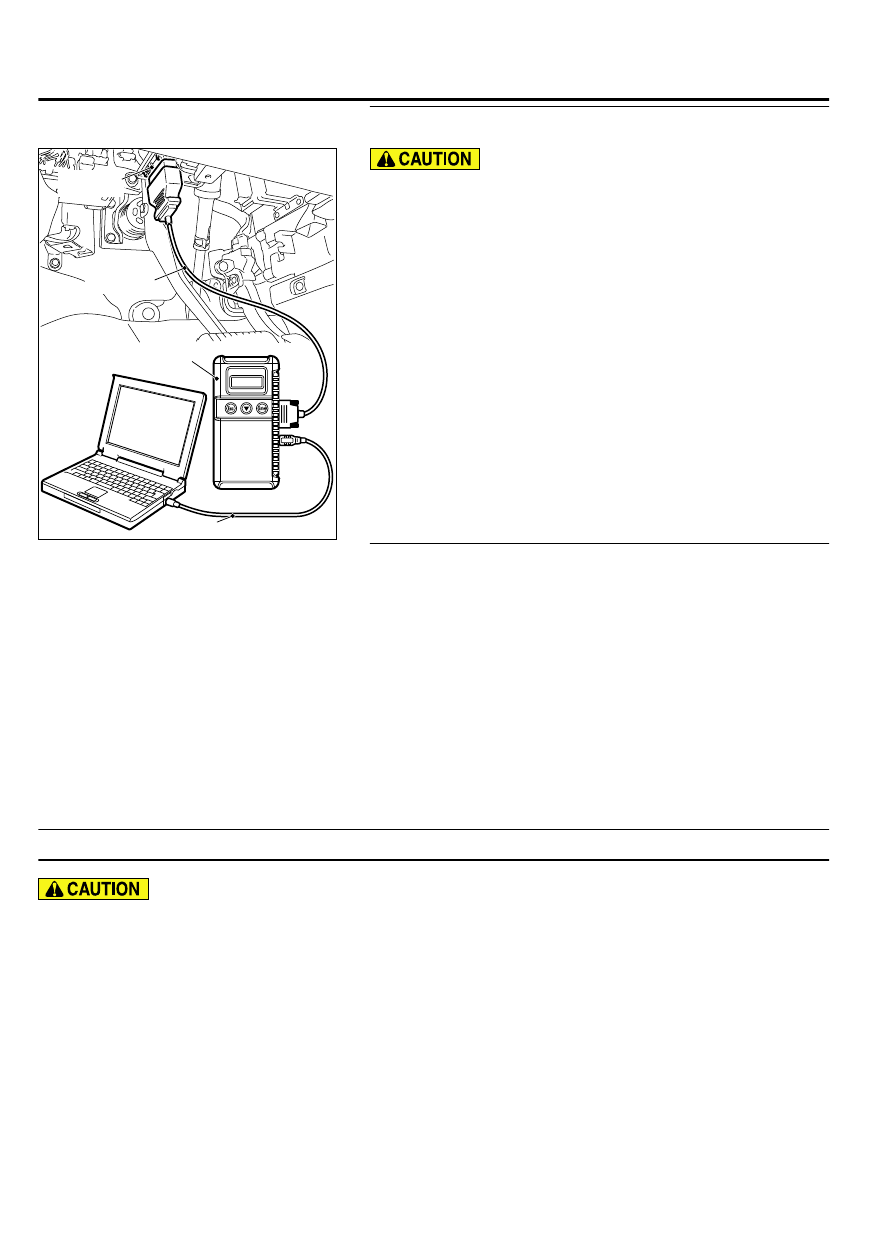

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
scan tool P.52B-31."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00 - How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-3).

STEP 2. Using scan tool MB991958, diagnose the CAN bus
line.

(1)

Turn the ignition switch to the "ON" position.

(2)

Diagnose the CAN bus line.

(3)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to GROUP 00,
How to use Troubleshooting/inspection Service Points P.
00-15).

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

DTC U0141: ETACS CAN Timeout

M15204001003USA0000010000

If the DTC U0141 is set, be sure to diagnose the
CAN main bus line.

When replacing the ECU, always check that the
communication circuit is normal.

DIAGNOSTIC FUNCTION
If  the  signal  from  ETACS-ECU  cannot  be  received,
the SRS-ECU sets the DTC U0141.

JUDGMENT CRITERIA
Because of the CAN-B bus circuit malfunction, if SRS-
ECU  becomes  unable  to  perform  the  normal  data
transmission,  SRS-ECU  determines  that  an
abnormality is present.

TROUBLESHOOTING HINTS

The CAN bus line may be defective

The ETACS-ECU may be defective

The SRS-ECU may be defective

52B-266

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS
