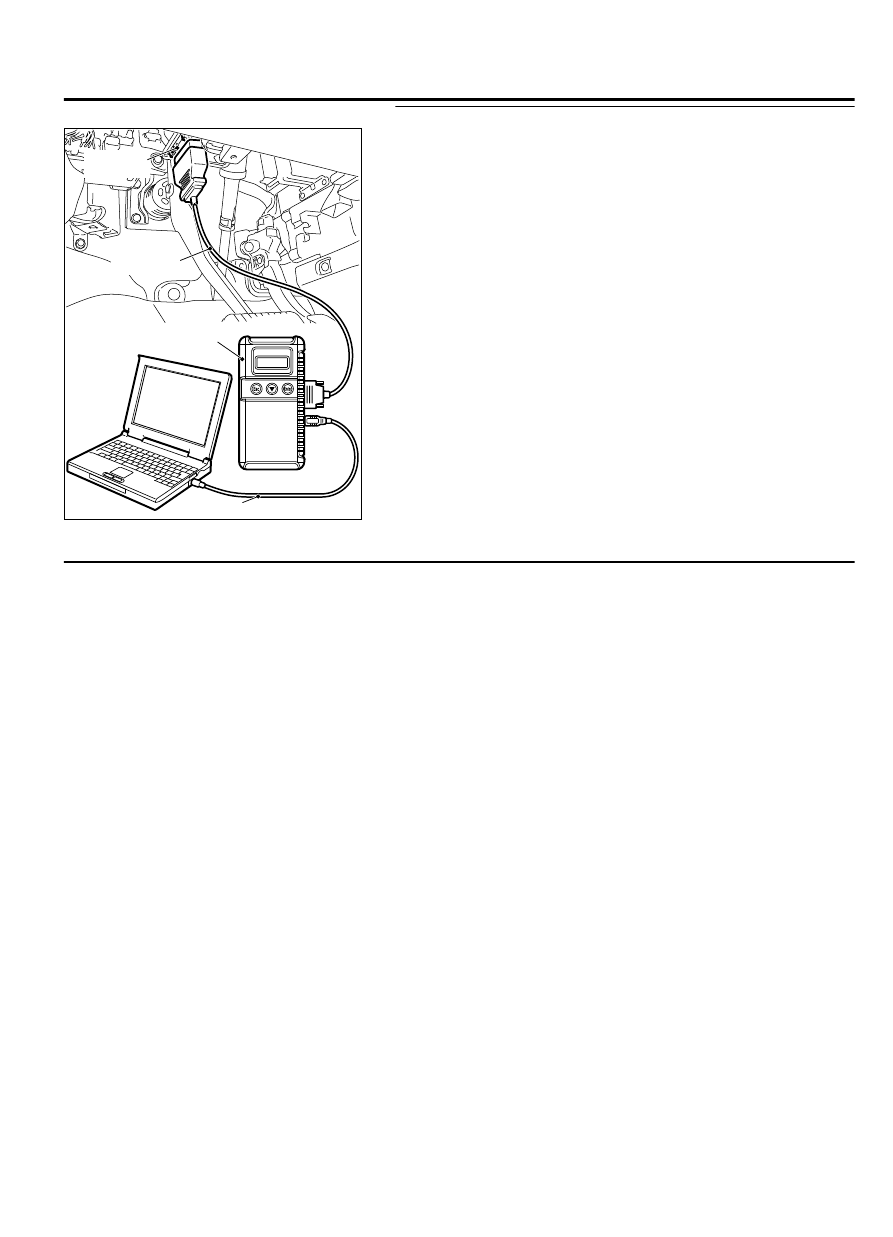

STEP 10. Recheck for diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Check again if the DTC is set.

(1)

Erase the DTC.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC B1207 set?

YES:

 Return to Step 1.

NO:

 The procedure is complete.

DTC B1B00: Driver's Air Bag Module (1st Squib) System (Shorted to Squib Circuit
Ground)

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-47

SRS AIR BAG DIAGNOSIS

DTC B1B04: Driver's Air Bag Module (2nd Squib) System (Shorted to Squib Circuit
Ground)

M15204000930USA0000010000

SRS-ECU

DRIVER'S AIR BAG
MODULE (SQUIB)

CLOCK
SPRING

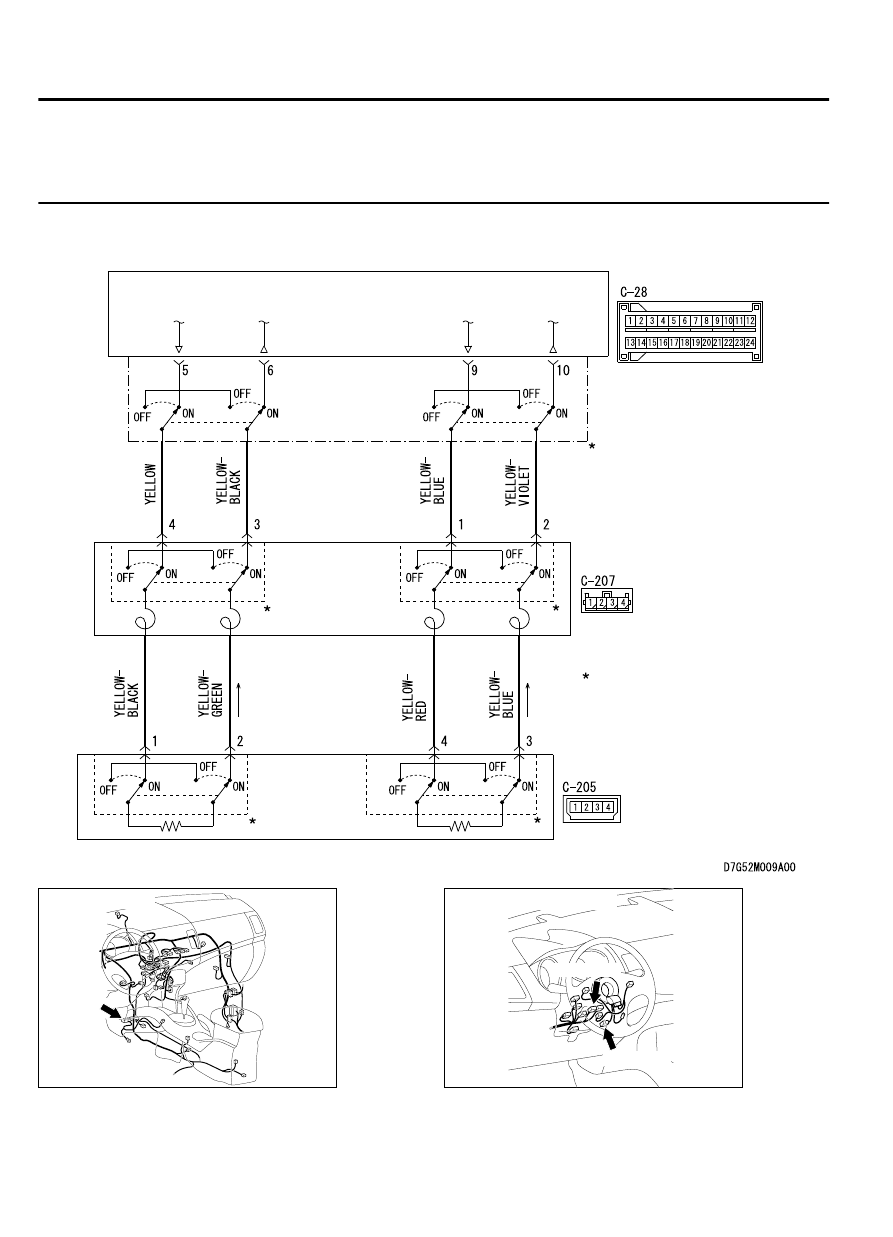

Driver's Air Bag Modle (Squib) Circuit

: CONNECTOR LOCK SWITCH
  CONNECTOR COUPLED : ON
  CONNECTOR UNCOUPLED : OFF

NOTE

ZC6008760000

Connector: C-28

C-28 (Y)

ZC6008770004

Connectors: C-205, C-207

C-205 (Y)

C-207 (Y)

52B-48

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS



If DTC B1B00 <1st squib> or B1B04 <2nd squib>
is set in the SRS-ECU, always diagnose the CAN
main bus line.

CIRCUIT OPERATION

｠

The SRS-ECU judges how severe a collision is by
detecting signals from the front impact sensors and
the front air bag analog G-sensor. If the impact is
over a predetermined level, the SRS-ECU sends an
ignition signal. At this time, if the front air bag safing
G-sensor is on, the SRS air bag will inflate.

｠

The ignition signal is sent to the air bag module via
the clock spring to inflate the air bag.

DTC SET CONDITIONS
This  DTC  is  set  if  there  is  abnormal  resistance
between  the  input  terminals  of  the  driver's  air  bag
module (squib).

TROUBLESHOOTING HINTS

｠

Malfunction of the clock spring

｠

Damaged harness wires and connectors

｠

Short to the ground in the driver's air bag module
(squib) harness

｠

Malfunction of the SRS-ECU

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN Communication System)

｠

MB991865: Dummy resistor

｠

MB991866: Resister harness

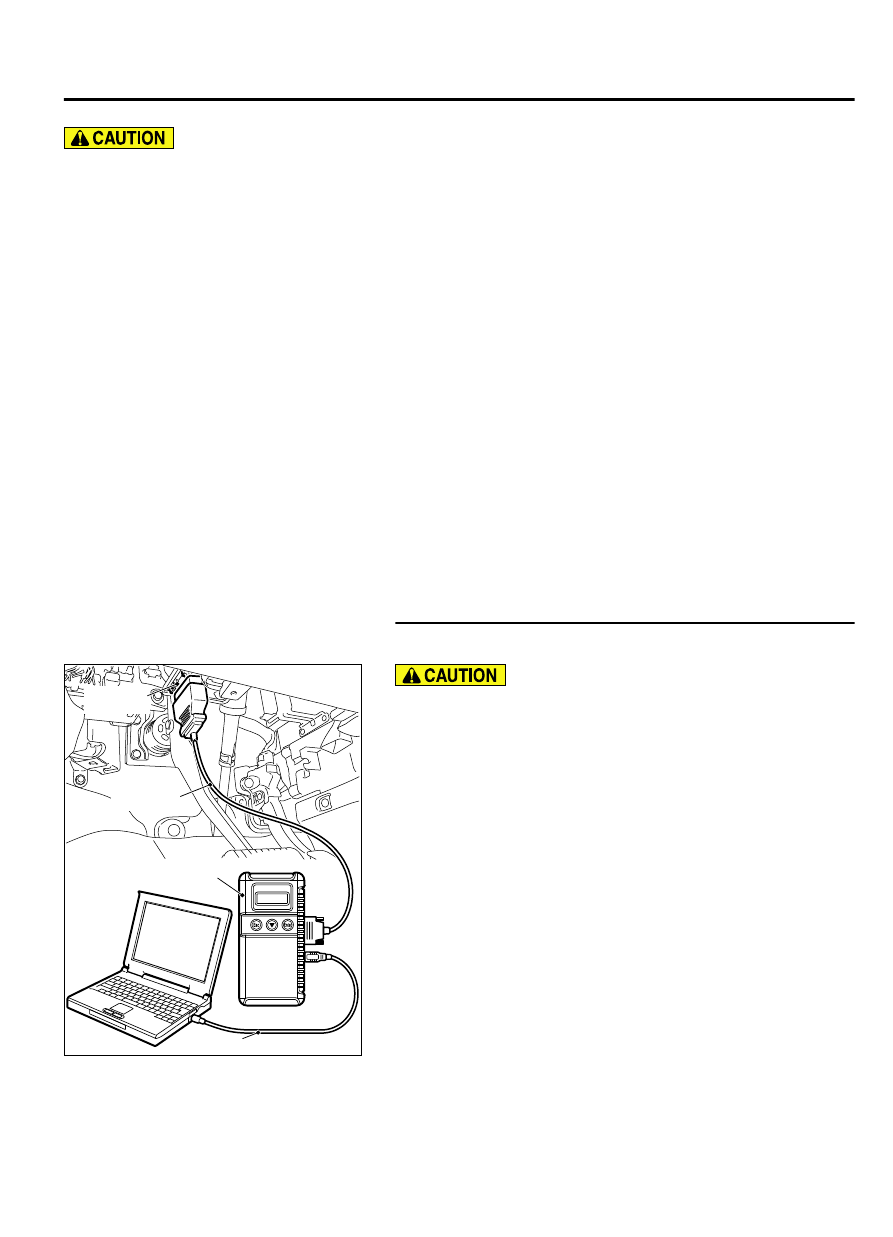

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
scan tool P.52B-31."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line (Refer to GROUP 54D,

Diagnosis P.54D-17).

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-49

SRS AIR BAG DIAGNOSIS

STEP 2. Recheck for diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

Check again if the DTC is set.

(1)

Erase the DTC.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Go to Step 3.

NO:

 There is an intermittent malfunction such as poor

engaged connector(s) or open circuit (Refer to GROUP 00,
How to Cope with Intermittent Malfunction P.00-15).

STEP 3. Check the driver's air bag module. (Using scan tool
MB991958, read the diagnostic trouble code.)

(1)

Disconnect the negative battery terminal.

ZC600213

Outer housing of the driver's air bag
module connector

0001

(2)

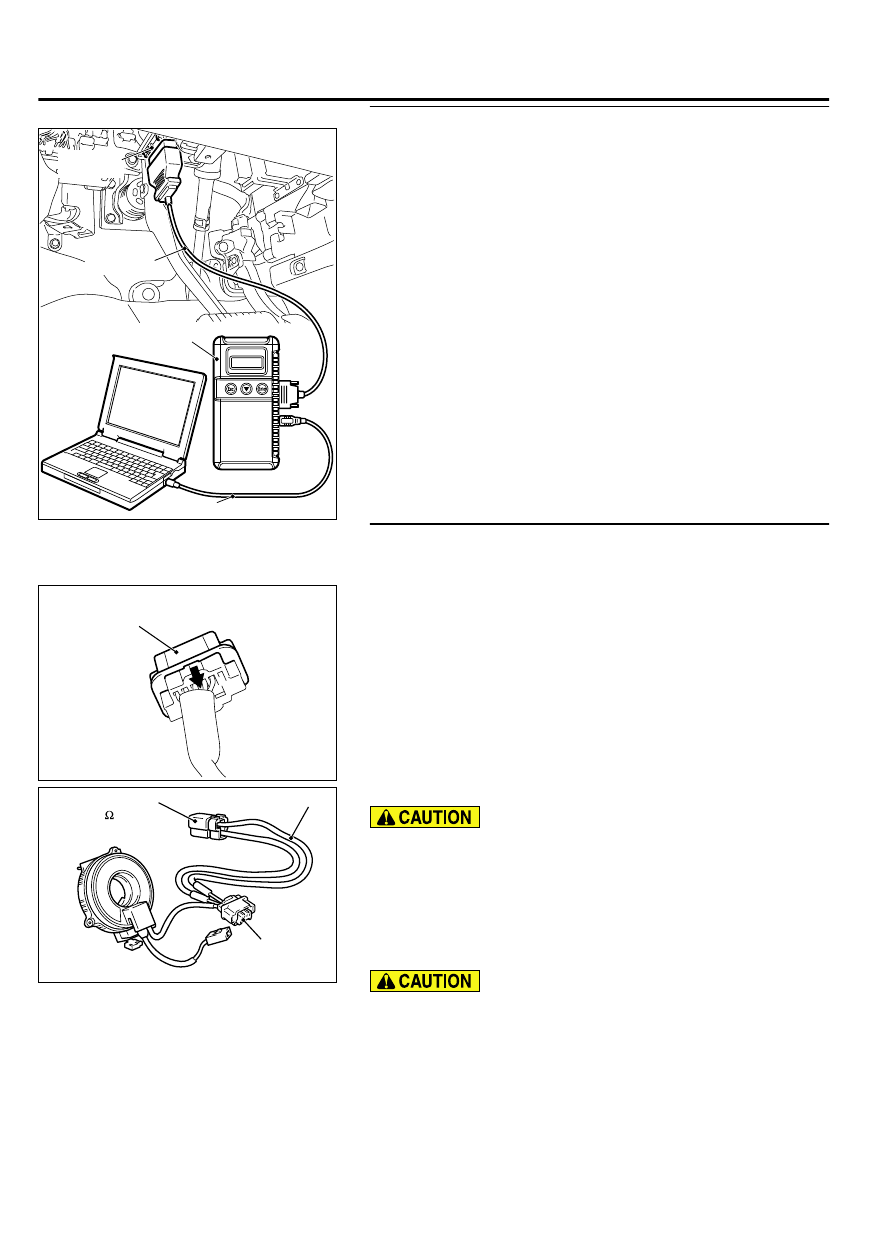

Slide  the  outer  housing  of  the  driver’  s  air  bag  module
connector  C-205  in  the  arrow  direction  shown,  and
disconnect the connector.

ZC600207

C-205 Air bag
module connector

MB991866 (Resistor
 harness)

MB991865 (Dummy
resistor : 3



)

0000

(3)

Connect special tool MB991865 to special tool MB991866.

Do not insert a probe into the terminal from its front side
directly,  as  the  connector  contact  pressure  may  be
weakened.

(4)

Insert special tool MB991866 into clock spring side air bag
module connector C-205 (terminal No.1 and 2 <1st squib> or
terminal No.3 and 4 <2nd squib>) by backprobing.

(5)

Connect the negative battery terminal.

Always DTC B1B06 is set when checking DTC B1B00. This
is  because  the  second  side  terminal  is  isolated  when
checking  it,  DTC  B1B06  is  set  but  this  is  not  a  fault.  In
addition,  always  DTC  B1B02  is  set  when  checking  DTC
B1B04 because the first side terminal is isolated.

52B-50

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS
