Diagnostic  trouble
Code No.

Inspection item

Reference page

B1B20

Curtain air bag module (RH) (squib) system (shorted to squib
circuit ground)

 P.52B-115

B1B21

Curtain air bag module (RH) (squib) system (shorted to squib
circuit power supply)

 P.52B-120

B1B22

Curtain  air  bag  module  (RH)  (squib)  system  (squib  circuit
open)

 P.52B-125

B1B23

Curtain  air  bag  module  (RH)  (squib)  system  (short  circuit
between squib circuit terminals)

 P.52B-130

B1B50

Seat belt switch (LH) circuit (ground side) shorted

 P.52B-135

B1B51

Seat belt switch (LH) circuit (power supply side) shorted

 P.52B-135

B1B52

Seat belt switch (LH) circuit open

 P.52B-135

B1B54

Seat belt switch (RH) circuit (ground side) shorted

 P.52B-141

B1B55

Seat belt switch (RH) circuit (power supply side) shorted

 P.52B-141

B1B56

Seat belt switch (RH) circuit open

 P.52B-141

B1B70

Malfunction of G-sensor inside front impact sensor (LH)

 P.52B-147

B1B71

Malfunction of G-sensor inside front impact sensor (RH)

 P.52B-147

B1B72

Malfunction  of  G-sensor  inside  side  impact  sensor  (front)
(LH)

 P.52B-149

B1B73

Malfunction of G-sensor inside side impact sensor (rear) (LH)  P.52B-151

B1B75

Malfunction  of  G-sensor  inside  side  impact  sensor  (front)
(RH)

 P.52B-149

B1B76

Malfunction  of  G-sensor  inside  side  impact  sensor  (rear)
(RH)

 P.52B-151

B1BA3

Driver’s  seat  slide  sensor  malfunction  (occupant
classification-ECU)

 P.52B-152

B1BA4

Passenger’s  seat  slide  sensor  malfunction  (occupant
classification-ECU)

 P.52B-152

B1BA5

SRS-ECU squib count mismatch

 P.52B-154

B1BAA

Occupant classification-ECU configuration mismatch

 P.52B-156

B1BC7

SRS-ECU (record data full) system

 P.52B-157

B1BCF

Roll over sensor malfunction

 P.52B-158

B1C27

Side-airbag  module  (LH)  (squib)  system  (shorted  to  squib
circuit ground)

 P.52B-160

B1C28

Side-airbag  module  (LH)  (squib)  system  (shorted  to  squib
circuit power supply)

 P.52B-165

B1C29

Side-airbag module (LH) (squib) system (squib circuit open)  P.52B-169

B1C2A

Side-airbag  module  (LH)  (squib)  system  (short  circuit
between squib circuit terminals)

 P.52B-173

B1C2B

Side-airbag module (RH) (squib) system (shorted to squib
circuit ground)

 P.52B-178

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-35

SRS AIR BAG DIAGNOSIS

Diagnostic  trouble
Code No.

Inspection item

Reference page

B1C2C

Side-airbag module (RH) (squib) system (shorted to squib
circuit power supply)

 P.52B-182

B1C2D

Side-airbag module (RH) (squib) system (squib circuit open)  P.52B-186

B1C2E

Side-airbag  module  (RH)  (squib)  system  (short  circuit
between squib circuit terminals)

 P.52B-190

B1C33

Driver's lap pre-tensioner (squib) system (shorted to squib
circuit ground)

 P.52B-195

B1C34

Driver's lap pre-tensioner (squib) system (shorted to squib
circuit power supply)

 P.52B-200

B1C35

Driver's lap pre-tensioner (squib) system (squib circuit open)  P.52B-204

B1C36

Driver's  lap  pre-tensioner  (squib)  system  (short  circuit
between squib circuit terminals)

 P.52B-209

B1C38

Driver's pre-tensioner (squib) system (shorted to squib circuit
ground)

 P.52B-214

B1C39

Driver's pre-tensioner (squib) system (shorted to squib circuit
power supply)

 P.52B-219

B1C3A

Driver's pre-tensioner (squib) system (squib circuit open)

 P.52B-223

B1C3B

Driver's pre-tensioner (squib) system (short circuit between
squib circuit terminals)

 P.52B-228

B1C47

Front passenger's pre-tensioner (squib) system (shorted to
squib circuit ground)

 P.52B-233

B1C48

Front passenger's pre-tensioner (squib) system (shorted to
squib circuit power supply)

 P.52B-238

B1C49

Front passenger's pre-tensioner (squib) system (squib circuit
open)

 P.52B-243

B1C4A

Front passenger's pre-tensioner (squib) system (short circuit
between squib circuit terminals)

 P.52B-248

B210D

Battery abnormal low voltage

 P.52B-253

B212C

Open circuit to IG1 power supply (fuse No. 12 circuit)

 P.52B-259

B212D

Open circuit to IG1 power supply (fuse No. 18 circuit)

 P.52B-259

B2207

Occupant restraint controller internal 1

 P.52B-158

B2208

Occupant restraint controller internal 2

 P.52B-158

B2209

Occupant restraint controller internal 3

 P.52B-158

B220A

Occupant restraint controller internal 4

 P.52B-158

B220B

Occupant restraint controller firing stored energy

 P.52B-158

B220C

Occupant restraint controller accelerometer 1

 P.52B-158

B220D

Occupant restraint controller accelerometer 2

 P.52B-158

B223D

OCM DTC present

 P.52B-264

B2255

Occupant restraint controller roll-over feature disabled

 P.52B-158

U0019

Bus off (CAN-B)

 P.52B-265

U0141

ETACS CAN timeout

 P.52B-266

52B-36

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS AIR BAG DIAGNOSIS

Diagnostic  trouble
Code No.

Inspection item

Reference page

U0154

Occupant Classification-ECU CAN timeout

 P.52B-268

U0155

Combination meter CAN timeout

 P.52B-270

U0164

A/C -ECU CAN timeout

 P.52B-271

U0168

KOS -ECU or WCM CAN timeout

 P.52B-272

U0170

Front impact sensor (LH) communication error

 P.52B-274

U0171

Front impact sensor (RH) communication error

 P.52B-278

U0172

Side impact sensor (front) (LH) communication error

 P.52B-282

U0173

Side impact sensor (rear) (LH) communication error

 P.52B-286

U0175

Side impact sensor (front) (RH) communication error

 P.52B-290

U0176

Side impact sensor (rear) (RH) communication error

 P.52B-294

U0184

Radio CAN timeout

 P.52B-297

U0195

Satellite radio tuner CAN timeout

 P.52B-299

U0197

Hands free telephone CAN timeout

 P.52B-300

U0212

Steering wheel sensor CAN timeout

 P.52B-301

U1414

Defective coding date

 P.52B-303

U1415

Coding not completed/Data fail

 P.52B-304

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-37

SRS AIR BAG DIAGNOSIS

DIAGNOSTIC TROUBLE CODE PROCEDURES

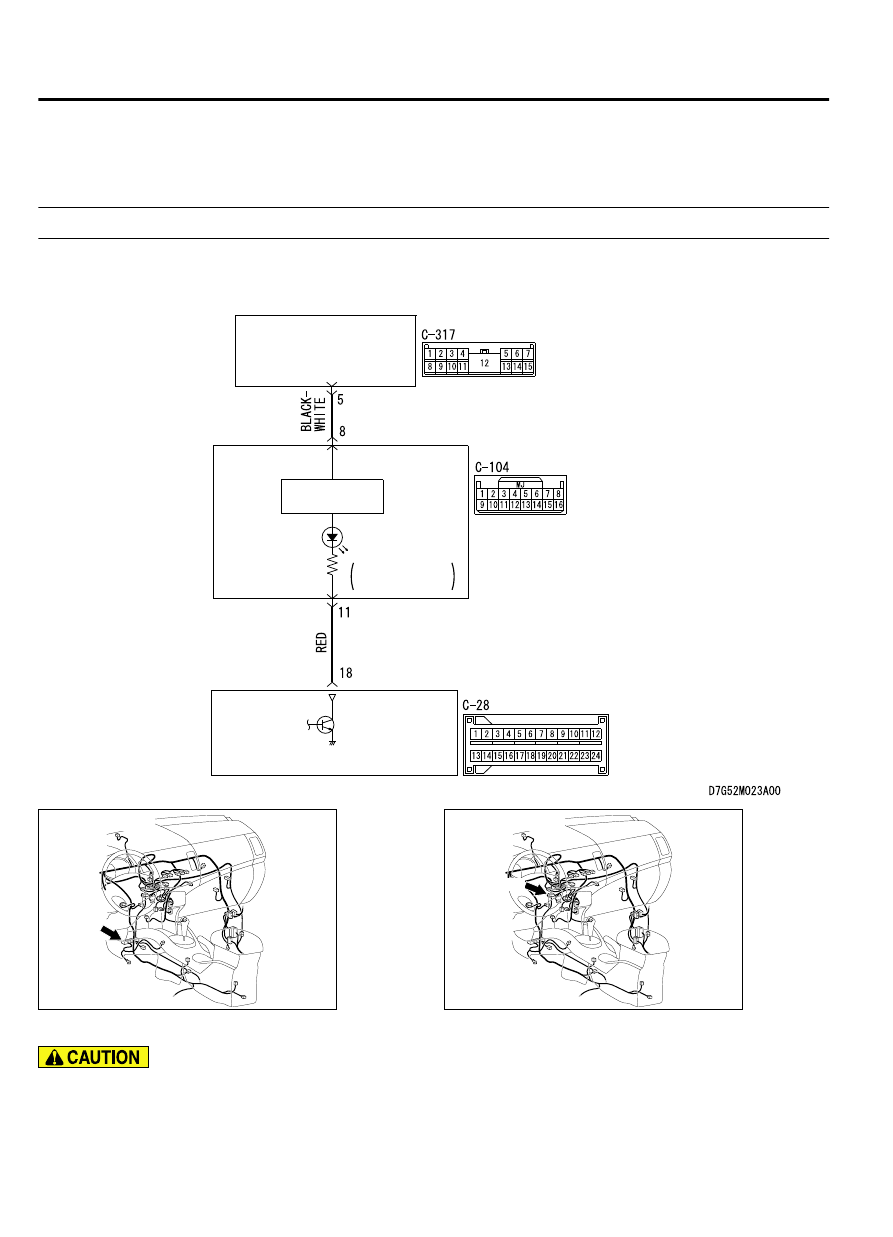

DTC B1206: Passenger’s Air Bag OFF Indicator Light (Open Circuit)

M15204000992USA0000010000

CENTER PANEL ASSEMBLY

ETACS-ECU

INTERFACE
CIRCUIT

SRS-ECU

AIR BAG OFF
INDICATOR
LIGHT
PASSENGER'S
SIDE

Air Bag OFF Indicator Light Drive Circuit

ZC6008760000

Connector: C-28

C-28 (Y)

ZC6008760006

Connector: C-104

C-104



If  DTC  B1206  is  set  in  the  SRS-ECU,  always
diagnose the CAN main bus line.

CIRCUIT OPERATION

｠

Power  for  the  passenger’s  air  bag  OFF  indicator
light is supplied from the ignition switch (IG1).
