Windshield wiper linked with washer function Initial condition: with function, with windshield washer
check valve

ZC5012810000

t

t

T

T

ON

OFF

ON

OFF

ON

OFF

ON

OFF

Windshield wiper
auto stop signal

Windshield washer relay

Windshield washer switch

Windshield wiper
drive signal

Wiper switch in
off position

Wiper switch in intermittent
operation position

t: 0.3 second
T: Intermittent wiper intermittent time

Wiper switch

OFF position

Intermittent operation position

Low-speed

 or

high-speed
operation
position

Washer  switch  ON
time(t)

0.3
second
or less

0.3

 to

0.5
second

0.5
second
or more

0.2
second
or less

0.2  to
0.4
second

0.4

 to

0.6
second

0.6
second
or more

-

T

0
second

2
seconds

3
seconds

0
second

1
second

2
seconds

3
seconds

3 seconds

When  the  windshield  washer  switch  on  the  column
switch is turned ON while the ignition switch is in ACC
or ON position, ETACS turns the windshield washer
relay ON.
When the windshield washer switch is kept ON for 0.3
seconds or longer, the windshield wiper drive signal
(the wiper drive signal output time varies depending
on the conditions. For details, see the table.) is turned
ON, and the windshield wiper operates at high speed.
The windshield wiper is turned OFF with 3 seconds
delay  after  the  windshield  washer  switch  is  turned
OFF.
Even when the windshield washer switch is turned ON
while the windshield wiper is operating intermittently,
the  intermittent  action  starts  again  after  the  linked
operation is finished.

If the ignition switch is turned to ACC position while
the windshield washer switch is ON, the windshield
washer relay turns ON, but the windshield wiper does
not perform the linked operation. When the windshield
washer  switch  is  turned  OFF  and  then  ON,  the
windshield wiper starts the linked operation.

NOTE:

｠

Using the customization function, the washer linked
windshield wiper function can be invalidated. (Refer
to P.51B-48.)

｠

Using the customization function, when the washer
linked windshield wiper function is invalidated, only
the  washer  operates.  It  is  useful  to  melt  ice  on  a
frozen windshield.

WIPER AND WASHER

51B-5

GENERAL INFORMATION

REAR WIPER AND WASHER: DESCRIPTION OF CONSTRUCTION AND OPERATION

Rear wiper control [Initial condition: 8 seconds (without successive operations)]

ZC5013040000

t

ON

OFF

ON

OFF

ON

OFF

T2

T3

T2

T3

T1

T4

T4

T1

T4

T4

T4

T3

T2

T2

T2

T2: 7.4 seconds

Rear wiper drive signal

Rear wiper switch

Inhibitor switch "R" position

T1: 3.0 seconds

t: 1.0 second

T3: 8.0 seconds
T4: 0.6 second

1.

When the rear wiper switch on the column switch
is turned ON while the ignition switch is in ACC or
ON  position,  ETACS  turns  the  rear  wiper  drive
signal  ON  for  3  seconds  (for  approximately  2
cycles)  and  operates  the  intermittent  action  in  8
seconds interval.
When the selector lever is moved to R (reverse)
position  during  the  rear  wiper  operation,  the
transmission range switch R (reverse) turns ON,
and one second after that, ETACS turns the rear

wiper  drive  signal  ON  for  3  seconds  (for
approximately  2  cycles),  and  operates  the
intermittent action in 8 seconds interval again.

2.

By the special operation of the rear wiper switch
on the column switch (2 consecutive operations),
the rear wiper can operate continuously regardless
on the set intermittent time.

NOTE:

Using the customization function, the rear

wiper intermittent time can be adjusted. (Refer
to P.51B-48.)

Rear wiper linked with washer function Initial condition: with function

ZC5013050000

   t : 0.3 second
T4 : 0.6 second
T1 : 3 seconds

T2 : 7.4 seconds
T3 : 8 seconds

t

t

t

ON

OFF

ON

OFF

ON

OFF

T1

T1

T1

T2

T3

T4

T4

Rear wiper switch
in OFF position

Rear wiper switch in ON position

Rear washer switch

Rear washer relay

Rear wiper drive
signal

When the rear washer switch on the column switch is
turned ON while the ignition switch is in ACC or ON
position, ETACS turns the rear washer relay ON.

51B-6

WIPER AND WASHER

GENERAL INFORMATION

The rear washer relay turns ON after the rear washer
switch has been ON for 0.3 seconds, then turns the
rear wiper drive signal ON to operate the rear wiper
simultaneously.  When  the  rear  washer  switch  is
turned OFF, after 3 seconds the rear wiper is turned
OFF.
If the rear washer switch is turned ON during the rear
wiper  operation,  7.4  seconds  after  turning  OFF  the

rear  wiper  drive  signal  turns  OFF,  the  intermittent
action is resumed in 8 seconds interval.

NOTE:

Using the customization function, the

washer linked rear wiper function can be
invalidated. (Refer to P.51B-48.)

SPECIFICATION(S)

SERVICE SPECIFICATION

M15102100001USA0000010000

Item

Standard value

Stop position of the windshield wiper arm/blade assembly mm(in)

Φ 2(0.08) marking ± 5(0.20)

Stop position of rear wiper arm/blade assembly (Distance from the edge
of the wiper blade to the edge of the ceramic line on the liftgate glass) mm
(in)

0  to  20(0.79)  from  edge  of  the
ceramic line

LUBRICANT

M15102100002USA0000010000

Item

Specified lubricant

Quantity

Wiper motor link rod

Contact  joint  between
link rod and wiper motor
link plate

Multipurpose grease SAE J310,
NLGI  No.1(mineral  oil  +  Li)  or
equivalent

As required

WIPER AND WASHER

51B-7

SPECIFICATION(S)

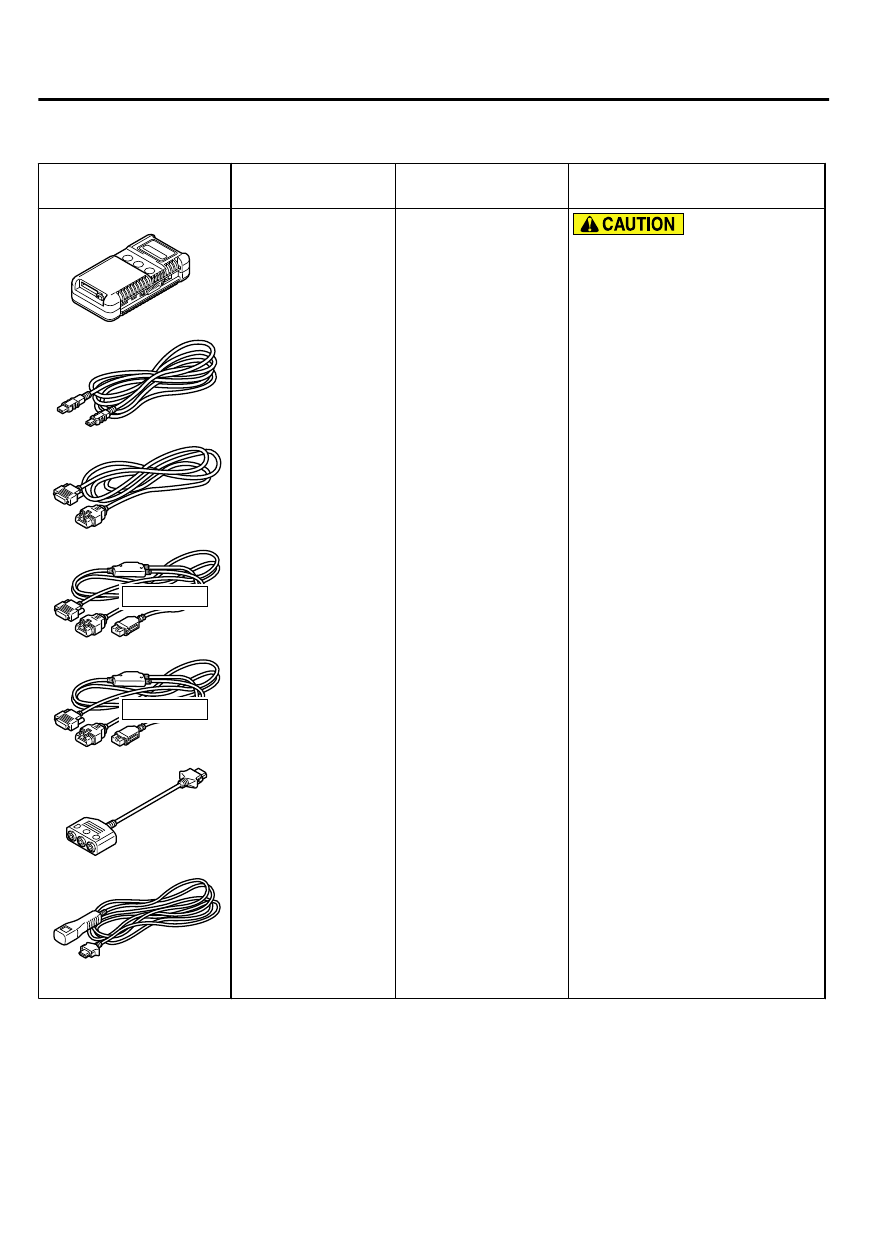

SPECIAL TOOL

M15102100003USA0000010000

Tool

Tool  number  and
name

Supersession

Application

MB991910

MB991826

YB9919580000

MB991911

MB991914

MB991824

MB991827

MB991825

Do not use

Do not use

a

b

c

d

e

f

g

MB991958

a.

MB991824

b.

MB991827

c.

MB991910

d.

MB991911

e.

MB991914

f.

MB991825

g.

MB991826

M.U.T.-III

 sub

assembly

a.

Vehicle
communication
interface (V.C.I.)

b.

M.U.T.-III

 USB

cable

c.

M.U.T.-III

 main

harness

 A

(Vehicles

 with

CAN
communication
system)

d.

M.U.T.-III

 main

harness

 B

(Vehicles  without
CAN
communication
system)

e.

M.U.T.-III

 main

harness  C  (for
Daimler  Chrysler
models only)

f.

M.U.T.-III
measurement
adapter

g.

M.U.T.-III  trigger
harness

MB991824-KIT

NOTE:

G: MB991826

M.U.T.-III Trigger
Harness is not
necessary when
pushing V.C.I. ENTER
key.

M.U.T.-III  main  harness  A
(MB991910)  should  be  used.
M.U.T.-III main harness B and C
should  not  be  used  for  this
vehicle.
Windshield wiper intermittent time
check

51B-8

WIPER AND WASHER

SPECIAL TOOL
