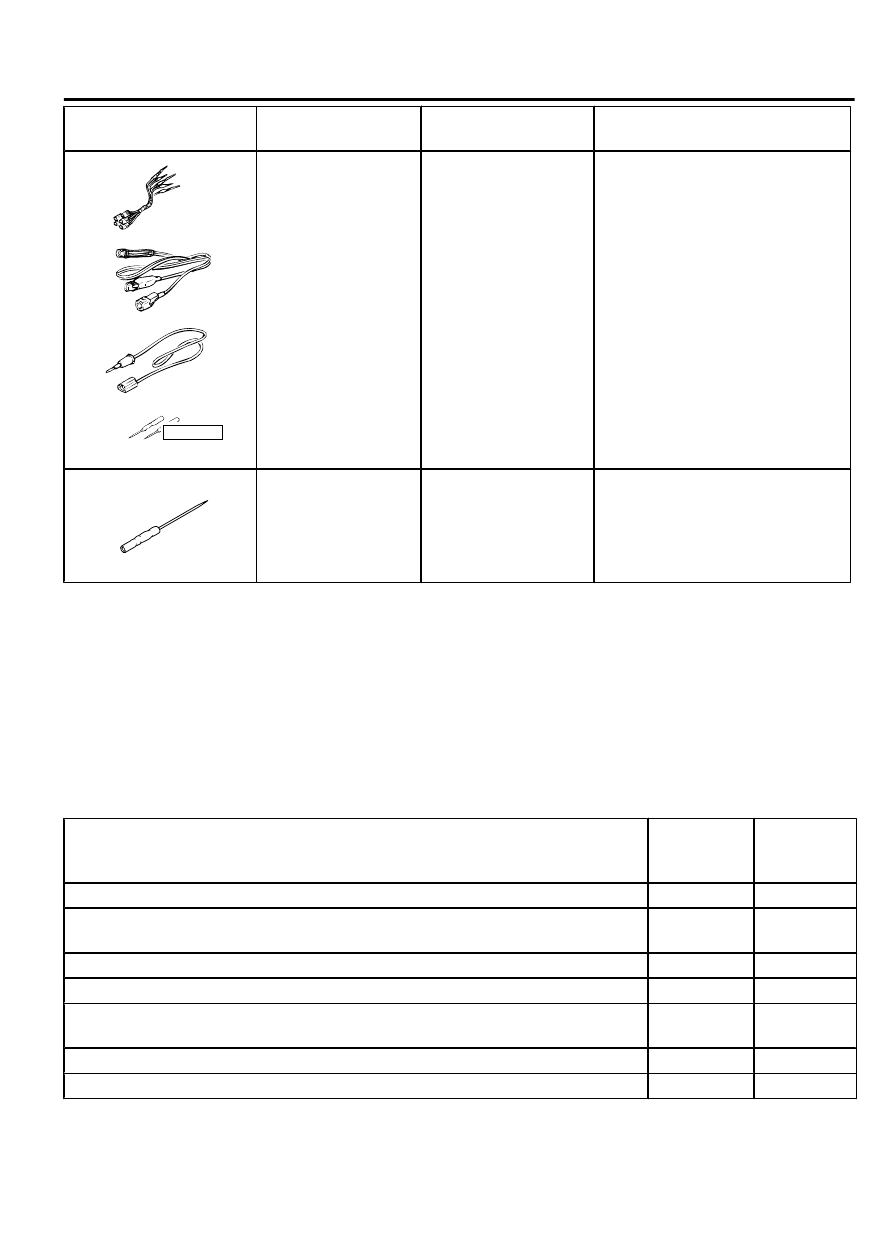

Tool

Tool  number  and
name

Supersession

Application

YB9912230000

Do not use

a

b

c

d

MB991223

a.

MB991219

b.

MB991220

c.

MB991221

d.

MB991222

Harness set

a.

Test harness

b.

LED harness

c.

LED

 harness

adaptor

d.

Probe

General service tools Continuity  check  and  voltage

measurement  at  harness  wire  or
connector  for  loose,  corroded  or
damaged  terminals,  or  terminals
pushed back in the connector.

a.

Connector

 pin

 contact

pressure inspection

b.

Power circuit inspection

c.

Power circuit inspection

d.

Commercial tester connection

MB992006

MB992006
Extra fine probe

-

Making  voltage  and  resistance
measurement

 during

troubleshooting

DIAGNOSIS

TROUBLESHOOTING STRATEGY

M15102100077USA0000010000

1.

Gather the information from the customer.

2.

Verify that the condition described by the customer
exists.

3.

Find  the  malfunction  by  the  following  Symptom
Chart.

4.

Verify the malfunction is eliminated.

TROUBLE SYMPTOM CHART

M15102100006USA0000010000

TROUBLE SYMPTOM

Inspection
procedure
No.

Reference
page

Windshield wiper does not operate at all

1

 P.51B-13

Windshield wiper does not operate at "INT", "Washer" or "Mist", but operate at
"Lo" regardless of position "Hi" or "Lo"

2

 P.51B-18

Windshield wiper does not stop at predetermined park position

3

 P.51B-20

Windshield wiper does not operate correctly

4

 P.51B-23

Intermittent  wiper  interval  cannot  be  adjusted  by  operating  intermittent  wiper
volume control

5

 P.51B-26

Intermittent wiper interval does not depend on vehicle speed

6

 P.51B-28

Windshield washer does not work normally

7

 P.51B-30

WIPER AND WASHER

51B-9

DIAGNOSIS

TROUBLE SYMPTOM

Inspection
procedure
No.

Reference
page

Rear wiper does not operate at all

8

 P.51B-34

Rear wiper does not stop at predetermined park position

9

 P.51B-39

When selector lever is moved to "R" position during rear wiper operation, rear
wiper does not operate at continuous mode

10

 P.51B-42

Rear washer does not work normally.

11

 P.51B-44

NOTE:

If the ETACS-ECU failed, the windshield

wiper will operate only at low speed as a fail-
safe measure. (Normally, the windshield wipers
operate with the ignition switch at the "ACC"

position. However, during the fail-safe mode, they
can operate with the ignition switch at the ON
position only.)

SYMPTOM PROCEDURES

GENERAL DESCRIPTION CONCERNING THE WIPER AND WASHER

M15102100078USA0000010000

The following ECUs affect the functions and control of
the wiper and washer.

FUNCTION

CONTROL ECU

Windshield  wiper  and  washer
control function

Intermittent  control  (Vehicle  speed-
dependent variable type)

ETACS-ECU, column switch

Mist wiper control

ETACS-ECU, column switch

Low-speed  wiper,  high-speed  wiper
control

ETACS-ECU, column switch

Washer control

ETACS-ECU, column switch

Rear wiper control

ETACS-ECU, column switch

Rear washer control

ETACS-ECU, column switch

51B-10

WIPER AND WASHER

DIAGNOSIS

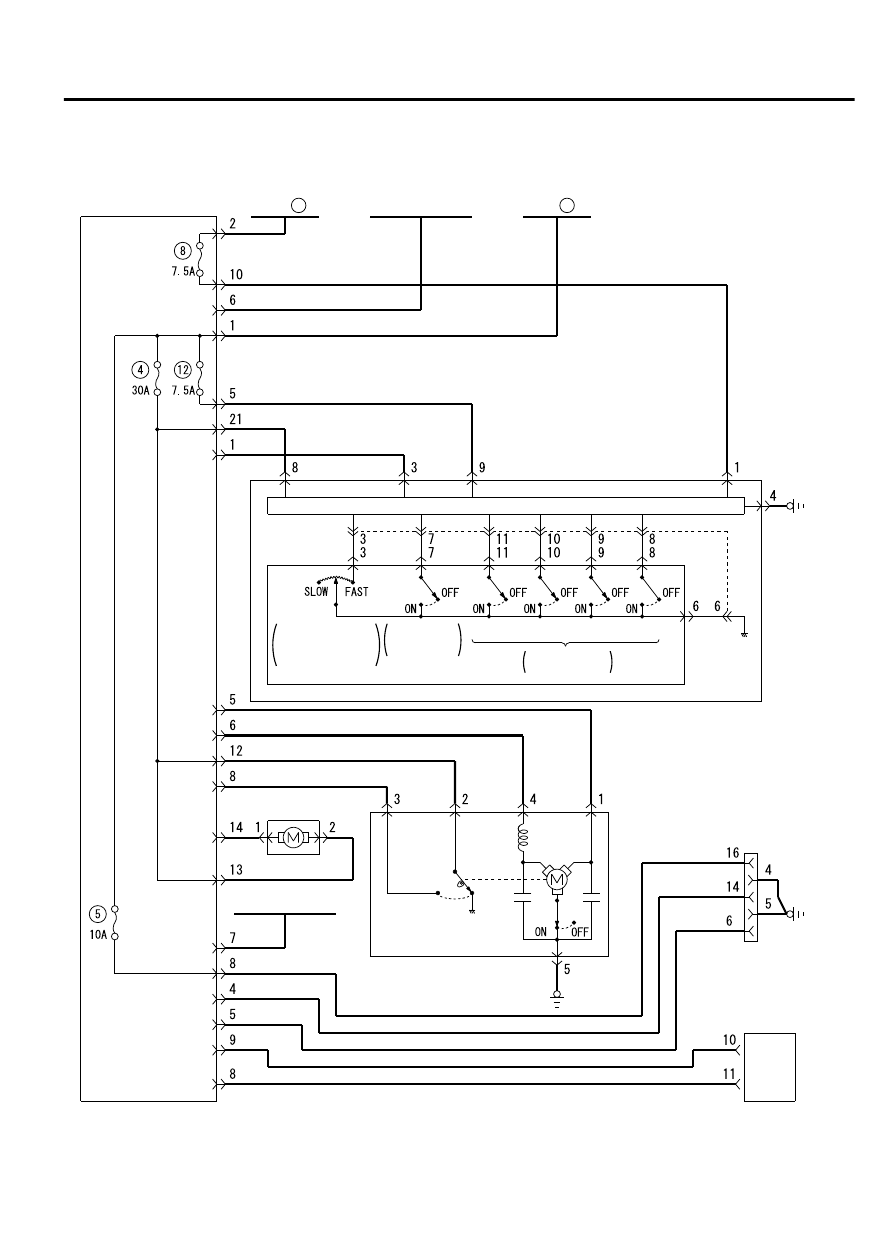

General circuit diagram for the wiper and washer
<Windshield wiper and washer>

36

FUSIBLE
LINK

34

FUSIBLE
LINK

IGNITION
SWITCH (IG1)

COLUMN-ECU

COLUMN SWITCH

(HI)

(LO)

(INT)

WINDSHIELD
WIPER SWITCH

(MIST)

WINDSHIELD
INTERMITTENT
WIPER INTERVAL
ADJUSTING KNOB

WINDSHIELD
WASHER
SWITCH

WINDSHIELD
WIPER
MOTOR

CIRCUIT
BRAKER

IGNITION
SWITCH (ACC)

WASHER
MOTOR

ETACS-ECU

DATA LINK
CONNECTOR

TRANSMISSION
CONTROL
MODULE

D7G51M000A00

WIPER AND WASHER

51B-11

DIAGNOSIS

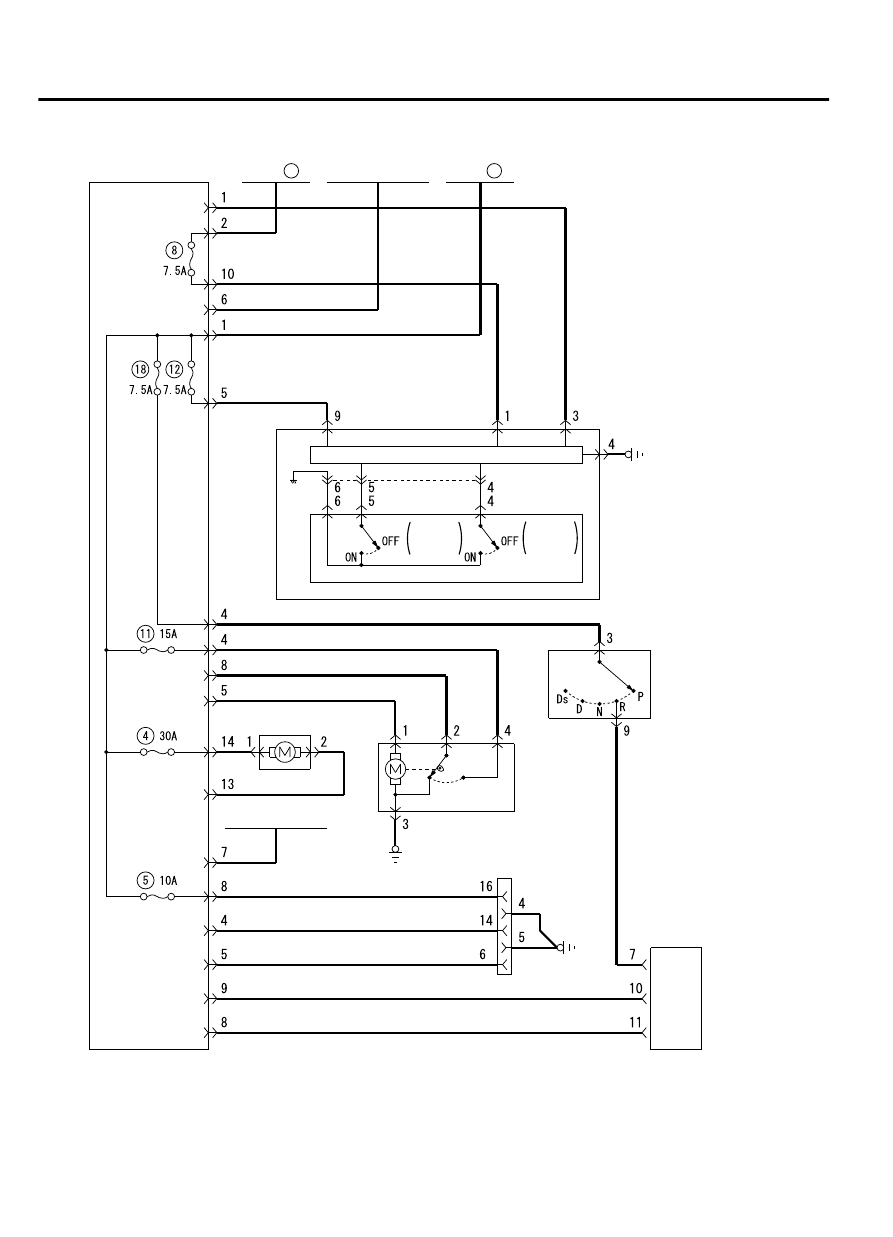

<Rear wiper and washer>

D7G51M000A01

ETACS-ECU

DATA LINK
CONNECTOR

TRANSMISSION
CONTROL
MODULE

36

FUSIBLE
LINK

34

FUSIBLE
LINK

IGNITION
SWITCH (IG1)

COLUMN-ECU

TRANSMISSION
RANGE
SWITCH

REAR
WIPER
MOTOR

WASHER
MOTOR

IGNITION
SWITCH (ACC)

REAR
WIPER
SWITCH

REAR
WASHER
SWITCH

51B-12
