ZC603130

KOS-ECU

LOCK SWITCH
(FRONT DOOR: RH)

BLA

CK

YELLO

W

-BLUE

BLA

CK

YELLO

W

-B

ULE

0000

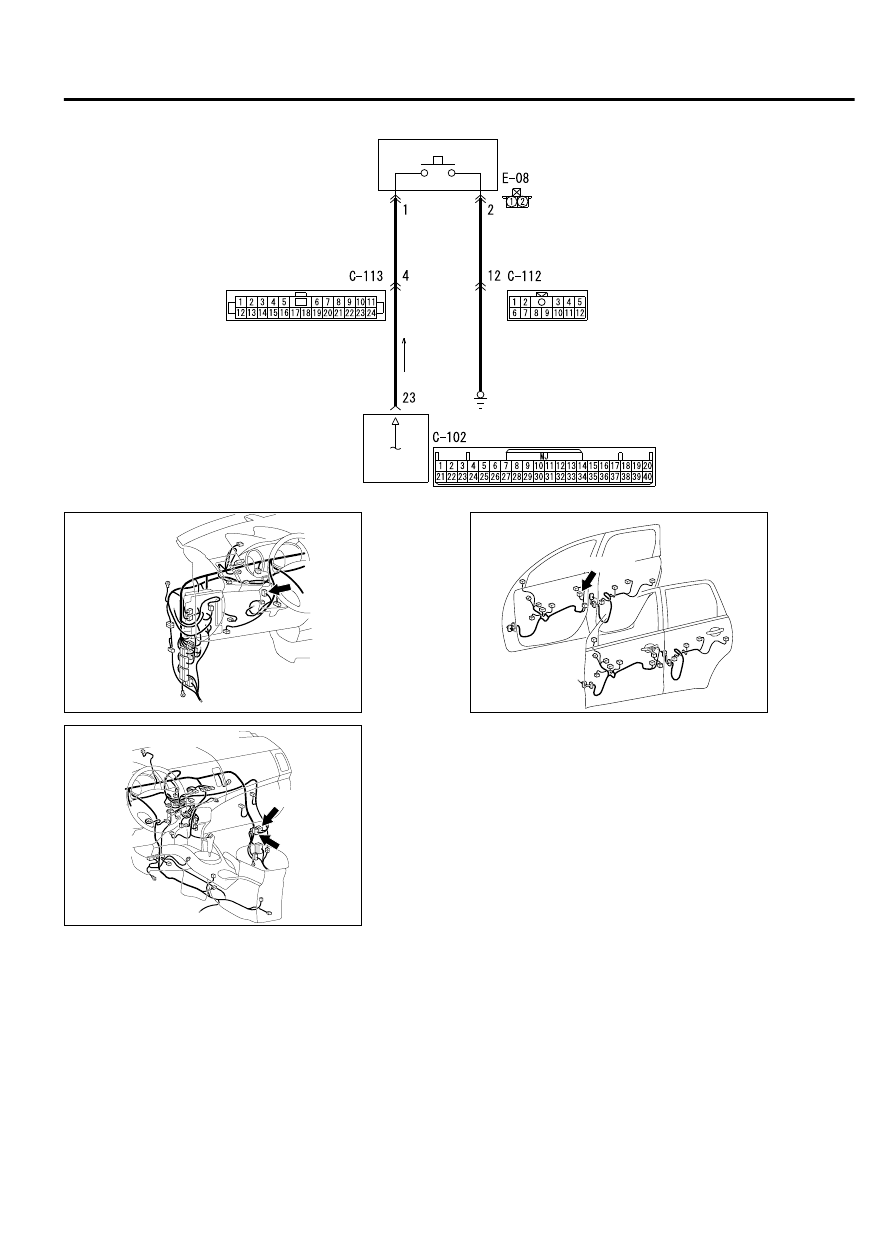

 Lock switch (Front Door: RH) Circuit

ZC600875

Connector: C-102

0028

ZC6008760022

Connectors: C-112, C-113

C-112

C-113 (BR)

ZC600881

Connector: E-08

E-08 (GR)

0010

PROBABLE CAUSES

Malfunction  of  the  exterior  transmitter  antenna
assembly (front passenger's side)

Malfunction of the lock switch (front door: RH)

Damaged wiring harness and connectors

Malfunction of the KOS-ECU

DIAGNOSTIC PROCEDURE

Required Special Tools:

MB991223: Harness Set

MB992006: Extra Fine Probe

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

KEYLESS OPERATION SYSTEM (KOS)

42B-131

DIAGNOSIS

MB991910: M.U.T.-III Main Harness A

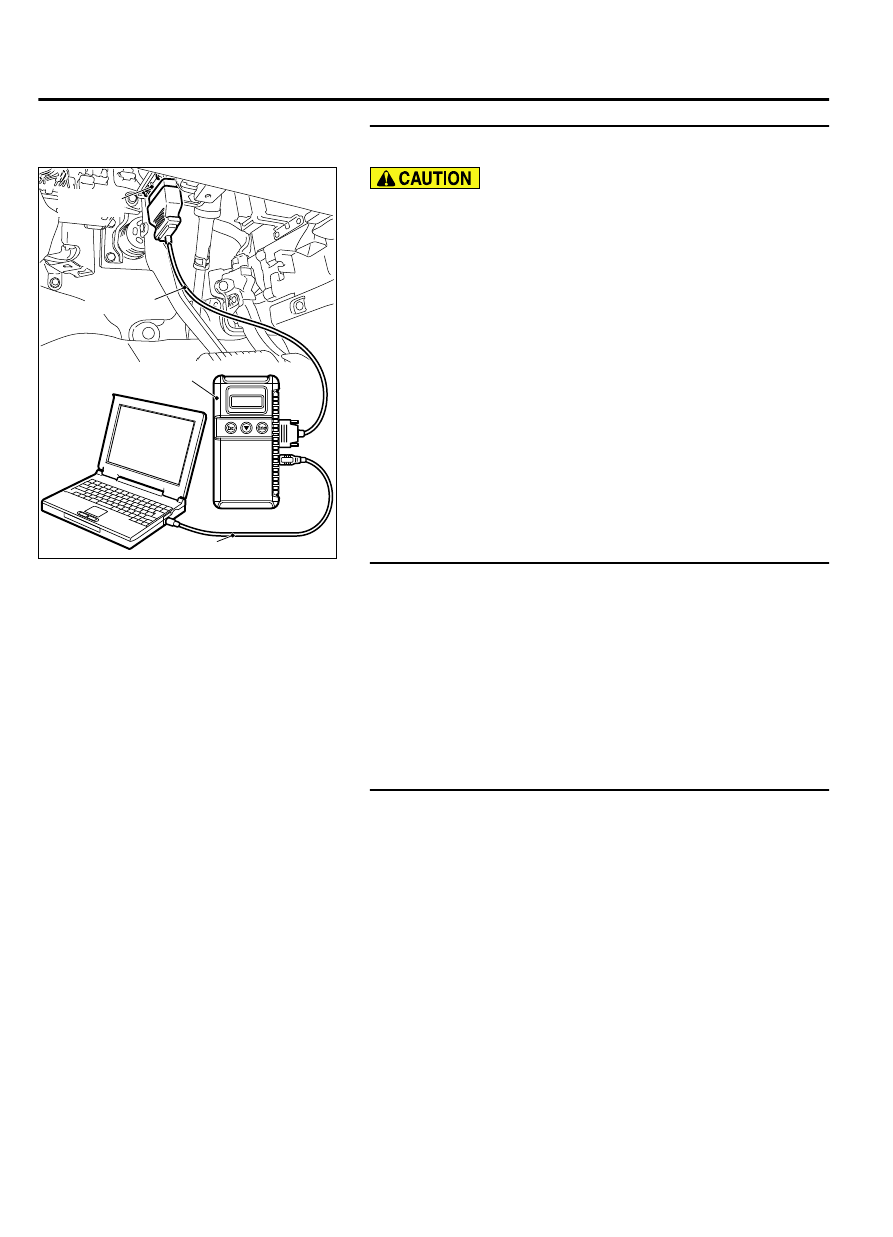

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect scan
tool (M.U.T.-III) P.42B-10."

(2)

Turn the ignition switch to the "ON" position.

(3)

Check whether the KOS-ECU related DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Diagnose the KOS-ECU. Refer to P.42B-18.

NO:

 Go to Step 2.

STEP 2. Check KOS-ECU connector C-102 and lock switch
(front door: RH) connector E-08 for loose, corroded or
damaged terminals, or terminals pushed back in the
connector.

Q:Are  KOS-ECU  connector  C-102  and  lock  switch  (front

door: RH) connector E-08 in good condition?

YES:

 Go to Step 3.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the front passenger’s door lock switch works
normally.

STEP 3. Check the wiring harness between KOS-ECU
connector C-102 (terminal No. 23) and lock switch (front
door: RH) connector E-08 (terminal No. 1) and lock switch
(front door: RH) connector E-08 (terminal No. 2) and ground.

NOTE:

Also check intermediate connector C-112 and C-113 for

loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-112 and
C-113 is damaged, repair or replace the damaged component
(s) as described in GROUP 00E, Harness Connector
Inspection P.00E-2.

Q:Are  the  wiring  harness  between  KOS-ECU  connector

C-102 (terminal No. 23) and lock switch (front door: RH)

connector  E-08  (terminal  No.  1)  and  lock  switch  (front

door: RH) connector E-08 (terminal No. 2) and ground in

good condition?

YES:

 Go to Step 4.

42B-132

KEYLESS OPERATION SYSTEM (KOS)

DIAGNOSIS

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Check that the front passenger’s
door lock switch works normally.

STEP 4. Lock switch (front door: RH) check.

(1)

Remove  the  door  outside  handle  base  (Refer  to  GROUP
42Ab, Door Handle and Latch P.42Ab-102).

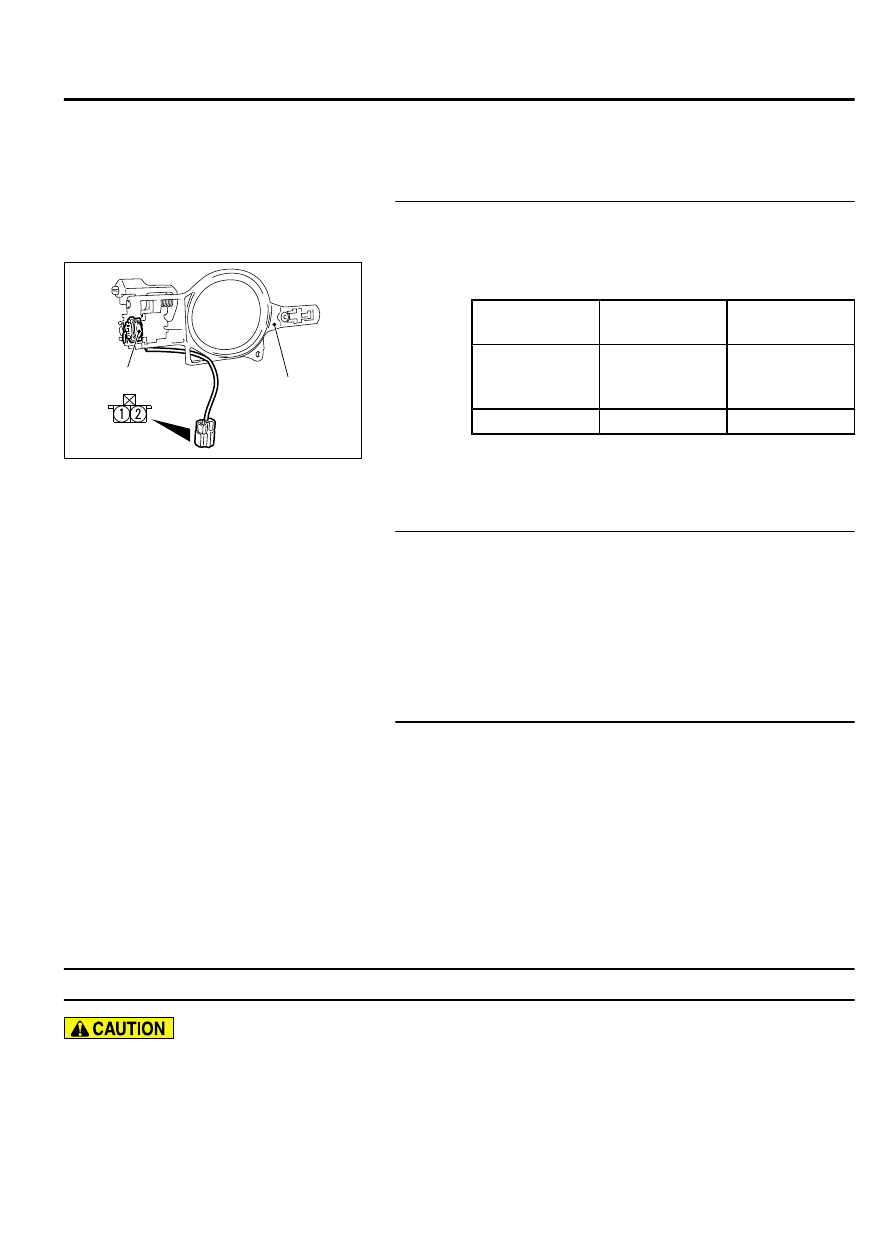

ZC6000970000

Lock switch

Door outside
handle base

(2)

Check  continuity  when  the  lock  switch  (front  door:  RH)  is
operated to "ON" or "OFF" position.

Switch
position

Terminal
number

Normal value

ON

1 - 2

Continuity
exists  (2  Ω  or
less)

OFF

1 - 2

Open circuit

Q:Is the lock switch (front: RH) normal?

YES:

 Go to Step 5.

NO:

 Replace the door outside handle base. Check that the

front passenger’s door lock switch works normally.

STEP 5. KOS communication test.
Using scan tool (M.U.T.-III), perform the antenna communication
test  to  check  that  the  exterior  transmitter  antenna  (front
passenger's  door)  communicates  normally  (Refer  to  P.
42B-169).

Q:Is the check result normal?

YES:

 Go to Step 6.

NO:

 Perform troubleshooting for the diagnostic trouble

code No. B240B (Refer to P.42B-18).

STEP 6. Check of the troubles.
Operate the lock switch (front passenger’s side) to check that
the door can be locked.

Q:Is the check result normal?

YES:

 Intermittent malfunction is suspected. (Refer to

GROUP 00, How to Use Troubleshooting/Inspection Service
Points - How to cope with intermittent malfunctions P.
00-15).

NO:

 Replace KOS-ECU and register the ID codes (Refer

to P.42B-163).

INSPECTION PROCEDURE 10: Front Passenger's Door Unlock Sensor does not Work.

M14209100113USA0000010000

Before replacing the ECU, ensure that the power
supply  circuit,  the  ground  circuit  and  the
communication circuit are normal.

KEYLESS OPERATION SYSTEM (KOS)

42B-133

DIAGNOSIS

ZC603131

KOS-ECU

UNLOCK SENSOR
(FRONT DOOR: RH)

WHITE

BLA

CK

BLA

CK

YELLO

W

-PINK

LIGHT  GREEN

LIGHT  GREEN

0000

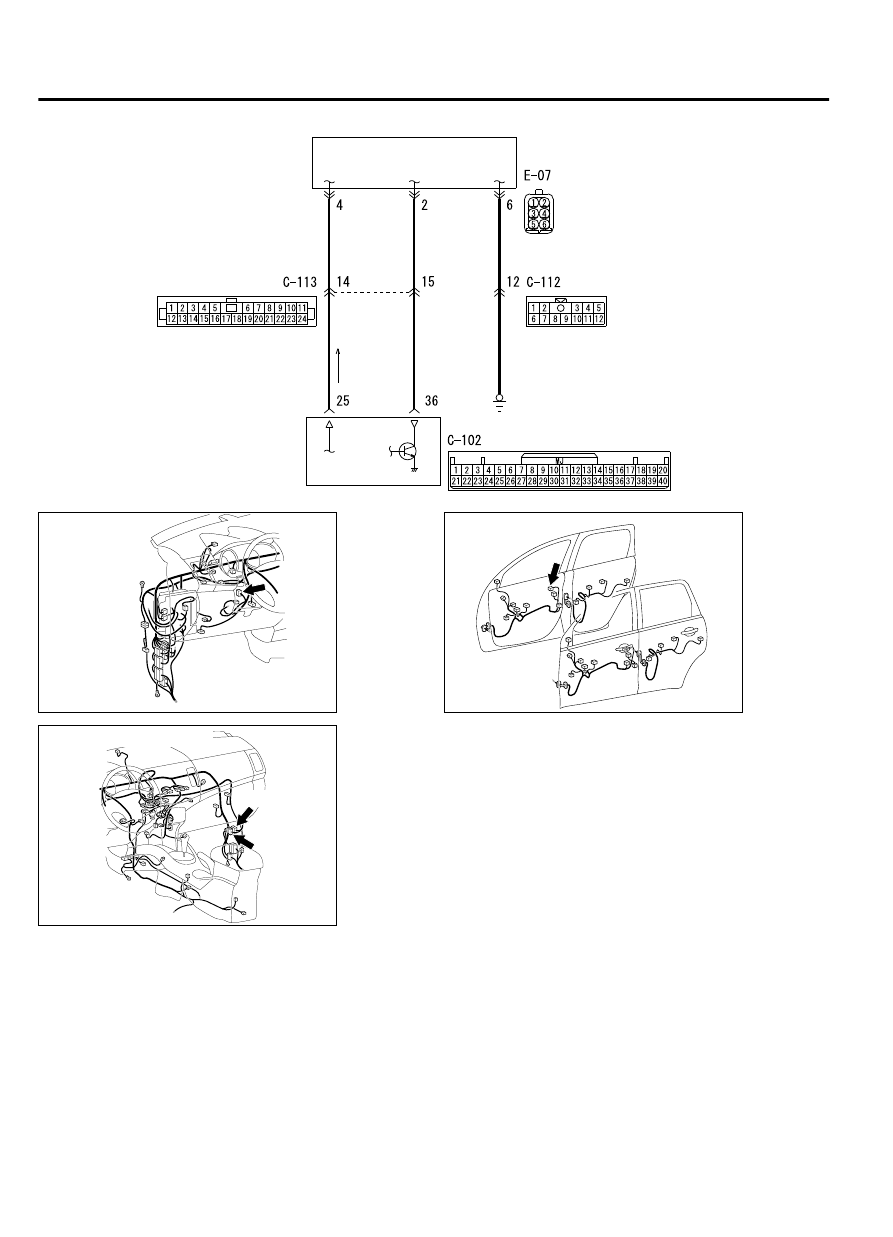

 Unlock Sensor (Front Door: RH) Circuit

ZC600875

Connector: C-102

0028

ZC6008760022

Connectors: C-112, C-113

C-112

C-113 (BR)

ZC600881

Connector: E-07

ZC6008810011

PROBABLE CAUSES

Malfunction  of  the  exterior  transmitter  antenna
assembly (front passenger's side)

Malfunction of the unlock sensor (front door: RH)

Damaged wiring harness and connectors

Malfunction of the KOS-ECU

DIAGNOSTIC PROCEDURE

Required Special Tools:

MB991223: Harness Set

MB992006: Extra Fine Probe

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicles Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

42B-134

KEYLESS OPERATION SYSTEM (KOS)

DIAGNOSIS
