YES:

 Troubleshoot the MMCS. (Refer to GROUP 54B,

Diagnosis <MMCS>.)

NO:

 Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the KOS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Replace KOS-ECU and register the ID codes. (Refer

to P.42B-12.)

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00 - How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).

DTC U1412: Implausible Vehicle Speed Signal Received

M14209100150USA0000010000

If there is any problem in the CAN bus lines, an incorrect
diagnostic trouble code may be set. Prior to this diagnosis,
diagnose the CAN bus lines. (Refer to GROUP 54D, Trouble
code diagnosis P.54D-17).

TPMS DTC SET CONDITION
KOS-ECU receives the wheel speed information from ABS-ECU
or ASC-ECU via the CAN-bus line. If KOS-ECU cannot receive
the information about the wheel speed sensor from ABS-ECU or
ASC-ECU, this code is set.

TROUBLESHOOTING HINTS
The most likely causes for this DTC to set are:

Damaged wiring harness and connector

Malfunction of ABS-ECU or ASC-ECU

Malfunction of KOS-ECU

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910: M.U.T.-III Main Harness A

STEP 1. M.U.T.-III CAN bus diagnostics
Use scan tool to diagnose the CAN bus lines.

KEYLESS OPERATION SYSTEM (KOS)

42B-103

DIAGNOSIS

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Repair the CAN bus lines. (Refer to GROUP 54D - CAN

Bus Diagnostics table P.54D-17.) On completion, go to
Step 2.

STEP 2. Diagnostic trouble code recheck after resetting
CAN bus lines

(1)

Turn the ignition switch to the "LOCK" (OFF) position.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the diagnostic trouble code U1412 set?

YES:

 Go to Step 3.

NO:

 The procedure is complete.

STEP 3. Check for other diagnostic trouble code.
Check  if  the  diagnostic  trouble  code  is  set  from  ABS-ECU  or
ASC-ECU.<Refer  to  GROUP  35B,diagnostic  trouble  code
chart P.35B-9(vehicles without ASC) or Refer to GROUP 35C,
diagnostic trouble code chart P.35C-11(vehicles with ASC)>

Q:Is the check result normal?

YES:

 Replace the KOS-ECU. Then go to Step 4.

NO:

 Carry out the troubleshooting for ABS-ECU or ASC-

ECU.<Refer to GROUP 35B, diagnostic trouble code chart P.
35B-9(vehicles without ASC) or Refer to GROUP 35C,
diagnostic trouble code chart P.35C-11(vehicles with ASC)
>. Then go to Step 4.

STEP 4. Recheck for diagnostic trouble code.
Check again if the DTC is set.

(1)

Turn the ignition switch to the "LOCK" (OFF) position.

(2)

Turn the ignition switch to the "ON" position.

(3)

Check if the DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the diagnostic trouble code U1412 reset?

YES:

 Start over at Step 1.

NO:

 The procedure is complete.

DTC U1415: Coding not completed/Data fail

M14209100106USA0000010000

If the DTC U1415 is set, diagnose the CAN bus
lines.

When replacing the ECU, always check that the
communication circuit is normal.

DIAGNOSTIC FUNCTION
If the vehicle information data is not registered to the
combination  meter,  the  KOS-ECU  sets  the  DTC
U1415.

42B-104

KEYLESS OPERATION SYSTEM (KOS)

DIAGNOSIS

JUDGMENT CRITERIA
With  the  global  coding  counter  value  "0,"  if  all  the
global  coding  data  (vehicle  information)  are  not
stored, the KOS-ECU determines that a problem has
occurred.

TROUBLESHOOTING HINTS

The CAN bus line may be defective.

The KOS-ECU may be defective.

The ETACS-ECU may be defective.

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

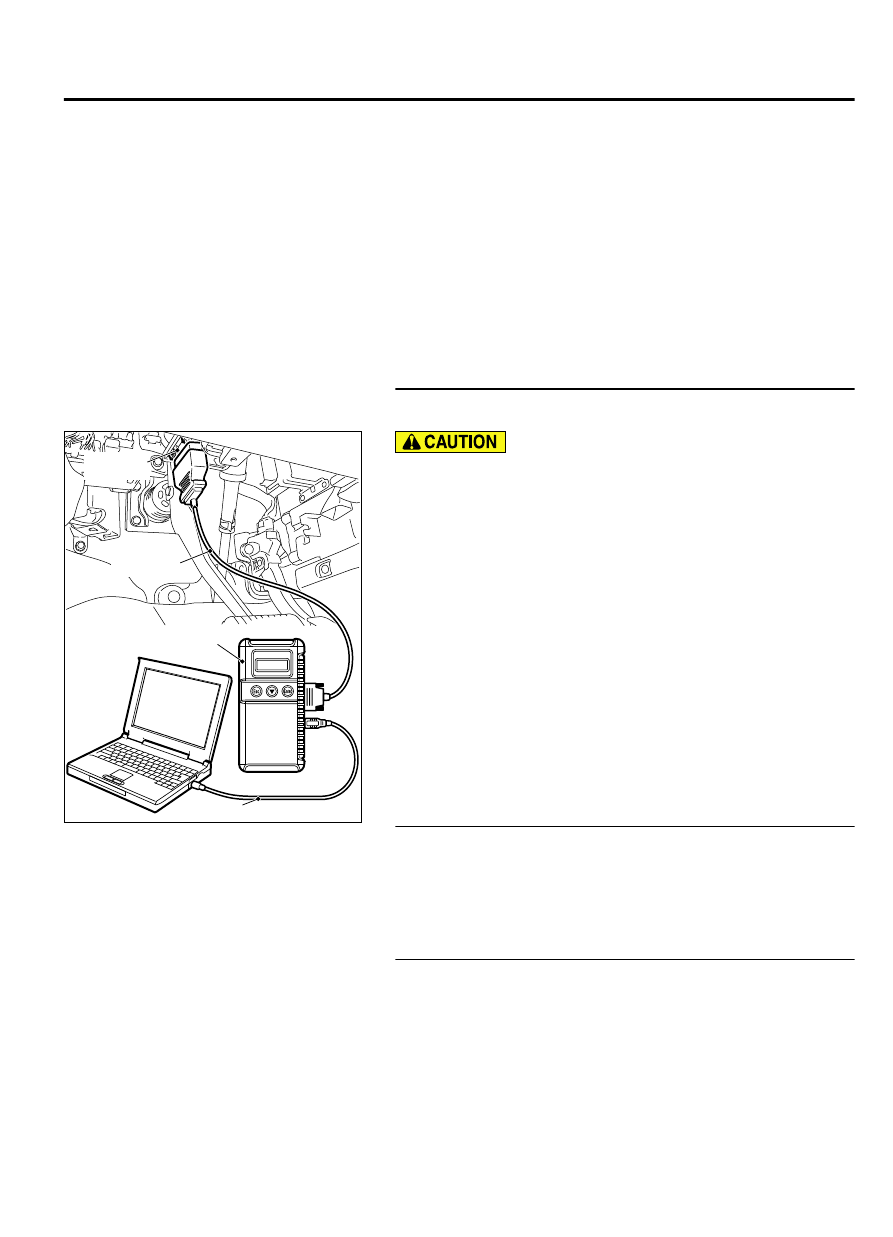

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.42B-10."

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Using scan tool MB991958, read the ETACS-ECU
diagnostic trouble code.
Check if DTC is set to the ETACS-ECU.

Q:Is the DTC set?

YES:

 Troubleshoot the ETACS-ECU. Refer to P.54Ad-8.

NO:

 Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the KOS-ECU.

(1)

Erase the DTC.

(2)

Turn the ignition switch from "LOCK" (OFF) position to "ON"
position.

(3)

Check if DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

KEYLESS OPERATION SYSTEM (KOS)

42B-105

DIAGNOSIS

Q:Is the DTC set?

YES:

 Replace KOS-ECU and register the ID codes. (Refer

to P.42B-12.)

NO:

 The trouble can be an intermittent malfunction (Refer

to GROUP 00 - How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).

Code No.U1417 Implausible coding data

M14209100107USA0000010000

If  diagnostic  trouble  code  U1417  is  set  in  KOS-ECU,
always diagnose the CAN bus lines. If there is any fault in
the CAN bus lines, an incorrect diagnostic trouble code
may be set. In this case, the set diagnostic trouble code
is not highly reliable.

Before replacing the ECU, ensure that the communication
circuit is normal.

When the diagnostic trouble code U1417 is set in KOS-
ECU,  the  diagnostic  trouble  code  may  also  be  set  in
ETACS-ECU. When the diagnostic trouble code is set in
ETACS-ECU,  carry  out  the  diagnosis  of  the  diagnostic
trouble code for ETACS-ECU first.

CIRCUIT OPERATION
KOS-ECU receives the vehicle information stored in the ETACS-
ECU via CAN bus lines.

DTC SET CONDITIONS
KOS-ECU communicates with ETACS-ECU via CAN bus lines.
This diagnostic trouble code is set when the vehicle information
received from the ETACS-ECU is invalid.

PROBABLE CAUSES

Malfunction of ETACS-ECU

Engine control module malfunction

ETACS-ECUs have been interchanged between two vehicles.

KOS-ECU malfunction

External noise interference

WCMs have been interchanged between two vehicles.

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910: M.U.T.-III Main Harness A

42B-106

KEYLESS OPERATION SYSTEM (KOS)

DIAGNOSIS
