The trouble can be an intermittent malfunction (Refer
to GROUP 00 - How to use Troubleshooting/inspection
Service Points - How to Cope with Intermittent
Malfunction P.00-15).
DTC U0184: Audio CAN timeout
M14209100119USA0000010000
｠
If the DTC U0184 is set, be sure to diagnose the
CAN bus line.
｠
When replacing the ECU, always check that the
communication circuit is normal.
DIAGNOSTIC FUNCTION
When the signals from radio and CD player or CD
changer cannot be received, the KOS-ECU sets the
DTC U0184.
TROUBLESHOOTING HINTS
｠
The CAN bus line may be defective.
｠
The KOS-ECU may be defective.
｠
The radio and CD player or CD changer may be
defective.
DIAGNOSIS
Required Special Tools:
｠
MB991958: Scan Tool (M.U.T.-III Sub Assembly)
｠
MB991824: Vehicles Communication Interface (V.C.I.)
｠
MB991827: M.U.T.-III USB Cable
｠
MB991910: M.U.T.-III Main Harness A (Vehicles with
CAN communication system)

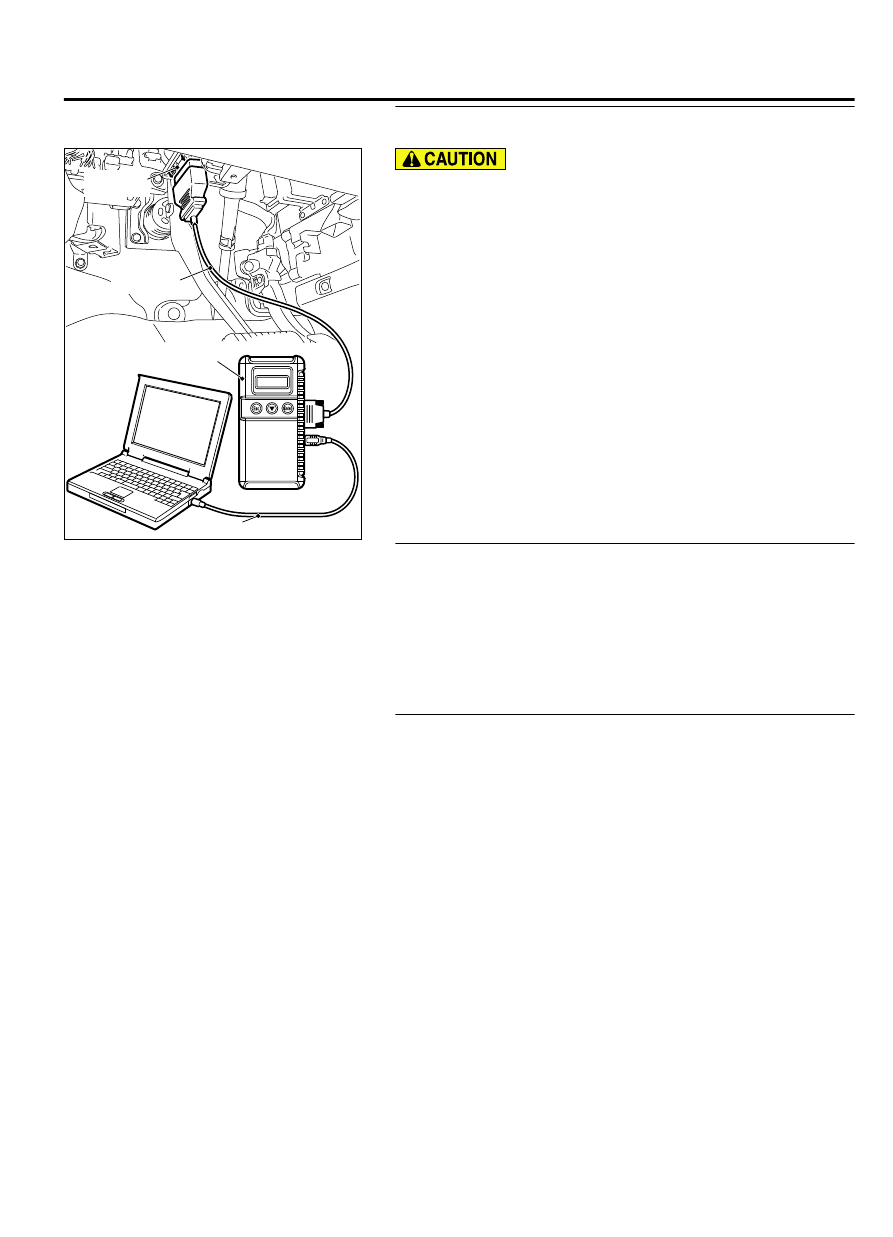

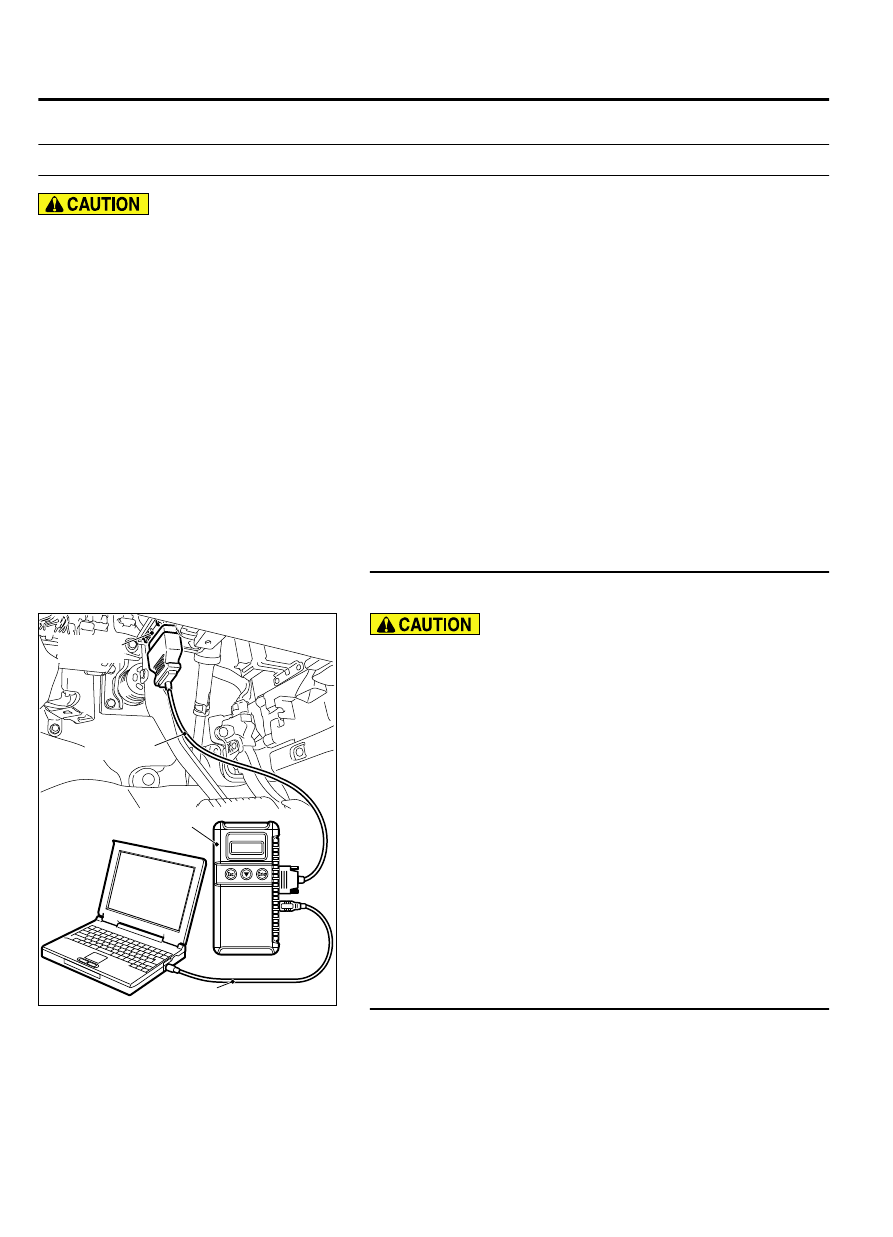

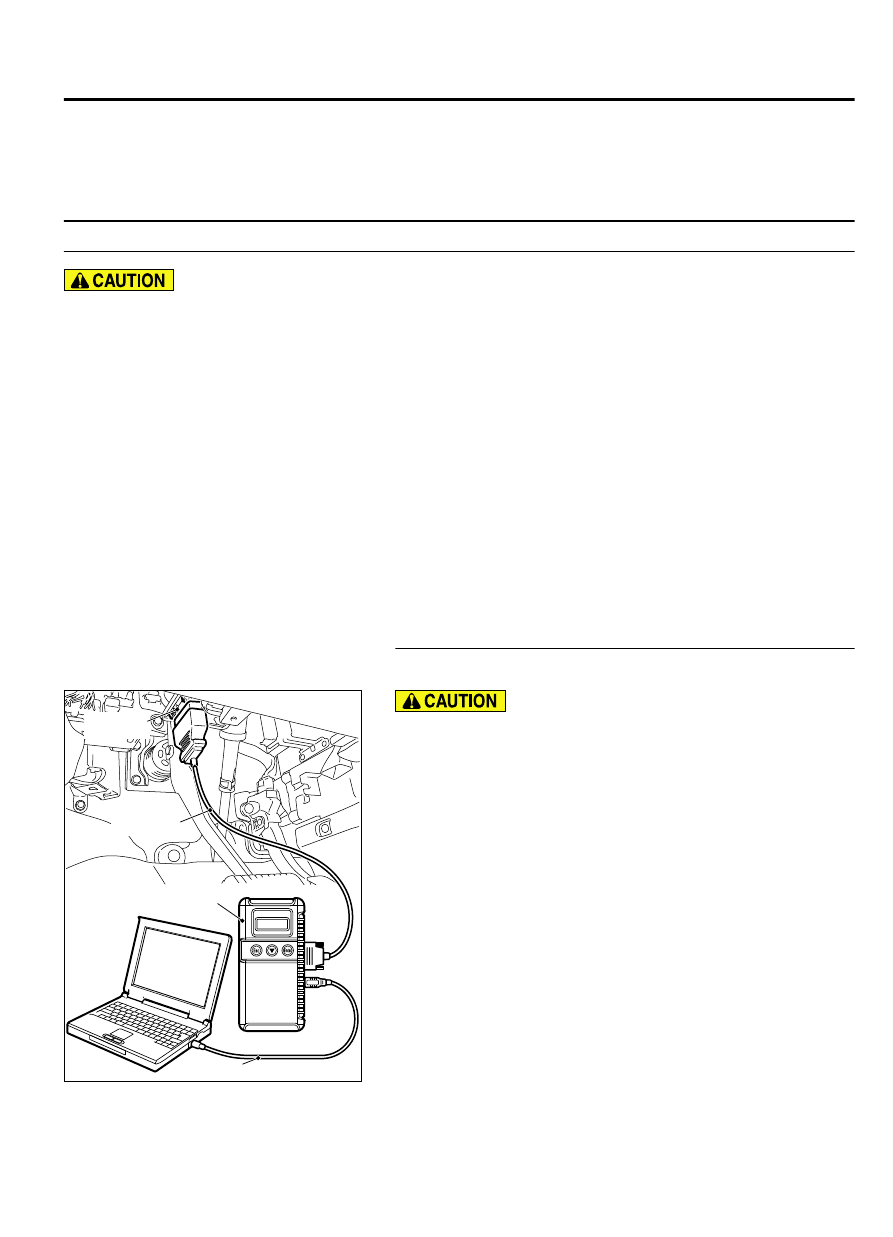

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line
ZC501967
AC404789
ZC5019680000
MB991824
MB991827
MB991910
Data link
connector
To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.
(1)
Connect scan tool MB991958. Refer to "How to connect the
Scan Tool (M.U.T.-III) P.42B-10."
(2)
Turn the ignition switch to the "ON" position.
(3)
Diagnose the CAN bus line.
(4)
Turn the ignition switch to the "LOCK" (OFF) position.
Q:Is the CAN bus line found to be normal?
YES:
Go to Step 2.
NO:
Repair the CAN bus line. (Refer to GROUP 54D,
KEYLESS OPERATION SYSTEM (KOS)
42B-99
DIAGNOSIS
