STEP 2. Replace the battery in the keyless operation key
and recheck the diagnostic trouble code.
Replace the battery of the keyless operation key for which the
DTC is set, and check whether the DTC is reset.

(1)

Erase the DTC.

(2)

Turn the ignition switch from the "LOCK" (OFF) position to
the "ON" position.

(3)

Check if the DTC is set.

Q:Is the DTC set?

YES:

 Go to Step 3.

NO:

 The procedure is complete. (Discharged battery)

STEP 3. Replace the keyless operation key and recheck the
diagnostic trouble code.
Replace the keyless operation key for which the DTC is set with
a new one, register the encrypted code and keyless operation
key ID (refer to P.42B-12), and check whether the DTC is reset.

(1)

Erase the DTC.

(2)

Turn the ignition switch from the "LOCK" (OFF) position to
the "ON" position.

(3)

Check if the DTC is set.

Q:Is the diagnostic trouble code set?

YES:

 Replace KOS-ECU and register the ID codes. (Refer

to P.42B-12.)

NO:

 The procedure is complete.

DTC B2401: Keyless/KOS key ID not registered

M14209100015USA0000010000

｠

If the DTC B2401 is set, be sure to diagnose the
CAN bus line.

｠

When replacing the ECU, always check that the
communication circuit is normal.

DIAGNOSTIC FUNCTION
If no keyless operation key ID is registered with KOS-
ECU  or  if  the  keyless  operation  key  with  ID  not
registered is used, KOS-ECU sets the DTC B2401.

JUDGEMENT CRITERIA
If the number of the registered keyless operation keys
is 0, or the registration of a keyless operation key fails

when the number of the registered keyless operation
keys is 0, it is judged as abnormal.

PROBABLE CAUSES

｠

The registration of a keyless operation key ID fails
when no keyless operation key ID is registered.

｠

Malfunction of the keyless operation key

｠

Malfunction of KOS-ECU

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

KEYLESS OPERATION SYSTEM (KOS)

42B-43

DIAGNOSIS

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

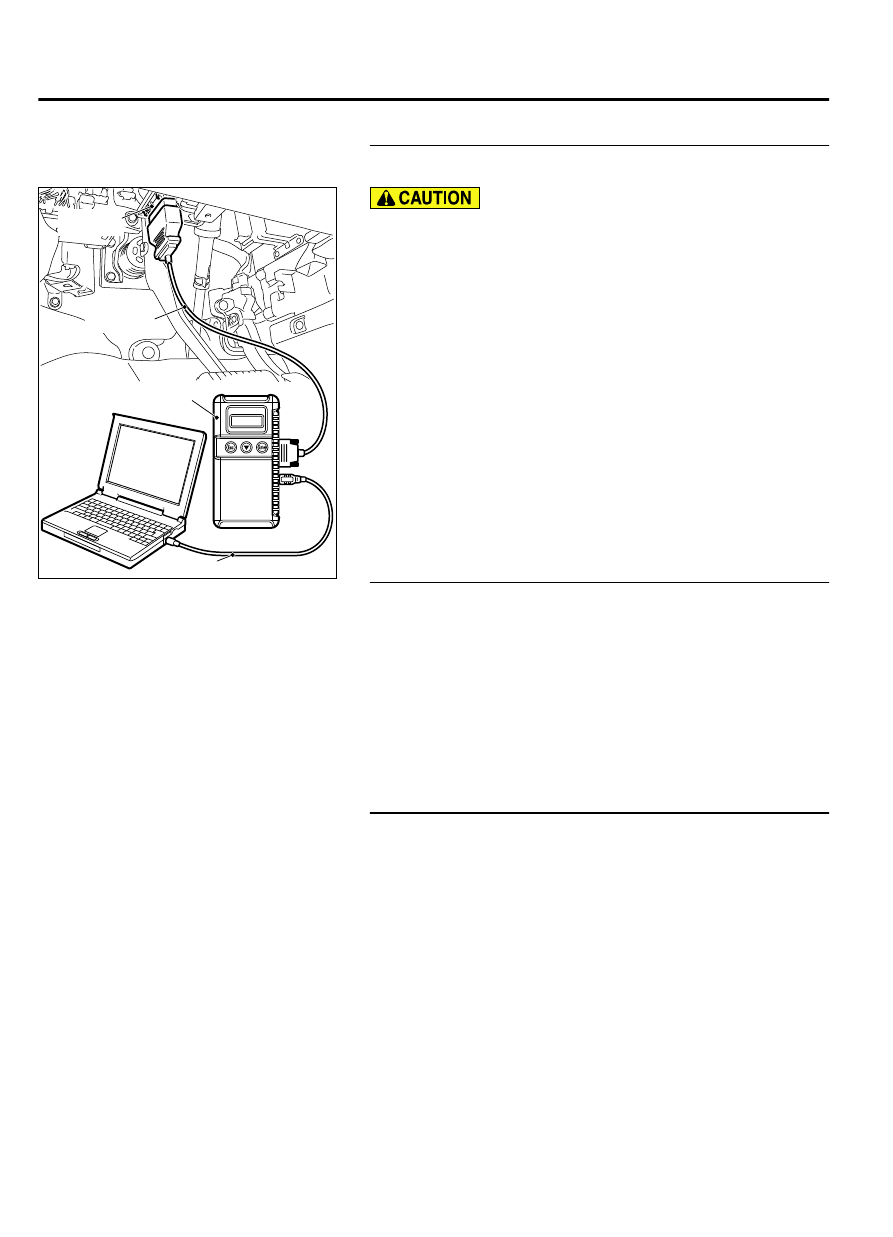

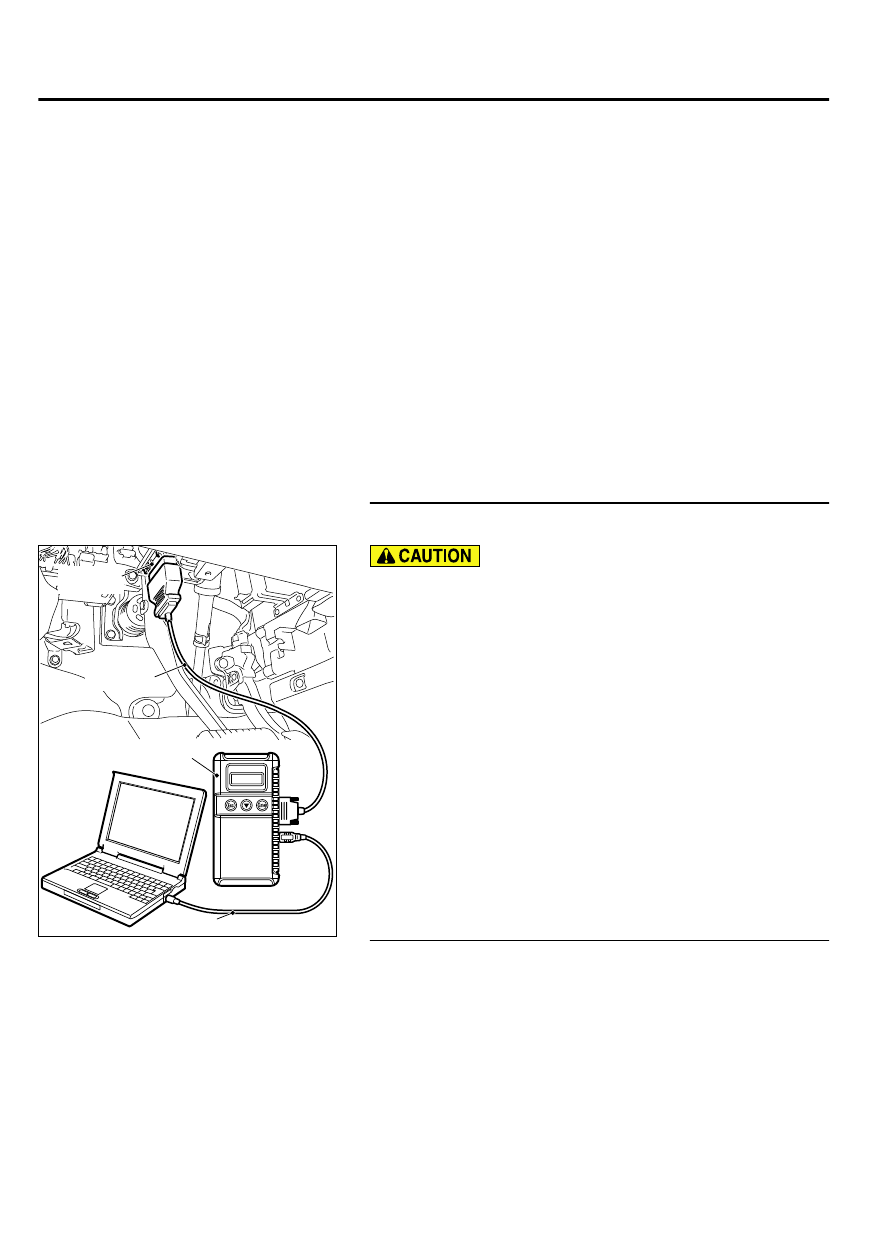

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool (MB991958), always turn
the  ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool (MB991958).

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Register the keyless operation key ID and recheck
the diagnostic trouble code.
Register the keyless operation key ID (refer to P.42B-163), and
check whether the DTC is reset.

(1)

Erase the DTC.

(2)

Turn the ignition switch from the "LOCK" (OFF) position to
the "ON" position.

(3)

Check if the DTC is set.

Q:Is the DTC set?

YES:

 Go to Step 3.

NO:

 The procedure is complete.

STEP 3. Replace the keyless operation key and recheck the
diagnostic trouble code.
Replace the keyless operation key for which the DTC is set with
a new one, register the encrypted code and keyless operation
key ID (refer to P.42B-12), and check whether the DTC is reset.

(1)

Erase the DTC.

(2)

Turn the ignition switch from the "LOCK" (OFF) position to
the "ON" position.

(3)

Check if the DTC is set.

Q:Is the DTC set?

YES:

 Replace KOS-ECU and register the ID codes. (Refer

to P.42B-12.)

NO:

 The procedure is complete.

42B-44

KEYLESS OPERATION SYSTEM (KOS)

DIAGNOSIS

DTC B2402: STL unit comm.(system ID), B2403: STL unit comm.(CRC), B2404: STL unit
comm.(function code), B2405: STL unit comm.(rolling code), B2406: STL unit comm.
(PTC operate), B2407: STL unit comm.(EEPROM), B2408: STL unit comm.(solenoid)

M14209100125USA0000010000

｠

If the DTC B2402, B2403, B2404, B2405, B2406,
B2407, or B2408 is set, diagnose the CAN bus
lines.

｠

Whenever  the  steering  lock  unit  is  replaced,
ensure  that  the  communication  circuit  is
normal.

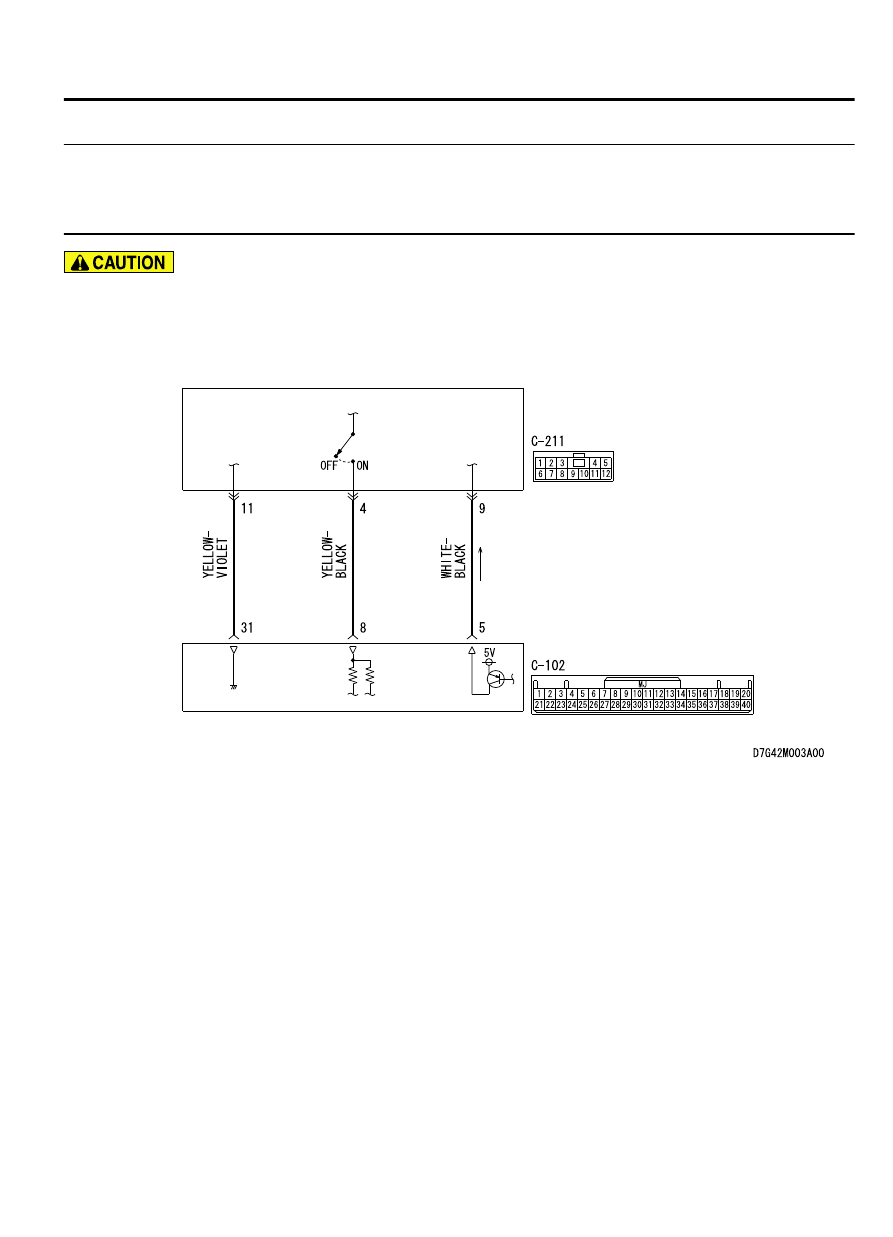

 Key Reminder Switch and KOS-ECU Circuit

KOS-ECU

KEY
REMINDER
SWITCH

(PUSH SWITCH)

DTC SET CONDITION
When the ignition push switch is pressed, the steering
lock unit communicates with KOS-ECU to unlock the
IG knob. However, if there is a failure shown below,
the corresponding DTC is set.

｠

B2402: System ID (vehicle specific code) failure

｠

B2403: Cyclic Redundancy Check (CRC): The error
detection  strategy  to  detect  a  continuously
occurring error (burst error), the calculation result
discrepancy

｠

B2404: Function code failure

｠

B2405:  Rolling  code  (automatically  changing  a
code  for  lock/unlock  each  time  when  a  lock
operation is performed)

｠

B2406:  PTC  thermistor  continuously  activated  or
activated to prevent solenoid abnormal heating on
the communication with steering lock unit

｠

B2407: EEPROM failure

｠

B2408: Communication error between the steering
lock unit and KOS-ECU, or solenoid failure

TECHNICAL DESCRIPTION (COMMENT)

Range of check

｠

When  the  IG  knob  unlock  communication  is
performed by pressing the ignition push switch

Judgement criteria

｠

B2402:  Steering  lock  unit  communication  error
(system ID) or received system ID error

｠

B2403:  Steering  lock  unit  communication  error
(CRC)  or  received  frame  CRC  calculation  result
discrepancy

KEYLESS OPERATION SYSTEM (KOS)

42B-45

DIAGNOSIS

｠

B2404:  Steering  lock  unit  communication  error
(function  code)  or  received  frame  function  code
undefined

｠

B2405:  Steering  lock  unit  communication  error
(rolling  code)  or  received  rolling  code  out  of  the
permissible range

｠

B2406:  Steering  lock  unit  communication  error
(PTC  operation)  or  PTC  thermistor  activated  to
prevent solenoid abnormal heating

｠

B2407:  Steering  lock  unit  communication  error
(EEPROM) or RRPROM failure

｠

B2408:  Steering  lock  unit  communication  error
(solenoid) or solenoid failure

TROUBLESHOOTING HINTS

｠

Malfunction of the key reminder switch (integrated
into the steering lock unit)

｠

Wiring harness or connector failure of CAN bus line

｠

Malfunction of the KOS-ECU

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus
line.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool (MB991958), always turn
the  ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool (MB991958).

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Diagnose the CAN bus line.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the CAN bus line found to be normal?

YES:

 Go to Step 2.

NO:

 Repair the CAN bus line. (Refer to GROUP 54D,

Diagnosis P.54D-17).

STEP 2. Check key reminder switch connector C-211 and
KOS-ECU connector C-102 for loose, corroded or damaged
terminals, or terminals pushed back in the connector.

Q:Is  the  key  reminder  switch  connector  C-211  and  KOS-

ECU connector C-102 in good condition?

YES:

 Go to Step 3.

NO:

 Repair the defective connector.
