Mitsubishi Outlander XL. Manual - part 766

Parts name

Functional description

Keyless  operation  key  (incorporates
emergency key)

｠

The  keyless  operation  key  receives  signals  sent  from  each
interior/exterior  transmitter  antenna,  certifies  the  keyless
operation  key  ID  code,  calculates  the  encrypted  code,  and
sends  the  reply  data  signal  to  KOS-ECU  via  the  receiver
antenna module. When the lock/unlock switch on the keyless
operation key is pressed, corresponding signal is sent to KOS-
ECU via the receiver antenna module.

｠

If two or more keyless operation keys registered in KOS-ECU
respond  at  the  same  time,  their  signals  would  interfere.  To
avoid this interference, each signal from KOS-ECU is given
the priority*1data, and the keyless operation keys respond in
accordance with this priority.

Lock switch

Driver's door

Locks all the doors and the liftgate when a driver carrying the
keyless operation key presses the lock switch on the front door
outside handle or on the liftgate lock release handle.

Front

 passenger's

door
Liftgate

Unlock sensor

Driver's door

The  unlock  sensors  incorporated  in  the  driver’s  front  door
outside handles unlock driver’s the door when a driver carrying
the keyless operation key pulls the driver’s door outside handle.

Front

 passenger's

door

The unlock sensors incorporated in the passenger's front door
outside  handles  unlock  all  the  doors  and  the  liftgate  when  a
driver  carrying  the  keyless  operation  key  pulls  the  front  door
outside handle.

Liftgate lock release handle

Locks all the doors and the liftgate when a driver carrying the
keyless operation key presses the lock switch on the front door
outside handle or on the liftgate lock release handle.

Exterior  transmitter
antenna assembly

Driver's side

Converts the data output from KOS-ECU via wire into a signal,
and sends it to the keyless operation key.

Front

 passenger's

side

Interior  transmitter
antenna assembly

Front

Converts the data output from KOS-ECU via wire into a signal,
and sends it to the keyless operation key.

Rear

Antenna  &  tone
alarm assembly

Exterior  transmitter
antenna  assembly
(liftgate)

Converts the data output from KOS-ECU via wire into a signal,
and sends it to the keyless operation key.

Outer tone alarm

The outer tone alarm sounds when:

｠

The doors are locked or unlocked by the door entry function.

｠

The keyless operation key is brought out of the vehicle when
the  IG  knob  is  in  the  "LOCK"  (OFF)  position  and  the  push
switch is in other than the ON position.

｠

The  lock  switch  on  the  keyless  operation  switch  is  pressed
when the IG knob is in the "LOCK" (OFF) position and the push
switch is in other than the ON position.

｠

The lock switch on the keyless operation key is pressed from
inside the car.

｠

The lock switch on the keyless operation key is pressed when
the door is ajar.

KEYLESS OPERATION SYSTEM (KOS)

42B-7

GENERAL INFORMATION

Parts name

Functional description

Receiver antenna module

Receives  the  operation  signals  from  the  lock/unlock  switches
and panic alarm switch on the keyless operation key, and the air
pressure signal from the TPMS transmitter, and then converts
them into data and sends them to KOS-ECU.

TPMS transmitter

Measure tire pressure directly, then send radio frequency signal
to receiver antenna module.

Combination  meter  (Multi  information
display, TPMS warning light)

Communicates with KOS-ECU via CAN. Receives the warning
request  or  warning  information  from  KOS-ECU,  flashes  or
activates*2the warning indicator or warnig light. Warning symbol
and message is additionally displayed on the multi information
display

ETACS-ECU

Communicates  with  KOS-ECU  via  CAN.  Send  ignition  switch
status. Receives the door lock/unlock request from KOS-ECU,
outputs the lock/unlock signal, and flashes the turn signal light
to inform the driver that the doors are locked/unlocked.

ECM

Communicates  with  KOS-ECU  via  CAN.  Permits/inhibits  the
engine  starting  and  controls  the  engine  operation.  Send
atmospheric pressure data.

ABS or ASC-ECU

Communicates  with  KOS-ECU  via  CAN.  Sends  the  vehicle
speed data.

NOTE:

 *1: When registering the keyless operation

keys, KOS-ECU numbers each key (1 to 4) in the
order they are registered (initial priority). This
priority is renewed each time the doors are
locked/unlocked and the IG knob is pressed. For
example, when only keys 1 and 3 have responded to
the signal sent from KOS-ECU, the new priority of

the keys would be 1-3-2-4. When keys 3 and 4 have
responded, then the priority of the keys becomes
3-4-1-2.

NOTE:

 *2: Illuminates for tire pressure warning.

Flashes for about 1 minute and then coutinuously
illuminated for TPMS malfunction warning.

42B-8

KEYLESS OPERATION SYSTEM (KOS)

GENERAL INFORMATION

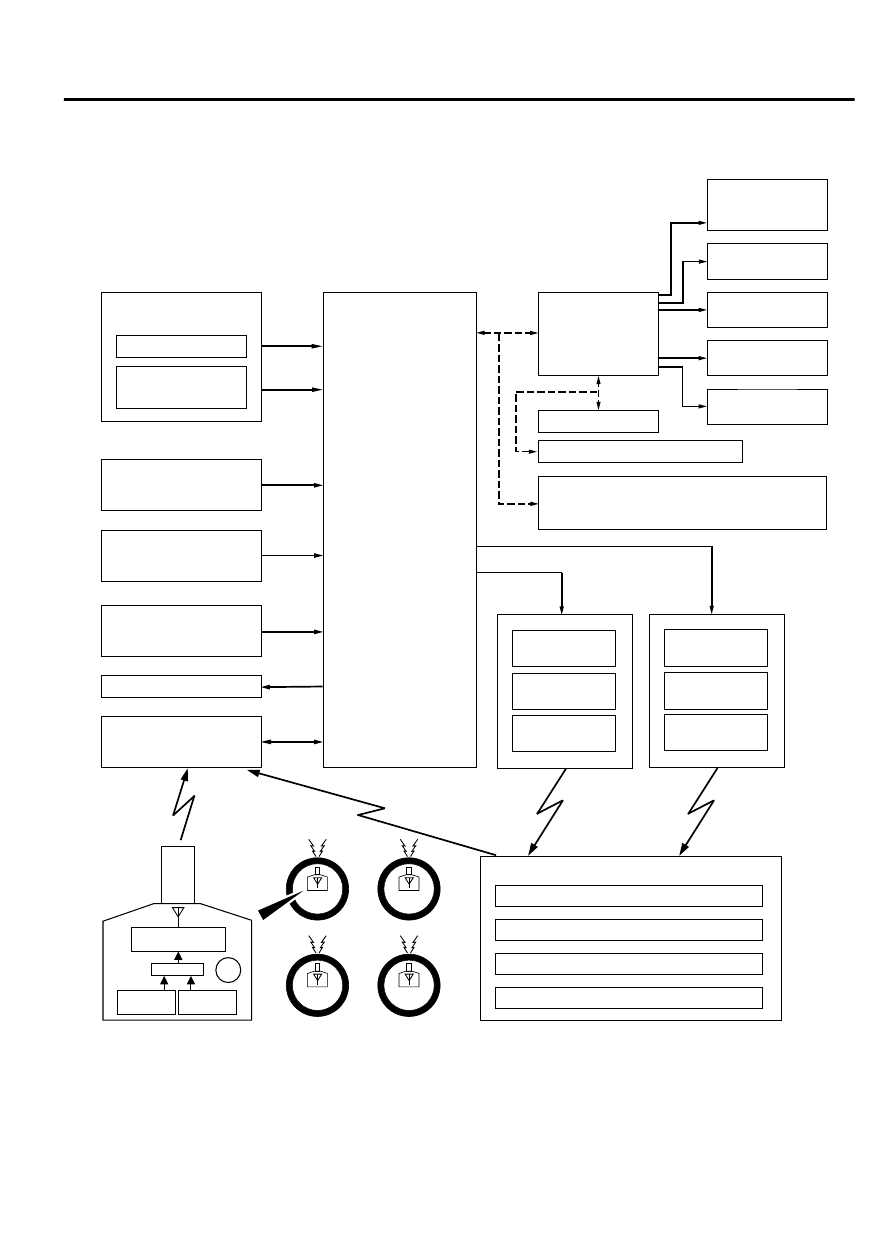

System configuration

ZC600946

Door lock actuator

ETACS-ECU

Turn-signal light

Steering unit

Push switch

Steering lock unit

Unlock sensor and
lock switch
(driver's side door)

Unlock sensor and
lock switch
(passenger's side door)

Liftgate lock release
handle and lock switch
(liftgate)

Outer buzzer

Receiver antenna module

ECM

Combination meter
(Multi center display, TPMS warning light )

KOS-ECU

Lock switch

Unlock switch

Emergency key (incorporating a transponder)

Indicator light

Radio
frequency
signal

CAN-B
communi-
cation

Front

Rear:
Driver's side

Driver's side

Passenger's side

Liftgate

Rear:
Passenger's side

CAN-C comm-
unication

0001

Liftgate lock actuator

Keyless operation key

Exterior transmitter
antenna assembly

Interior transmitter
antenna assembly

Radio
frequency
signal

Radio
frequency
signal

Radio
frequency
signal

Front tire (LH)

Front tire (RH)

Rear tire (LH)

Rear tire (RH)

TPMS transmitter

CPU

Transmission

circuit

Antenna

Pressure
sensor

Acc.
sensor

Battery

ABS or ASC-ECU

Dome light,
Ignition key cylinder
illumination light

Horn

KEYLESS OPERATION SYSTEM (KOS)

42B-9

GENERAL INFORMATION

SERVICE SPECIFICATIONS

M14209100042USA0000010000

Item

Standard value

Voltage of keyless operation key battery V

2.5 - 3.2

DIAGNOSIS

STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING

M14209100044USA0000010000

Refer to GROUP 00 - Contents of troubleshooting P.
00-6.

DIAGNOSTIC FUNCTION

M14209100054USA0000010000

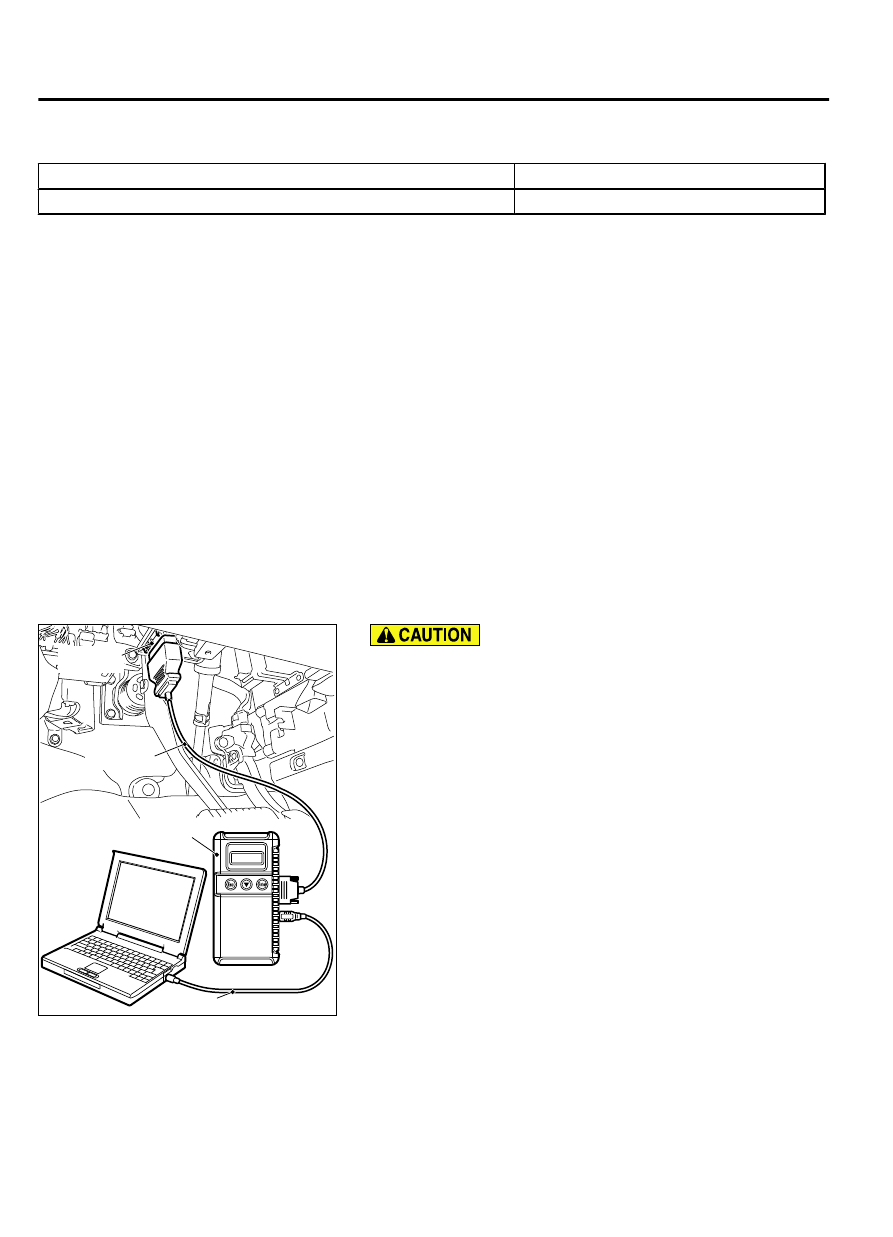

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

1.

Ensure that the ignition switch is at the "LOCK" (OFF) position.

2.

Start up the personal computer.

3.

Connect special tool MB991827 to special tool MB991824 and
the personal computer.

4.

Connect special tool MB991910 to special tool MB991824.

5.

Connect special tool MB991910 to the data link connector.

6.

Turn the power switch of special tool MB991824 to the "ON"
position.

NOTE:

When special tool MB991824 is energized, special

tool MB991824 indicator light will be illuminated in a
green color.

7.

Start the M.U.T.-III system on the personal computer.

NOTE:

Disconnecting scan tool MB991958 is the reverse of

the connecting sequence, making sure that the ignition
switch is at the "LOCK" (OFF) position.

42B-10

KEYLESS OPERATION SYSTEM (KOS)

SERVICE SPECIFICATIONS
