 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the sunroof works normally.

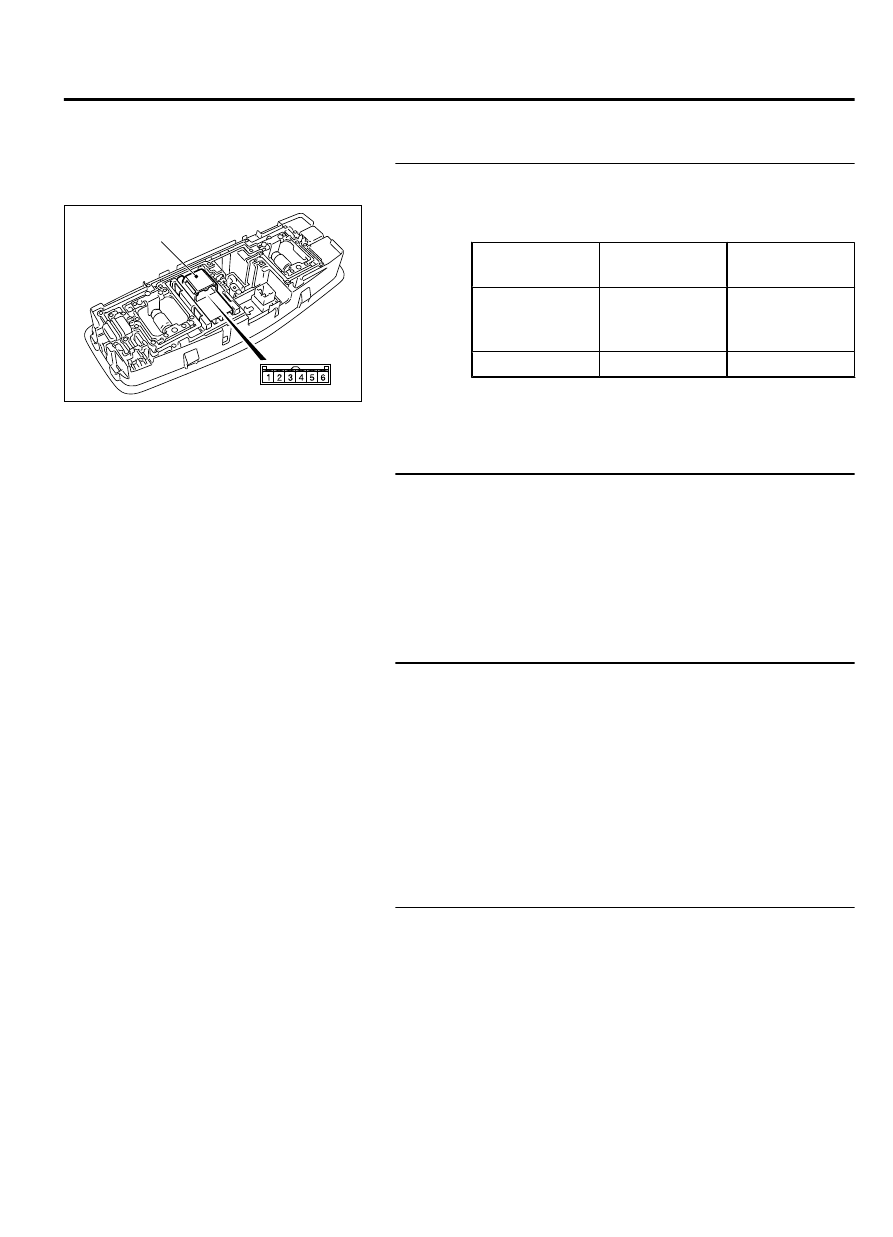

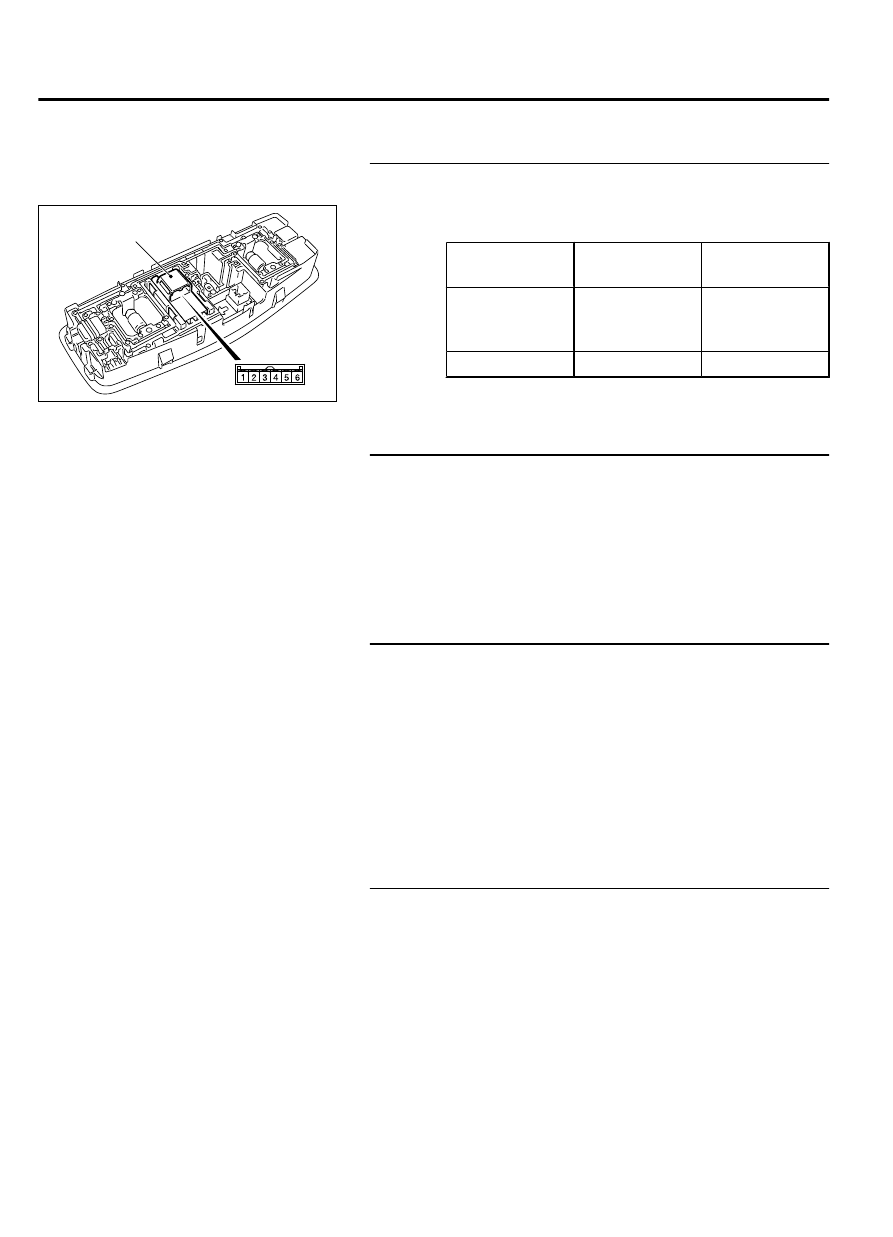

STEP 3. Sunroof switch check

(1)

Remove the sunroof switch. Refer to P.42Ad-41.

ZC6001270000

Sunroof switch

(2)

Check  continuity  when  the  sunroof  switch  is  operated  to
"TILT-UP" position.

Switch
position

Terminal No.

Normal value

Tilt-up

3 - 4

Continuity
exists  (2  Ω  or
less)

OFF

3 - 4, 4 - 5, 4 - 6 Open circuit

Q:Is the sunroof switch normal?

YES:

 Go to Step 4.

NO:

 Replace the sunroof switch. Check that the sunroof

works normally.

STEP 4. Check sunroof motor assembly connector D-04 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  sunroof  motor  assembly  connector  D-04  in  good

condition?

YES:

 Go to Step 5.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the sunroof works normally.

STEP 5. Check the wiring harness between sunroof switch
connector D-03 (terminal 3) and sunroof motor assembly
connector D-04 (terminal 4).

Q:Is the wiring harness between sunroof switch connector

D-03 (terminal 3) and sunroof motor assembly connector

D-04 (terminal No. 4) in good condition?

YES:

 Go to Step 6.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Check that the sunroof works
normally.

STEP 6. Retest the system.
Check that the sunroof lid glass tilts up.

Q:Is the check result normal?

YES:

 No action is necessary and testing is complete.

NO:

 Replace the sunroof motor assembly. Check that the

sunroof works normally.

SUNROOF

42Ad-23

SUNROOF DIAGNOSIS

INSPECTION PROCEDURE 3: The Sunroof Lid Glass does not Open (Tilt-up, Tilt-down
and Close Normally).

M14206000048USA0000010000

Before replacing the ECU, ensure that the power
supply  circuit,  the  ground  circuit  and  the
communication circuit are normal.

ZC600615

CPU

SUNROOF
SWITCH

INPUT CIRCUIT

INPUT CIRCUIT

DRIVE CIRCUIT

SUNROOF MOTOR

HALL SENSOR

SUNROOF
MOTOR
ASSEMBLY

BLA

CK

BLA

CK

BLUE

YELLO

W

GREEN

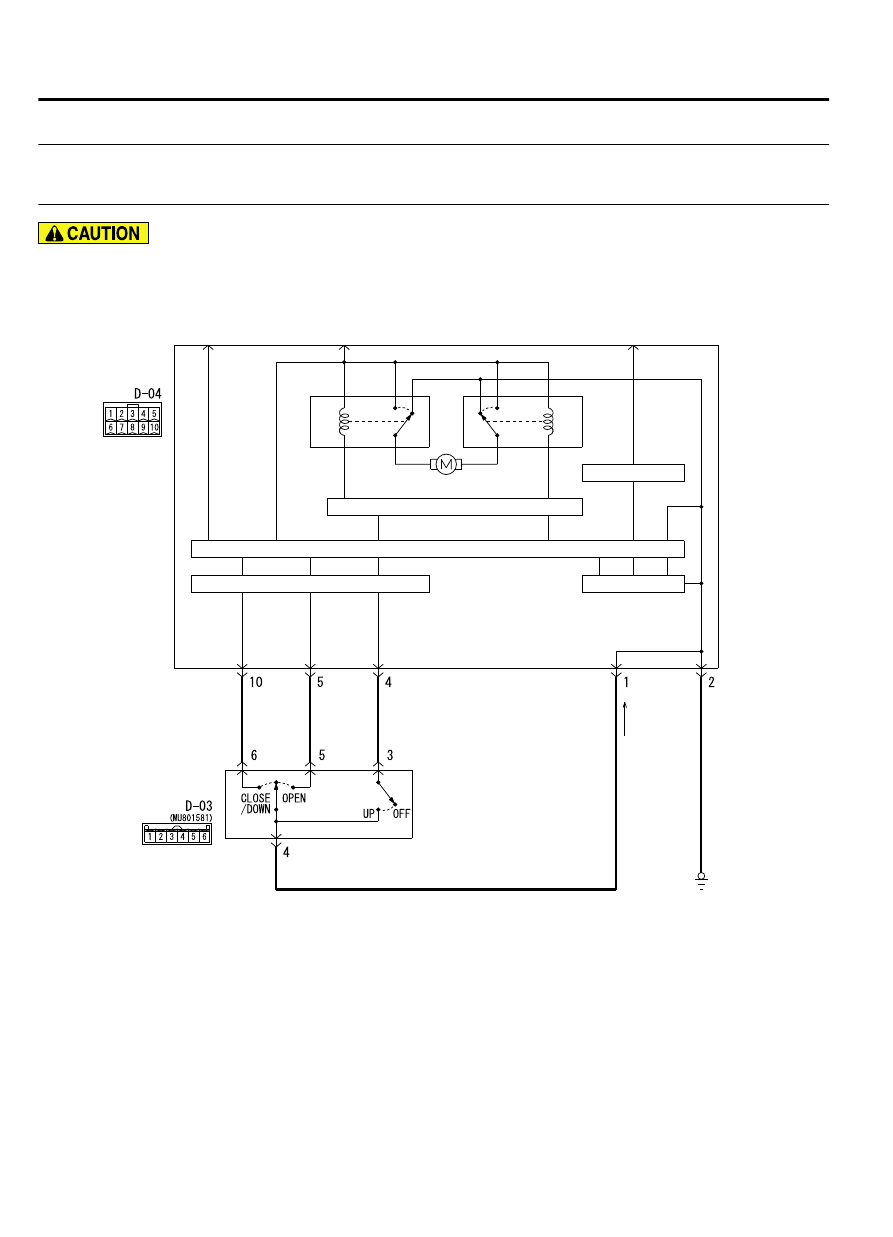

Sunroof Switch Circuit

0000

42Ad-24

SUNROOF

SUNROOF DIAGNOSIS

ZC600879

Connectors: D-03, D-04

D-04 (GR)

D-03 (B)

0007

TECHNICAL DESCRIPTION (COMMENT)
The  sunroof  switch  or  the  sunroof  motor  assembly
may be defective.

TROUBLESHOOTING HINTS

｠

The sunroof switch may be defective

｠

The sunroof motor assembly may be defective

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSTIC PROCEDURE

Required Special Tools:

｠

MB992006: Extra fine probe

｠

MB991223: Harness set

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

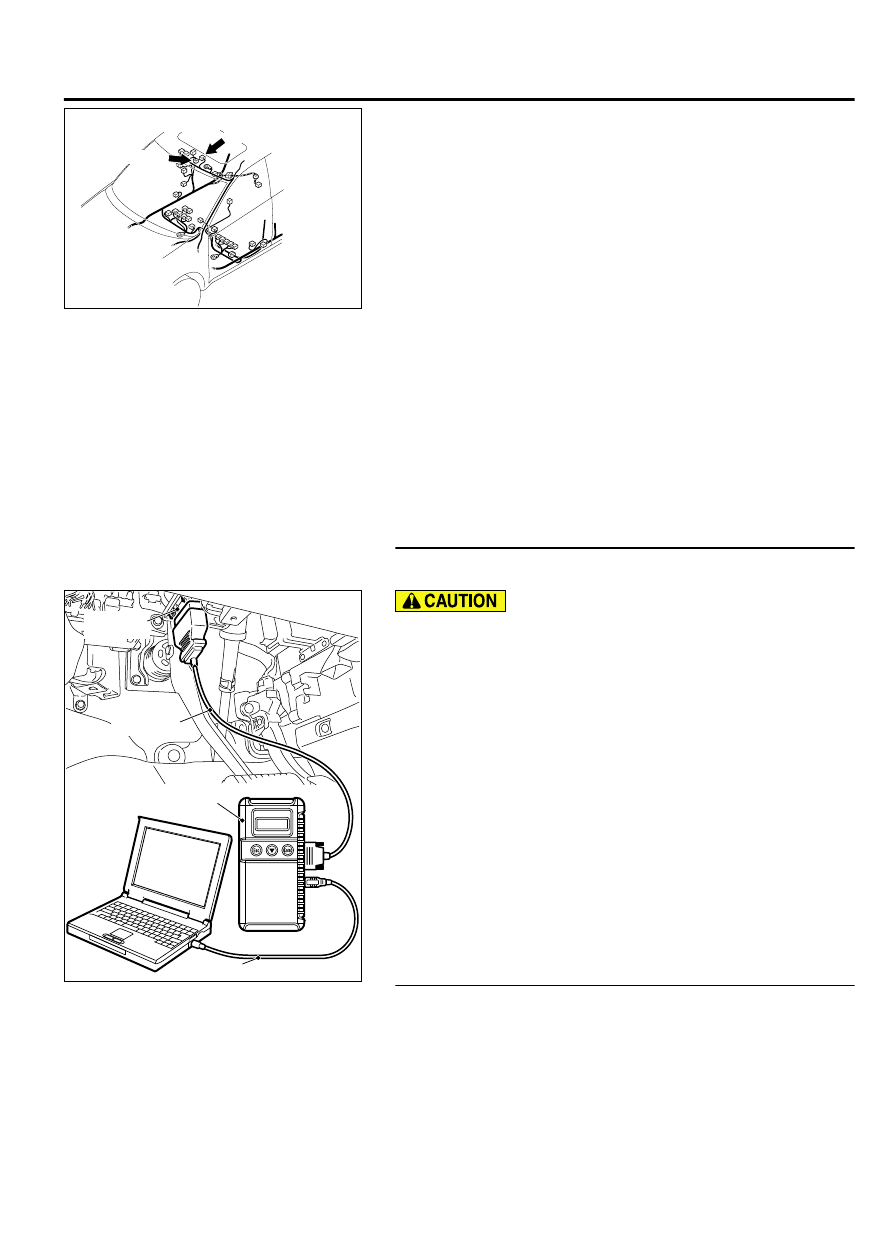

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to GROUP 54Ad, "How
to connect scan tool (M.U.T.-III) P.54Af-4."

(2)

Turn the ignition switch to the "ON" position.

(3)

Check whether the ETACS-ECU related DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Diagnose the ETACS-ECU. Refer to P.42Ad-4.

NO:

 Go to Step 2.

STEP 2. Check sunroof switch connector D-03 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is sunroof switch connector D-03 in good condition?

YES:

 Go to Step 3.

SUNROOF

42Ad-25

SUNROOF DIAGNOSIS

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the sunroof works normally.

STEP 3. Sunroof switch check

(1)

Remove the sunroof switch. Refer to P.42Ad-41.

ZC6001270000

Sunroof switch

(2)

Check  continuity  when  the  sunroof  switch  is  operated  to
"OPEN" position.

Switch
position

Terminal No.

Normal value

Open

4 - 5

Continuity
exists  (2  Ω  or
less)

OFF

3 - 4, 4 - 5, 4 - 6 Open circuit

Q:Is the sunroof switch normal?

YES:

 Go to Step 4.

NO:

 Replace the sunroof switch.

STEP 4. Check sunroof motor assembly connector D-04 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  sunroof  motor  assembly  connector  D-04  in  good

condition?

YES:

 Go to Step 5.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the sunroof works normally.

STEP 5. Check the wiring harness between sunroof switch
connector D-03 (terminal 5) and sunroof motor assembly
connector D-04 (terminal 5).

Q:Is the wiring harness between sunroof switch connector

D-03 (terminal 5) and sunroof motor assembly connector

D-04 (terminal No. 5) in good condition?

YES:

 Go to Step 6.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Check that the sunroof works
normally.

STEP 6. Retest the system.
Check that the sunroof lid glass opens.

Q:Is the check result normal?

YES:

 No action is necessary and testing is complete.

NO:

 Replace the sunroof motor assembly. Check that the

sunroof works normally.

42Ad-26

SUNROOF

SUNROOF DIAGNOSIS
