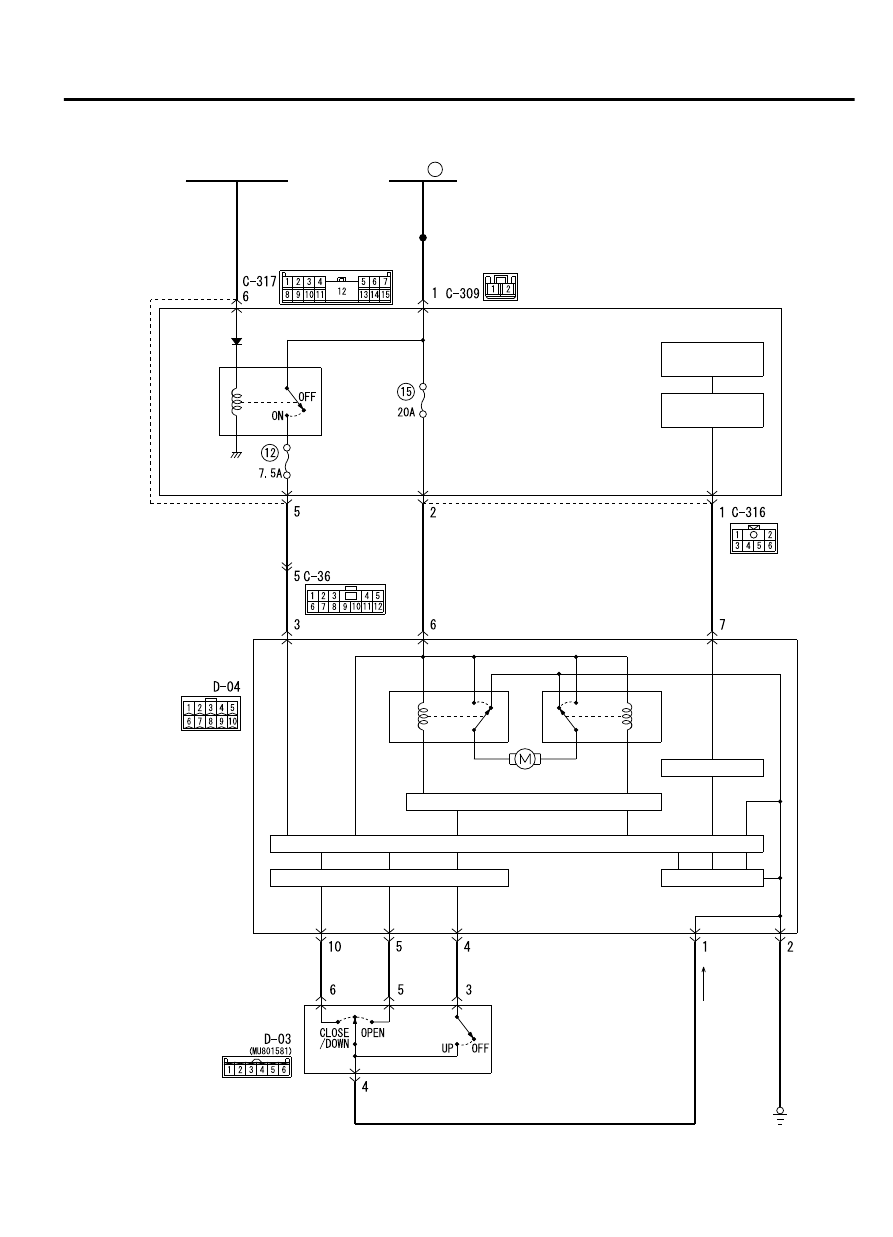

Sunroof Motor Assembly Power Supply Circuit

SUNROOF

42Ad-15

SUNROOF DIAGNOSIS

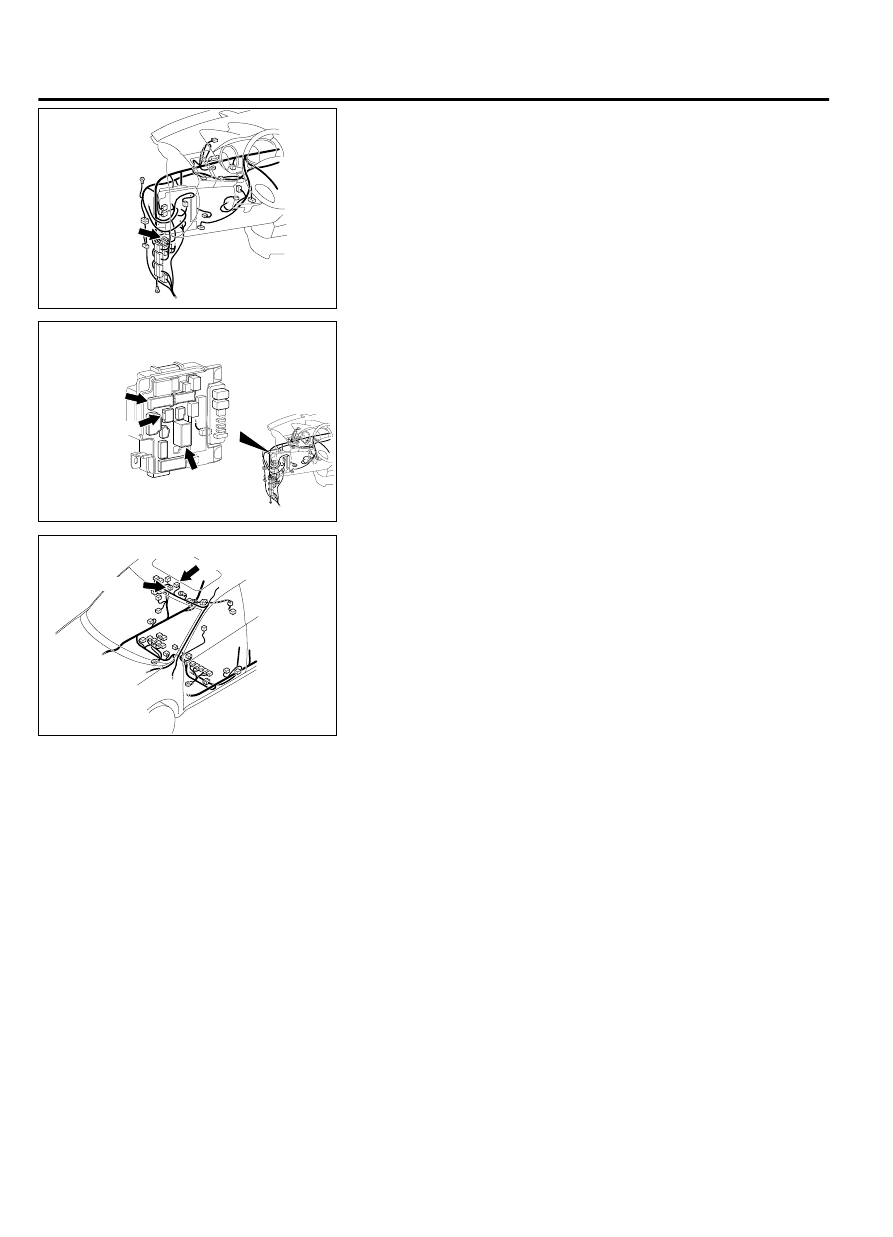

ZC600875

Connector: C-36

0020

ZC600878

Connectors: C-309, C-316, C-317

C-309 (B)

0010

C-316

C-317

ZC600879

Connectors: D-03, D-04

D-04 (GR)

D-03 (B)

0007

CIRCUIT OPERATION

｠

The sunroof motor assembly is energized through
fusible link (34) by the battery.

｠

When  the  ignition  switch  (IG1)  signal  is  on,  the
sunroof motor assembly is ready to operate.

TROUBLESHOOTING HINTS

｠

The sunroof switch may be defective

｠

The sunroof motor assembly may be defective

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

DIAGNOSTIC PROCEDURE

Required Special Tools:

｠

MB992006: Extra fine probe

｠

MB991223: Harness set

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910:  M.U.T.-III  Main  Harness  A  (Vehicles  with
CAN communication system)

42Ad-16

SUNROOF

SUNROOF DIAGNOSIS

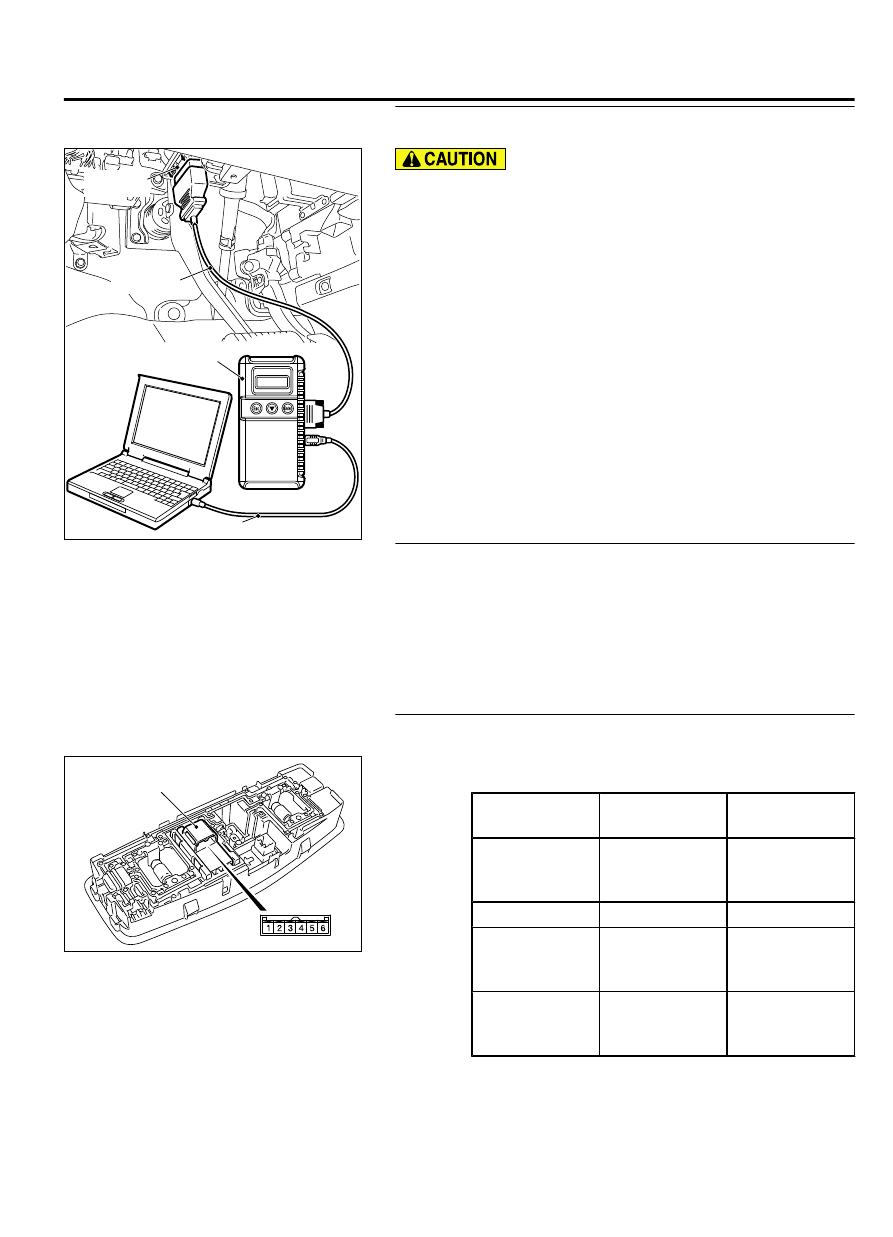

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to GROUP 54Ad, "How
to connect scan tool (M.U.T.-III) P.54Af-4."

(2)

Turn the ignition switch to the "ON" position.

(3)

Check whether the ETACS-ECU related DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Diagnose the ETACS-ECU. Refer to P.42Ad-4.

NO:

 Go to Step 2.

STEP 2. Check sunroof switch connector D-03 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is sunroof switch connector D-03 in good condition?

YES:

 Go to Step 3.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the sunroof works normally.

STEP 3. Sunroof switch check

(1)

Remove the sunroof switch. Refer to P.42Ad-41.

ZC6001270000

Sunroof switch

(2)

Check  continuity  when  the  sunroof  switch  is  operated  to
"OPEN", "TILT-UP" or "CLOSE/TILT-DOWN" position.

Switch
position

Terminal No.

Normal value

Tilt-up

3 - 4

Continuity
exists  (2  Ω  or
less)

OFF

3 - 4, 4 - 5, 4 - 6 Open circuit

Open

4 - 5

Continuity
exists  (2  Ω  or
less)

Close/tilt-down

4 - 6

Continuity
exists  (2  Ω  or
less)

Q:Is the sunroof switch normal?

YES:

 Go to Step 4.

SUNROOF

42Ad-17

SUNROOF DIAGNOSIS

NO:

 Replace the sunroof switch. Check that the sunroof

works normally.

STEP 4. Check the ground circuit to the sunroof motor
assembly. Measure the resistance at sunroof switch
connector D-03.

(1)

Disconnect sunroof switch connector D-03 and measure the
resistance  available  at  the  wiring  harness  side  of  the
connector.

ZC500788

6

4

5

3 2 1

Connector D-03
(harness side)

0000

(2)

Measure  the  resistance  value  between  terminal  4  and
ground.

｠

The resistance should be 2 ohms or less.

Q:Is the measured resistance 2 ohms or less?

YES:

 Go to Step 5.

NO:

 Go to Step 7.

STEP 5. Check sunroof motor assembly connector D-04 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  sunroof  motor  assembly  connector  D-04  in  good

condition?

YES:

 Go to Step 6.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the sunroof works normally.

STEP 6. Check the wiring harness between sunroof switch
connector D-03 (terminal No. 4) and sunroof motor
assembly connector D-04 (terminal No. 1).

Q:Is the wiring harness between sunroof switch connector

D-03 (terminal 4) and sunroof motor assembly connector

D-04 (terminal No. 1) in good condition?

YES:

 No action is necessary and testing is complete.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Check that the sunroof works
normally.

STEP 7. Check sunroof motor assembly connector D-04 for
loose, corroded or damaged terminals, or terminals pushed
back in the connector.

Q:Is  sunroof  motor  assembly  connector  D-04  in  good

condition?

YES:

 Go to Step 8.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Check
that the sunroof works normally.

42Ad-18

SUNROOF

SUNROOF DIAGNOSIS
