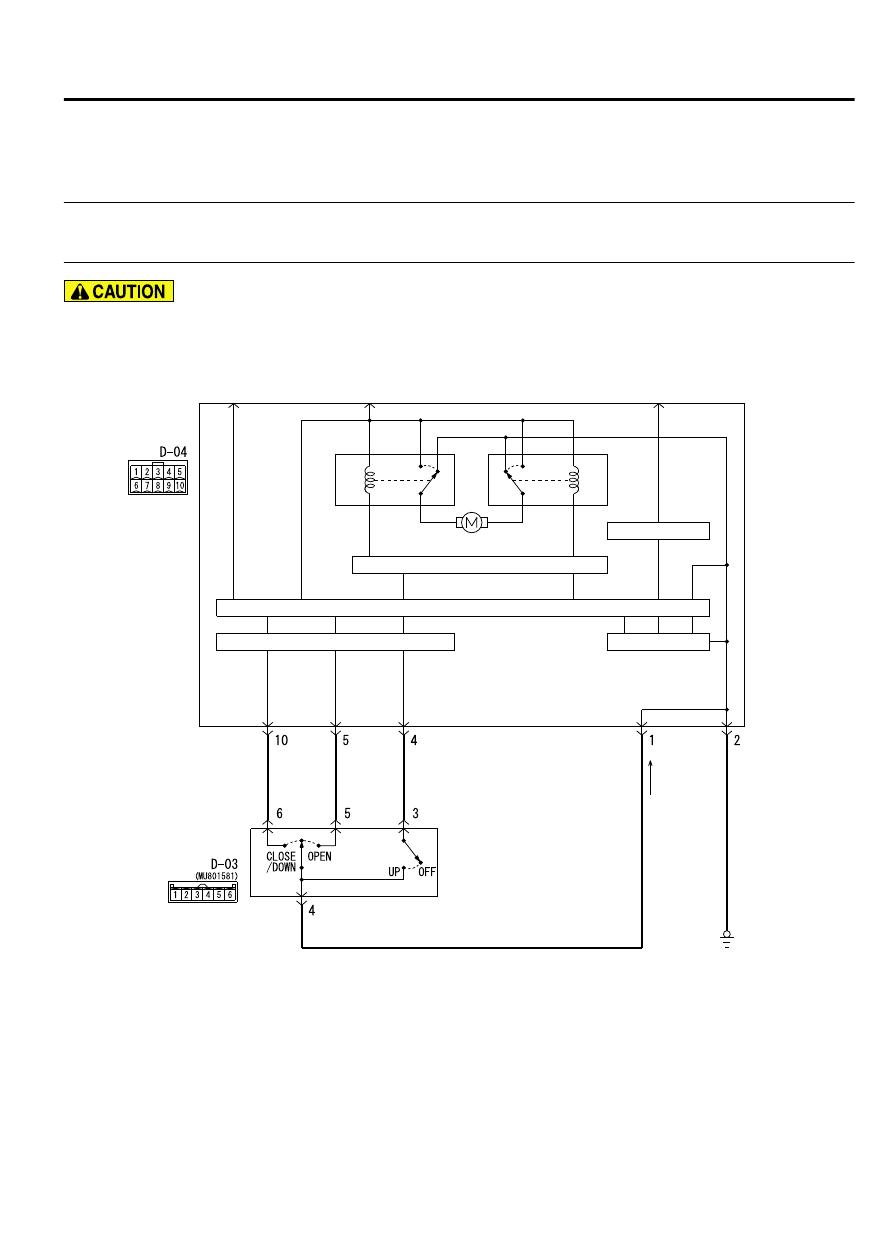

STEP 8. Check the ground circuit to the sunroof motor

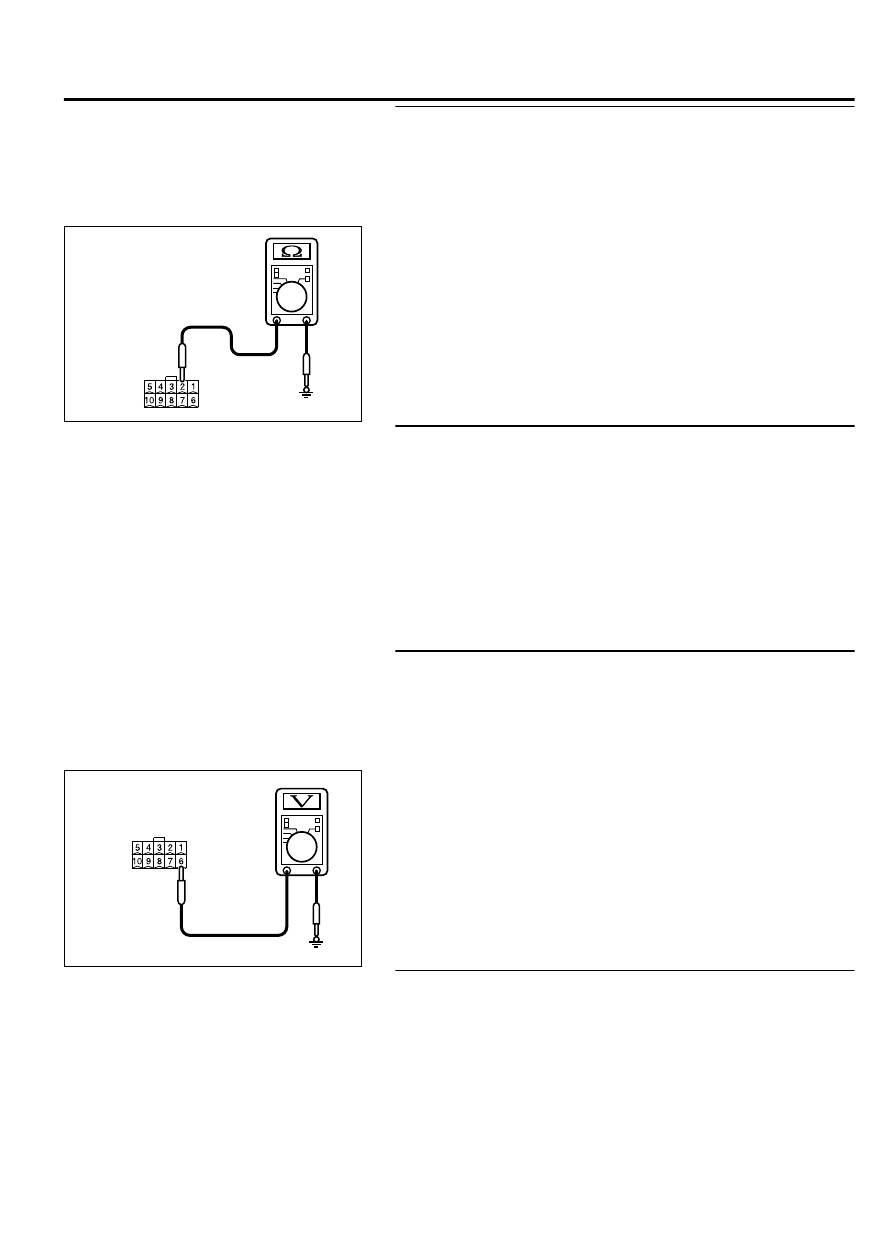

assembly. Measure the resistance at sunroof motor
assembly connector D-04.
(1)

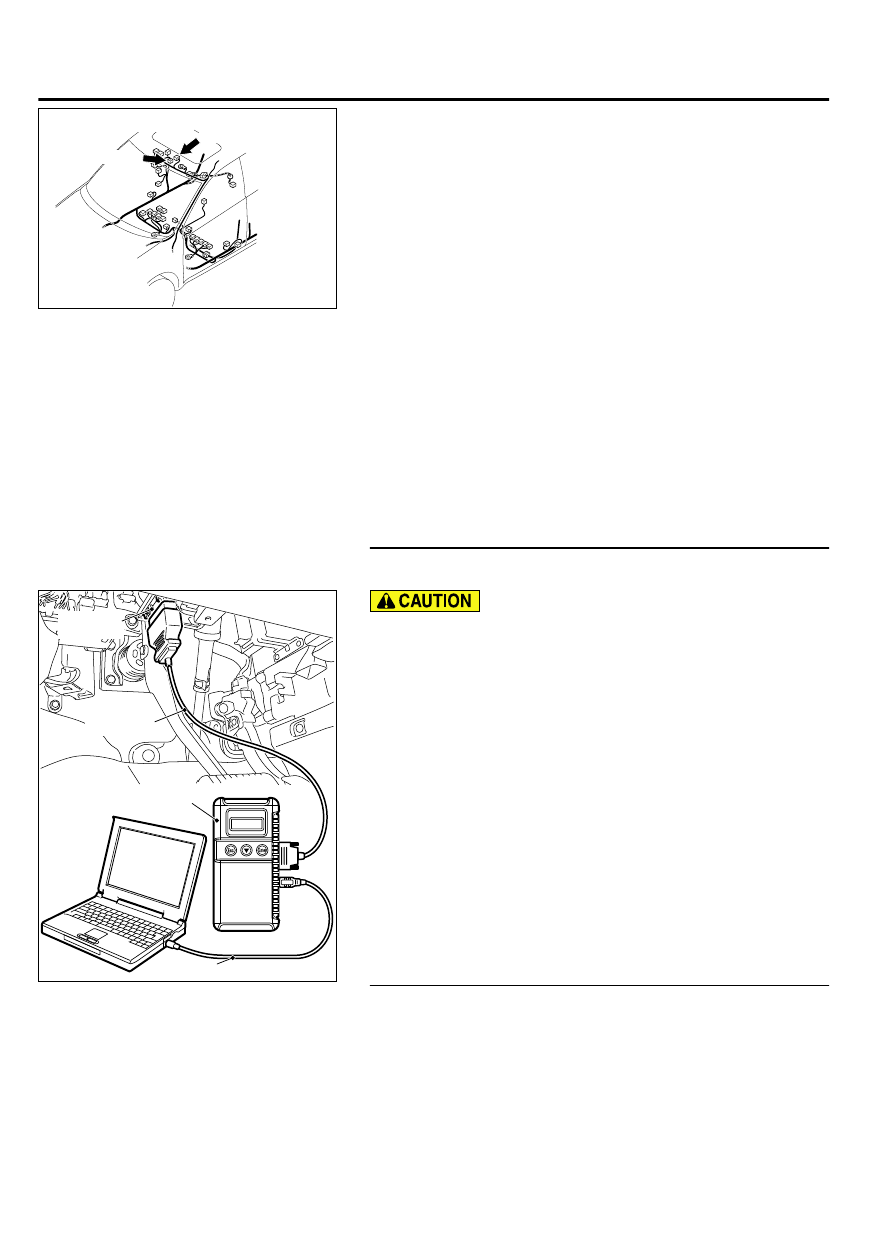

Disconnect sunroof motor assembly connector D-04 and
measure the resistance available at the wiring harness side
of the connector.
ZC500788
Connector D-04
(harness side)
0001
(2)
Measure the resistance value between terminal 2 and
ground.
｠
The resistance should be 2 ohms or less.
Q:Is the measured resistance 2 ohms or less?
YES:
Go to Step 10.
NO:
Go to Step 9.
STEP 9. Check the wiring harness between sunroof motor
assembly connector D-04 (terminal 2) and ground.
Q:Is the wiring harness between sunroof motor assembly
connector D-04 (terminal 2) and ground in good
condition?
YES:
No action is necessary and testing is complete.
NO:
The wiring harness may be damaged or the connector
(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. Check that the sunroof works
normally.
STEP 10. Check the fusible link (34) line of power supply
circuit to the sunroof motor assembly. Measure the voltage
at sunroof motor assembly connector D-04.
(1)
Disconnect sunroof motor assembly connector D-04 and
measure the voltage available at the wiring harness side of
the connector.
ZC500795
Connector D-04
(harness side)
0000
(2)
Measure the voltage between terminal 6 and ground.
｠
The voltage should measure approximately 12 volts
(battery positive voltage).
Q:Is the measured voltage approximately 12 volts (battery
positive voltage)?
YES:
Go to Step 12.
NO:
Go to Step 11.
STEP 11. Check the wiring harness between sunroof motor
assembly connector D-04 (terminal 6) and fusible link (34).
NOTE:
Also check ETACS-ECU connectors C-309 and C-316 for
loose, corroded, or damaged terminals, or terminals pushed
back in the connector. If ETACS-ECU connectors C-309 and
C-316 is damaged, repair or replace the damaged component
SUNROOF
42Ad-19
SUNROOF DIAGNOSIS
