ZC600084

2

1

3

0000

2

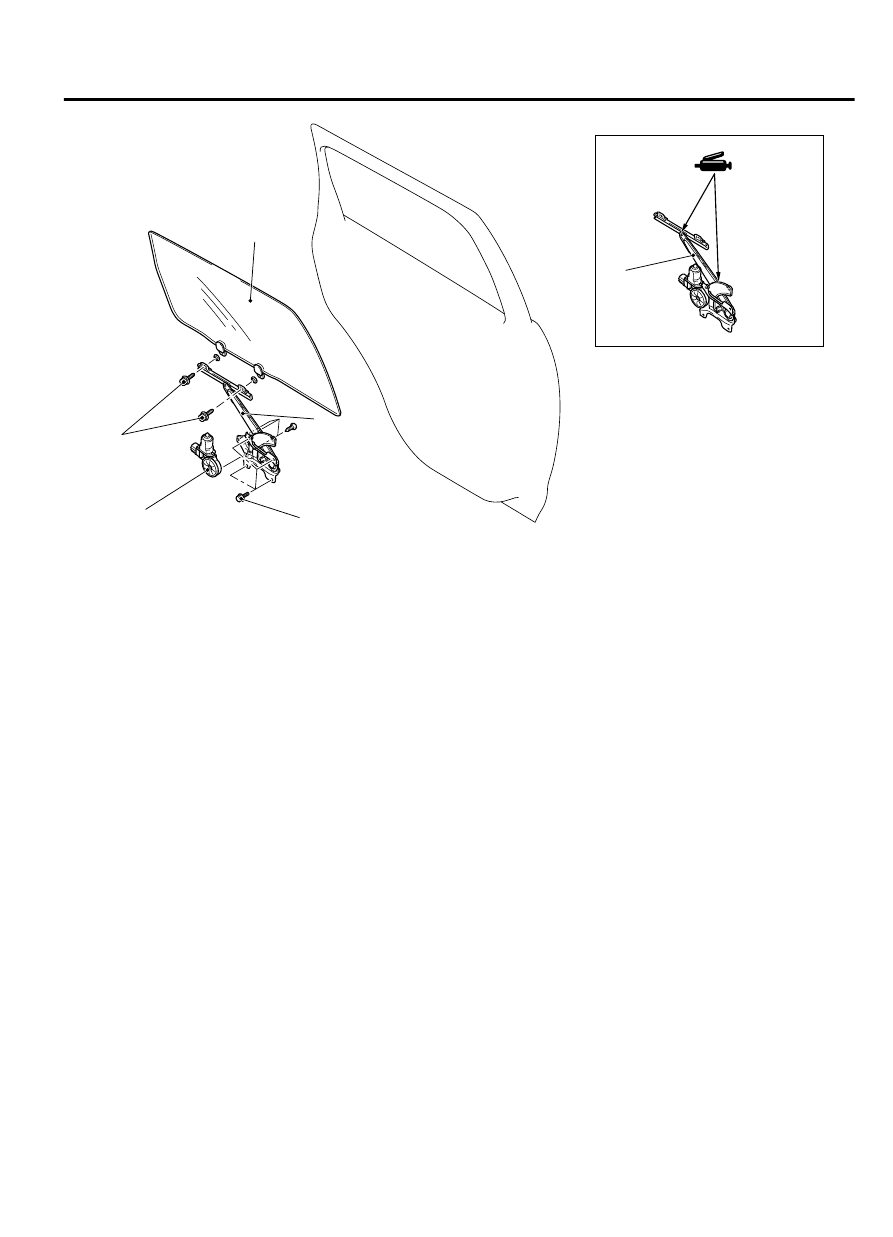

<Rear door>

4.0 ± 2.0 N·m
35 ± 17 in-lb

4.0 ± 2.0 N·m
35 ± 17 in-lb

Door  window  glass  assembly
removal steps

·

Door trim assembly (Refer to GROUP
52A, Door Trim P.52A-11.)

·

Waterproof film, belt line molding, belt
line  weatherstrip  inner,  door  window
glass  channel,  and  speaker  bracket
(Refer to P.42Ab-110.)

·

Door  latch  assembly  (Refer  to  P.
42Ab-102.)

Door  window  glass  assembly
removal steps

1.

Door window glass assembly
Power  window  regulator  removal
steps

·

Door trim assembly (Refer to GROUP
52A, Door Trim P.52A-11.)

·

Waterproof  film  and  speaker  bracket
(Refer to P.42Ab-110.)

<<A>>

2.

Power window regulator

3.

Power window motor

Required Special Tool:

｠

MB990480: Window Glass Holder

DOOR

42Ab-99

DOOR GLASS AND REGULATOR

ZC600087

1

2

3

4

5

6

0000

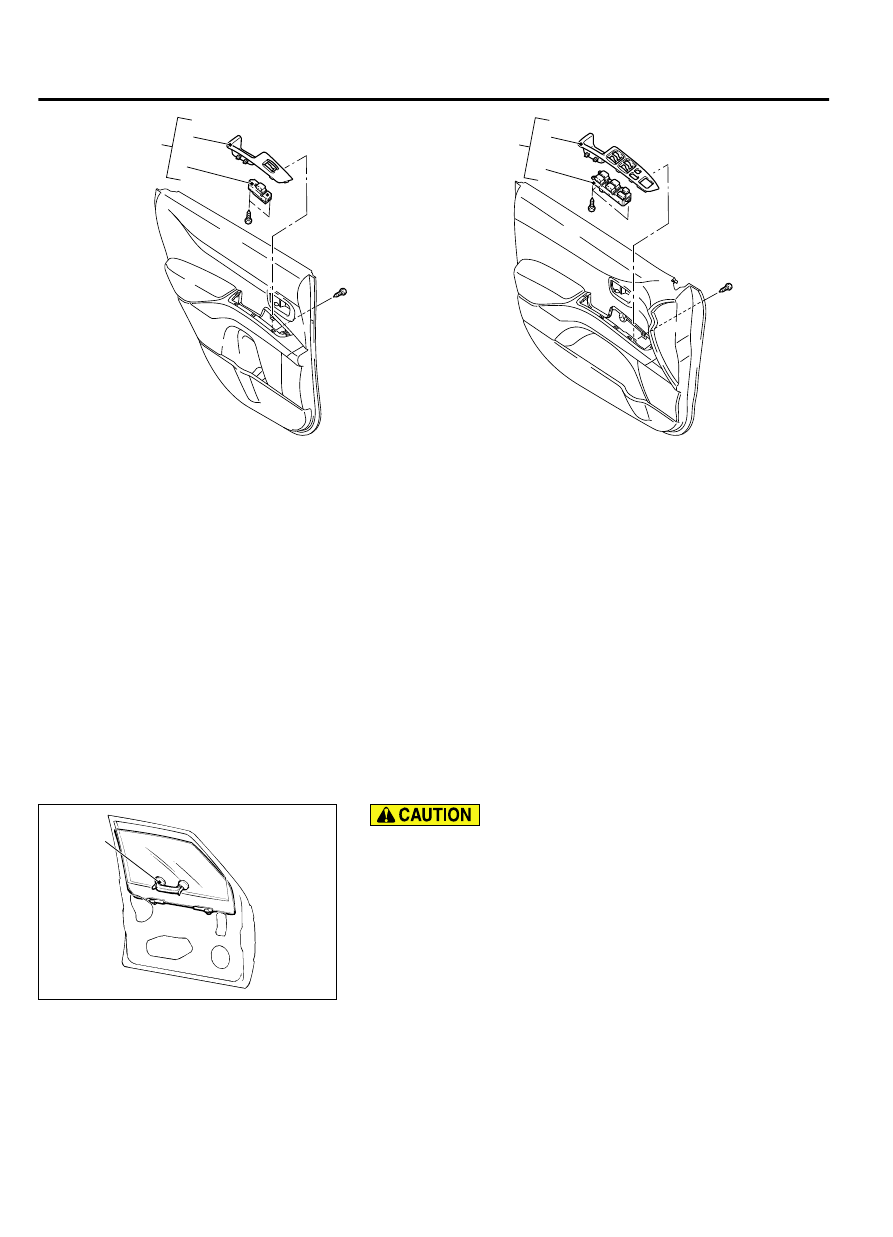

<Front door>

<Rear door>

Power window switch <Front door>
removal step

>>A<<

·

Post-installation

 operation

 check

<Driver’s side only>

·

Door trim assembly (Refer to GROUP
52A, Door Trim P.52A-11.)

1.

Power window switch panel assembly

2.

Power window switch panel

Power window switch <Front door>
removal step

3.

Power  window  main  switch  <Driver's
side>,  power  window  sub  switch
<Front passenger's side>
Power  window  sub  switch  <Rear
door> removal step

·

Door trim assembly (Refer to GROUP
52A, Door Trim P.52A-11.)

4.

Power window switch panel assembly

5.

Power window switch panel

6.

Power window sub switch

REMOVAL SERVICE POINT

<<A>> POWER WINDOW REGULATOR REMOVAL

1.

Remove the door window glass installation bolts.

ZC6000850000

MB990480

If tinting film is adhered to the door window glass, attach
special tool MB990480 to the outside of the glass to prevent
the film from peeling off.

2.

Lift the door window glass, and attach special tool MB990480
to the glass as shown to prevent the glass from falling.

3.

Remove the power window regulator.

42Ab-100

DOOR

DOOR GLASS AND REGULATOR

INSTALLATION SERVICE POINT

>>A<< POST-INSTALLATION OPERATION CHECK
<Driver's side only>
When  the  following  procedures  are  carried  out,  carry  out  the
learning procedures of the power window fully closed position
(Refer to P.42Ab-90).

｠

Power window regulator removal or replacement

｠

Power window switch removal or replacement

INSPECTION

M14203000913USA0000010000

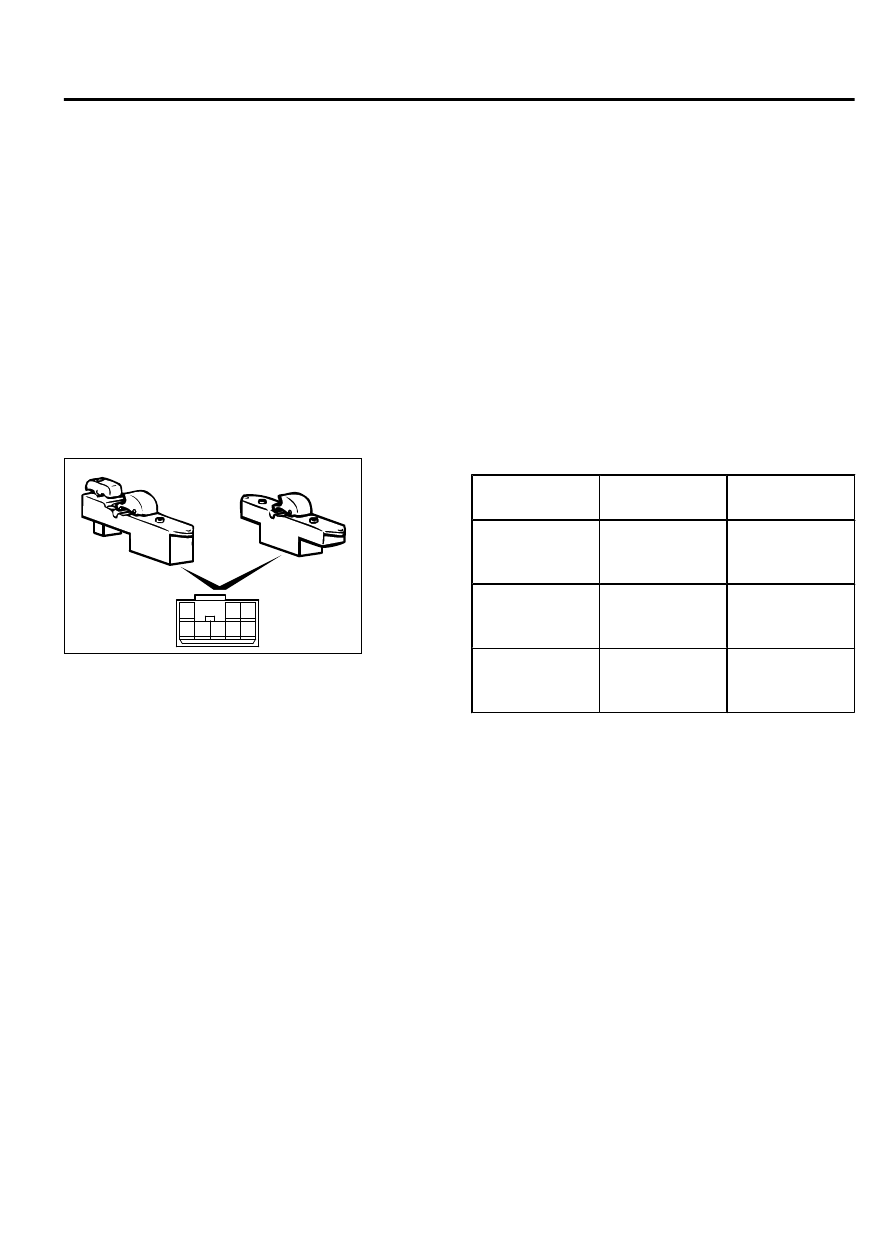

POWER WINDOW SWITCH CONTINUITY CHECK

ZC600440

8

3

4 5

1

2

6 7

<Front door>

<Rear door>

0000

Sub switch

Switch
position

Tester
connection

Specified
condition

UP

4 - 5, 6 - 7

Continuity
exists  (2  Ω  or
less)

OFF

4 - 5, 7 - 8

Continuity
exists  (2  Ω  or
less)

DOWN

4 - 6, 7 - 8

Continuity
exists  (2  Ω  or
less)

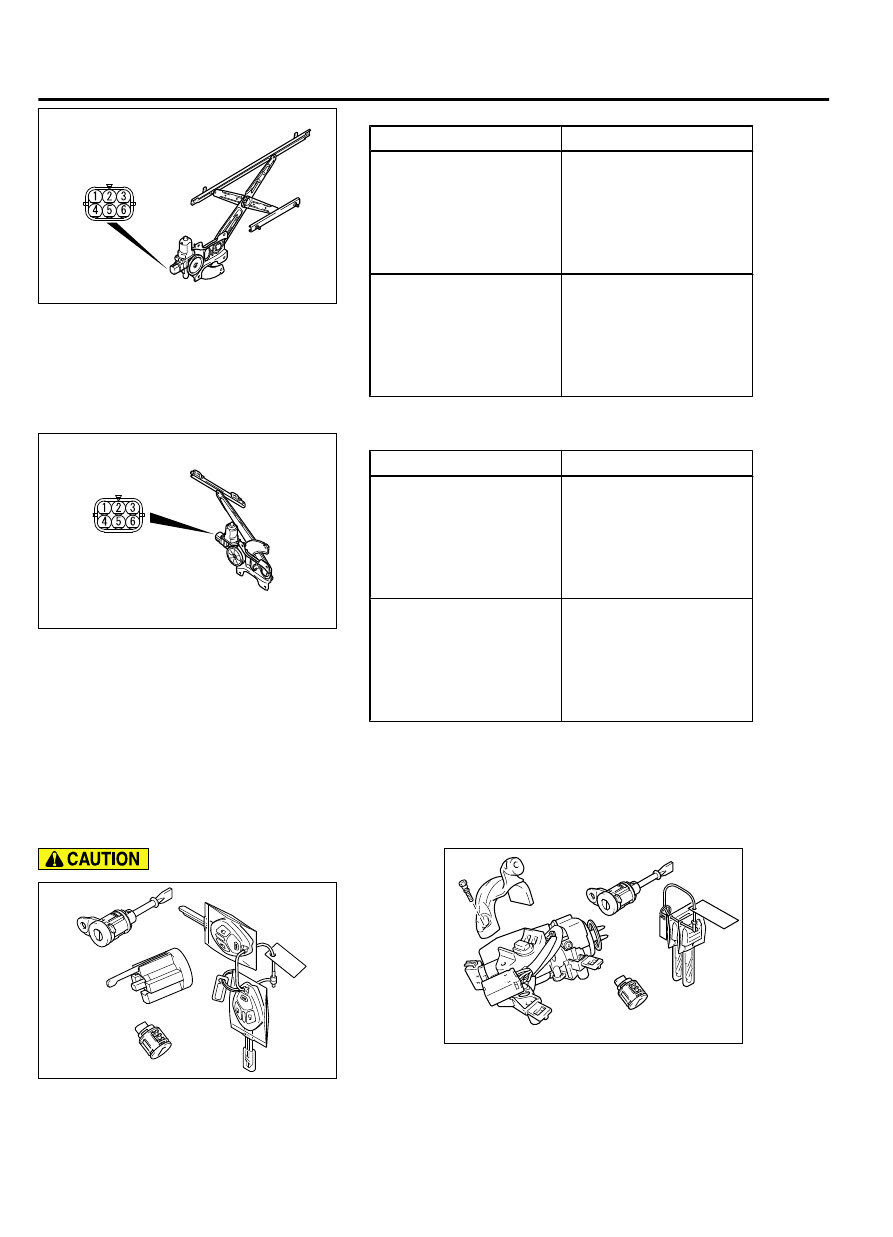

DOOR WINDOW REGULATOR CHECK

1.

Connect a battery directly to the motor terminals and check
that the motor runs smoothly.

2.

Check that the motor runs in the opposite direction when the
battery is connected with the polarity reversed.

3.

If  a  defect  is  found,  replace  the  window  regulator  as  an
assembly.

DOOR

42Ab-101

DOOR GLASS AND REGULATOR

ZC6006090000

<Front door (passenger’s side)>

Battery connection

Slider position

｠

Connect terminal No. 1
to the negative battery
terminal.

｠

Connect terminal No. 4
to  the  positive  battery
terminal.

UP

｠

Connect terminal No. 4
to the negative battery
terminal.

｠

Connect terminal No. 1
to  the  positive  battery
terminal.

DOWN

ZC6006080000

<Rear door>

Battery connection

Slider position

｠

Connect terminal No. 4
to the negative battery
terminal.

｠

Connect terminal No. 1
to  the  positive  battery
terminal.

UP

｠

Connect terminal No. 1
to the negative battery
terminal.

｠

Connect terminal No. 4
to  the  positive  battery
terminal.

DOWN

DOOR HANDLE AND LATCH

REMOVAL AND INSTALLATION

M14203000046USA0000010001

ZC6000880000

(A)

<Vehicle without KOS>

(A)

0000

<Vehicle with KOS>

ZC600089

42Ab-102

DOOR

DOOR HANDLE AND LATCH
