CIRCUIT OPERATION
The  ETACS-ECU  operates  the  liftgate  according  to
signal from the liftgate lock release handle.

TECHNICAL DESCRIPTION (COMMENT)
If  the  signal  is  not  normal,  the  liftgate  will  not  work
normally. If the signal is not normal, the liftgate lock
release handle or the ETACS-ECU may be defective.

TROUBLESHOOTING HINTS

｠

The liftgate lock release handle may be defective

｠

The wiring harness or connectors may have loose,
corroded,  or  damaged  terminals,  or  terminals
pushed back in the connector

｠

The ETACS-ECU may be defective

DIAGNOSTIC PROCEDURE

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

STEP 1. Check liftgate lock release handle connector F-09
for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

Q:Is  liftgate  lock  release  handle  connector  F-09  in  good

condition?

YES:

 Go to Step 2.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. Repair
the liftgate lock release handle. If the liftgate lock
release handle operates normally, a correct signal is
sent from the liftgate lock release handle.

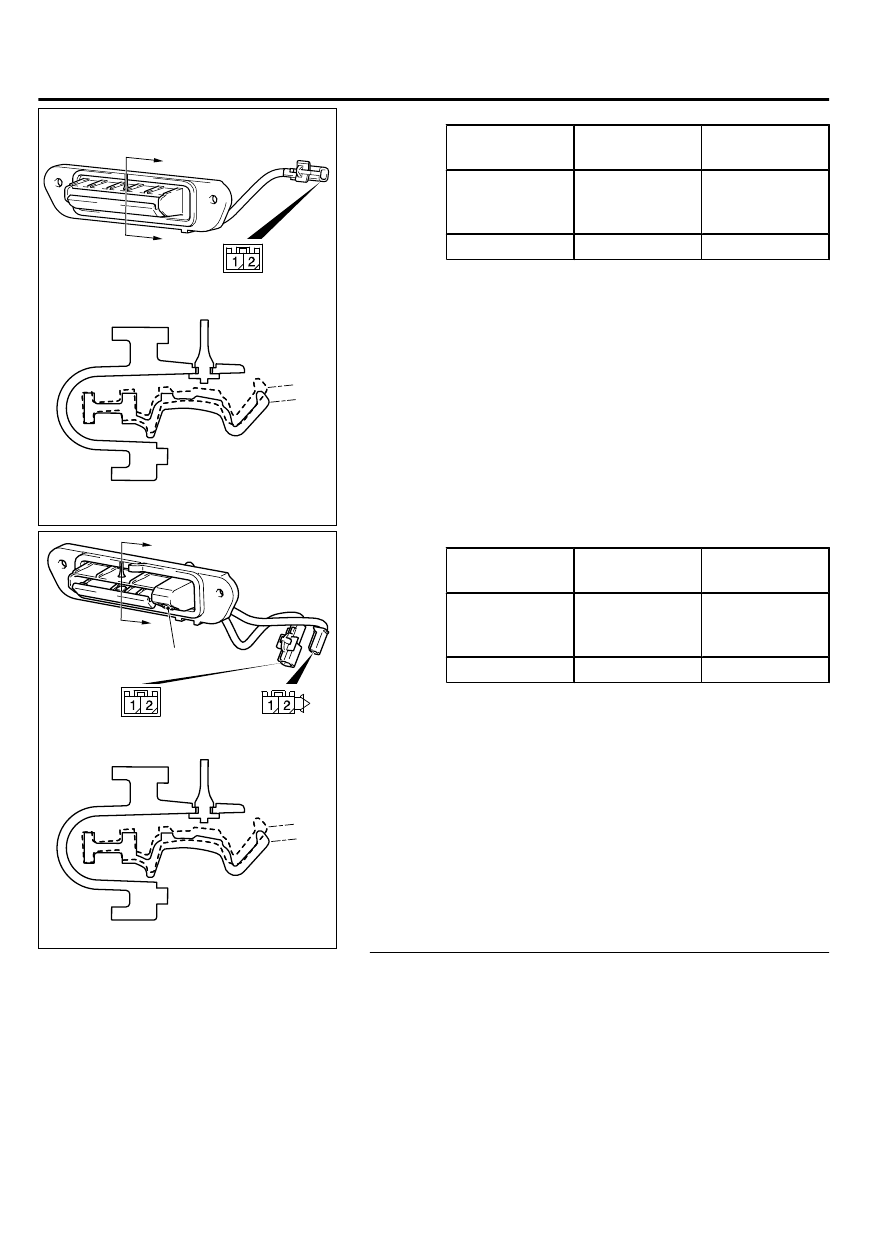

STEP 2. Check the liftgate lock release handle.
Remove the liftgate lock release handle. Refer to GROUP 42Ac,
Liftgate  Handle  and  Latch  P.42Ac-10.  Then  check  continuity
between the switch terminals.

DOOR

42Ab-35

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

ZC600117

Section A – A

0000

A

A

ON

OFF

<Vehicles without Keyless Operation System (KOS)>

Handle
position

Terminal
number

Normal value

ON

1 - 2

Continuity
exists  (2  Ω  or
less)

OFF

1 - 2

Open circuit

ZC6001180000

A

A

ON

OFF

Section A – A

Liftgate lock
release handle

Lock switch

Lock switch

<Vehicles with Keyless Operation System (KOS)>

Handle
position

Terminal
number

Normal value

ON

1 - 2

Continuity
exists  (2  Ω  or
less)

OFF

1 - 2

Open circuit

Q:Is the liftgate lock release handle in good condition?

YES:

 Go to Step 3.

NO:

 Repair the liftgate lock release handle. If the

liftgate lock release handle operates normally, a correct
signal is sent from the liftgate lock release handle.

STEP 3. Check the ground circuit to the liftgate lock release
handle. Measure the resistance at liftgate lock release
handle connector F-09.

(1)

Disconnect liftgate lock release handle connector F-09 and
measure  the  resistance  on  the  wiring  harness  side  of  the
connector.

42Ab-36

DOOR

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

ZC5007880002

Connector F-09
(harness side)

(2)

Measure  the  resistance  value  between  terminal  2  and
ground.

｠

The resistance should be 2 ohms or less.

Q:Is the measured resistance 2 ohms or less?

YES:

 Go to Step 5.

NO:

 Go to Step 4.

STEP 4. Check the wiring harness between liftgate lock
release handle connector F-09 (terminal 2) and ground.

Q:Is the wiring harness between liftgate lock release handle

connector  F-09  (terminal  2)  and  ground  in  good

condition?

YES:

 No action is necessary and testing is complete.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. If the liftgate lock release handle
operates normally, a correct signal is sent from the
liftgate lock release handle.

STEP 5. Check ETACS-ECU connector C-313 for loose,
corroded or damaged terminals, or terminals pushed back
in the connector.

Q:Is ETACS-ECU connector C-313 in good condition?

YES:

 Go to Step 6.

NO:

 Repair or replace the damaged component(s). Refer to

GROUP 00E, Harness Connector Inspection P.00E-2. If the
liftgate lock release handle operates normally, a correct
signal is sent from the liftgate lock release handle.

STEP 6. Check the wiring harness between liftgate lock
release handle connector F-09 (terminal 1) and ETACS-ECU
connector C-313 (terminal 14).

NOTE:

Also check intermediate connector D-12 for loose,

corroded, or damaged terminals, or terminals pushed back in
the connector. If intermediate connector D-12 is damaged,
repair or replace the damaged component(s) as described in
GROUP 00E, Harness Connector Inspection P.00E-2.

Q:Is the wiring harness between liftgate lock release handle

connector F-09 (terminal 1) and ETACS-ECU connector

C-313 (terminal 14) in good condition?

YES:

 Go to Step 7.

NO:

 The wiring harness may be damaged or the connector

(s) may have loose, corroded or damaged terminals, or
terminals pushed back in the connector. Repair the wiring
harness as necessary. If the liftgate lock release handle
operates normally, a correct signal is sent from the
liftgate lock release handle.

DOOR

42Ab-37

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

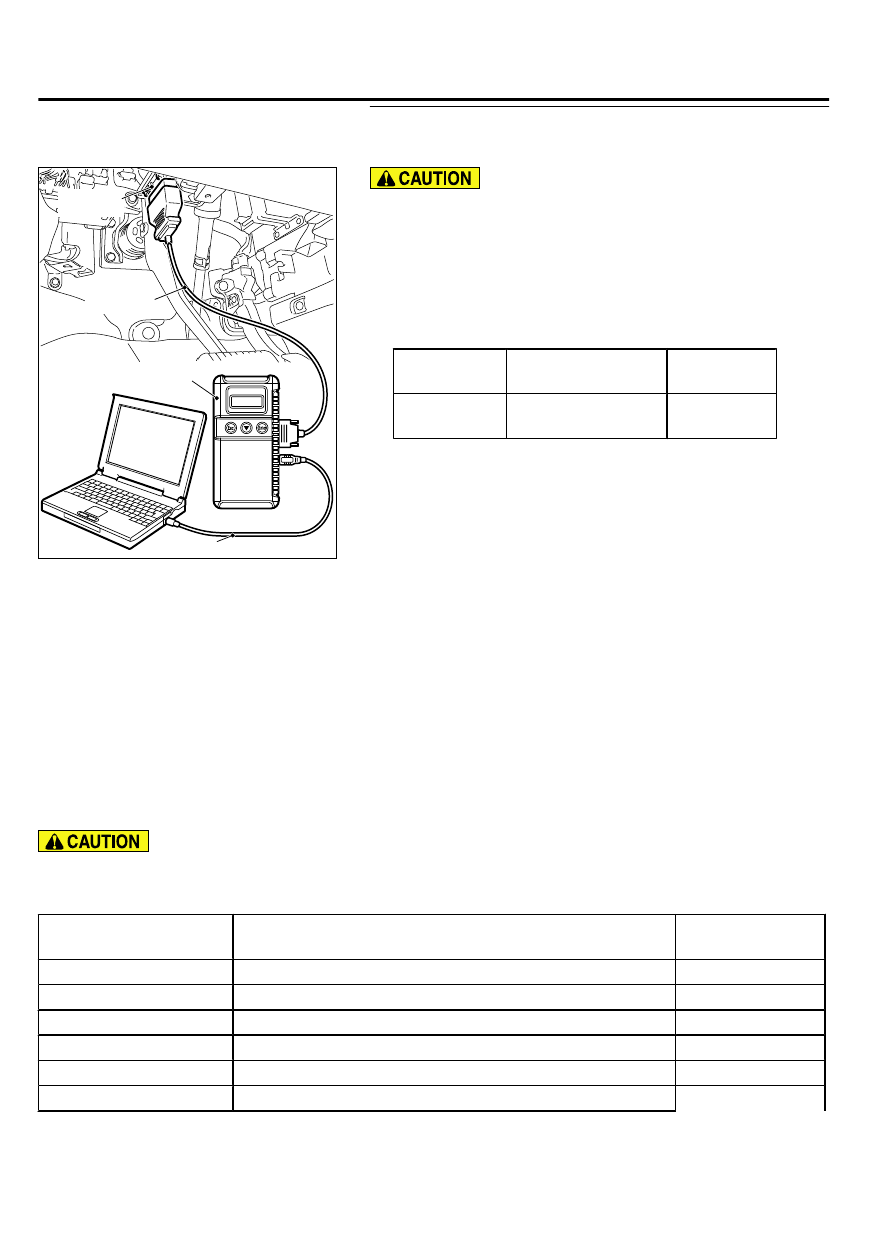

STEP 7. Using scan tool MB991958, check data list.
Check  the  signals  related  to  the  liftgate  lock  release  handle
operation.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to GROUP 54Ad, "How
to connect the Scan Tool (M.U.T.-III) P.54Ad-5."

(2)

Turn the ignition switch to the "ON" position.

(3)

Check the data list of the ETACS.

｠

Liftgate lock release handle: from OFF to ON

Item No.

Item name

Normal
condition

230

Trunk / gate opener from  OFF  to

ON

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

OK: Normal condition is displayed.

Q:Is the check result normal?

YES:

 No action is necessary and testing is complete.

NO:

 Replace the ETACS-ECU. If the liftgate lock release

handle operates normally, a correct signal is sent from
the liftgate lock release handle.

POWER WINDOW DIAGNOSIS

TROUBLESHOOTING STRATEGY

M14203000067USA0000010000

Refer  to  GROUP  00,  How  to  Use  Troubleshooting/Inspection
Service Points, Troubleshooting Contents P.00-6.

DIAGNOSTIC TROUBLE CODE CHART POWER WINDOW

M14203000069USA0000010000

On troubleshooting, if the ignition switch is turned
ON while disconnecting connector(s), diagnostic
trouble code(s) associated with other system may

be  set.  On  completion,  check  all  systems  for
diagnostic  trouble  code(s).  If  diagnostic  trouble
code(s) are set, erase them all.

Diagnostic trouble code
No.

Diagnostic item

Reference page

L0730

P/W (DR) SW pulse1 disconnection

 P.42Ab-39

L0732

P/W (DR) SW pulse2 disconnection

 P.42Ab-41

L0734

P/W (DR) Above window position

 P.42Ab-43

L0736

P/W (DR) Sensor fail (ground)

 P.42Ab-44

L0740

P/W (DR) 3 times jam - protection

 P.42Ab-46

L0746

P/W (DR) Parameter read fail

 P.42Ab-47
