 Replace the ETACS-ECU. Check that the liftgate can

be locked and unlocked normally.

INSPECTION PROCEDURE A-4: Selector "P" Position-linked Door Unlock Function
does not Operate.

M14203000919USA0000010000

Before  replacing  the  ECU,  ensure  that  the  power  supply
circuit, the ground circuit and the communication circuit are
normal.

ZC600439

Selector "P" Position-linked Door Unlock Function

ETACS-ECU

A/T-ECU

CAN Communication line
(CAN_L line)

CAN Communication line
(CAN_H line)

Input signal

Inhibitor switch ("P" position)

0000

OPERATION
ETACS-ECU determines whether the shift position is
"P" or not according to the shift position signal sent by
A/T-ECU.

TECHNICAL DESCRIPTION (COMMENT)
If the doors are not unlocked when the selector lever
is shifted to the "P" position, a malfunction of the shift

position  signal  input  circuit(s)  or  ETACS-ECU  is
suspected. Also, the selector "P" position-linked door
unlock  function  may  have  been  "disabled"  with  the
customization function.

TROUBLESHOOTING HINTS

｠

Malfunction of ETACS-ECU

｠

Damaged wiring harness and connectors

DIAGNOSTIC PROCEDURE

Required Special Tools:

｠

MB991223: Harness Set

｠

MB992006: Extra Fine Probe

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicles Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

STEP 1. Checking central door unlocking operation
Check that the central door locking system works normally.

Q:Is the check result normal?

YES:

 Go to Step 2.

DOOR

42Ab-31

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

NO:

 Refer to P.42Ab-11.

STEP 2. Check the customize function.
Check that either of the followings other than "Disable" is set for
"Auto door unlock by P position" with the customization function.

｠

Always enabled

｠

P/W unlocked

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Set either of the followings other than "Disable" for

"Auto door unlock by P position" with the customization
function (Refer to P.42Ab-94).

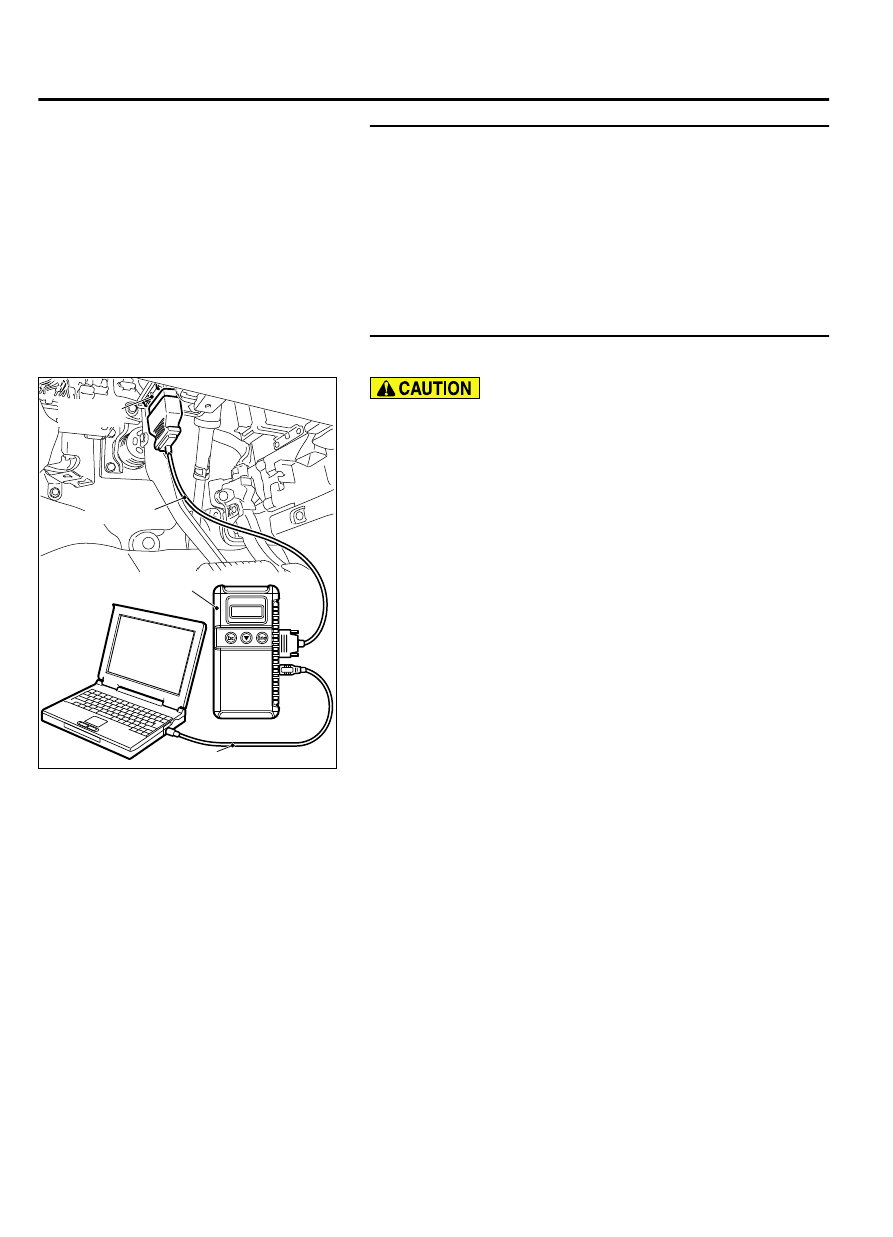

STEP 3. Using scan tool MB991958, check CAN bus for
diagnostic trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to GROUP 54Ad, "How
to connect scan tool (M.U.T.-III) P.54Af-4."

(2)

Turn the ignition switch to the "ON" position.

(3)

Check whether CAN bus lines related DTC is set.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Repair the CAN bus line (Refer to GROUP 54D, CAN bus

diagnostics table P.54D-17).

NO:

 Go to Step 4.

42Ab-32

DOOR

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

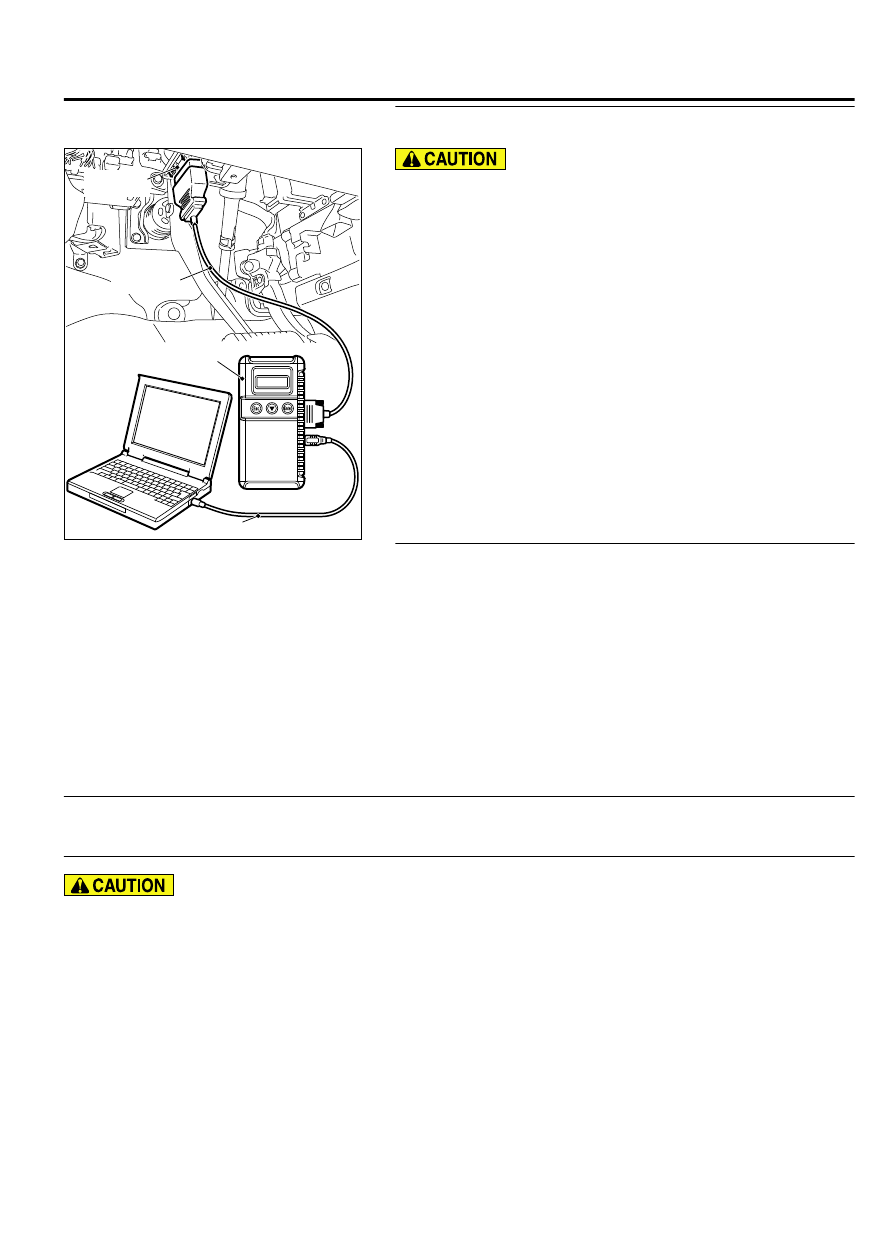

STEP 4. Using scan tool MB991958, read the diagnostic
trouble code.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958. Refer to GROUP 54Ad, "How
to connect scan tool (M.U.T.-III) P.54Af-4."

(2)

Turn the ignition switch to the "ON" position.

(3)

Check the A/T-ECU for diagnostic trouble code.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the DTC set?

YES:

 Diagnose A/T-ECU (Refer to GROUP 23, Diagnostic

Trouble Code Chart P.23A-22).

NO:

 Go to Step 5.

STEP 5. Retest the system.
Check that shifting the selector lever to the "P" position unlocks
the doors.

Q:Is the check result normal?

YES:

 No action is necessary and testing is complete.

NO:

 Replace the ETACS-ECU. Check that the selector lever

to the P position unlocks the doors normally.

INPUT SIGNAL PROCEDURES

INSPECTION PROCEDURE B-1: The Liftgate Lock Release Handle Signal is not
Received.

M14203000922USA0000010000

Before replacing the ECU, ensure that the power
supply  circuit,  the  ground  circuit  and  the
communication circuit are normal.

DOOR

42Ab-33

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS

ZC603133

KOS-ECU

LIFTGATE
LOCK RELEASE
HANDLE

ETACS-ECU

BLA

CK

BLA

CK

BR

O

WN

BR

O

WN

BR

O

WN

BR

O

WN

BLA

CK-

YELLO

W

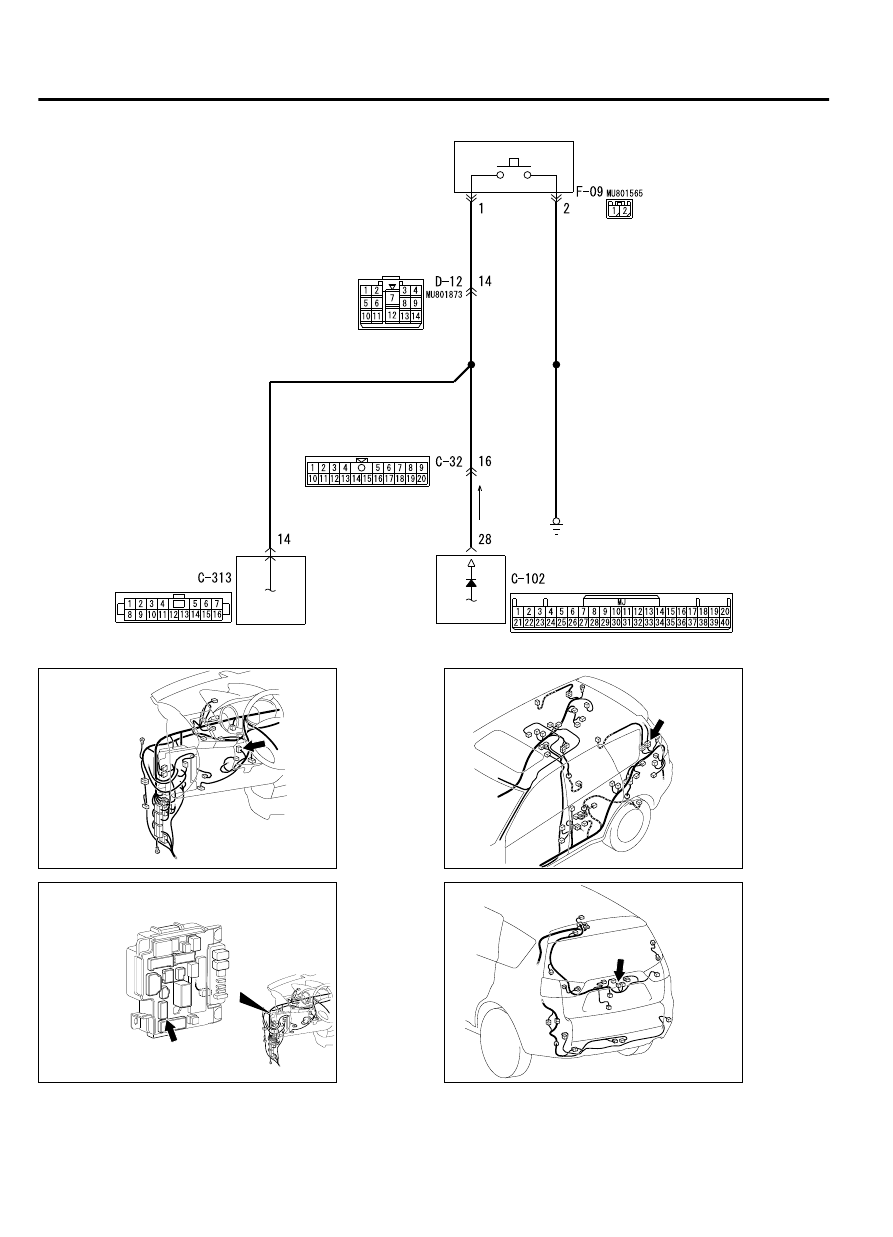

Liftgate Lock Release Handle Circuit

0000

ZC600875

Connector: C-102

0028

ZC6008780018

Connector: C-313

C-313 (BR)

ZC600880

Connector: D-12

0006

ZC600882

Connector: F-09

0003

42Ab-34

DOOR

CENTRAL DOOR LOCKING SYSTEM DIAGNOSIS
