Mitsubishi Outlander XL. Manual - part 637





YES:

 Go to Step 5.

NO:

 Replace the ABS-ECU, and then go to Step 6.

STEP 5. Check whether the diagnostic trouble code is reset.

Q:Is DTC C1242 set?

YES:

 Replace the ABS-ECU.

NO:

 Intermittent malfunction. (Refer to GROUP 00 - How

to Cope with Intermittent Malfunction P.00-15.)

STEP 6. Check whether the diagnostic trouble code is reset.

Q:Is DTC C1242 set?

YES:

 Go to Step 1.

NO:

 The procedure is complete.

DTC C2111: Sensor Power Supply Circuit (Low input)
DTC C2112: Sensor Power Supply Circuit (High input)

M13502000954USA0000010000

If there is any problem in the CAN bus lines, an incorrect
diagnostic trouble code may be set. Prior to this diagnosis,
diagnose the CAN bus lines. (Refer to GROUP 54D, Trouble
code diagnosis P.54D-17).

CIRCUIT OPERATION
The G sensor is incorporated in the ABS-ECU.

DTC SET CONDITIONS
This diagnostic trouble code is set when the voltage applied to
the pressure sensor is not within the standard value range.

PROBABLE CAUSES
ABS-ECU malfunction

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910: M.U.T.-III Main Harness A

STEP 1. M.U.T.-III CAN bus diagnostics
Use scan tool to diagnose the CAN bus lines.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Repair the CAN bus lines. (Refer to GROUP 54D - CAN

Bus Diagnostics table P.54D-17.) On completion, go to
Step 2.

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-111

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

STEP 2. Diagnostic trouble code recheck after resetting
CAN bus lines

Q:Are DTCs C2111 and C2112 set?

YES:

 Go to Step 3.

NO:

 The procedure is complete.

STEP 3. Battery check
Refer to GROUP 54Aa - Battery Test P.54Aa-3.

Q:Is the battery in good condition?

YES:

 Go to Step 4.

NO:

 Charge or replace the battery.

STEP 4. Charging system check
Refer to GROUP 16a - Output Current Test P.16a-8.

Q:Is the charging system in good condition?

YES:

 Go to Step 5.

NO:

 Repair or replace the charging system component(s).

STEP 5. Check whether the diagnostic trouble code is reset.

Q:Are DTCs C2111 and C2112 set?

YES:

 Replace the ABS-ECU.

NO:

 The procedure is complete.

35B-112

ANTI-LOCK BRAKING SYSTEM (ABS)

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

DTC C1608: Implausible diagnosis data

M13502000955USA0000010000

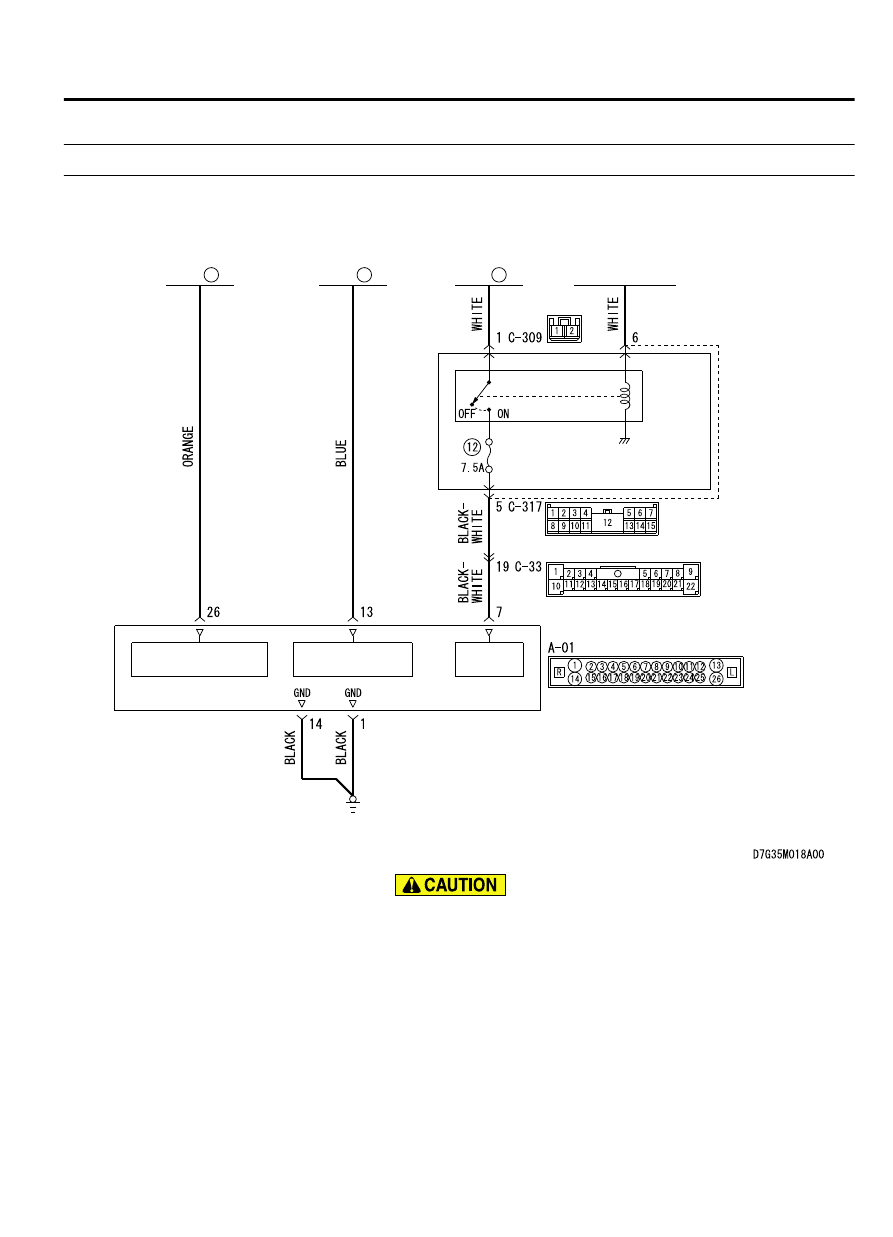

Power Supply Circuit

ETACS-
ECU

POWER
SUPPLY

ABS-ECU

FUSIBLE
LINK

34

IG1
RELAY

FUSIBLE
LINK

27

FUSIBLE
LINK

26

SOLENOID VALVE
POWER SUPPLY

MOTOR POWER
SUPPLY

IGNITION
SWITCH (IG1)

If there is any problem in the CAN bus lines, an incorrect
diagnostic  trouble  code  may  be  set.  Prior  to  this
diagnosis, diagnose the CAN bus lines. (Refer to GROUP
54D, Trouble code diagnosis P.54D-17
).

If the ABS-ECU connector is disconnected or the battery
terminal is disconnected when the ignition switch is ON,
this diagnostic trouble code may be set.

Since the failure information stored in the past is erased
after this diagnosis is carried out, reproduce the state of
malfunction.

ANTI-LOCK BRAKING SYSTEM (ABS)

35B-113

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS

CIRCUIT OPERATION
The  ABS-ECU  stores  diagnostic  trouble  codes  and  failure
information in the EEPROM*.

NOTE:

 *:EEPROM (Electrical Erasable and Programable ROM)

DTC SET CONDITIONS
This diagnostic trouble code is set when the failure information
stored  in  the  EEPROM  is  not  reliable.  The  failure  information
stored in the past is not output, and only this diagnostic trouble
code is set.

PROBABLE CAUSES

Disconnection  of  the  ABS-ECU  connector  or  the  battery
terminal when the ignition switch is ON

Loose battery terminal

Abnormality in battery

Damaged wiring harness and connectors

ABS-ECU malfunction

DIAGNOSIS

Required Special Tools:

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

MB991824: Vehicle Communication Interface (V.C.I.)

MB991827: M.U.T.-III USB Cable

MB991910: M.U.T.-III Main Harness A

STEP 1. M.U.T.-III CAN bus diagnostics
Use scan tool to diagnose the CAN bus lines.

Q:Is the check result normal?

YES:

 Go to Step 3.

NO:

 Repair the CAN bus lines. (Refer to GROUP 54D - CAN

Bus Diagnostics table P.54D-17.) On completion, go to
Step 2.

STEP 2. Diagnostic trouble code recheck after resetting
CAN bus lines

Q:Is DTC C1608 set?

YES:

 Go to Step 3.

NO:

 The procedure is complete.

STEP 3. Battery check
Refer to GROUP 54Aa - Battery Test P.54Aa-3.

Q:Is the battery in good condition?

YES:

 Go to Step 5.

NO:

 Go to Step 4.

STEP 4. Charging system check
Refer to GROUP 16a - Output Current Test P.16a-8.

35B-114

ANTI-LOCK BRAKING SYSTEM (ABS)

ANTI-LOCK BRAKING SYSTEM (ABS) DIAGNOSIS
