Mitsubishi Outlander XL. Manual - part 531





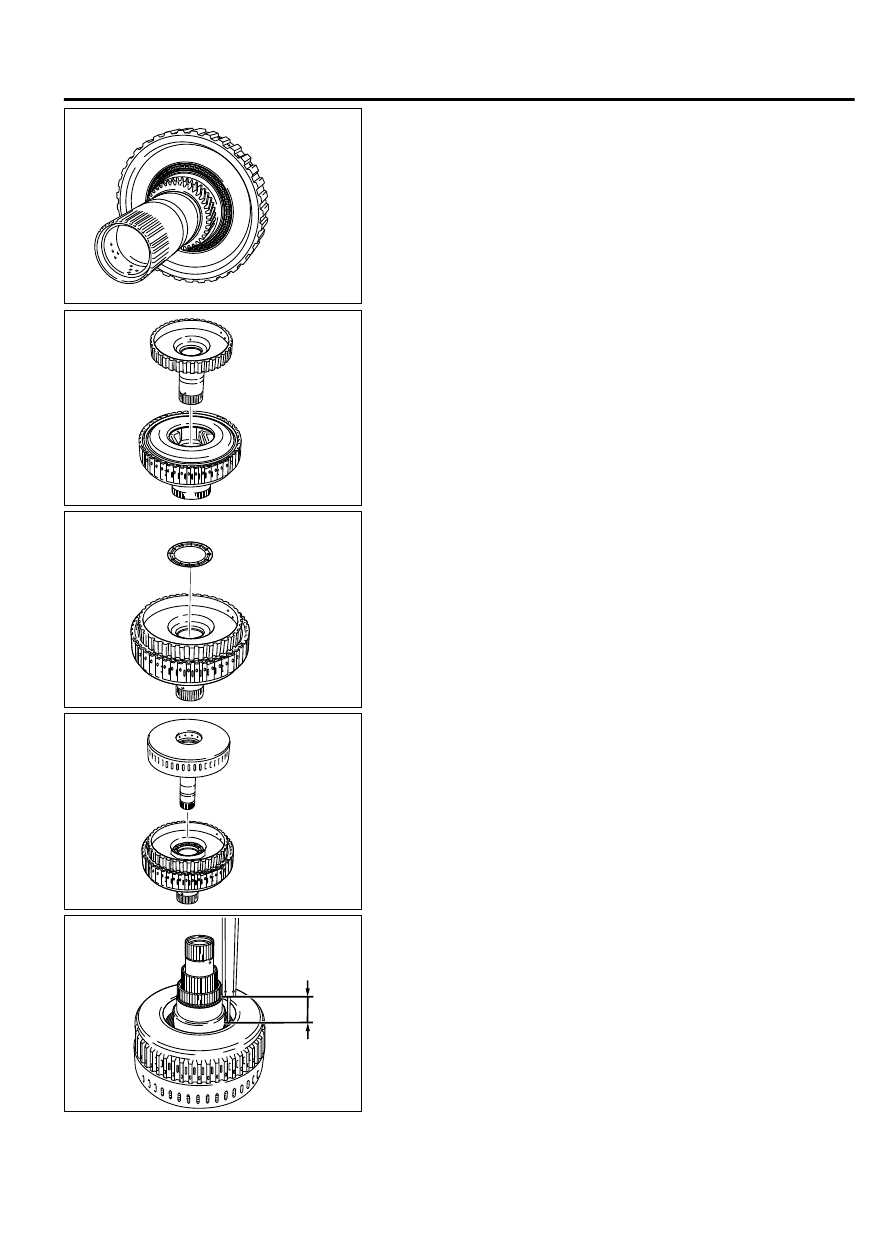

ZK602197AA00

ZK602929

AA00

ZK602930AA00

ZK602931AA00

ZK602932

L3

AA00

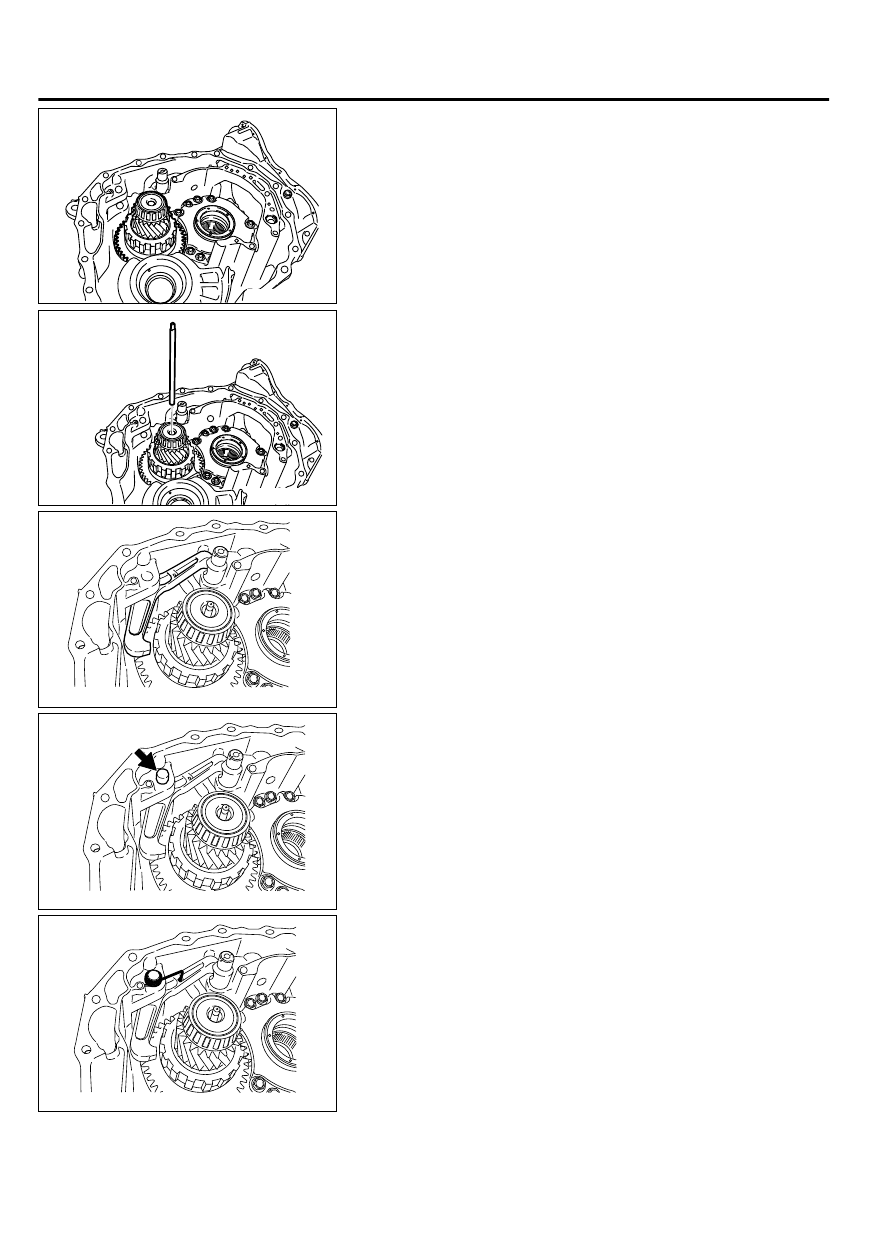

AUTOMATIC TRANSAXLE OVERHAUL

23B-59

TRANSAXLE

ZK602200 AA00

45.

Install the reduction gear assembly.

ZK602199AA00

46.

Install the reduction gear lubrication tube.

ZK603003AA00

47.

Install the parking pawl.

ZK603002AA00

48.

Install the parking shaft.

ZK603001AA00

49.

Install the return spring.

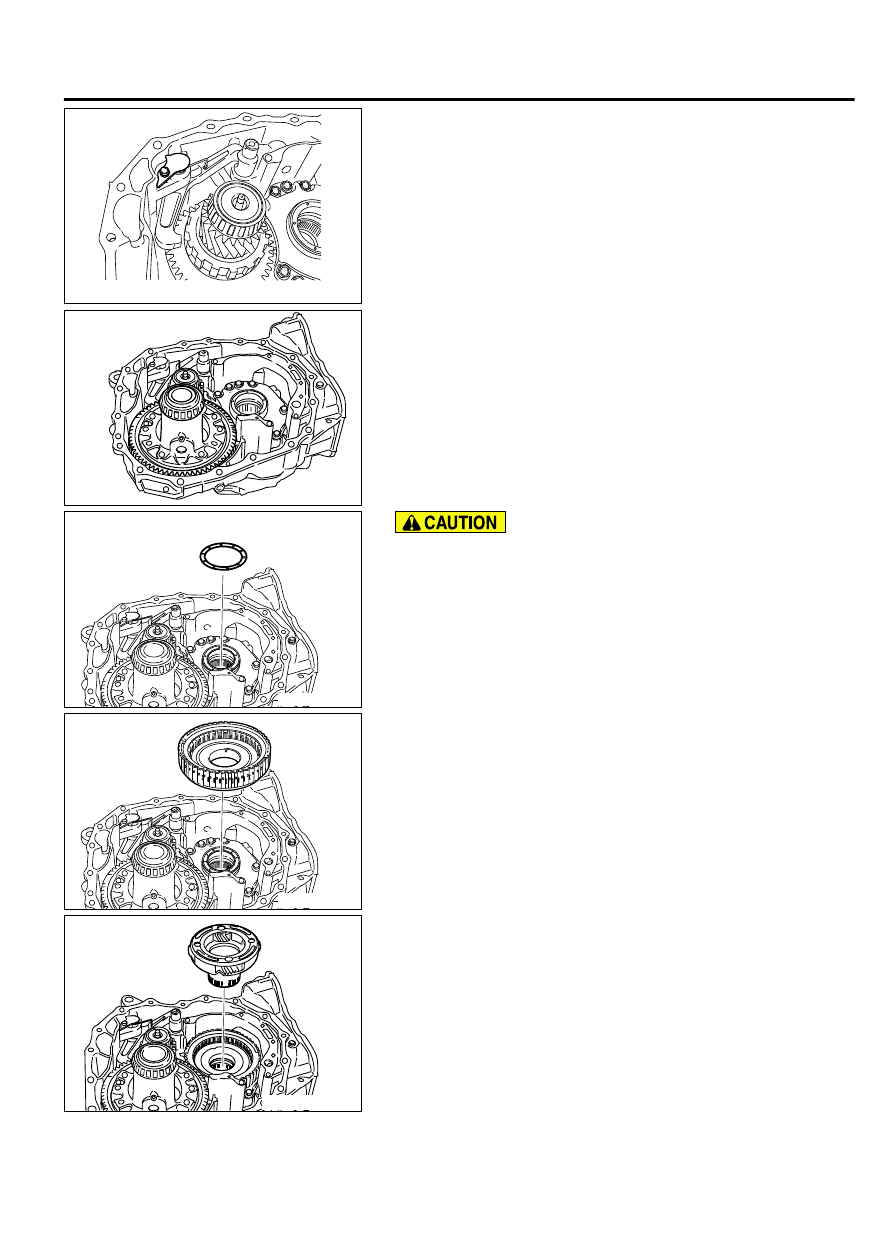

23B-60

AUTOMATIC TRANSAXLE OVERHAUL

TRANSAXLE

ZK603000AA00

50.

Install  the  parking  plate.  Refer  to  the  table  below  or  the
exploded view for tightening torque.

Tightening torque: 7.9 N·m (70 in-lb)

ZK602983AA00

51.

Install the differential gear assembly.

ZK604013AA00

Ensure that the claws on the thrust washer are correctly
engaged with the holes in the drum support.

Apply Vaseline to the thrust washer before installation.

52.

Install an appropriate thrust washer on the drum support.

ZK602981AA00

53.

Install the low clutch assembly.

ZK603017AA00

54.

Install the FR carrier on the low clutch assembly.

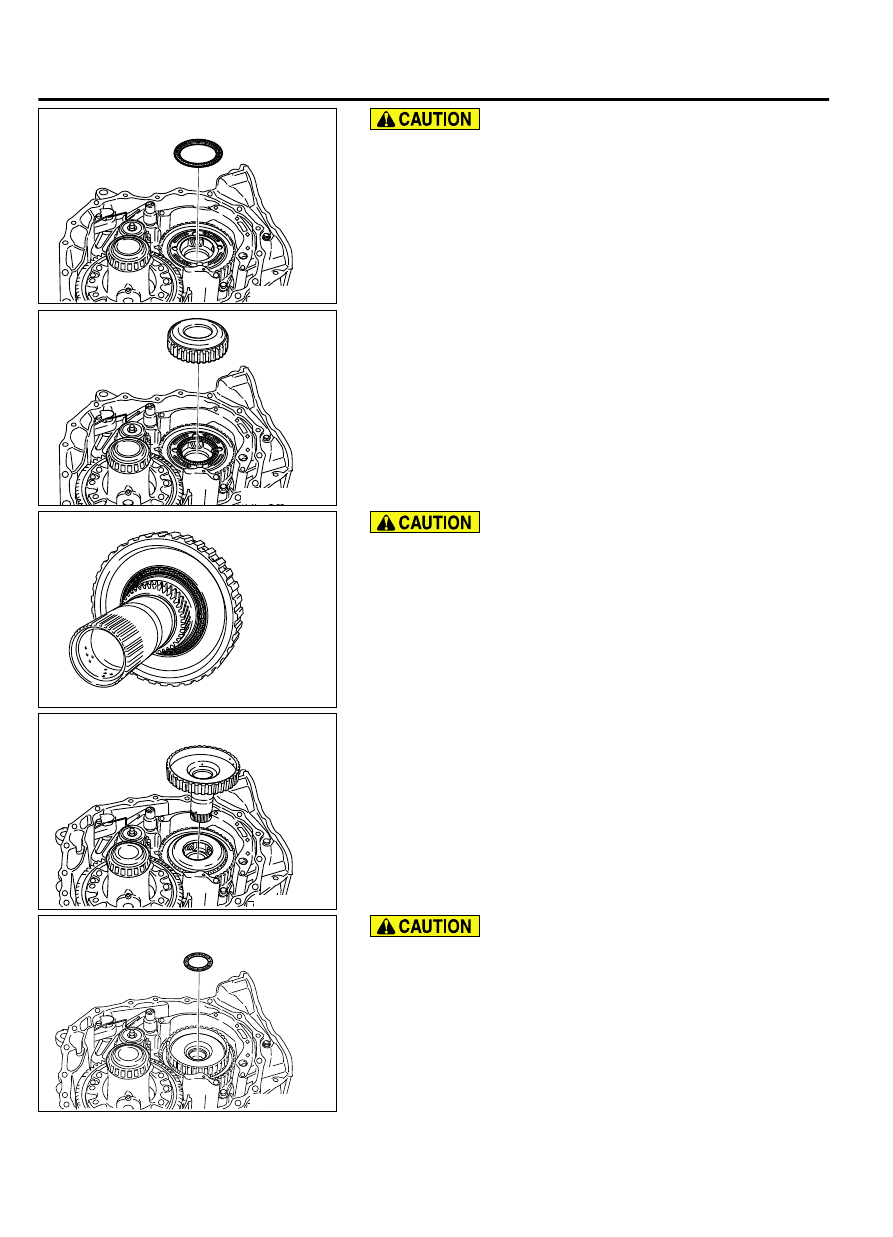

AUTOMATIC TRANSAXLE OVERHAUL

23B-61

TRANSAXLE

ZK604014AA00

Apply Vaseline to the needle bearing before installation.

Ensure that the needle bearing faces the correct direction.

55.

Install the needle bearing on the FR carrier.

ZK603019AA00

56.

Install the FR internal gear on the FR carrier.

ZK602197AA00

Apply Vaseline to the needle bearing before installation.

Ensure that the needle bearing faces the correct direction.

57.

Install the needle bearing on the FR sun gear.

ZK602979AA00

58.

Install the FR sun gear.

ZK602978AA00

Apply Vaseline to the needle bearing before installation.

Ensure that the needle bearing faces the correct direction.

59.

Install the needle bearing on the FR sun gear.

23B-62

AUTOMATIC TRANSAXLE OVERHAUL

TRANSAXLE
