Mitsubishi Outlander XL. Manual - part 526





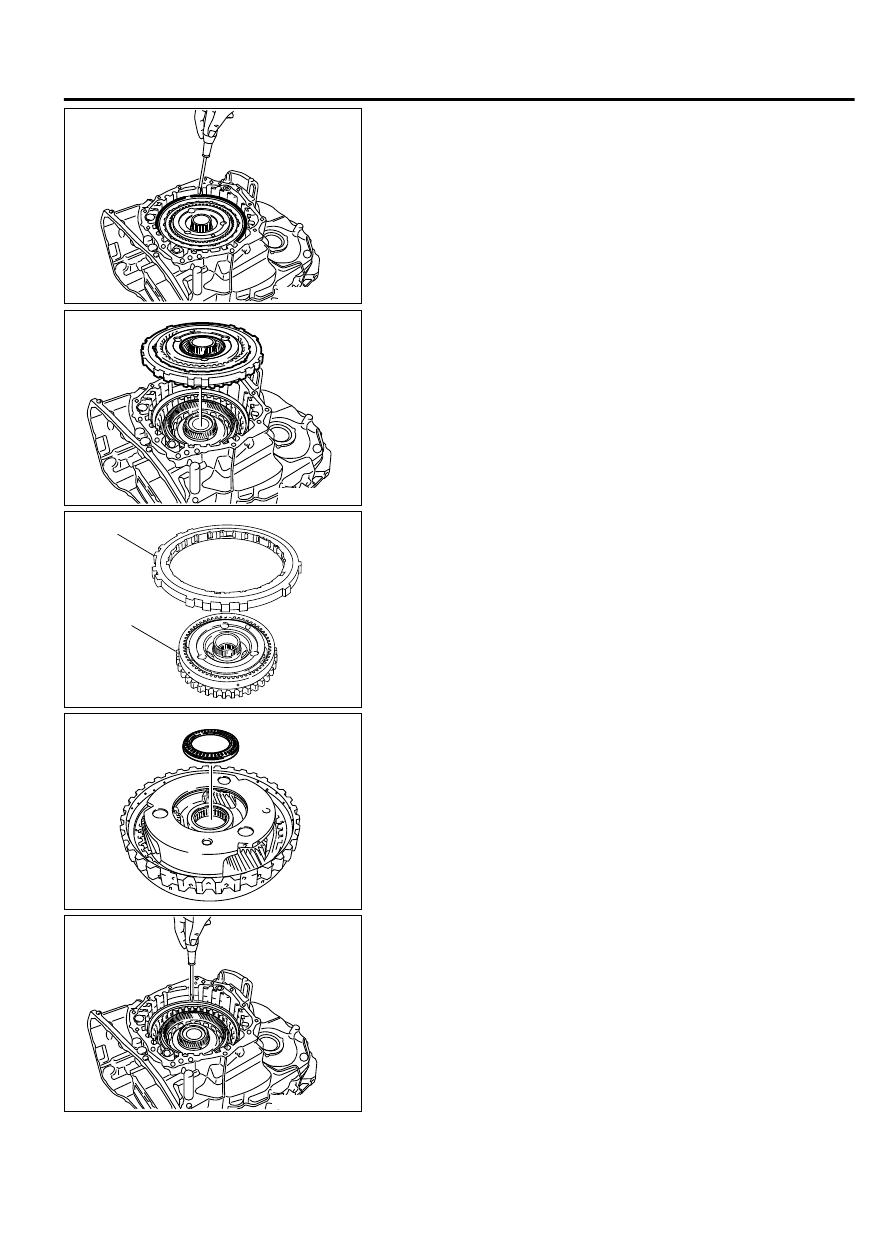

ZK602216AA00

78.

Using a flat-head screwdriver or equivalent, remove the snap
ring.

ZK602280AA00

79.

Remove the one-way clutch and RR carrier assembly as one
unit.

ZK602281AA00

One-way clutch

RR carrier assembly

80.

Separate the one-way clutch and RR carrier assembly.

ZK602279AA00

81.

Remove the needle bearing from the RR carrier assembly.

ZK602282AA00

82.

Using a flat-head screwdriver or equivalent, remove the snap
ring.

AUTOMATIC TRANSAXLE OVERHAUL

23B-39

TRANSAXLE

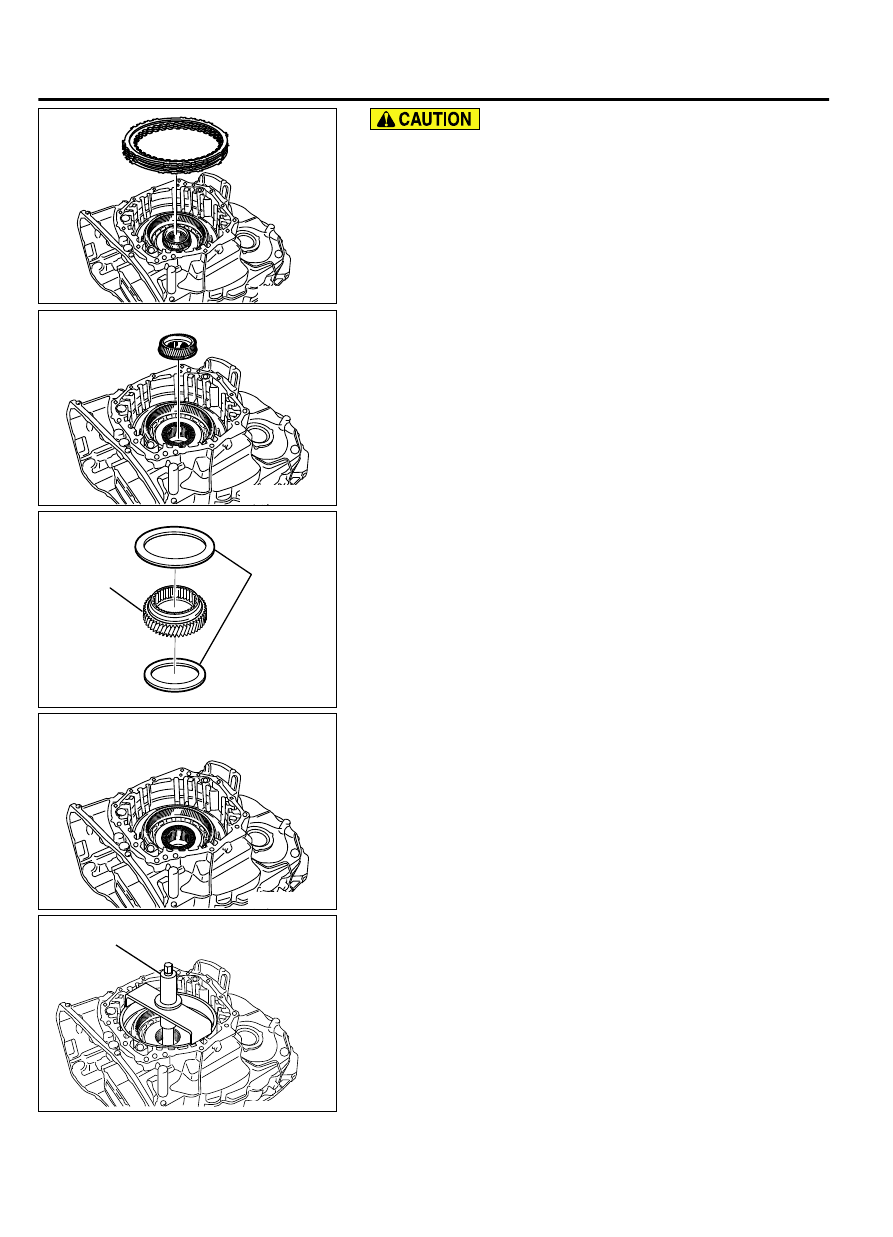

ZK602218AA00

Check the plates for damage, deformation, surface burn or
permanent strain. If faulty, replace.

83.

Remove  the  low-reverse  brake  retaining  plate,  drive  plate
and driven plate.

ZK602283AA00

84.

Remove the RR sun gear on the front side.

ZK602202AA00

Bearing race

RR sun gear

85.

Remove the bearing race from the RR sun gear on the front
side.

ZK602284AA00

86.

Remove the needle bearing.

ZK603035AA00

MB992195

87.

Using  the  Special  Tool,  spring  compressor  (MB992195)
remove the snap ring.

23B-40

AUTOMATIC TRANSAXLE OVERHAUL

TRANSAXLE

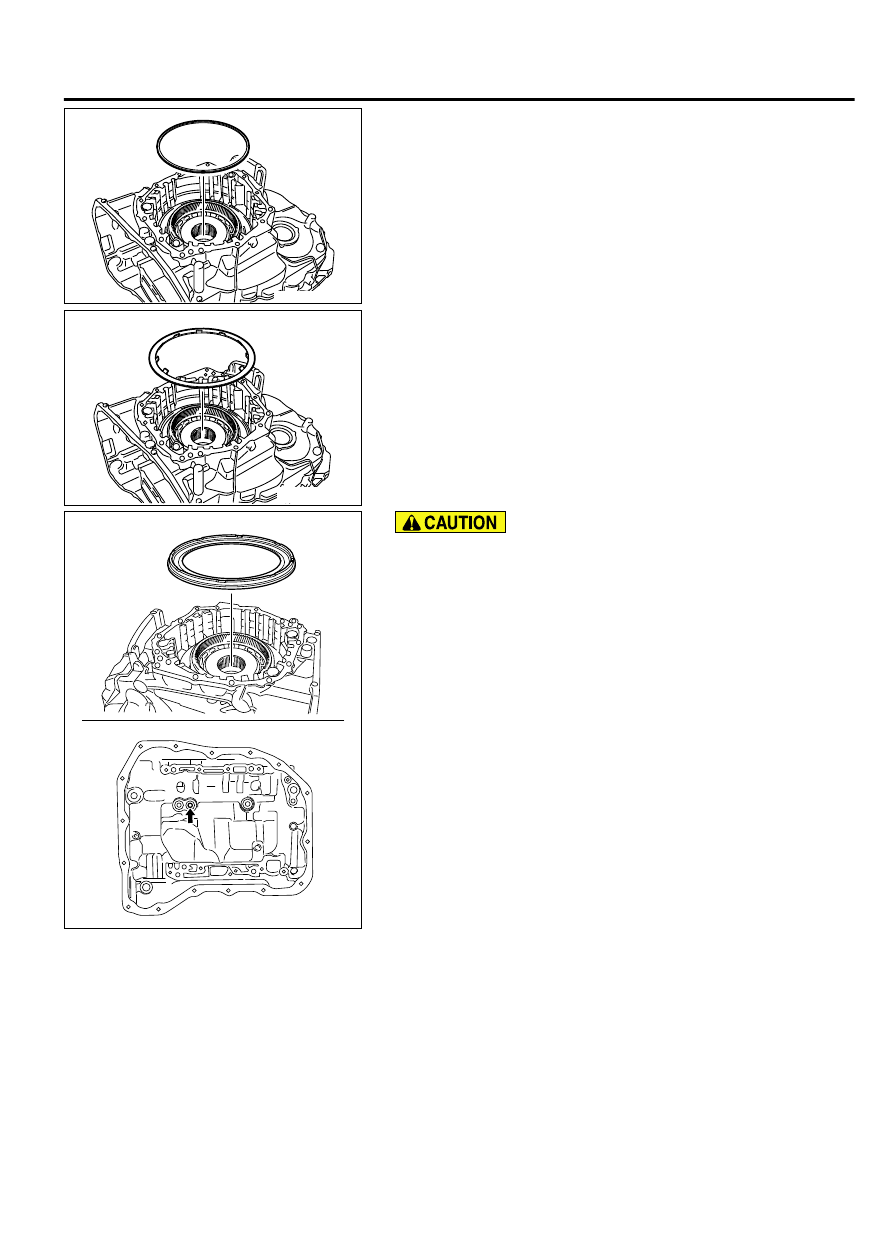

ZK602220AA00

88.

Remove the diaphragm spring retainer.

ZK602221AA00

89.

Remove the diaphragm spring.

ZK603012AA00

Do not feed air abruptly. Otherwise, the low-reverse brake
piston may become stuck in the clutch drum.

90.

Feed air through the oil hole as indicated in the illustration to
remove the low-reverse brake piston from the transaxle case.

AUTOMATIC TRANSAXLE OVERHAUL

23B-41

TRANSAXLE

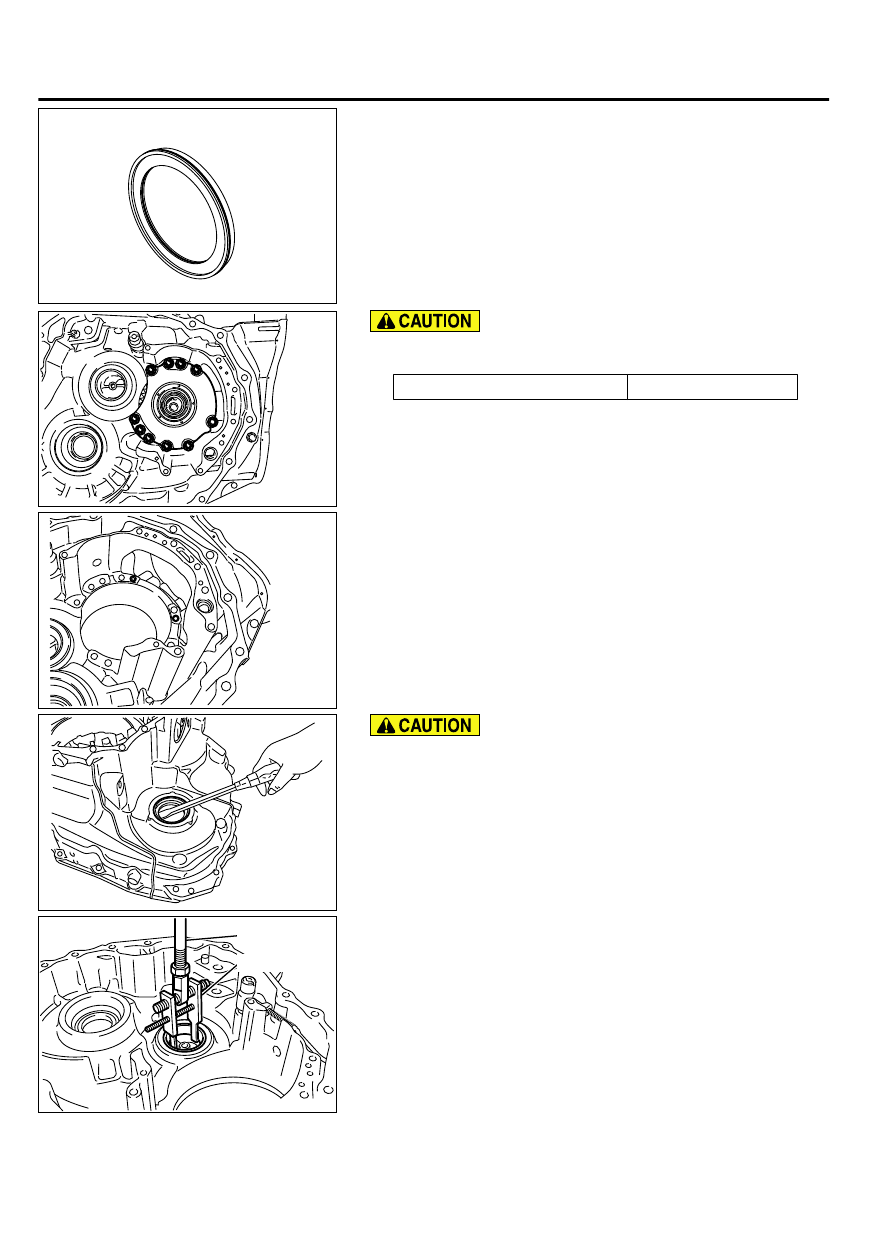

ZK602222AA00

91.

Remove D-rings from the low-reverse brake piston.

AA00

ZK602201

Mounting bolts are Torx E18 bolts.

92.

Remove the Output gear set.

No. of bolts

10

ZK602276AA00

93.

Remove the O-ring from the transaxle case.

ZK602223AA00

Do not damage the transaxle case when removing the side
oil seal.

94.

Using a flat-head screwdriver or equivalent, remove the side
oil seal from the transaxle case.

ZK603584

MB992039

MB990590

AA00

95.

Using  the  Special  Tool,  remove  the  outer  race  of  the
reduction gear bearing from the transaxle case equivalent.

Slid hammer puller (MB992039)

Slide hammer (MB990590)

23B-42

AUTOMATIC TRANSAXLE OVERHAUL

TRANSAXLE
