Mitsubishi Outlander XL. Manual - part 524





ZK603581

MB992039

MB990590

AA00

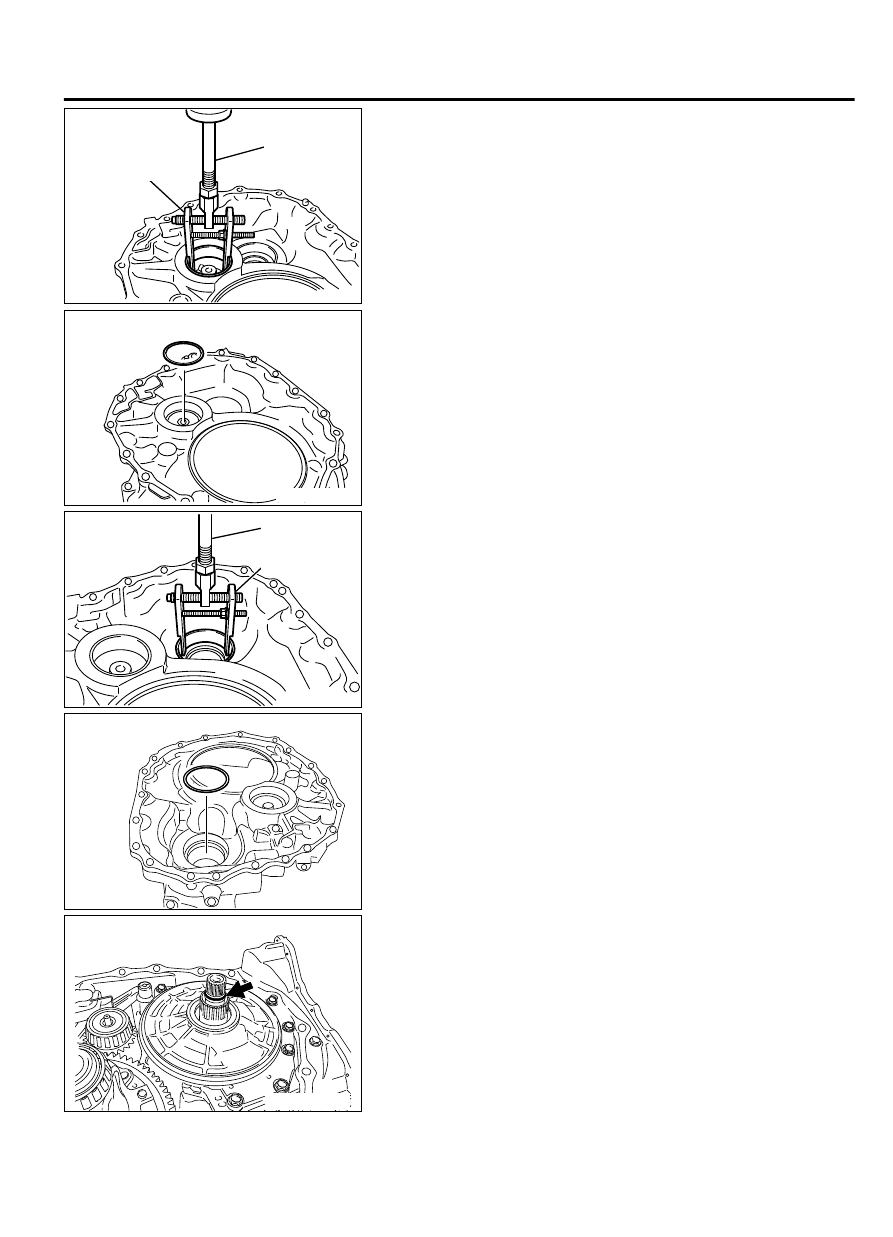

38.

(MB992195)remove  the  outer  race  of  the  reduction  gear
bearing from the converter housing.

Slid hammer puller (MB992039)

Slide hammer (MB990590)

ZK602226AA00

39.

Remove  the  reduction  gear  taper  bearing  shim  from  the
converter housing.

ZK603582

MB992039

MB990590

AA00

40.

Using  the  Special  Tool,  remove  the  outer  race  of  the
differential side bearing from the converter housing.

Slid hammer puller (MB992039)

Slide hammer (MB990590)

ZK603009AA00

41.

Remove  the  differential  taper  bearing  shim  from  the
converter housing.

ZK603029AA00

42.

Remove the O-ring from the input shaft.

AUTOMATIC TRANSAXLE OVERHAUL

23B-31

TRANSAXLE

ZK603028AA00

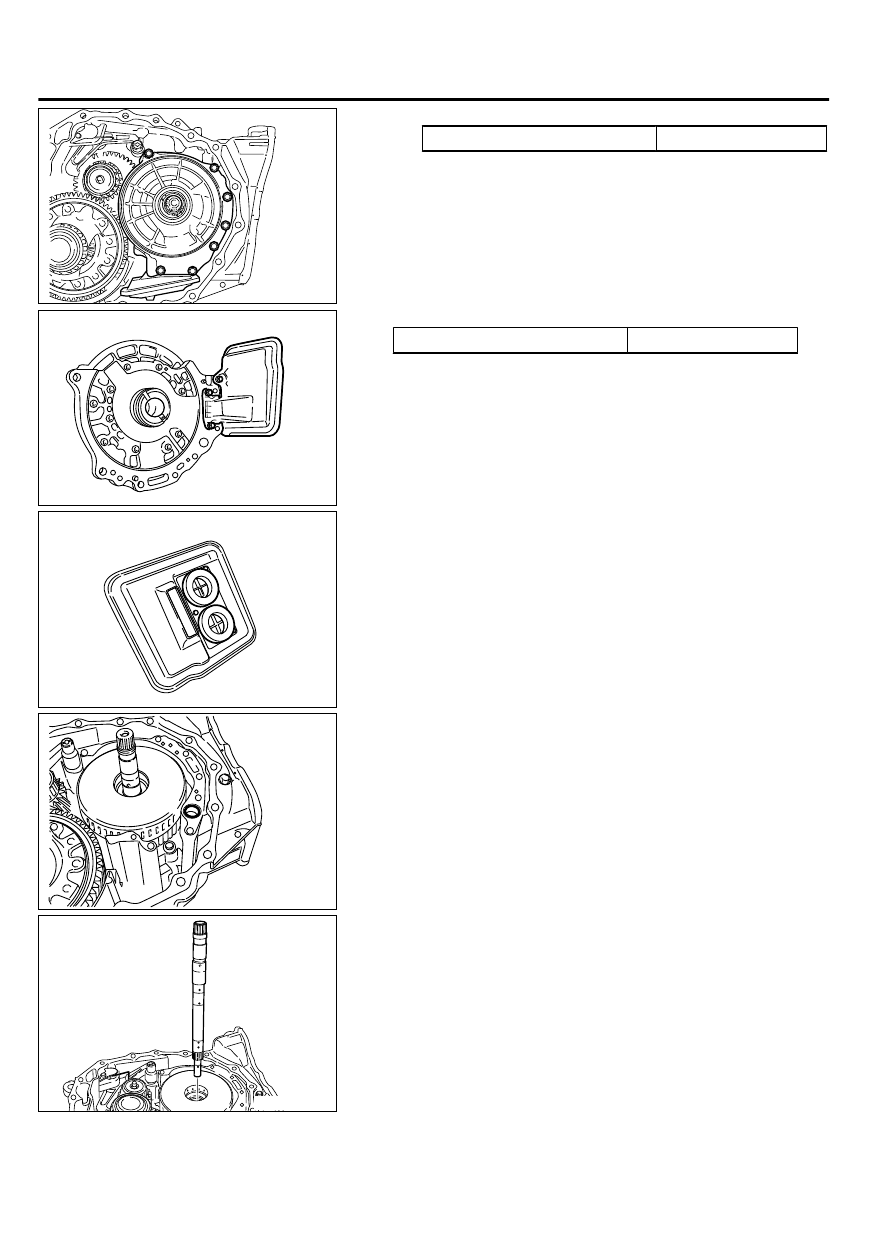

43.

Remove the oil pump assembly and oil strainer as one unit.

No. of bolts

7

ZK602194AA00

44.

Remove the oil strainer from the oil pump assembly.

No. of bolts

3

ZK602195AA00

45.

Remove the magnet from the oil strainer.

ZK602196AA00

46.

Remove the O-ring from the transaxle case.

ZK602975AA00

47.

Remove the input shaft.

23B-32

AUTOMATIC TRANSAXLE OVERHAUL

TRANSAXLE

ZK602976AA00

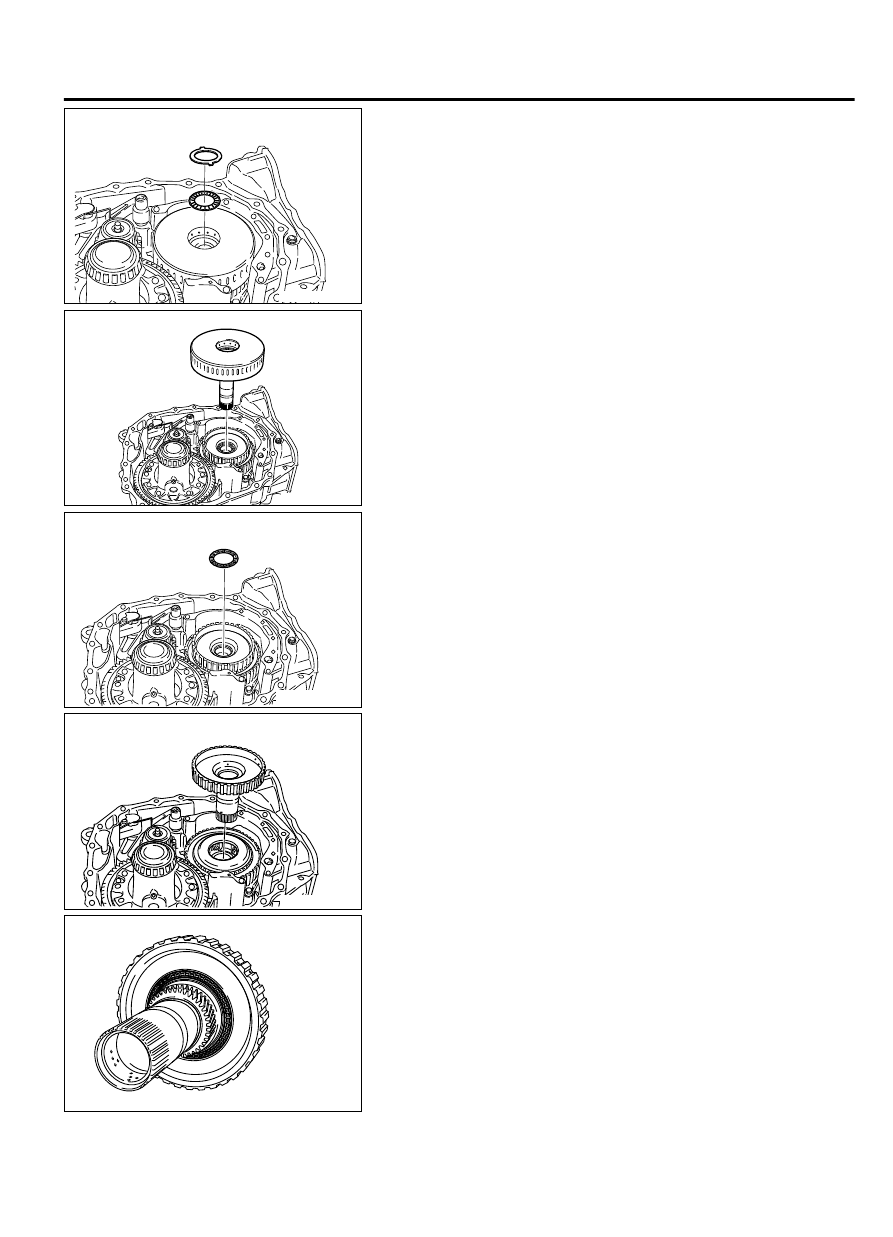

48.

Remove the bearing race and needle bearing from the 3-5
reverse clutch drum.

ZK602977AA00

49.

Remove the 3-5 reverse clutch assembly.

ZK602978AA00

50.

Remove the needle bearing from the FR sun gear.

ZK602979AA00

51.

Remove the FR sun gear.

ZK602197AA00

52.

Remove the needle bearing from the FR sun gear.

AUTOMATIC TRANSAXLE OVERHAUL

23B-33

TRANSAXLE

ZK602980AA00

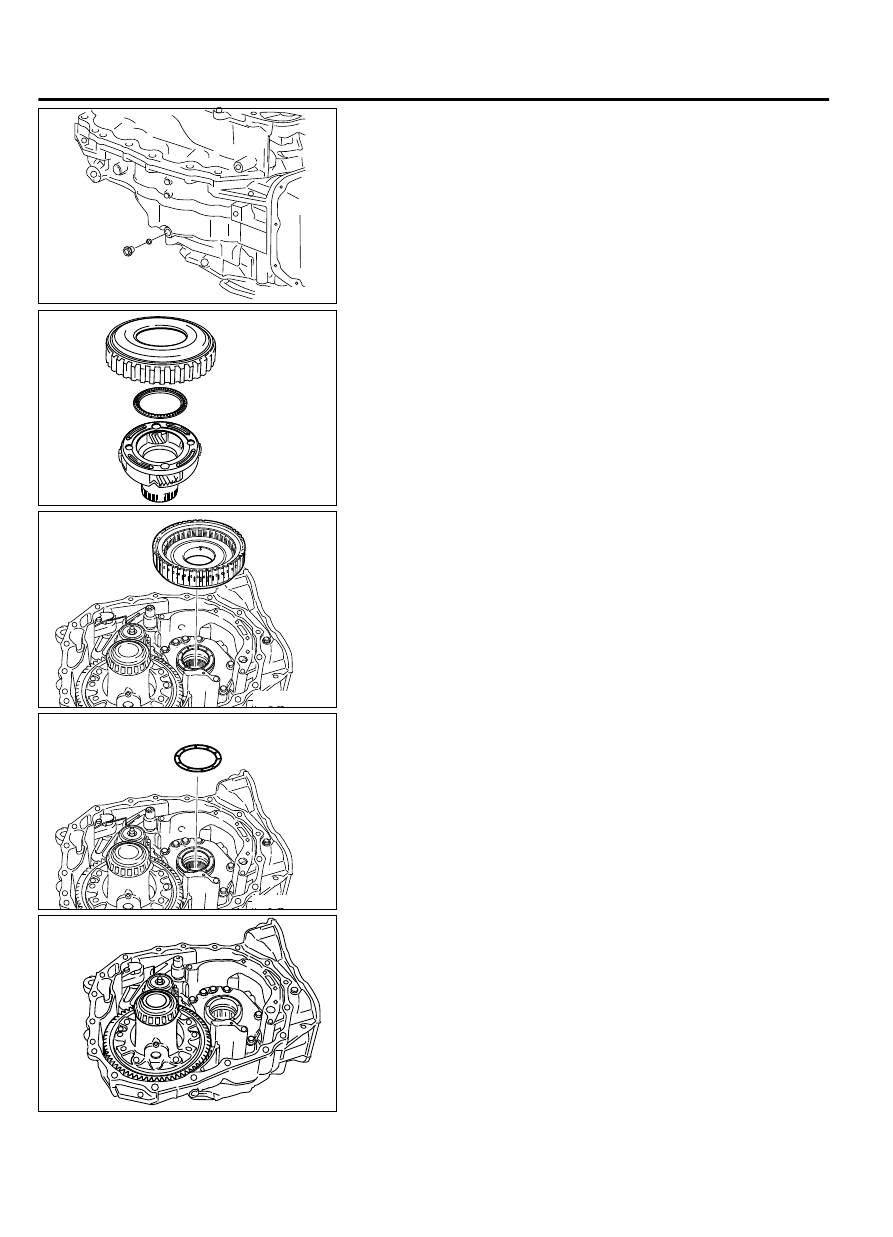

53.

Remove the FR internal gear and FR carrier as one unit.

ZK602198AA00

54.

Remove the FR internal gear and needle bearing from the
FR carrier.

ZK602981AA00

55.

Remove the low clutch assembly.

ZK604013AA00

56.

Remove the thrust washer from the drum support.

ZK602983AA00

57.

Remove the differential assembly.

23B-34

AUTOMATIC TRANSAXLE OVERHAUL

TRANSAXLE
