Mitsubishi Outlander XL. Manual - part 522





3.

Diaphragm spring

4.

D-ring

5.

Low-reverse brake piston

6.

D-ring

7.

Needle bearing

8.

RR carrier assembly

9.

Snap ring

10. Retaining plate
11. Drive plate
12. Driven plate
13. Drive plate
14. Retaining plate
15. Needle bearing
16. RR sun gear
17. Snap ring

18. One-way clutch
19. Driven plate
20. Retaining plate
21. Side cover
22. Spacer
23. Needle bearing
24. High clutch assembly
25. Reduction sun gear
26. Reduction carrier
27. Needle bearing
28. Reduction carrier
29. Needle bearing
30. High clutch hub

AUTOMATIC TRANSAXLE OVERHAUL

23B-23

TRANSAXLE

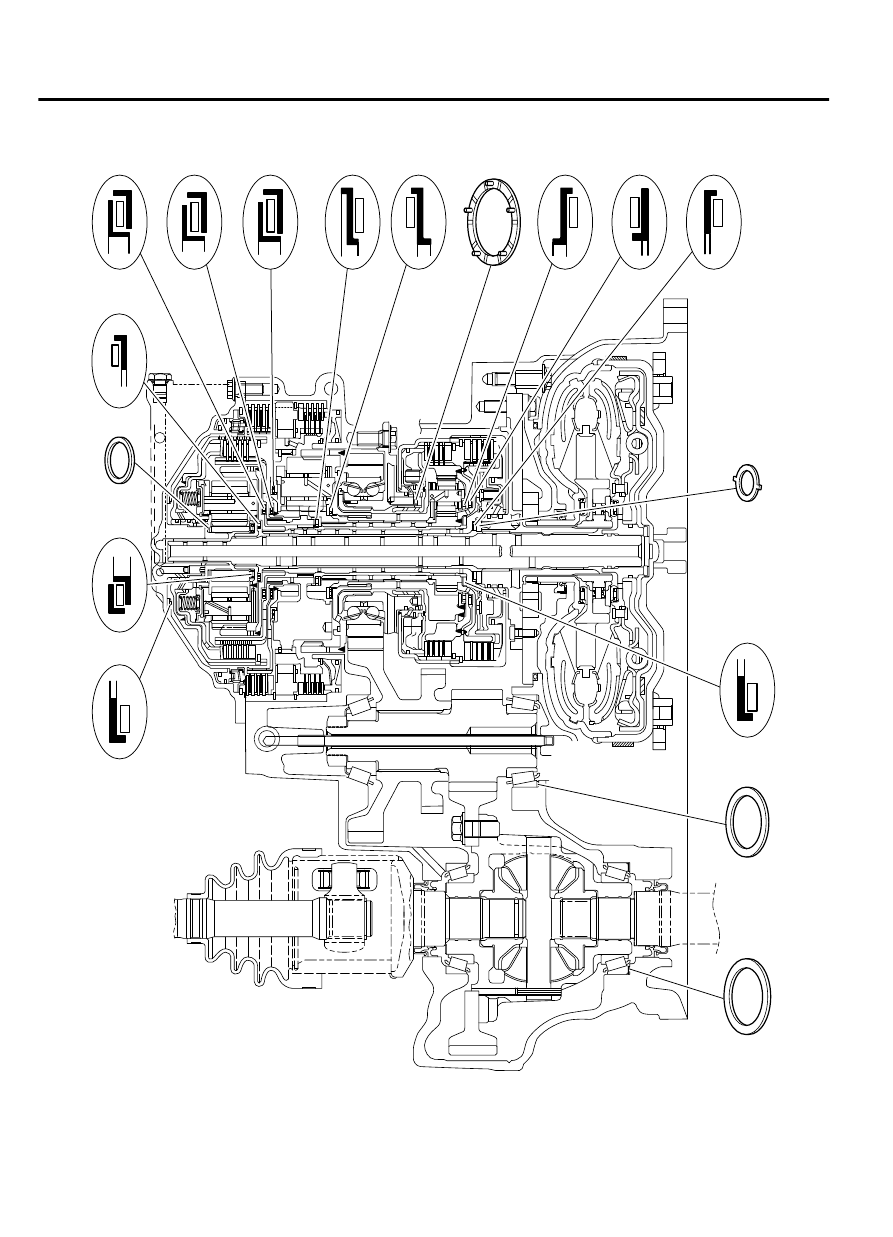

INSTALLATION LOCATION OF ADJUST SHIM, NEEDLE BEARING AND THRUST WASHER

ZK602959AA00

23B-24

AUTOMATIC TRANSAXLE OVERHAUL

TRANSAXLE

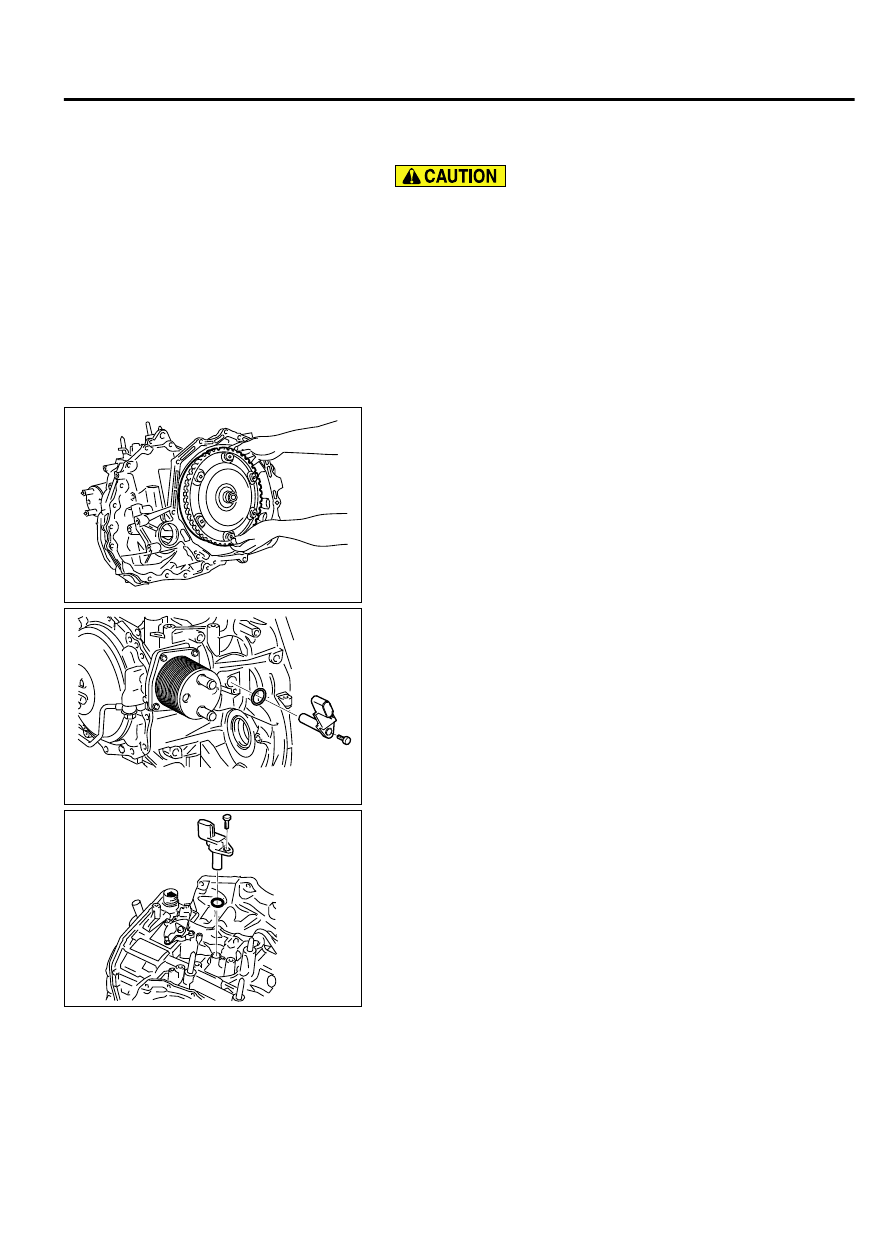

DISASSEMBLY

｠

Do not disassemble parts other than those described in
this volume.

｠

Refer to "GENERAL DESCRIPTION" for the meanings of
the symbols used in the illustration.

1.

Remove the transfer from the transaxle. <W6AJ>

2.

Remove  the  RR  roll  stopper  bracket  and  FR  roll  stopper
bracket from the transaxle.

3.

Remove the harness bracket from the transaxle.

4.

Remove the oil filler tube and oil level gage from the transaxle.

5.

Remove the control cable bracket and breather hose from the
transaxle.

ZK602986AA00

6.

Remove the torque converter from the transaxle.

ZK602988AA00

7.

Remove the vehicle speed sensor from the transaxle case.

8.

Remove the O-ring from the vehicle speed sensor.

ZK602987AA00

9.

Remove the turbine sensor from the transaxle case.

10.

Remove the O-ring from the turbine sensor.

AUTOMATIC TRANSAXLE OVERHAUL

23B-25

TRANSAXLE

ZK602972AA00

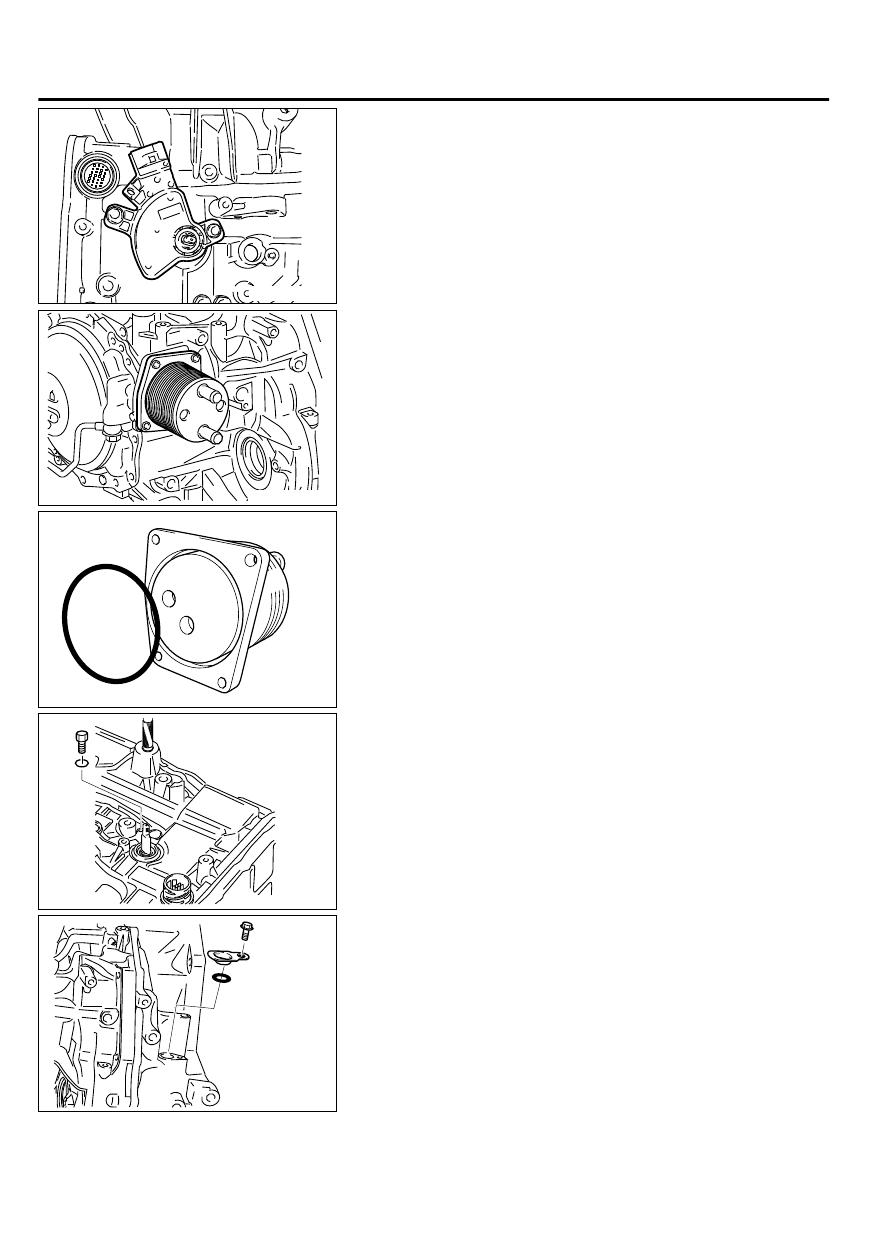

11.

Remove the Park/neutral position switch.

ZK602989AA00

12.

Remove  the  fluid  water-cooled  cooler  from  the  transaxle
case.

ZK602973AA00

13.

Remove the O-ring from the fluid water-cooled cooler.

ZK602990AA00

14.

Remove the pressure test port bolt from the transaxle case.

15.

Remove the O-ring from the pressure test port bolt.

ZK602991AA00

16.

Remove the baffle plate from the converter housing.

17.

Remove the O-ring from the baffle plate.

23B-26

AUTOMATIC TRANSAXLE OVERHAUL

TRANSAXLE
