3.

Return spring

4.

Parking plate

5.

Outer race

6.

Reduction gear assembly

7.

Reduction gear lubrication tube

8.

Outer race

9.

Reduction gear taper bearing shim

10. Outer race
11. Differential assembly
12. Outer race
13. Differential taper bearing shim
14. Needle bearing
15. Bearing race
16. RR sun gear (front side)
17. Bearing race
18. Needle bearing
19. Output gear set
20. Thrust washer
21. Low clutch assembly
22. FR carrier

23. Needle bearing
24. FR internal gear
25. Needle bearing
26. FR sun gear
27. Needle bearing
28. 3-5 Reverse clutch assembly
29. Needle bearing
30. Bearing race
31. Oil pump assembly
32. Input shaft
33. O-ring
34. Converter housing
35. Magnet
36. Oil strainer
37. O-ring
38. O-ring
39. Transaxle case
40. O-ring

AUTOMATIC TRANSAXLE OVERHAUL

23B-19

TRANSAXLE

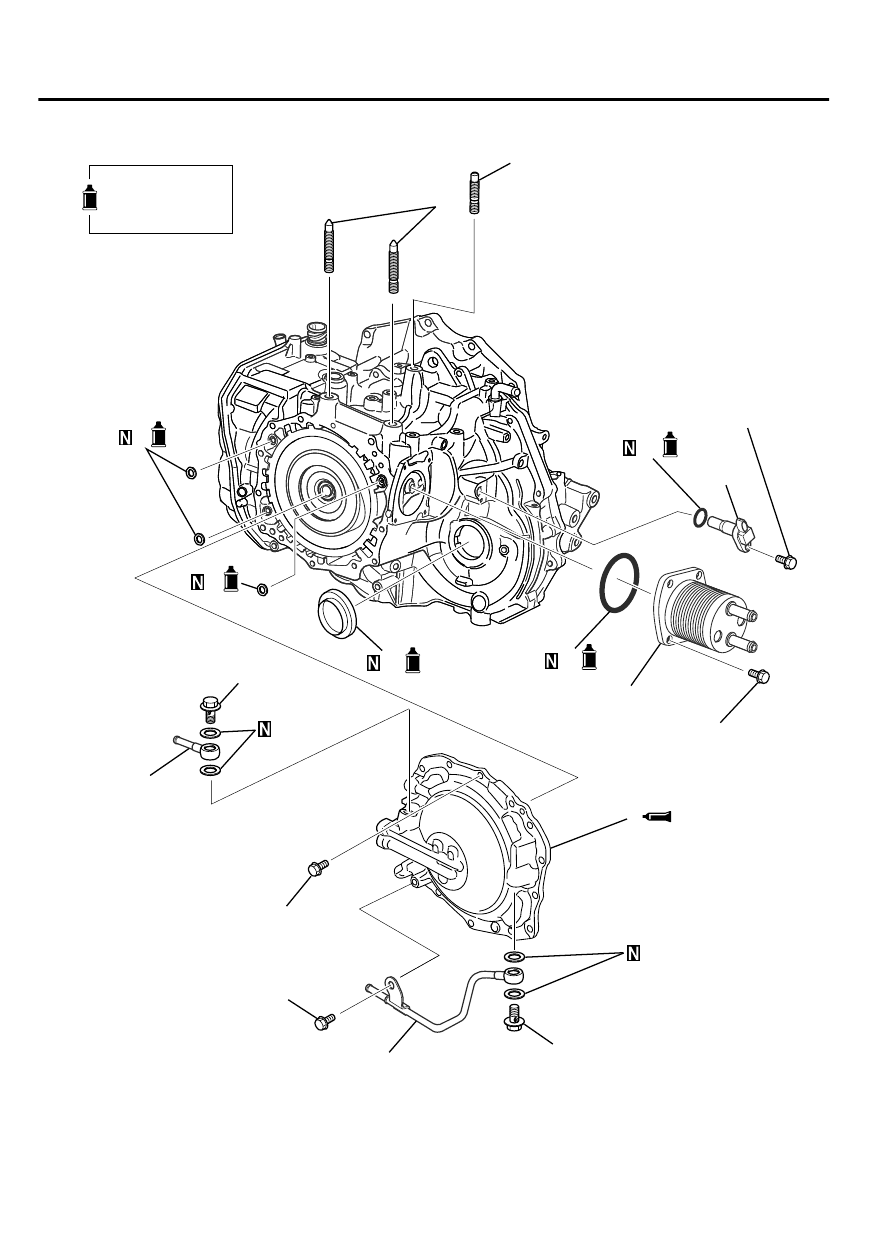

ZK602311

Apply automatic
transmission fluid
to all moving parts
before installation.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

5.9 N·m
52 in-lb

39.2 N·m
29 ft-lb

4.2 N·m
37 in-lb

27 N·m
20 ft-lb

21.6 N·m
16 ft-lb

39.2 N·m
29 ft-lb

AA00

1.

Stud bolt

2.

Stud bolt

23B-20

AUTOMATIC TRANSAXLE OVERHAUL

TRANSAXLE

3.

O-ring

4.

Cooler tube (IN)

5.

Washer

6.

Cooler tube (OUT)

7.

Washer

8.

Side cover

9.

O-ring

10. Side oil seal

11. O-ring
12. Fluid water-cooled
13. O-ring
14. Speed sensor
15. Bolt
16. O-ring

AUTOMATIC TRANSAXLE OVERHAUL

23B-21

TRANSAXLE

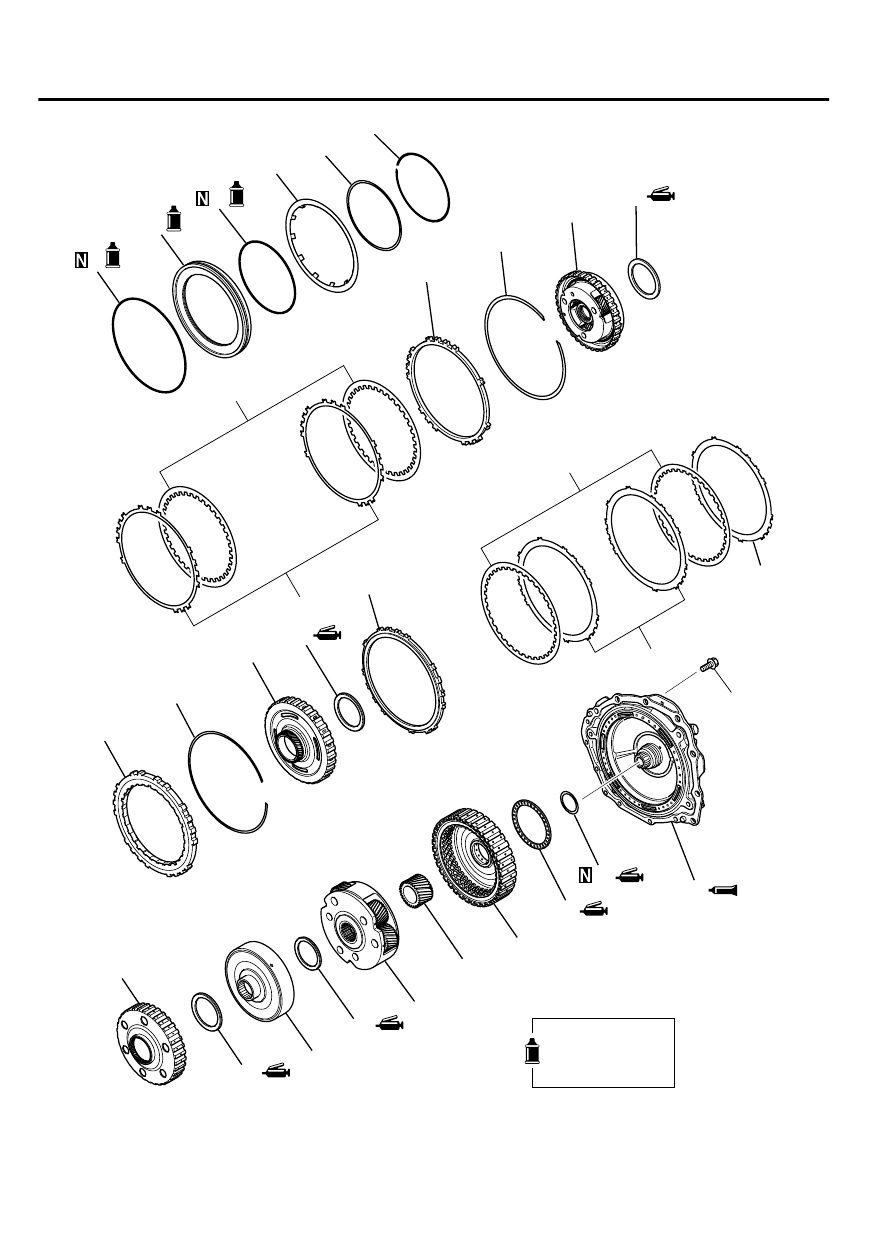

ZK603037

21

22

23

24

25

26

27

28

29

30

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

27 N·m
20 ft-lb

AA00

Apply automatic
transmission fluid
to all moving parts
before installation.

1.

Snap ring

2.

Diaphragm spring retainer

23B-22

AUTOMATIC TRANSAXLE OVERHAUL

TRANSAXLE
