Mitsubishi Outlander XL. Manual - part 518





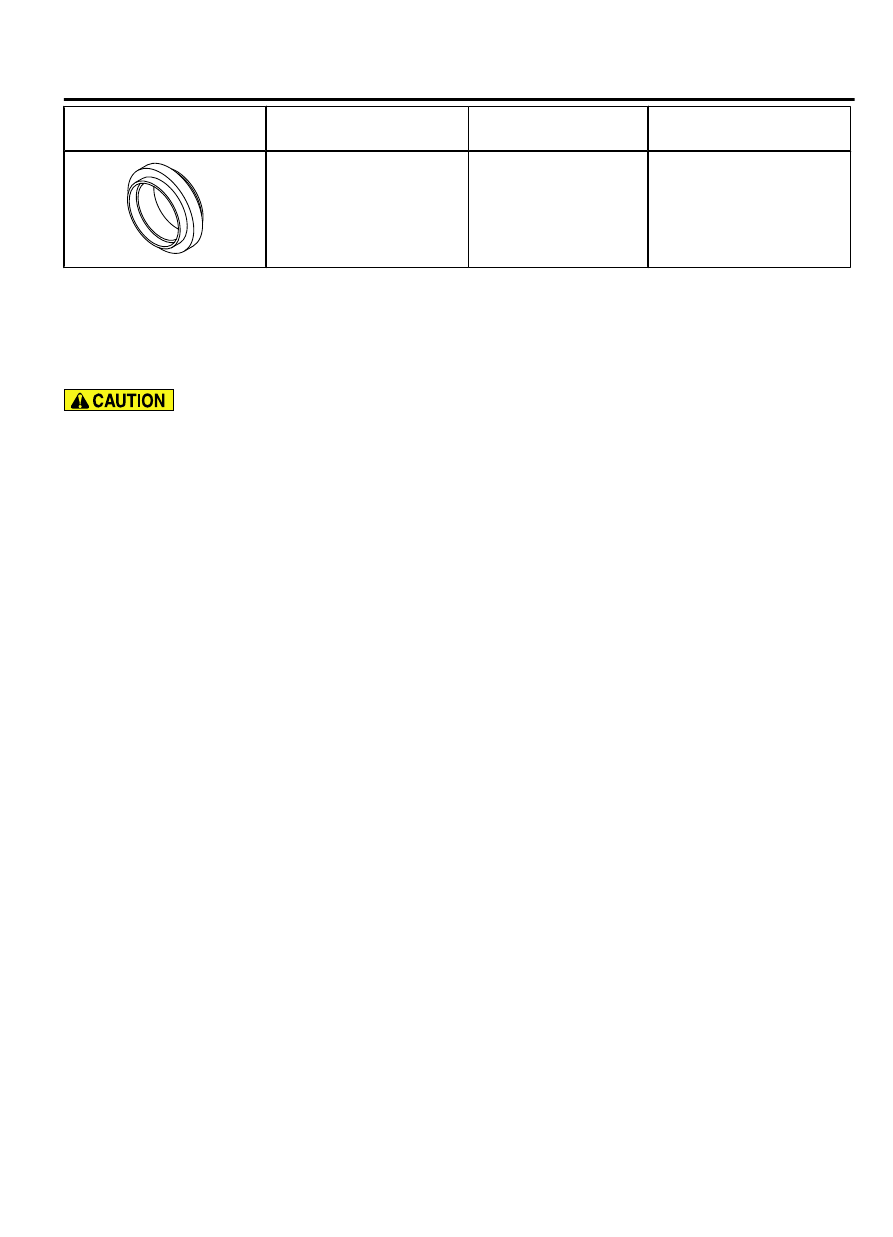

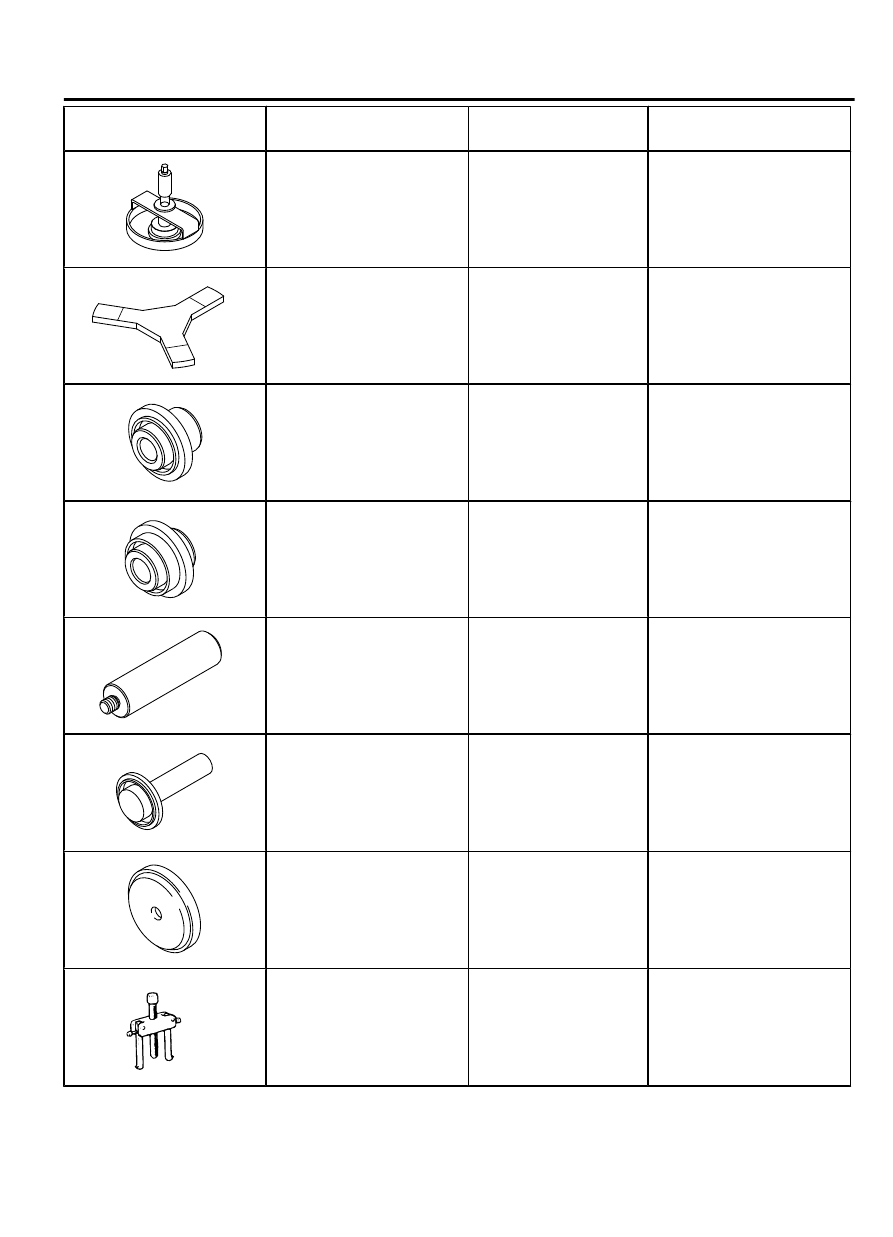

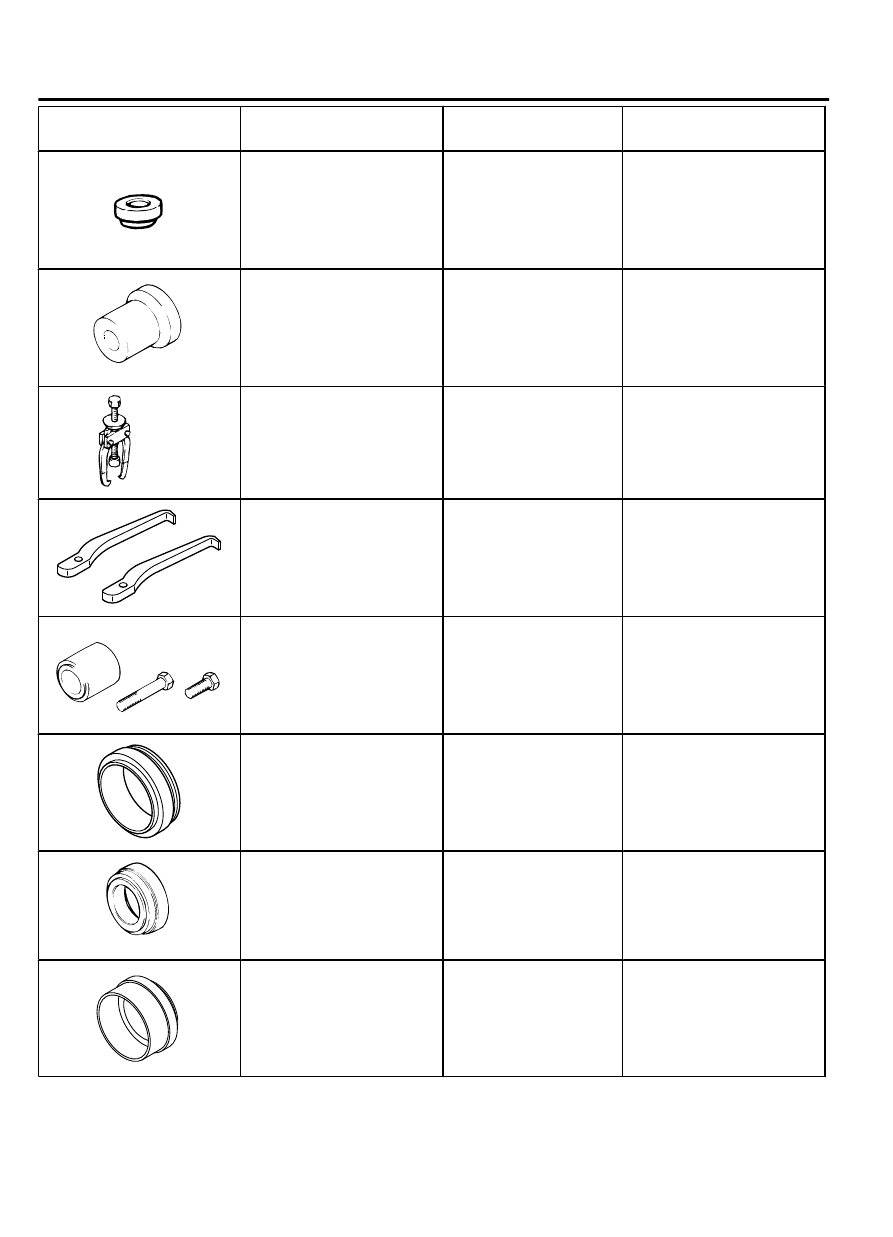

TOOL

TOOL  NUMBER  AND
NAME

SUPERSESSION

APPLICATION

MB992195
Spring compressor

-

Removal  and  installation
of  low  and  reverse  brake
snap ring

MB992196
Spring compressor

-

Removal  and  installation
of  2-6  brake  piston  snap
ring

MB992197
Oil seal installer

-

Installation  of  differential
side oil seal

MB992198
Oil seal installer

-

Installation  of  converter
housing oil seal

MB992075
Handle

-

Use with oil seal installer

MB992142
Oil seal installer

-

Installation  of  transfer  oil
seal <W6AJ>

MB990936
Oil seal installer

-

Installation  of  transfer  oil
seal <W6AJ>

MB990801
Rear axle bearing puller

-

Remove  of  tapered  roller
bearing

AUTOMATIC TRANSAXLE OVERHAUL

23B-7

SPECCIAL TOOLS

TOOL

TOOL  NUMBER  AND
NAME

SUPERSESSION

APPLICATION

YB990811AA00

MB990811
Side bearing puller cap

-

Use with rear axle bearing
puller

MB990956
Needle bearing installer

-

Use with rear axle bearing
puller

YB990810AA00

MB990810
Side bearing puller

-

Remove  of  tapered  roller
bearing

MD999566
Claw

-

Use  with  side  bearing
puller

MD998761
Cam oil seal installer

-

Use  with  side  bearing
puller

MD998826
Installer adapter

-

Installation  of  tapered
roller bearing <F6AJ>

YB991559AA00

MB991559
Cam  oil  seal  installer
adapter

-

Installation  of  tapered
roller bearing <F6AJ>

MB992213
Bearing installer

-

Installation  of  tapered
roller bearing

23B-8

AUTOMATIC TRANSAXLE OVERHAUL

SPECCIAL TOOLS

TOOL

TOOL  NUMBER  AND
NAME

SUPERSESSION

APPLICATION

MB992150
Oil seal installer

-

Installation  of  tapered
roller bearing

TRANSAXLE

DISASSEMBLY AND ASSEMBLY

M12303000010USA0000010000

Use  a  fluid  of  the  designated  brand  for  ATF
(automatic transmission fluid). Use of ATF not
specified  by  the  manufacturer  can  affect
drivability  and  the  durability  of  the  automatic
transmission, and can even lead to damage to
the transmission.

Perform disassembly work in a clean, dustproof
room.

Wash sand and mud adhering to the outside of
the  transaxle  well  using  steam  or  washing  oil
outside a dustproof room before disassembly to
prevent  them  from  entering  the  inside  during
disassembly and assembly. (Do not blow steam
in  the  inside  of  the  transaxle  or  wash  rubber-
made parts with washing oil.)

Pull out the torque converter from the transaxle
after it is cleaned and drain ATF.

During  the  disassembly  and  assembly  work,
always use bare hands or vinyl gloves.

Do  not  touch  internal  parts  with  your  hands
which  touched  the  outside  of  the  transaxle.
(Wash  your  hands  before  touching  internal
parts.)

Use paper towels instead of cotton gloves and
shop towels to prevent entry of lint.

Check the normal condition before performing
disassembly and assembly work.

Do not reuse drained ATF.

Refer  to  "GENERAL  DESCRIPTION"  for  the
meanings  of  the  symbols  used  in  the
illustration.

AUTOMATIC TRANSAXLE OVERHAUL

23B-9

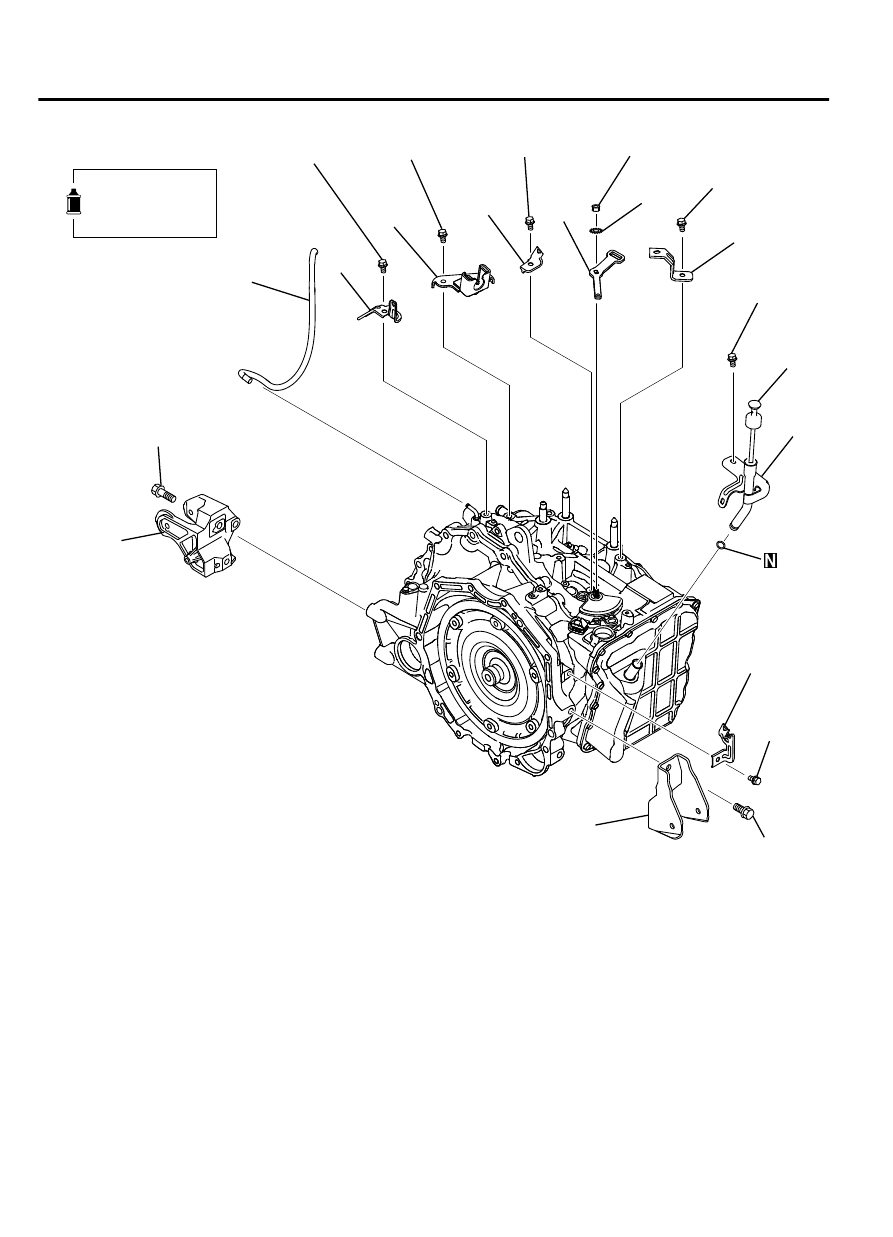

TRANSAXLE

ZK603044

1

2

3

4

5

6

7

8

9

10

11

12

13

23 ± 3 N·m
17 ± 2 ft-lb

11 ± 1 N·m
97 ± 9 in-lb

23 ± 3 N·m
17 ± 2 ft-lb

90 ± 10 N·m
66 ± 7 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

22 ± 3 N·m
16 ± 2 ft-lb

23 ± 3 N·m
17 ± 2 ft-lb

90 ± 10 N·m
66 ± 7 ft-lb

AA00

<F6AJ>

Apply automatic
transmission fluid
to all moving parts
before installation.

1.

FR roll stopper bracket

2.

RR roll stopper bracket

3.

Corrugate clamp bracket

4.

O-ring

5.

Oil filler tube

6.

Oil level gauge

7.

Corrugate clamp bracket

8.

Spring washer

9.

Manual control lever

10. Harness bracket
11. Control cable bracket
12. Corrugate clamp bracket
13. Breather hose

23B-10

AUTOMATIC TRANSAXLE OVERHAUL

TRANSAXLE
