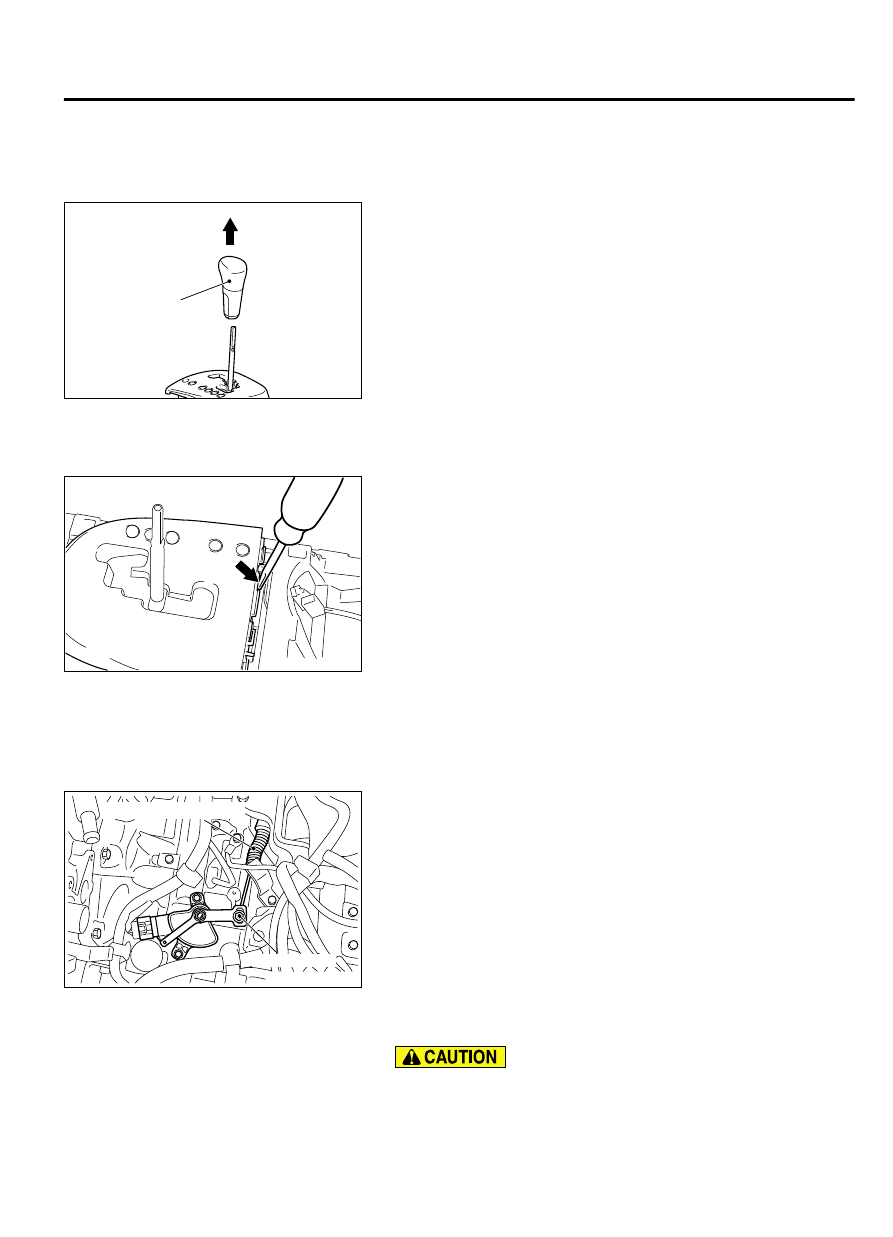

REMOVAL SERVICE POINTS

<<A>> SELECTOR LEVER KNOB REMOVAL

ZC6033380000

Selector lever knob

Pull out the selector lever knob to the direction of arrow shown
in the figure.



<<B>> SHIFT INDICATOR PANEL REMOVAL

ZC6027560000

Insert the slotted head screwdriver into the arrow-indicated point
as shown in the figure to pry the claw, and then remove the shift
indicator panel.

INSTALLATION SERVICE POINTS

>>A<< TRANSAXLE CONTROL CABLE (TRANSAXLE SIDE)
INSTALLATION

ZC601773

Adjusting nut

Transaxle control cable

0002

1.

Move  the  selector  lever  and  manual  control  lever  to  the  N
position.

2.

Use the adjusting nut to tighten the transaxle control cable to
the specified torque.

Tightening torque: 9.5 ± 3.5 N·m (84 ± 31 in-lb)

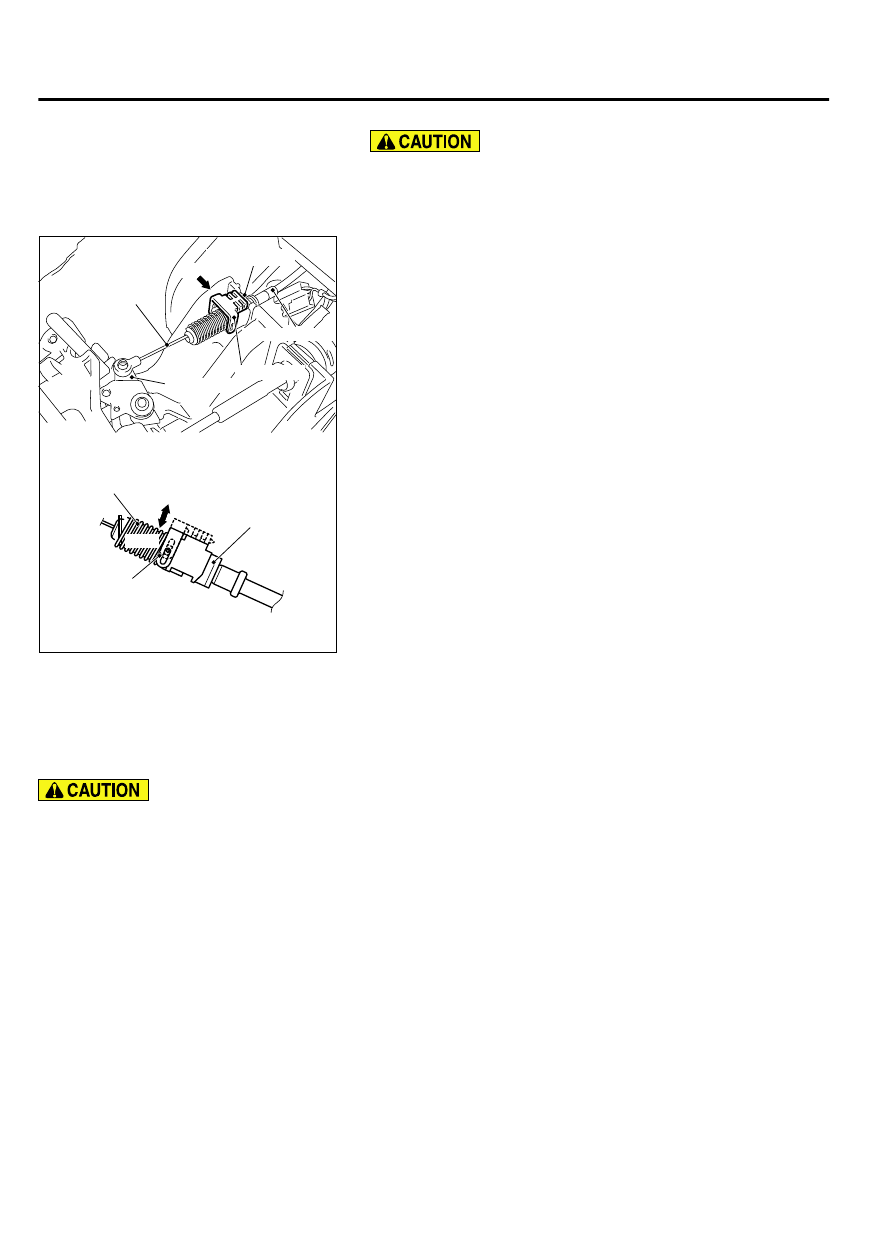

>>B<< KEY INTERLOCK CABLE INSTALLATION

Leave the ignition switch in the "LOCK" (OFF) position until
the key interlock cable installation is completed.

AUTOMATIC TRANSAXLE MECHANICAL

23A-167

TRANSAXLE CONTROL

1.

Move the selector lever to the "P" position and turn the ignition
switch to the "LOCK" (OFF) position.

ZC6022240000

Key inter lock cable

A

View A

Spring

Lock

Adjuster case

Adjuster case

Inner cable

Lock guide

Lock guide

Lock cam

Unlock

2.

Install the tip of the key interlock cable to the lock cam of the
selector  lever  assembly,  taking  care  not  to  twist  the  inner
cable.

3.

Install  the  adjuster  case  with  its  lock  guide  pulled  up
(unlocked).

4.

Securely push down the lock guide to lock it.

NOTE:

The lock position of the key interlock cable is

automatically adjusted by a spring.

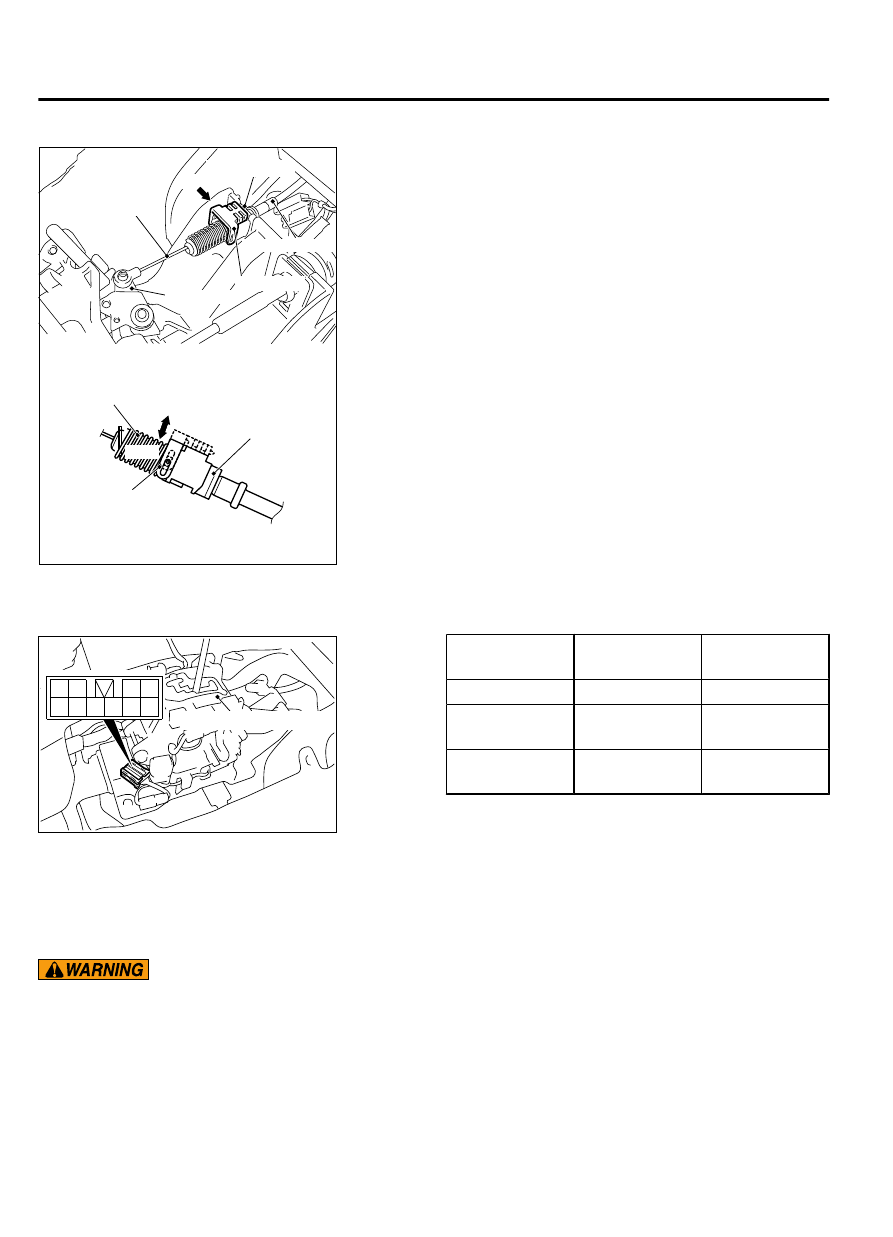

SHIFT SWITCH ASSEMBLY CONTINUITY CHECK

M12301000389USA0000010000

ZC6022210000

Selector lever assembly

9

3

2

1
5 6 7 8

4

10

Shift

 switch

assembly

Selector  lever
position

Terminal
number

Select switch

Sport mode

7 - 8

Shift

 switch

(UP)

Upshift and hold 7 - 10

Shift

 switch

(DOWN)

Downshift  and
hold

7 - 9

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS

REMOVAL AND INSTALLATION

M12301000317USA0000010001

When  removing  and  installing  the  transaxle
control cable and shift lock cable unit, be careful
not to hit the SRS-ECU.

Pre-removal operation

｠

Steering column lower cover and side lower panel assembly

removal  (Refer  to  GROUP  52A  -  Instrument  Panel

Assembly P.52A-2.)

Post-installation operation

｠

Steering column lower cover and side lower panel assembly

installation  (Refer  to  GROUP  52A  -  Instrument  Panel

Assembly P.52A-2.)

23A-168

AUTOMATIC TRANSAXLE MECHANICAL

TRANSAXLE CONTROL

｠

Front floor console assembly removal (Refer to GROUP 52A

- Floor Console Assembly P.52A-8.)

｠

Front floor console assembly installation (Refer to GROUP 52A

- Floor Console Assembly P.52A-8.)

｠

Key interlock mechanism check (Refer to P.23A-162.)

｠

Shift lock mechanism check (Refer to P.23A-163.)

｠

Selector lever operation check (Refer to P.23A-162.)

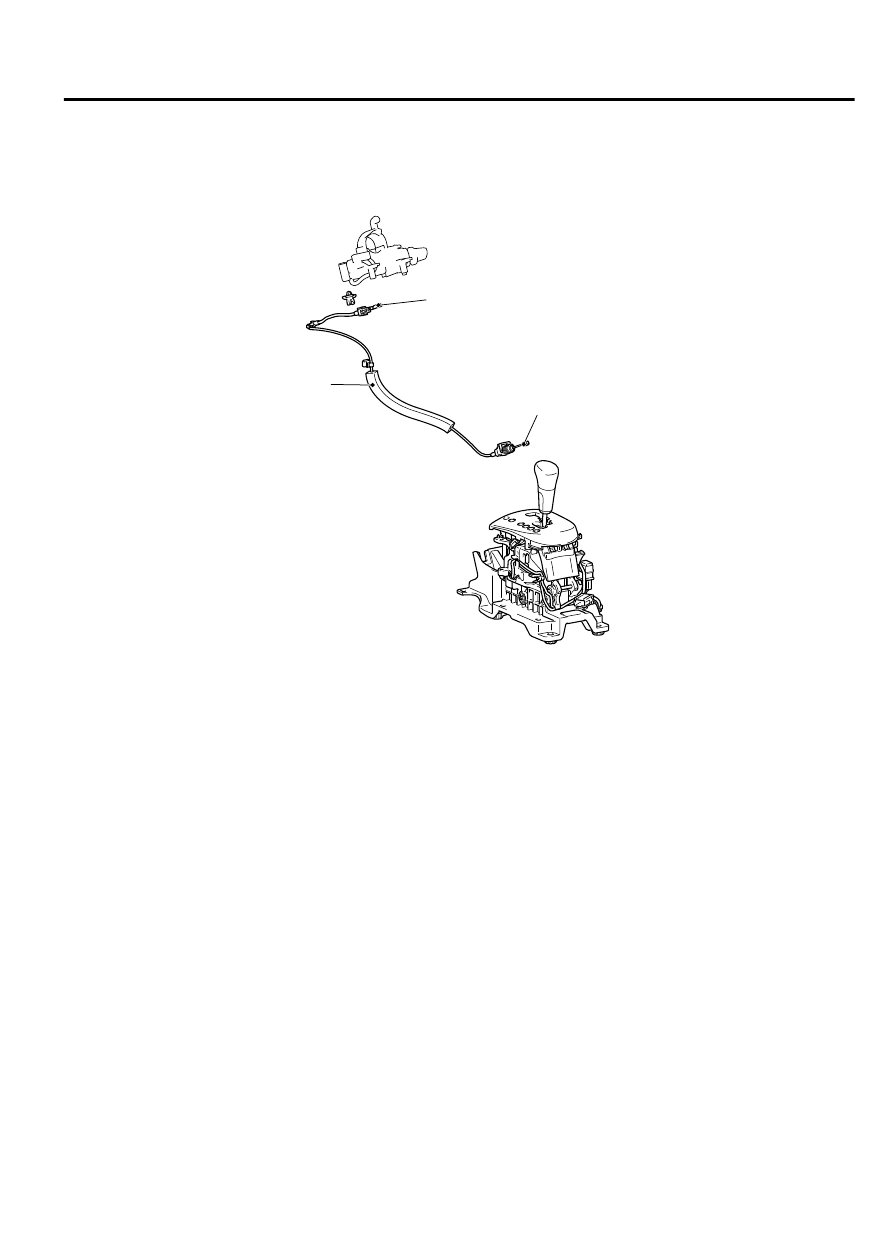

ZC6023590000

1

3

2

Removal steps

>>B<<

1.

Key  interlock  cable  connection
(selector lever side)

<<A>>

>>A<<

2.

Key  interlock  cable  connection
(steering side)

Removal steps

3.

Key interlock cable

REMOVAL SERVICE POINTS

<<A>> KEY INTERLOCK CABLE (STEERING SIDE)
REMOVAL
Turn the ignition switch to the "ACC" position and then pull the
key interlock cable out from the ignition key cylinder.

INSTALLATION SERVICE POINTS

>>A<< KEY INTERLOCK CABLE (STEERING LOCK
CYLINDER SIDE) INSTALLATION
Turn the ignition switch to the "ACC" position and then install the
key interlock cable to the ignition key cylinder.

AUTOMATIC TRANSAXLE MECHANICAL

23A-169

A/T KEY INTERLOCK AND SHIFT LOCK MECHANISMS

>>B<< KEY INTERLOCK CABLE INSTALLATION

Leave the ignition switch in the "LOCK" (OFF) position until
the key interlock cable installation is completed.

1.

Move the selector lever to the P position and turn the ignition
switch to the "LOCK" (OFF) position.

ZC6022240000

Key inter lock cable

A

View A

Spring

Lock

Adjuster case

Adjuster case

Inner cable

Lock guide

Lock guide

Lock cam

Unlock

2.

Install the tip of the key interlock cable to the lock cam of the
selector  lever  assembly,  taking  care  not  to  twist  the  inner
cable.

3.

Install  the  adjuster  case  with  its  lock  guide  pulled  up
(unlocked).

4.

Securely push down the lock guide to lock it.

NOTE:

The lock position of the key interlock cable is

automatically adjusted by a spring.

TRANSAXLE ASSEMBLY

REMOVAL AND INSTALLATION

M12301000057USA0000010001

｠

The  fasteners  marked  with  *1should  be
temporarily  tightened  first  and  then  fully
tightened with the engine weight applied on the
vehicle body.

｠

The  bolts  marked  with  *2are  coated  with  the
friction  coefficient  stabilizer.  After  removing

these  bolts,  make  sure  that  they  are  free  of
damage,  remove  any  dust  and  dirt  on  the
bearing  surfaces  and  the  threads,  and  then
securely tighten to the specified torque.

Pre-removal operation

｠

Engine  compartment  under  cover  and  side  cover  removal

(Refer to GROUP 51A - Under Cover P.51A-18.)

｠

Transmission fluid draining (Refer to P.23A-153.)

｠

Air  cleaner  bracket  removal  (Refer  to  GROUP  15  -  Air

Cleaner P.15-6.)

｠

Battery and Battery Tray Removal

｠

ECM removal (Refer to GROUP 13Aa - ECM P.13Aa-37.)

｠

Wiper arm · blade assembly and front deck garnish removal

(Refer to GROUP 51B - Windshield Wiper P.51B-49.)

Post-installation operation

｠

Drive shaft installation (Refer to GROUP 26 P.26-17.)

｠

Strut  Tower  Bar  Installation  (Refer  to  GROUP  42Aa  -  Strut

Tower Bar P.42Aa-11.)

｠

Wiper  arm  and  blade  assembly  and  front  deck  garnish

installation  (Refer  to  GROUP  51B  -  Windshield  Wiper  P.

51B-49.)

｠

Battery and battery tray installation

｠

ECM installation (Refer to GROUP 13Aa - ECM P.13Aa-37.)

｠

Air  cleaner  assembly  installation  (Refer  to  GROUP  15  -  Air

Cleaner P.15-6.)

23A-170

AUTOMATIC TRANSAXLE MECHANICAL

TRANSAXLE ASSEMBLY
