DIAGNOSTIC FUNCTION

M12301000190USA0000010000

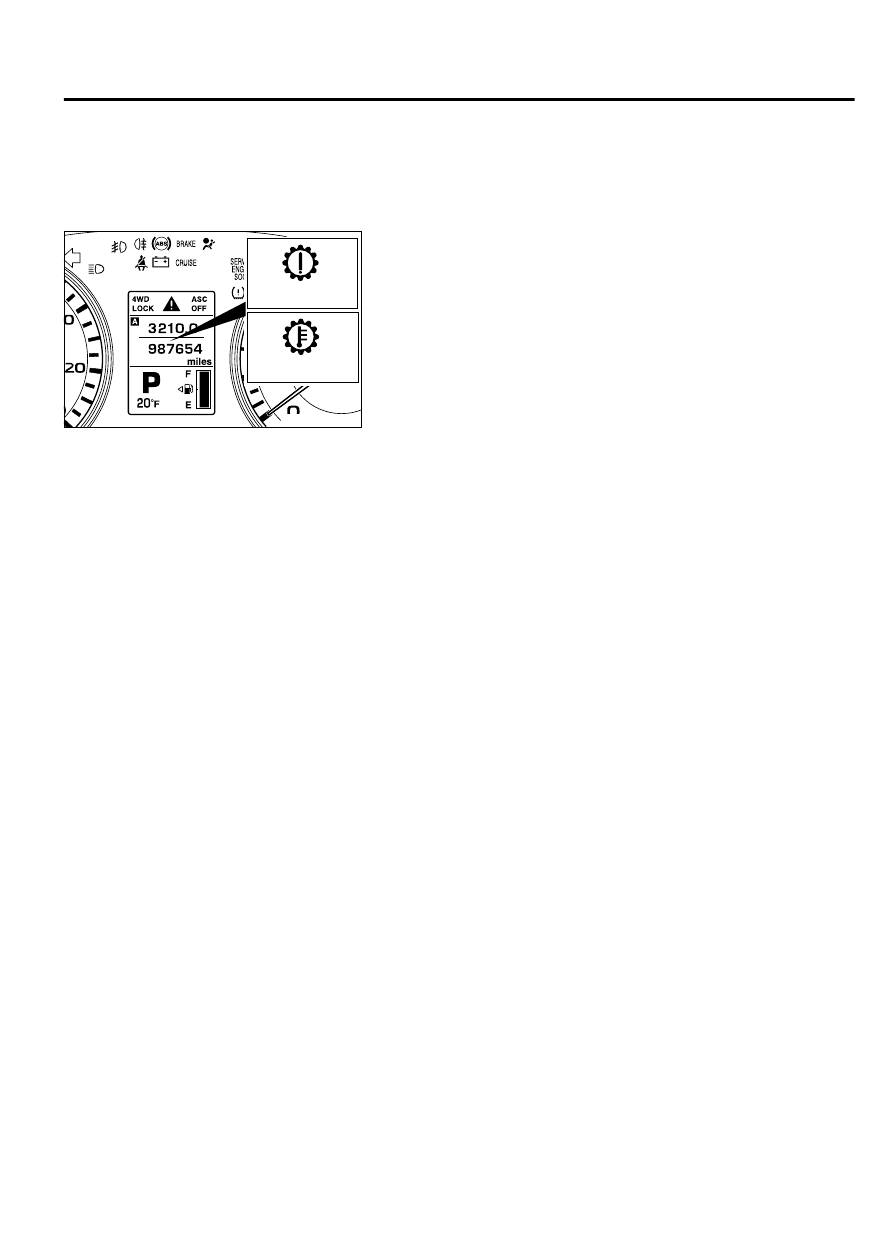

WARNING INDICATOR

SL OW D OWN

SE RVIC E
         RE QUIRE D

ZC6017860000

(A)

(B)

When  any  malfunction  occurs  in  the  items  related  to  the  A/T
system, which are described below, the symbol (A) continues
being displayed in the information screen in the multi information
display.
Check if the diagnostic trouble code is set when the symbol (A)
continues being displayed in the information screen in the multi
information display.

NOTE:

When the symbol (B) is displayed in the information

screen in the multi information display, the transmission
fluid temperature is high. (Symbol (B) is turned on when the
fluid temperature is approximately 140°C (284°F)or higher
and turned off automatically when the fluid temperature
drops below approximately 135°C(275°F).)

NOTE:

When transmission fluid becomes a high temperature,

control to lower temperature of transmission fluid acts,
and "D" is displayed of a run with sports mode by a shift
indicator in a multi information display; and normal from
sports mode; shifting is replaced automatically. In
addition, there is the case that does not accept operation
to sports mode. It is control to lower temperature of
transmission fluid, and this phenomenon is not trouble. If
temperature of transmission fluid falls, A/T returns to
normal movement.

ON-BOARD DIAGNOSTICS

The  transaxle  control  module  (TCM)  monitors  its
input/output  signals  (some  signals  all  the  time  and
others under specified conditions). When an irregular
signal is initially monitored, the TCM decides that a
malfunction has occurred and records the occurrence
as a diagnostic trouble code. There are 45 diagnostic
items. The diagnostic results can be read with scan

tool. Diagnostic trouble codes are kept in memory by
direct battery feed. The codes are retained in memory
even  if  the  ignition  switch  is  in  the  "LOCK"  (OFF)
position. DTCs are not erased even after the battery
terminals and the TCM connector are disconnected.
In addition, the diagnostic trouble code can also be
erased by scan tool.

NOTE:

If a sensor is disconnected when the ignition switch

is in the "ON" position, a diagnostic trouble code is stored
in memory. In this case, erase the DTC using scan tool.

The  45  diagnostic  items  are  displayed  in  numeric
order.

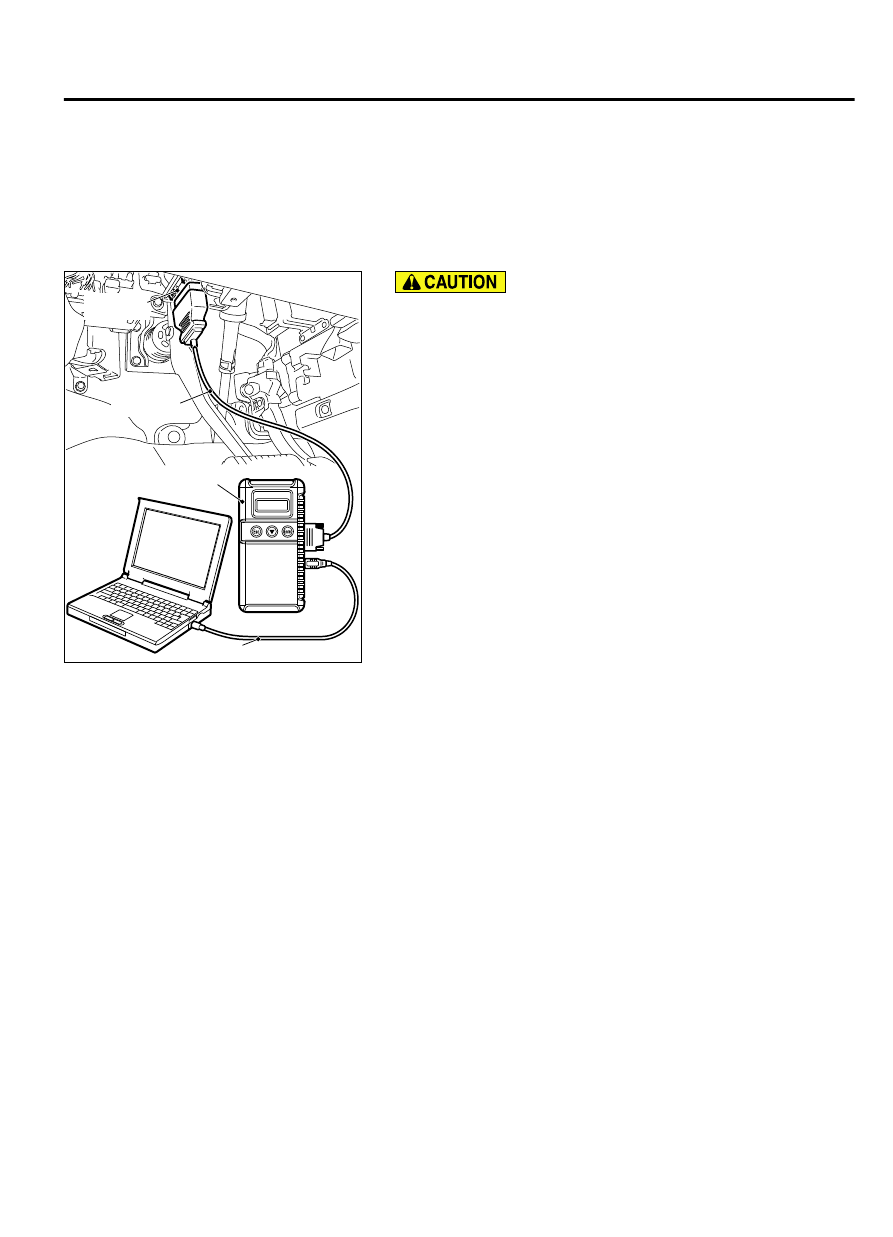

HOW TO CONNECT THE SCAN TOOL (M.U.T.-III)

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: Vehicle Communication Interface (V.C.I.)

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

AUTOMATIC TRANSAXLE MECHANICAL

23A-15

AUTOMATIC TRANSAXLE DIAGNOSIS

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

1.

Ensure that the ignition switch is at the "LOCK" (OFF) position.

2.

Start up the personal computer.

3.

Connect special tool MB991827 to special tool MB991824 and
the personal computer.

4.

Connect special tool MB991910 to special tool MB991824.

5.

Connect special tool MB991910 to the data link connector.

6.

Turn the power switch of special tool MB991824 to the "ON"
position.

NOTE:

When special tool MB991824 is energized, special

tool MB991824 indicator light will be illuminated in a
green color.

7.

Start the M.U.T.-III system on the personal computer.

NOTE:

Disconnecting scan tool MB991958 is the reverse of

the connecting sequence, making sure that the ignition
switch is at the "LOCK" (OFF) position.

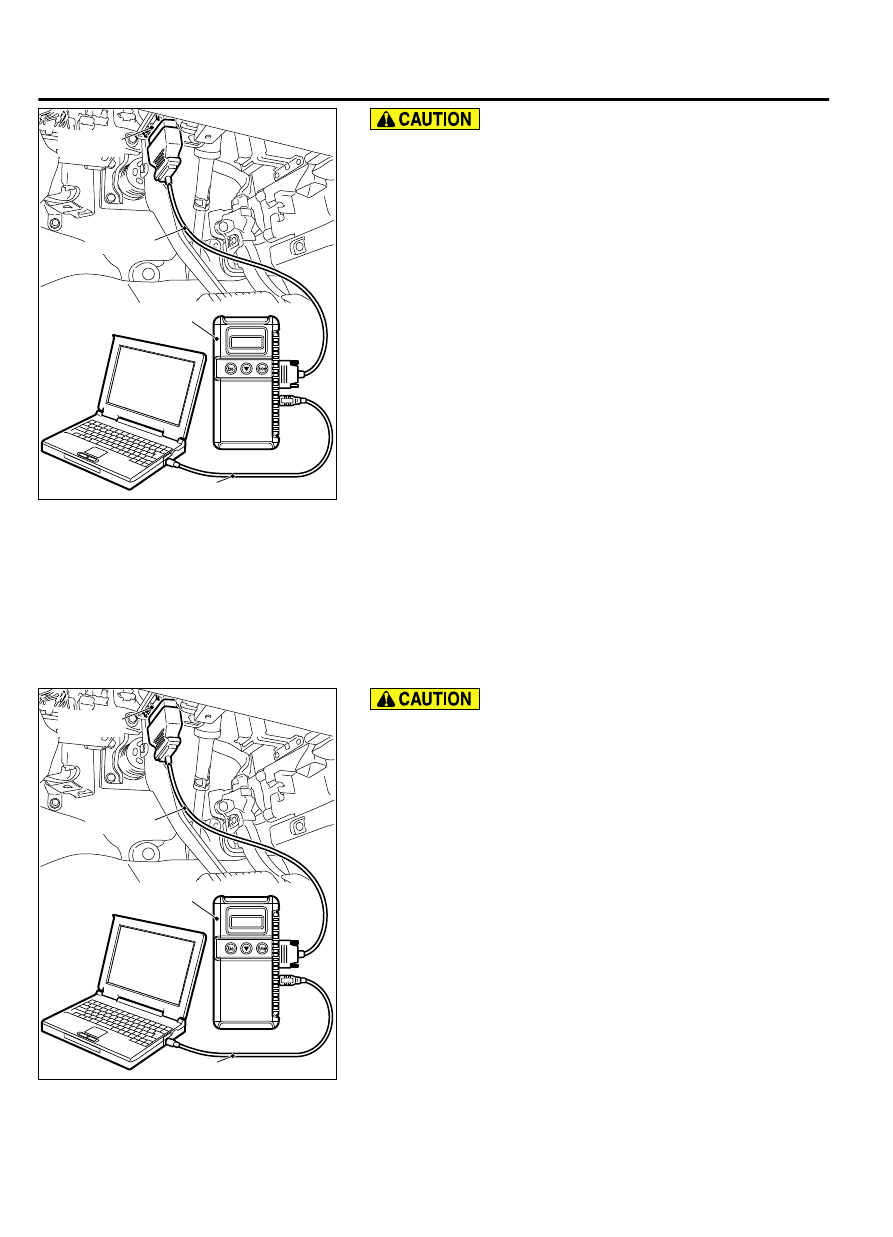

HOW TO READ AND ERASE DIAGNOSTIC

TROUBLE CODES

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

NOTE:

If the battery voltage is low, diagnostic trouble

codes will not be set. Check the battery if scan tool
MB991958 does not display.

1.

Connect scan tool MB991958 to the data link connector.

2.

Turn the ignition switch to the "ON" position.

3.

Select "Interactive Diagnosis" from the start-up screen.

4.

Select "System select."

5.

Choose "ELC-A/T" from the "POWER TRAIN" tab.

6.

Select "MITSUBISHI."

7.

Select "Diagnostic Trouble Code."

8.

If a DTC is set, it is shown.

9.

Choose "Erase DTCs" to erase the DTC.

23A-16

AUTOMATIC TRANSAXLE MECHANICAL

AUTOMATIC TRANSAXLE DIAGNOSIS

HOW TO READ DATA LIST

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

1.

Connect scan tool MB991958 to the data link connector.

2.

Turn the ignition switch to the "ON" position.

3.

Select "System select" from the start-up screen.

4.

Select "From 2006 MY" of "Model Year." When the "Vehicle
Information" is displayed, check the contents.

5.

Select  "ELC-A/T"  from  "System  List",  and  press  the  "OK"
button.

NOTE:

When the "Loading Option Setup" list is displayed,

check the applicable item.

6.

Select "MITSUBISHI."

7.

Select "Data List."

NOTE:

When the "Data List Reference Table" button is

selected, the service data reference table is displayed,
and the normal values can be checked.

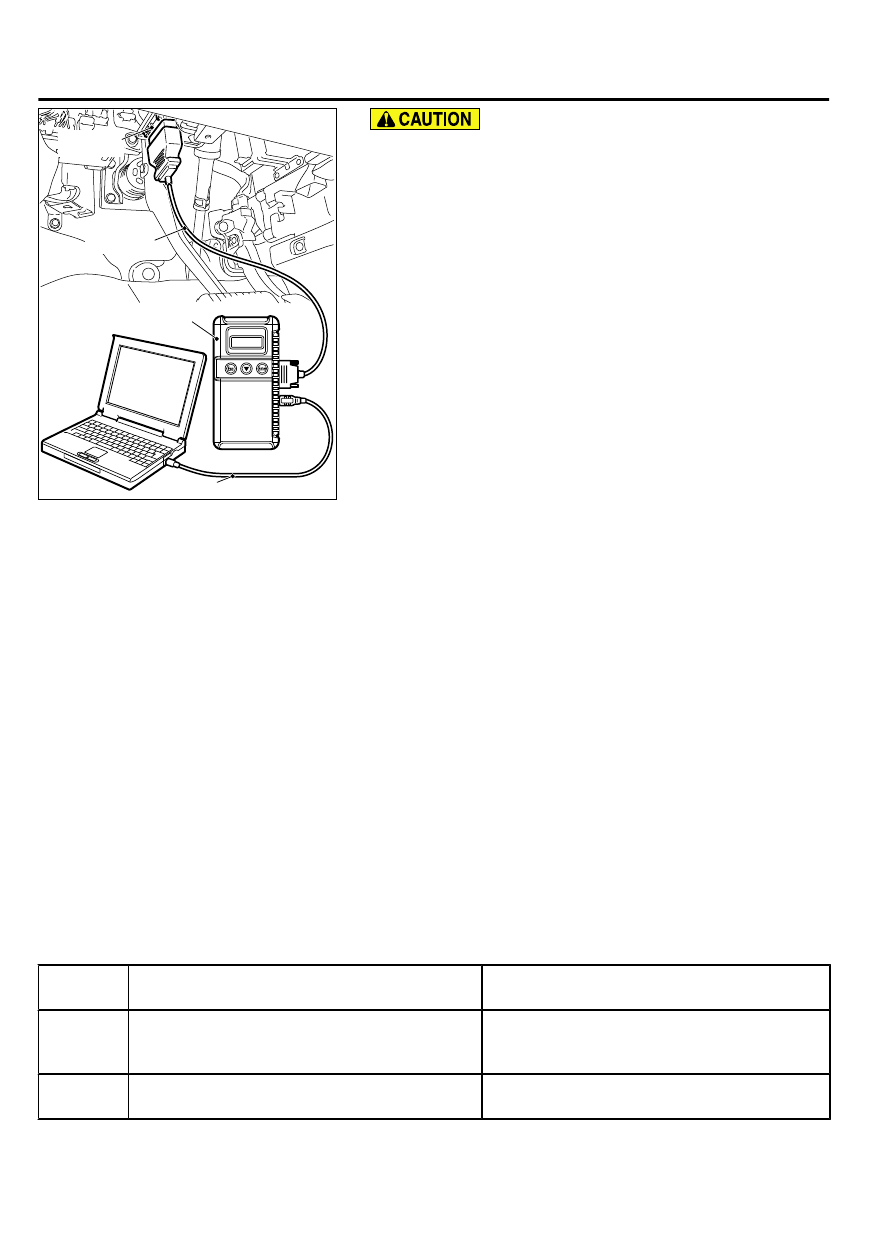

HOW TO DIAGNOSE THE CAN BUS LINES

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: M.U.T.-III USB Cable

｠

MB991910: M.U.T.-III Main Harness A

AUTOMATIC TRANSAXLE MECHANICAL

23A-17

AUTOMATIC TRANSAXLE DIAGNOSIS

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

1.

Connect scan tool MB991958 to the data link connector.

2.

Turn the ignition switch to the "ON" position.

3.

Select "CAN Bus Diagnosis" from the start-up screen.

4.

When  the  vehicle  information  is  displayed,  confirm  that  it
matches the vehicle whose CAN bus lines will be diagnosed.

｠

If they match, go to step 8.

｠

If not, go to step 5.

5.

Select the "view vehicle information" button.

6.

Enter the vehicle information and select the "OK" button.

7.

When the vehicle information is displayed, confirm again that
it matches the vehicle whose CAN bus lines will be diagnosed.

｠

If they match, go to step 8.

｠

If not, go to step 5.

8.

Select the "OK" button.

9.

When the optional equipment screen is displayed, choose the
one which the vehicle is fitted with, and then select the "OK"
button.

HOW TO INITIALIZE A/T LEARNED VALUE

M12301000226USA0000010000

AIM

A/T  learned  value  must  be  reset  whenever  the
automatic  transaxle,  engine  assembly,  A/T  valve
body, or A/T solenoid valve is replaced. It cannot be
reset by disconnecting the battery. Use the M.U.T.-III
as follows:

INITIALIZATION PROCEDURE

1.

Move the selector lever to the P range and turn the
ignition switch to the LOCK (OFF) position. Then,
connect M.U.T.-III to the diagnosis connector.

2.

Turn the ignition switch to the ON position, and then
move the selector lever to the R range.

3.

Depress the accelerator pedal while depressing the
brake  pedal.  (Engine  stops.)  Erase  the  diagnosis
code at this point.

NOTE:

This reset procedure will also

automatically initialize the INVECS-II Learned
Value. A/T DTCs and A/T freeze-frame data will be
erased. (Engine DTCs, engine-related freeze-frame
data, and Readiness status will remain even after
A/T Learned Value is reset.)

FAIL-SAFE/BACKUP FUNCTION

M12301000083USA0000010000

When a malfunction of a main sensor or actuator is
detected by the PCM, the transaxle is controlled by
pre-set  control  logic  to  maintain  safe  conditions  for
driving.

The  following  table  shows  how  the  fail-safe/backup
function affects vehicle driveability and operation.

DTC  code
No.

Detection items

Fail-safe

P0705

Transmission range switch system

｠

Fixed at the D range.

｠

Manual mode is prohibited.

｠

Lock-up is prohibited.

P0712

Transmission fluid temperature sensor system
(Short circuit)

Not present.
