ON-VEHICLE SERVICE...........

23A-149

A/T CONTROL COMPONENT LAYOUT
.............................

23A-149

ESSENTIAL SERVICE............

23A-152

TRANSMISSION FLUID CHECK.......

23A-152

TRANSMISSION FLUID CHANGE......

23A-153

FLUSHING COOLERS AND TUBES.....

23A-155

OIL COOLER FLOW CHECK..........

23A-156

TRANSMISSION RANGE SWITCH CHECK
...............................

23A-157

TRANSMISSION RANGE SWITCH AND CONTROL
CABLE ADJUSTMENT...............

23A-157

TRANSFER OIL CHECK.............

23A-158

TRANSFER OIL REPLACEMENT.......

23A-159

AUTOMATIC TRANSAXLE CONTROL COMPONENT
CHECK........................

23A-159

TRANSMISSION RANGE SWITCH CHECK
...............................

23A-159

STOPLIGHT SWITCH CHECK.........

23A-159

A/T CONTROL RELAY CHECK........

23A-159

SOLENOID VALVE CHECK...........

23A-160

TRANSMISSION FLUID TEMPERATURE SENSOR
CHECK..........................

23A-161

PADDLE SHIFT SWITCH CHECK......

23A-161

SELECTOR LEVER OPERATION CHECK
.............................

23A-162

KEY INTERLOCK MECHANISM CHECK/
ADJUSTMENT...................

23A-162

SHIFT LOCK MECHANISM CHECK. . .

23A-163

TRANSAXLE CONTROL............

23A-166

REMOVAL AND INSTALLATION. . . . .

23A-166

SHIFT SWITCH ASSEMBLY CONTINUITY
CHECK........................

23A-168

A/T KEY INTERLOCK AND SHIFT LOCK
MECHANISMS...................

23A-168

REMOVAL AND INSTALLATION. . . . .

23A-168

TRANSAXLE ASSEMBLY...........

23A-170

REMOVAL AND INSTALLATION. . . . .

23A-170

TRANSFER ASSEMBLY <AWD>......

23A-176

REMOVAL AND INSTALLATION. . . . .

23A-176

TRANSAXLE CONTROL MODULE (TCM)
.............................

23A-177

REMOVAL AND INSTALLATION. . . . .

23A-177

A/T FLUID COOLER LINE........

23A-178

REMOVAL AND INSTALLATION. . . . .

23A-178

THERMO VALVE CHECK...........

23A-180

23A-3

GENERAL INFORMATION

M12301000362USA0000010000

F6AJA and W6AJA models have been established.

Transaxle model

F6AJA

W6AJA

Drive type

FWD

AWD

Torque converter

Model

3-element, 1-stage, 2-phase

Stall torque ratio

1.83

Lock-up

Present

Shift position

P-R-N-D + sport mode

Transaxle type

Forward 6-speed, reverse 1-stage

Front and rear switching

Single pinion x 2 (front, rear)
Double pinion x 1 (reduction)
<Based on lepellecier system>

Clutch and brake

Clutch x 3 (low clutch, 3-5 reverse clutch, high clutch)
Brake x 2 (2-6 brake, low and reverse brake)

Oil pump

Trochoid type

Maximum hydraulic pressure

2.0 MPa

Torque capacity

320 N·m

Solenoid valve

Linear x 6 pieces
ON/OFF x 2 pieces

Transmission ratio

1st

4.199

2nd

2.405

3rd

1.583

4th

1.161

5th

0.855

6th

0.685

Reverse

3.457

Primary reduction ratio: A

1.071

Final reduction ratio: B

3.333

A × B

3.571

Weight (including transmission fluid)

FWD: Approximately 102 kg / AWD: Approximately 103 kg

Transmission fluid

DIA QUEEN ATF-J1



23A-4

AUTOMATIC TRANSAXLE MECHANICAL

GENERAL INFORMATION

TRANSAXLE

The transaxle is made up of the torque converter and
gear  train.  A  3-element,  1-stage,  2-phase  torque
converter with built-in torque converter clutch is used.
The gear train of F/W6AJA transaxle consists of 3 sets

of multi-disc type clutches, 2 sets of multi-disc type
brakes,  and  2  sets  of  planetary  gears  which  are
composed of a sun gear, carrier, annulus gear, and
pinion gear.



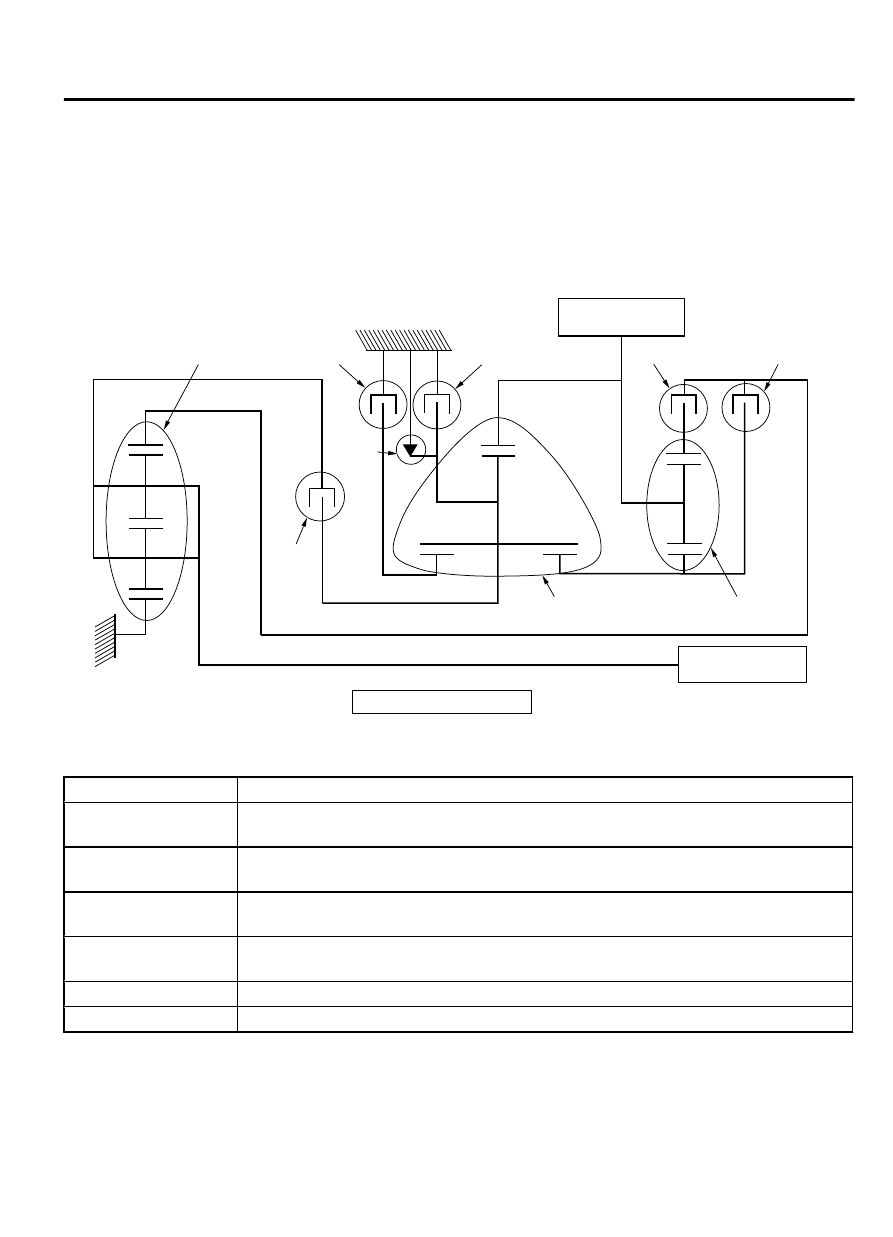

TRANSAXLE CONFIGURATION DRAWING

ZC600839

INPUT

OUTPUT

Low clutch

3-5 reverse clutch

Front planetary gear

Rear planetary gear

Low-reverse brake

2-6 brake

Reduction planetary gear

One-way
clutch

High
clutch

Based on lepellecier system

0000

COMPONENTS AND FUNCTIONS

Parts name

Function

Low clutch

Works with 1st, 2nd, 3rd, and 4th gears, and transfers the input from 3-5 reverse
clutch drum to the front internal gear.

3-5 reverse clutch

Works with 3rd, 5th, and reverse gears, and transfers the reduction internal gear
input to the front sun gear.

High clutch

Works with 4th, 5th, and 6th gears, and transfers the input shaft input to the rear
carrier.

Low and reverse brake Works with 4th, 5th, and 6th gears, and transfers the input shaft input to the rear

carrier.

2-6 brake

Works with 2nd and 6th, and fixes the rear sun gear rotation.

One-way clutch

Works when in 1st gear under acceleration status, and fixes the rear carrier.

AUTOMATIC TRANSAXLE MECHANICAL

23A-5

GENERAL INFORMATION

FUNCTION ELEMENT TABLE

Transmission range

Low clutch 3-5  reverse

clutch

High clutch Low

 and

reverse
brake

2-6 brake

One-way
clutch

P

-

-

-

-

-

-

R

-

×

-

×

-

-

N

-

-

-

-

-

-

D

1st

×

-

-

-

-

×

1st

 gear

engine brake

×

-

-

×

-

-

2nd

×

-

-

-

×

-

3rd

×

×

-

-

-

-

4th

×

-

×

-

-

-

5th

-

×

×

-

-

-

6th

-

-

×

-

×

-

×: Function element -: Not applicable



SECTIONAL VIEW

<F6AJA>
