Mitsubishi Outlander XL. Manual - part 465

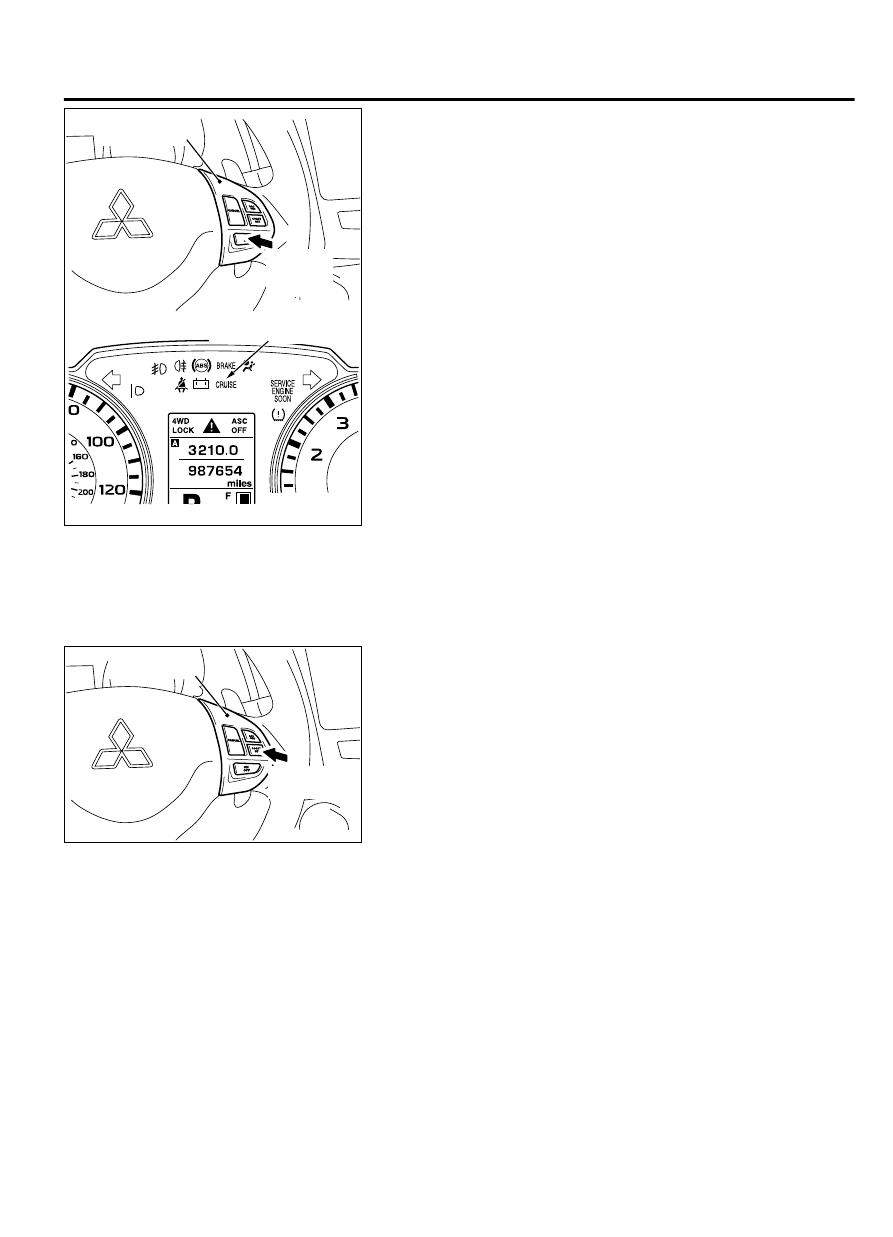

ZC602238

ZC601484

ZC601822

0000

"ON/OFF"
switch:
"ON"

"CRUISE" indicator light

Auto-cruise
control switch

2.

Check that the "CRUISE" indicator light within the combination
meter illuminates when the "ON/OFF" switch is switched "ON".

AUTO-CRUISE CONTROL SETTING

1.

Switch the "ON/OFF" switch to "ON".

2.

Drive at the desired speed, above approximately 40 km/h (25
mph).

ZC601484 0001

Auto-cruise
control switch

"COAST/SET"
switch

3.

Push the "COAST/SET" switch.

4.

Check  to  be  sure  that  when  the  "COAST/SET"  switch  is
released the speed is the constant speed.

NOTE:

If the vehicle speed decreases to approximately 15

km/h (9 mph) below the set speed because of climbing a
hill for example, it is normal for the auto-cruise control
to be cancelled. When the vehicle speed becomes
approximately 40 km/h (25 mph) or less, driving at
constant speed will be cancelled even if the vehicle speed
does not decrease 15 km/h (9 mph) or more.

SPEED-INCREASE SETTING

1.

Switch the "ON/OFF" switch to "ON".

2.

Set to the desired speed, above approximately 40 km/h (25
mph).

AUTO-CRUISE CONTROL SYSTEM

17b-53

ON-VEHICLE SERVICE

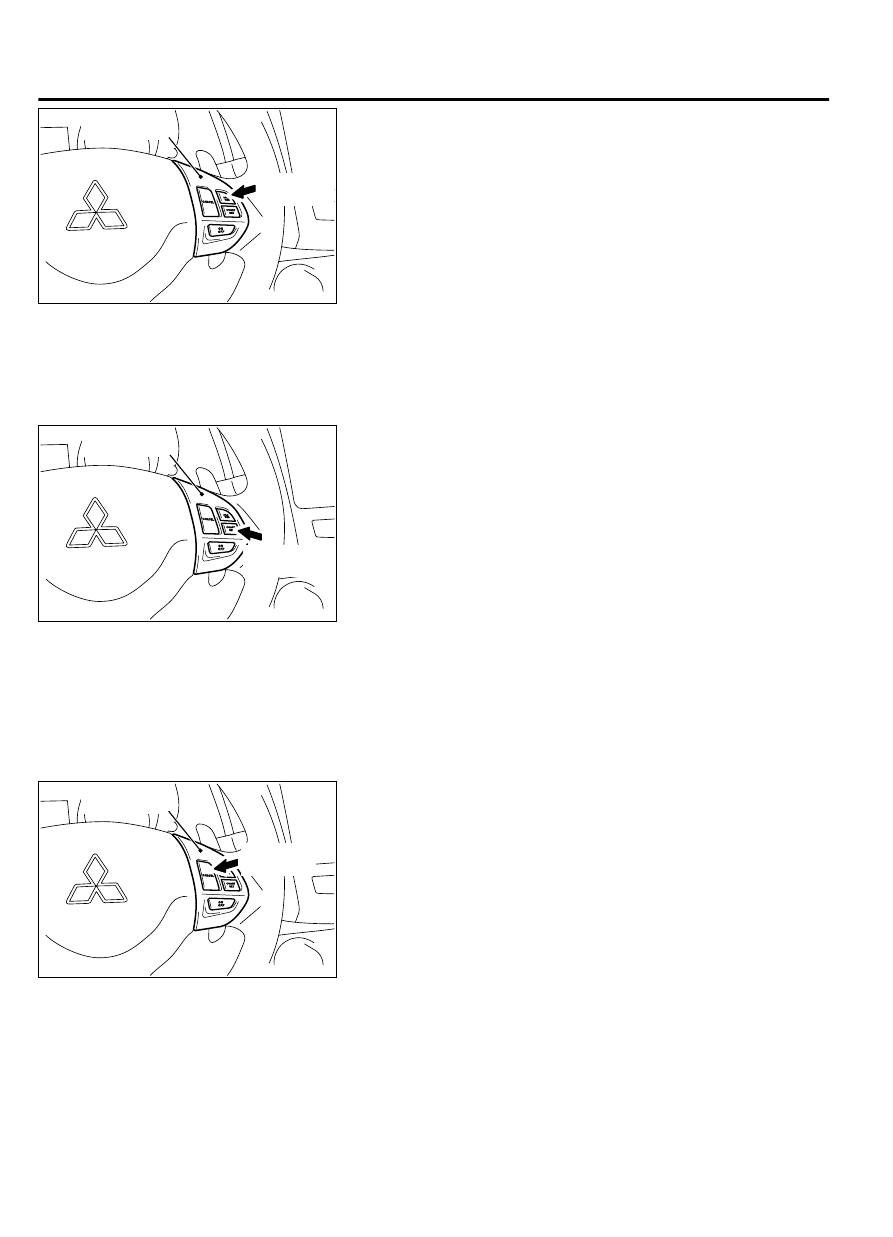

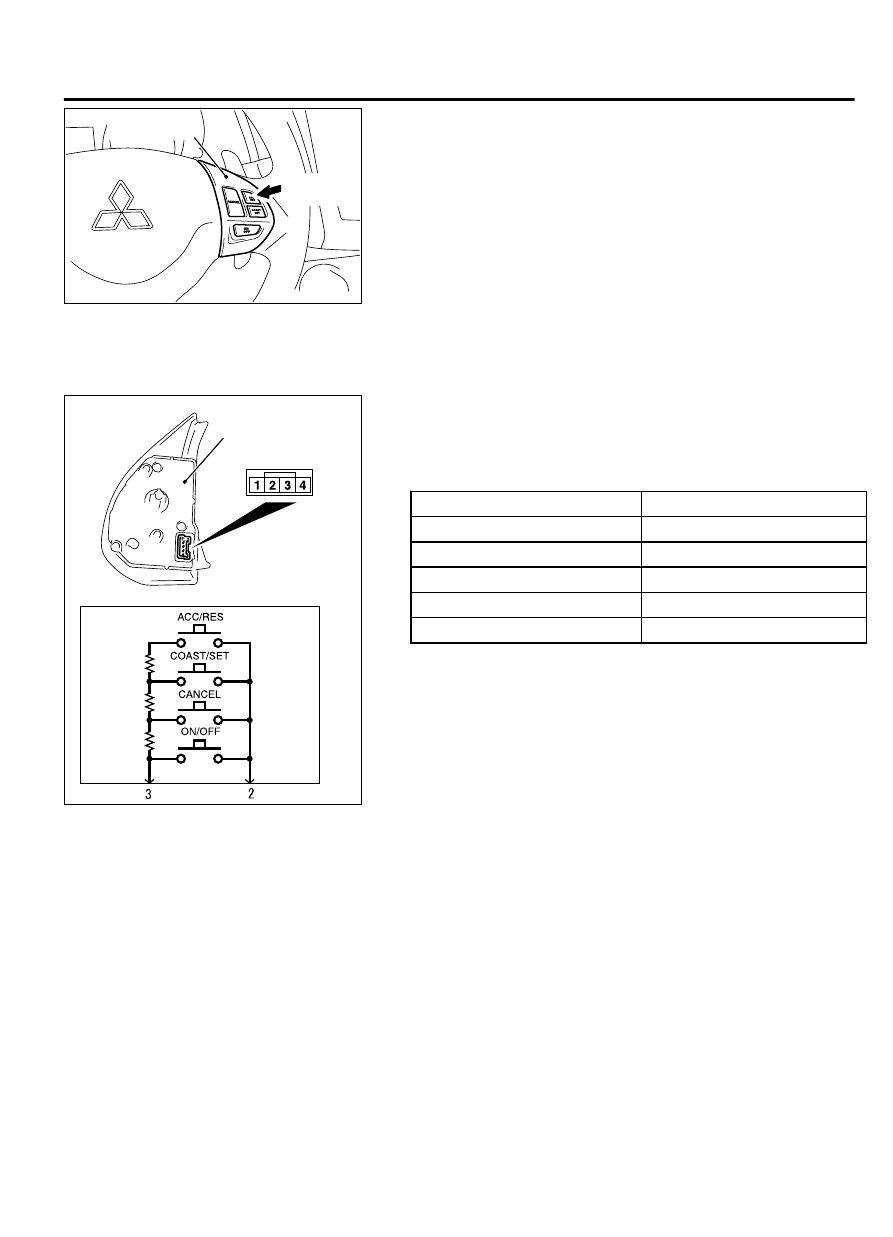

ZC6014840002

Auto-cruise
control switch

"ACC/RES"
switch

3.

Push the "ACC/ES" switch.

4.

Check to be sure that acceleration continues while the "ACC/
RES" switch is pushed, and that the speed at the time it was
released becomes the constant driving speed.

NOTE:

Acceleration can be continued even if the vehicle

speed has passed the high-speed limit [approximately 160
km/h (100 mph)]. But the constant driving speed when the
"ACC/RES" switch is released will be recorded as the high-
speed limit.

SPEED-REDUCTION SETTING

1.

Switch the "ON/OFF" switch to "ON".

2.

Set to the desired speed, above approximately 40 km/h (25
mph).

ZC601484 0001

Auto-cruise
control switch

"COAST/SET"
switch

3.

Push the "COAST/SET" switch.

4.

Check  to  be  sure  that  deceleration  continues  while  the
"COAST/SET" switch is pushed, and that the speed at the time
it was released becomes the constant driving speed.

NOTE:

When the vehicle speed reaches the low limit

[approximately 40 km/h (25 mph)] during deceleration, the
auto-cruise control will be cancelled.

RETURN TO THE SET SPEED BEFORE

CANCELLATION AND AUTO-CRUISE CONTROL

CANCELLATION

1.

Switch the "ON/OFF" switch to "ON".

2.

Set to the desired speed, above approximately 40 km/h (25
mph).

ZC6014840003

Auto-cruise
control switch

"CANCEL"
switch

3.

When any of the following operations are performed while at
constant  speed  during  auto-cruise  control,  check  if  normal
driving is resumed and deceleration occurs.

(1)

The "CANCEL" switch is pushed.

(2)

The brake pedal is depressed.

17b-54

AUTO-CRUISE CONTROL SYSTEM

ON-VEHICLE SERVICE

ZC6014840002

Auto-cruise
control switch

"ACC/RES"
switch

4.

At  a  vehicle  speed  of  approximately  40  km/h  (25  mph)  or
higher, check if when the "ACC/RES" switch is pushed, the
vehicle speed returns to the speed before auto-cruise control
driving was cancelled, and constant speed driving occurs.

5.

When  the  "ON/OFF"  switch  is  switched  to  the  "OFF"  while
driving at constant speed, check if normal driving is resumed
and deceleration occurs.

AUTO-CRUISE CONTROL SWITCH CHECK

M11702000012USA0000010001

1.

Remove the auto-cruise control switch (Refer to P.17b-56).

ZC602128AA00

Auto-cruise
control switch

2.

Measure the resistance between terminal 2 and terminal 3 when
each of the "COAST/SET", "ACC/RES", "CANCEL" and "ON/
OFF" switches is pressed. If values measured at the time each
switch is pressed correspond to those in the table below, the
resistance values are correct.

Switch position

Specified condition

"ON/OFF" switch "OFF"

Open circuit

"ON/OFF" switch "ON"

Continuity (less than 2 ohms)

"CANCEL" switch ON

202.5 - 208 Ω

"COAST/SET" switch ON

610.5 - 624.5 Ω

"ACC/RES" switch ON

1838 - 1877 Ω

STOPLIGHT SWITCH CHECK

M11702000009USA0000010000

1.

Disconnect the connector.

AUTO-CRUISE CONTROL SYSTEM

17b-55

ON-VEHICLE SERVICE

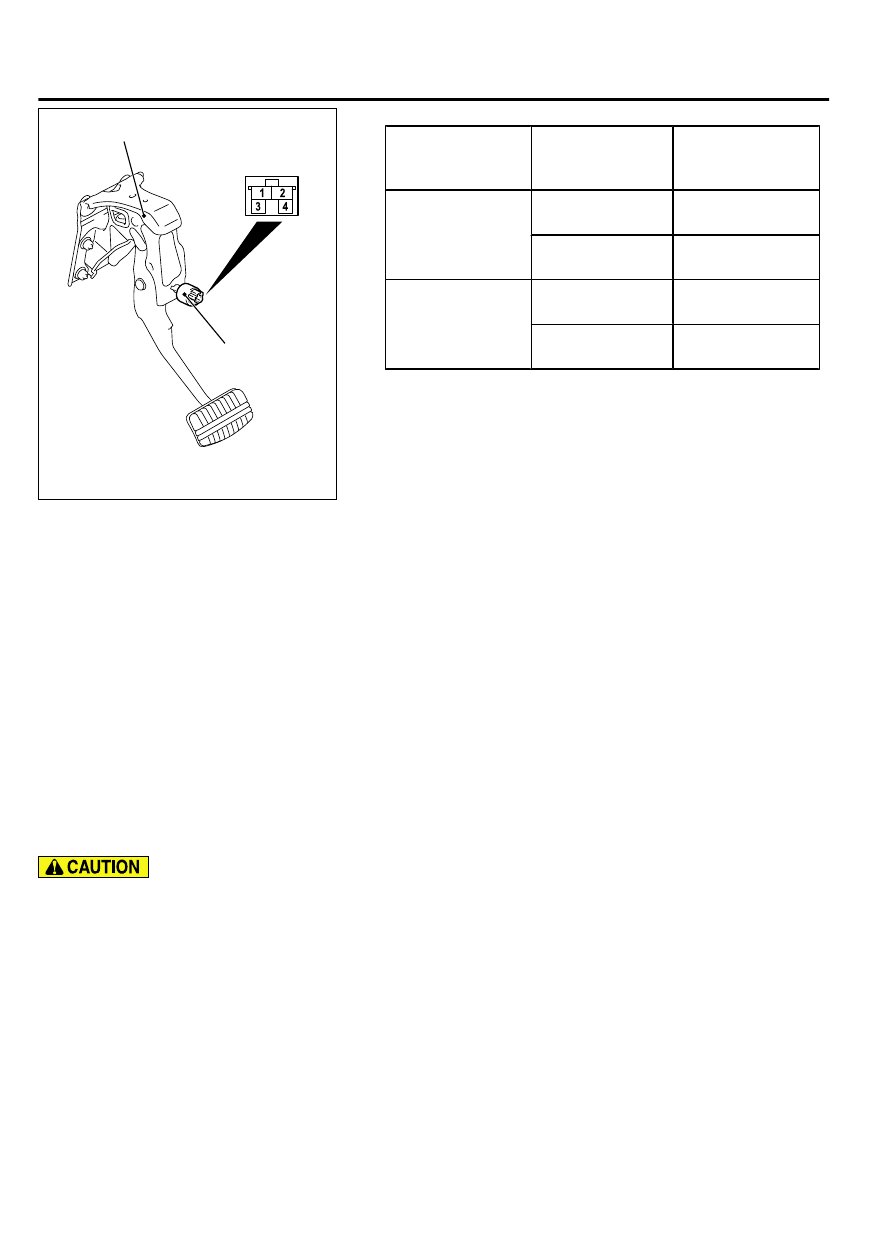

ZC6017070001

Brake pedal assembly

Stoplight switch

2.

Check for continuity between the terminals of the switch.

Measurement
condition

Terminal
connector

 of

tester

Specified
condition

When brake pedal
is depressed.

1 - 2 (for stoplight
switch)

Continuity

 (less

than 2 ohms)

3  -  4  (for  brake
switch)

Open circuit

When brake pedal
is not depressed.

1 - 2 (for stoplight
switch)

Open circuit

3  -  4  (for  brake
switch)

Continuity

 (less

than 2 ohms)

TRANSMISSION RANGE SWITCH CHECK

M11702000016USA0000010000

Refer to GROUP 23A, On-vehicle Service - Essential Service P.
23A-157.

THROTTLE ACTUATOR CONTROL MOTOR

CHECK

M11702000011USA0000010000

Refer to GROUP 13Aa, On-vehicle Service - Throttle Actuator
Control Motor Check P.13Aa-31.

AUTO-CRUISE CONTROL

REMOVAL AND INSTALLATION

M11702000014USA0000010000

Do  not  replace  the  ECM  and  the  ETACS-ECU
simultaneously. Always replace either one of the
ECUs first, and register the encrypted code (Refer

to GROUP 42C, Diagnosis - ID Code Registration
Necessity  Judgment  Table  P.42C-8).  Then,
replace the other ECU.
