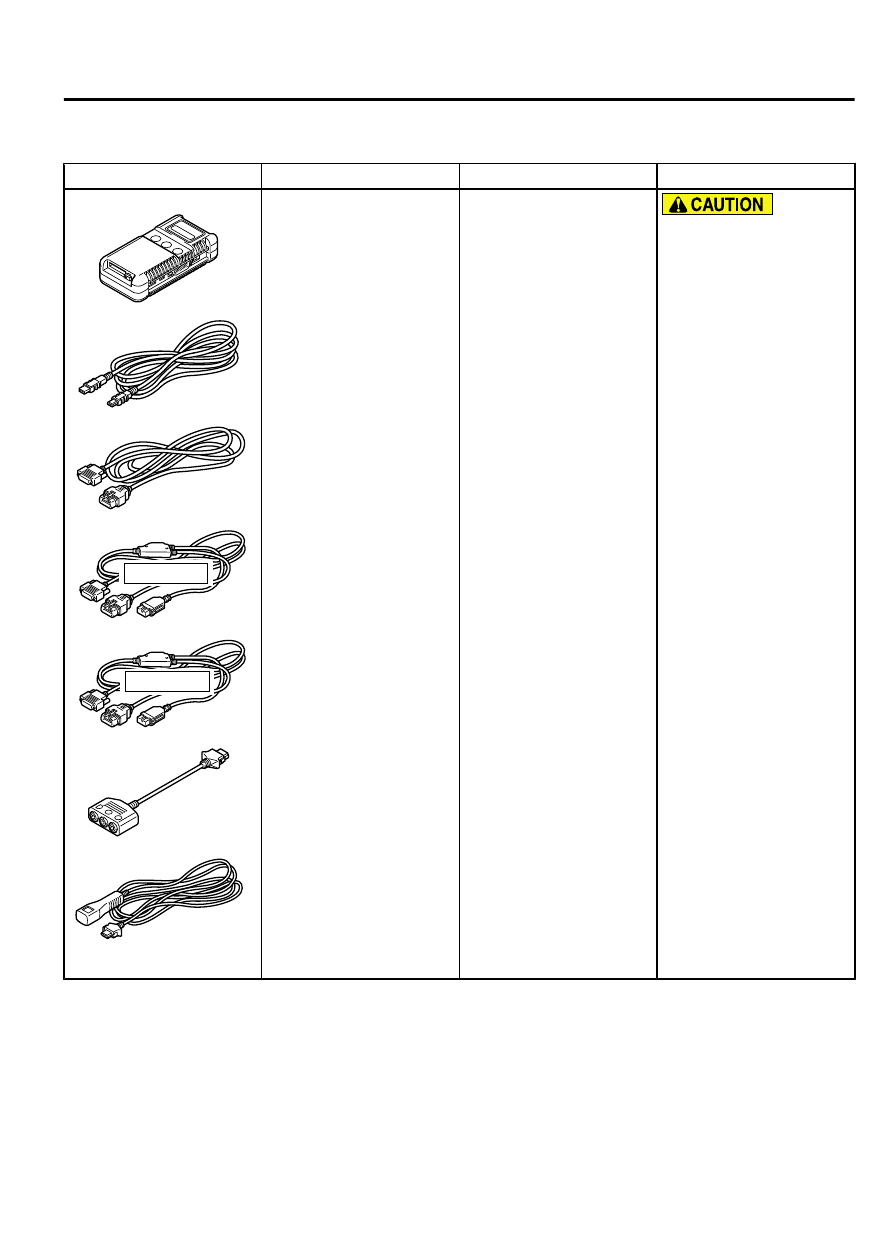

M.U.T.-III
scan
tool
display
Item
num
ber
Inspection item
Inspection requirement
Normal condition
Vehicle
speed sensor
4
Vehicle speed signal
Road test the vehicle
The speedometer
and
scan
tool
MB991958 display
the same value.
ECM TERMINAL VOLTAGE REFERENCE CHART FOR AUTO-CRUISE CONTROL
SYSTEM OPERATION
M11702000903USA0000010000

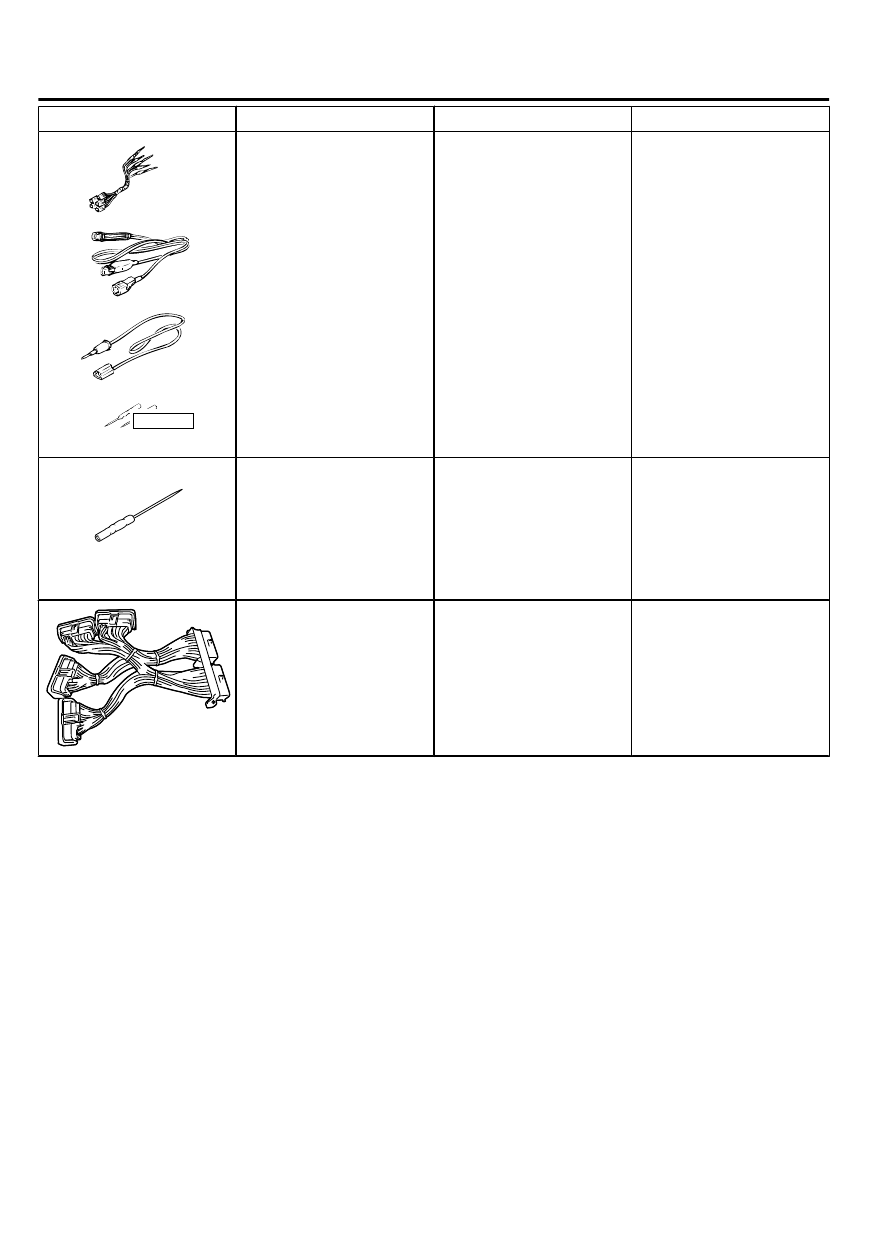

1.
Disconnect all ECM connectors, and connect
special tool MB992110 (Power plant ECU check
harness) in between.
2.
Measure the voltages between the check connector
terminals of special tool MB992110 and ground
terminals 81 or 93.
ZC6022260000

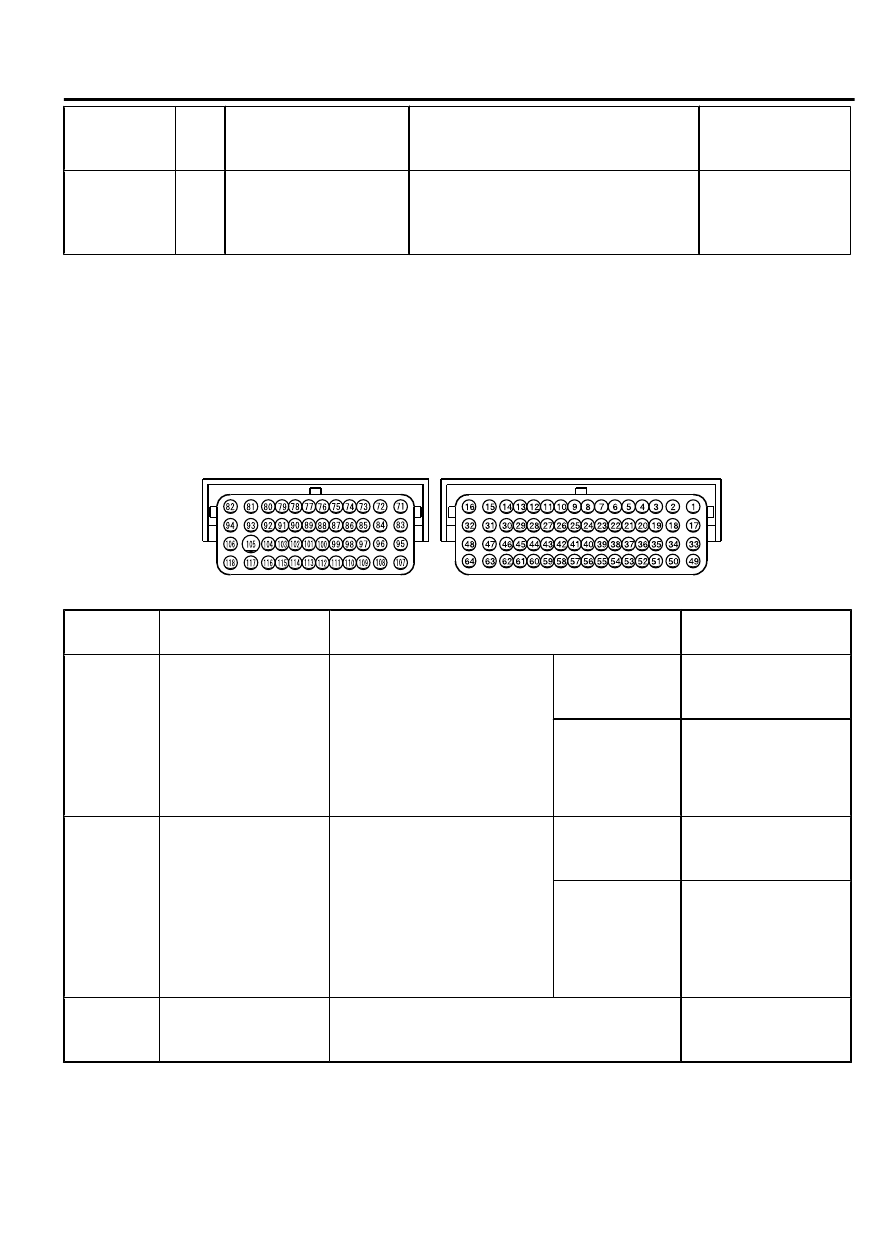

Special tool - Power plant ECU check harness (MB992110) connector: Component side
48-Pin connector
(ECM connector B-11)
64-Pin connector
(ECM connector B-10)
Terminal
number
Check item
Check condition
Normal condition
10
Throttle
position
sensor (main)
｠
Remove the intake air hose
at the throttle body
｠
Disconnect the throttle
position sensor, and then
connect terminals 3, 4, 5
and 6 with the use of the
special tool: MB991658.
｠
Ignition switch: "ON"
Fully close the
throttle
valve
with your finger
0.3 - 0.7 V
Fully open the
throttle
valve
with your finger
4.0 V or more
11
Throttle
position
sensor (sub)
｠
Remove the intake air hose
at the throttle body
｠
Disconnect the throttle
position sensor, and then
connect terminals 3, 4, 5
and 6 with the use of the
special tool: MB991658
(Test harness).
｠
Ignition switch: "ON"
Fully close the
throttle
valve
with your finger
2.2 - 2.8 V
Fully open the
throttle
valve
with your finger
4.0 V or more
12
Power supply voltage
applied to throttle
position sensor
Ignition switch: "ON"
4.9 - 5.1 V
