ZC600518

50 ± 10 N·m
37 ± 7 ft-lb

50 ± 10 N·m
37 ± 7 ft-lb

41 ± 10 N·m
30 ± 8 ft-lb

41 ± 10 N·m
30 ± 8 ft-lb

7.0 ± 3.0 N·m
62 ± 27 in-lb

5.0 ± 2.0 N·m
45 ± 17 in-lb

5.0 ± 2.0 N·m
45 ± 17 in-lb

11

14

13

12

10

8

16

15

17

18

19

20

1

2

7

6

9

3

3

N

N

N

N

N

N

N

5.0 ± 2.0 N·m
45 ± 17 in-lb

3

4

5

AA00

<4WD>

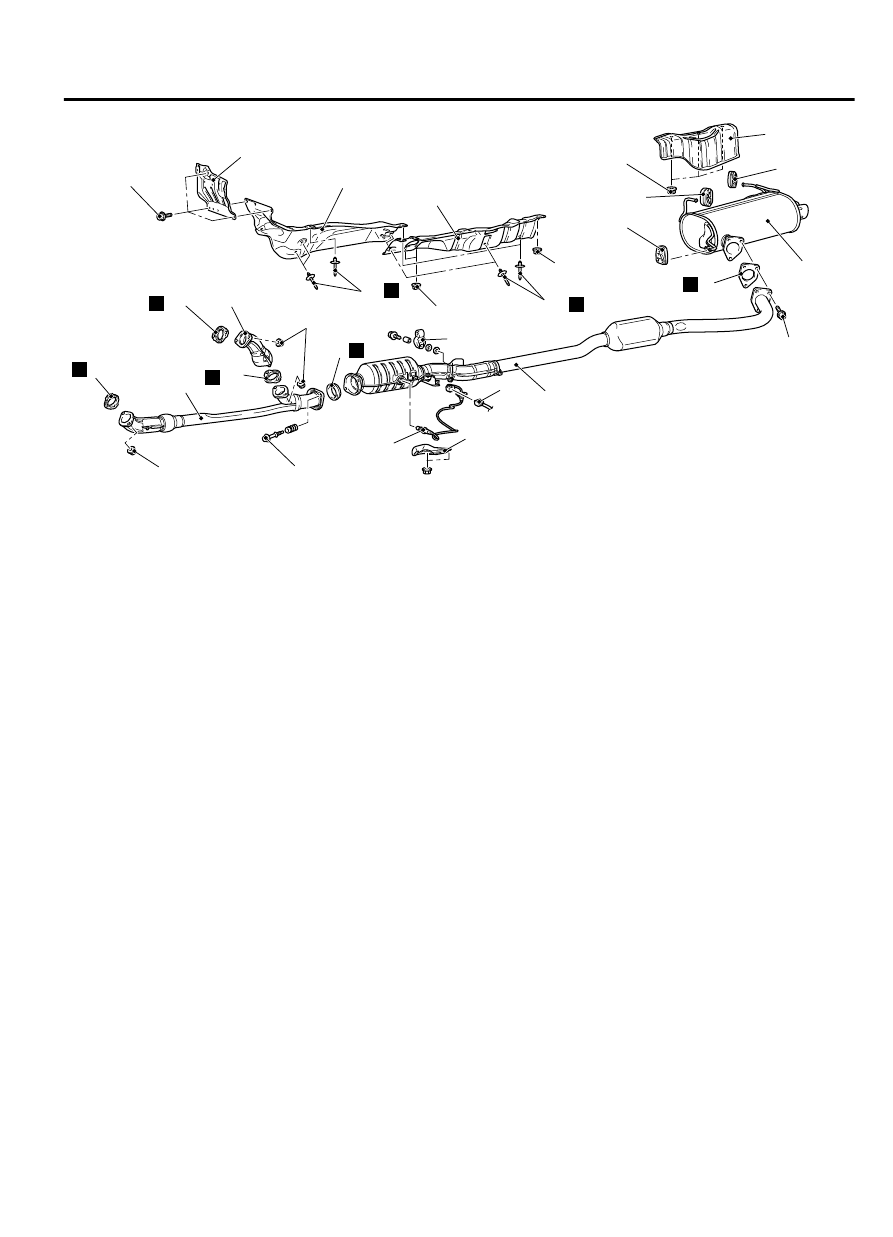

Exhaust main muffler and rear floor
panel heat protector removal steps

1.

Exhaust main muffler

2.

Gasket

3.

Hanger

20. Rear floor panel heat protector

Center exhaust pipe removal steps

·

Footrest

·

Lower  side  cover  (Refer  to  GROUP
52A, Front Floor Console Assembly P.
52A-8).

·

Turn up the driver's side floor carpet.

4.

Center  exhaust  pipe  heated  oxygen
sensor  connector  <Vehicles  for
California>

5.

Harness

 cover

 <Vehicles

 for

California>

<<A>>

>>B<<

6.

Center  exhaust  pipe  heated  oxygen
sensor <Vehicles for California>

7.

Center exhaust pipe

Center exhaust pipe removal steps

8.

Seal ring

2.

Gasket

9.

Hanger
Front  exhaust  pipe  and  front  floor
rear  panel  heat  protector  removal
steps

10. Front exhaust pipe
11. Gasket
12. Gasket
8.

Seal ring

13. Front exhaust pipe RH
14. Gasket
15. Dash panel heat protector

<<B>>

>>A<<

16. Rivet
17. Front floor front panel heat protector

<<B>>

>>A<<

18. Rivet
19. Front floor rear panel heat protector



Required Special Tool:

｠

MD998770: Oxygen Sensor Wrench

INTAKE AND EXHAUST

15-17

EXHAUST PIPE AND MAIN MUFFLER

REMOVAL SERVICE POINTS

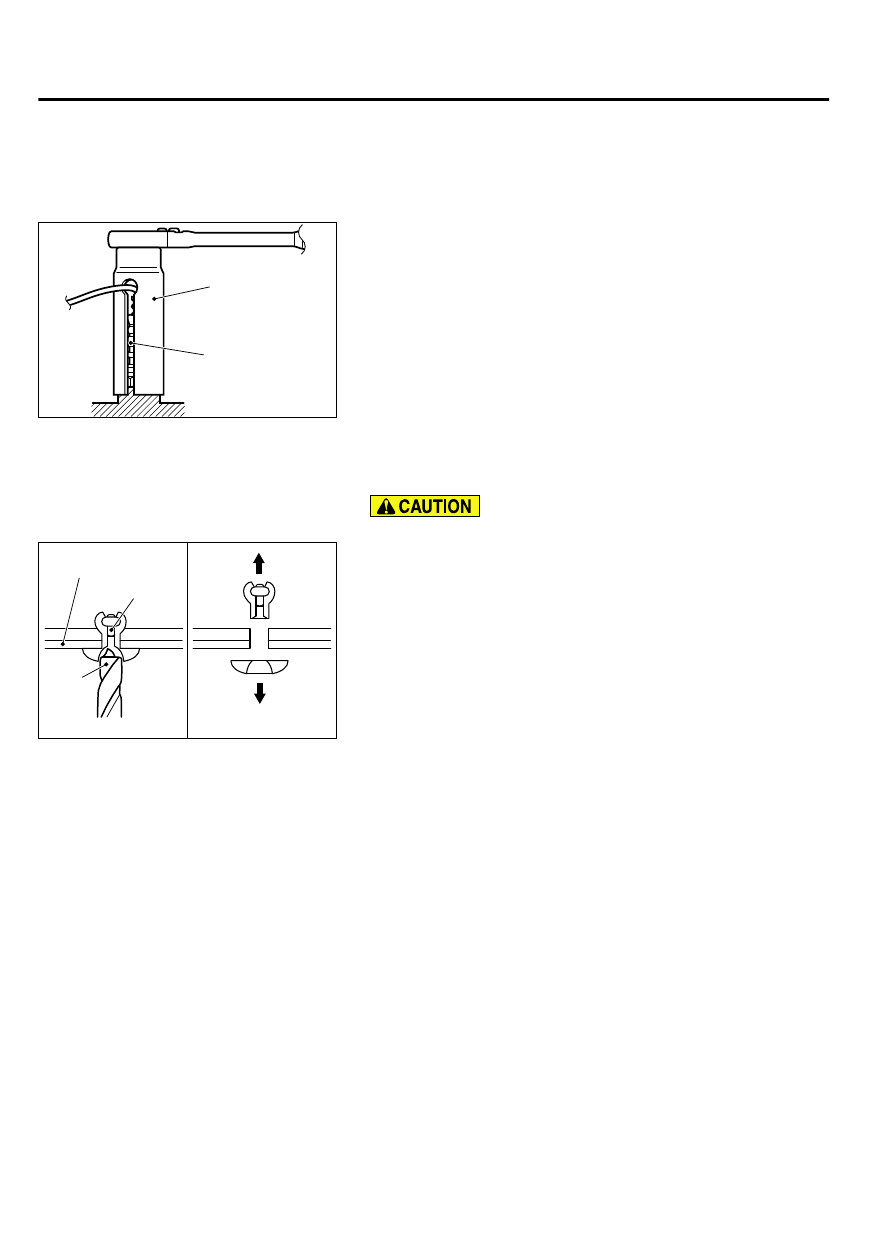

<<A>> CENTER EXHAUST PIPE HEATED OXYGEN
SENSOR REMOVAL <VEHICLES FOR CALIFORNIA>

ZC6006620000

MD998770

Heated oxygen
sensor

Use special tool MD998770 to remove the oxygen sensor.



<<B>> RIVET REMOVAL

Be careful not to damage the heat protector with the drill.

ZC6006650000

Heat protector

Rivet

Drill

Use a drill [6.0 mm (0.24 inch)] to make a hole in the rivet to
break it, and then remove the rivet.

15-18

INTAKE AND EXHAUST

EXHAUST PIPE AND MAIN MUFFLER

INSTALLATION SERVICE POINTS

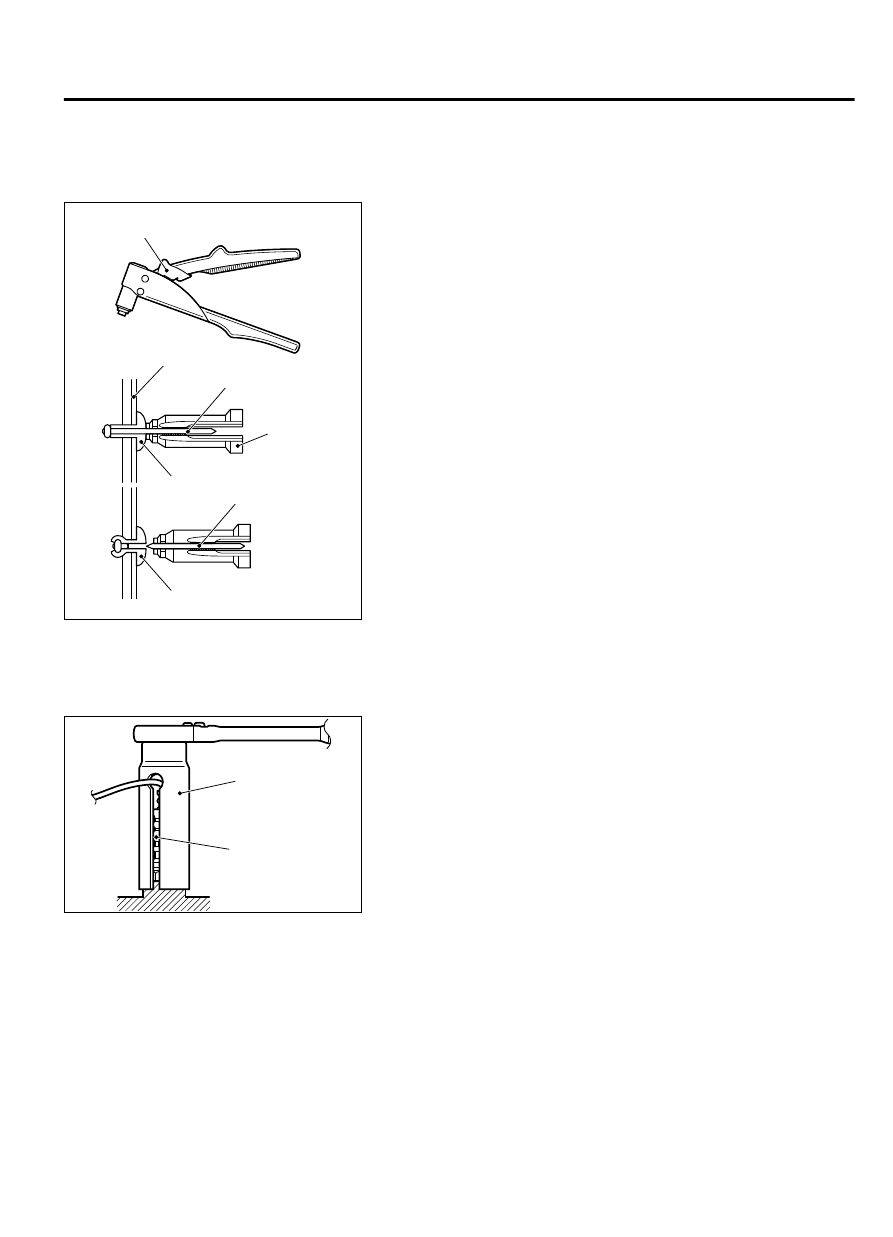

>>A<< RIVET INSTALLATION

ZC6006640000

Rivet tool

Heat protector

Section A

Rivet

Section A

Rivet

Rivet tool

Use the rivet tool shown in the illustration to attach the rivet by
the following procedure.

1.

Place the recommended tool over section A of the rivet.

2.

While  pushing  the  flange  surface  of  the  rivet  with  the
recommended tool, press the handle of the tool.

3.

The thin part of section A of the rivet will break and the rivet
will then be attached.



>>B<< CENTER EXHAUST PIPE HEATED OXYGEN
SENSOR INSTALLATION <VEHICLES FOR CALIFORNIA>

ZC6006620000

MD998770

Heated oxygen
sensor

Use special tool MD998770 to install the oxygen sensor.

INTAKE AND EXHAUST

15-19

EXHAUST PIPE AND MAIN MUFFLER
