ZC6012370000

Fuel level sensor
(sub) connector

7.

Connect the fuel level sensor (sub) connector.

ZC6012360000

Floor inspection lid (RH)

8.

Install the floor inspection lid (RH).

9.

Return the floor carpet to the original condition and install the
second seat assembly (Refer to GROUP 52A, Second Seat
Assembly P.52A-21).

FUEL TANK

REMOVAL AND INSTALLATION <FWD>

M11305000019USA0000010002

Pre-removal operation

Draining Fuel

Center Exhaust Pipe Removal (Refer to GROUP 15, Exhaust

Pipe Main Muffler P.15-16).

Engine Room Under Cover Rear Removal (Refer to GROUP

51A, Under Cover P.51A-18).

Post-installation operation

Engine Room Under Cover Rear Installation (Refer to GROUP

51A, Under Cover P.51A-18).

Center Exhaust Pipe Installation (Refer to GROUP 15, Exhaust

Pipe Main Muffler P.15-16).

Refilling Fuel

Check for Fuel Leaks

FUEL TANK

FUEL SUPPLY

13B-13

FUEL TANK

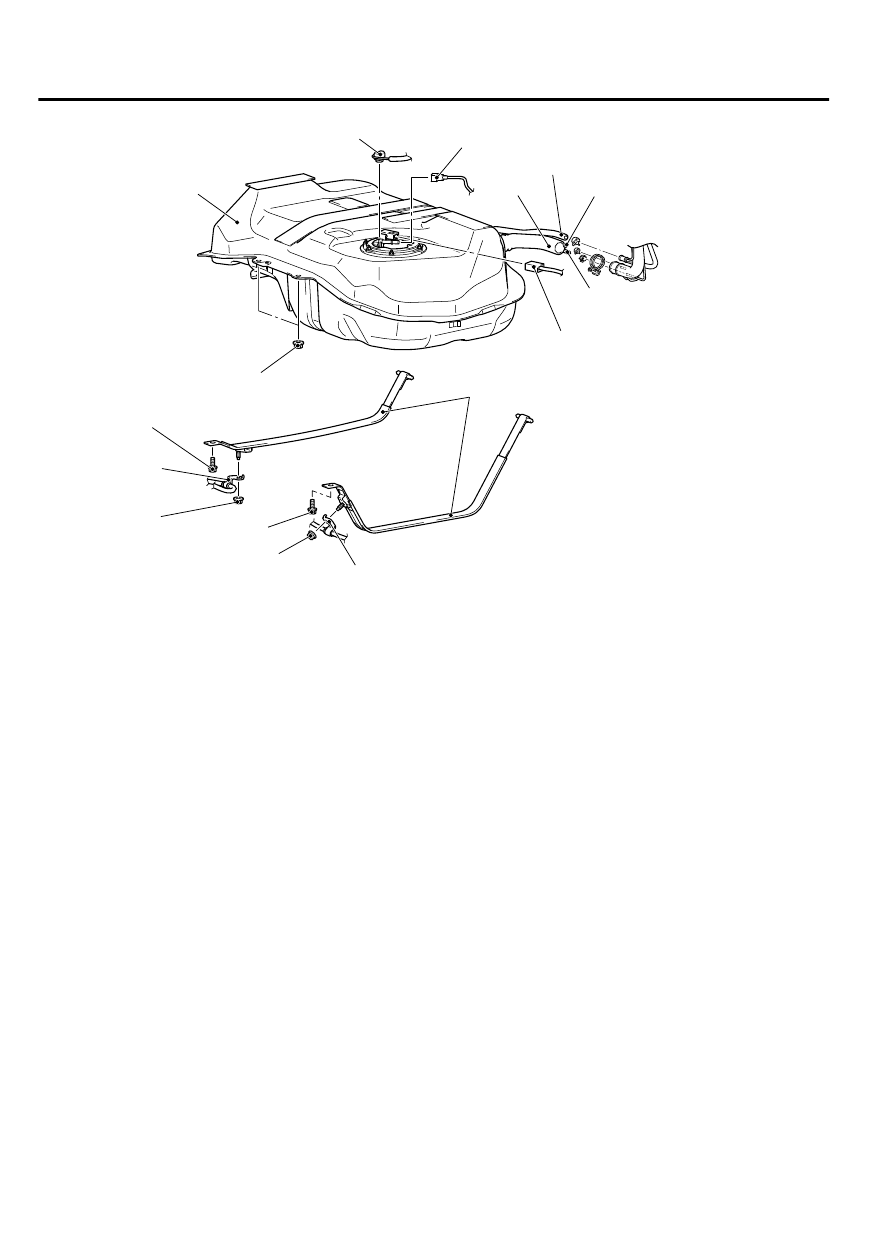

ZC600732

8

8

9

2

4

1

3

AA00

5

6

7

10

13 ± 2 N·m
111 ± 22 in-lb

41 ± 10 N·m
31 ± 7 ft-lb

13 ± 2 N·m
111 ± 22 in-lb

41 ± 10 N·m
31 ± 7 ft-lb

22 ± 5 N·m
16 ± 4 ft-lb

Fuel tank removal steps

·

Second  seat  assembly  (Refer  to
GROUP

 52A,

 Second

 Seat

Assembly P.52A-21).

<<A>>

1.

Fuel pump module connector

<<A>>

2.

Fuel  tank  differential  pressure
sensor connector connection

<<A>>

>>B<<

3.

Fuel main pipe connection

4.

Fuel filler hose connection

Fuel tank removal steps

5.

Fuel leveling hose connection

6.

Fuel tank vapor hose A connection

7.

Fuel tank vapor hose B connection

8.

Parking  brake  rear  cable  clamp
connection

<<B>>

9.

Fuel tank band

<<B>>

10. Fuel tank assembly

13B-14

FUEL SUPPLY

FUEL TANK

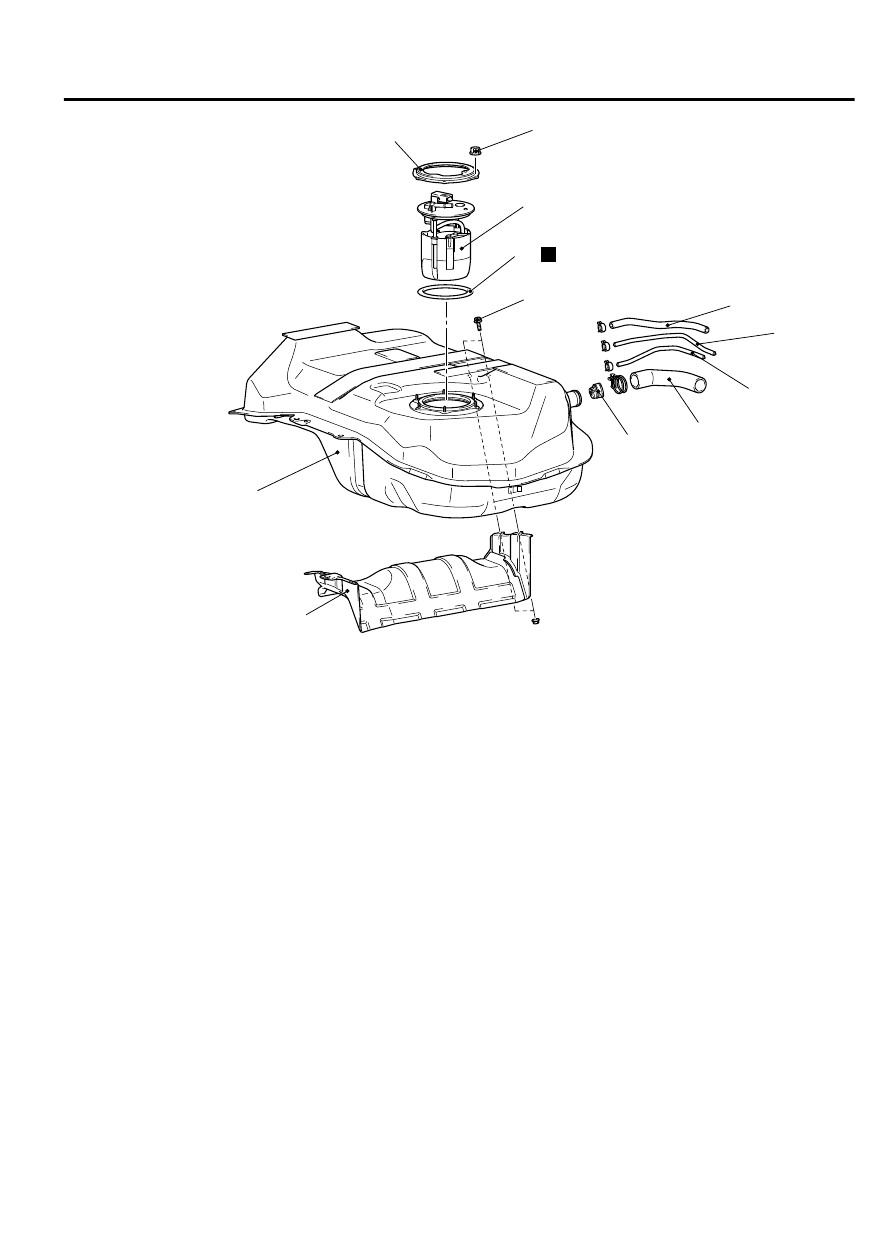

ZC600792

2.5 ± 0.4 N·m
22 ± 4 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

11

12

19

20

AA00

14

15

16

17

18

13

N

Fuel tank removal steps

11. Plate

<<C>>

>>A<<

12. Fuel pump module
13. Fuel pump module gasket
14. Fuel filler hose
15. Fuel leveling hose
16. Fuel tank vapor hose A

Fuel tank removal steps

17. Fuel tank vapor hose B
18. Fuel shut-off valve
19. Fuel tank lower protector
20. Fuel tank

FUEL TANK FILLER TUBE

FUEL SUPPLY

13B-15

FUEL TANK

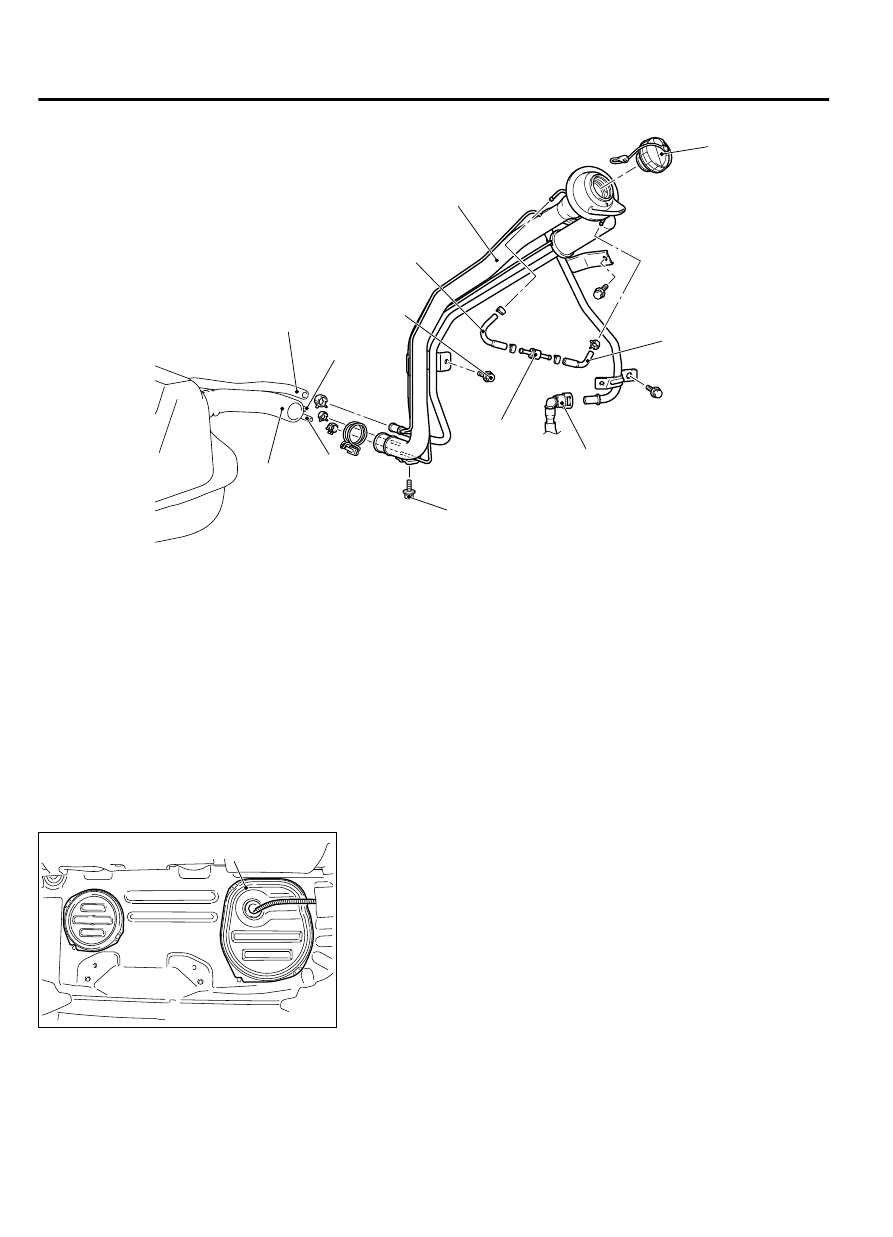

ZC600897

24

22

23

25

24

21

AA01

4

5

6

7

20 ± 5 N·m
15 ± 3 ft-lb

20 ± 5 N·m
15 ± 3 ft-lb

Fuel tank filler tube removal steps

4.

Fuel filler hose connection

5.

Fuel leveling hose connection

6.

Fuel tank vapor hose A connection

7.

Fuel tank vapor hose B connection

21. Fuel vapor tube connection

Fuel tank filler tube removal steps

22. Fuel cap
23. Fuel tank filler tube assembly
24. Fuel tank filler tube vapor hose
25. Check valve

REMOVAL SERVICE POINTS

<<A>> FUEL PUMP MODULE CONNECTOR/FUEL TANK
DIFFERENTIAL PRESSURE SENSOR CONNECTOR/FUEL
MAIN PIPE DISCONNECTION

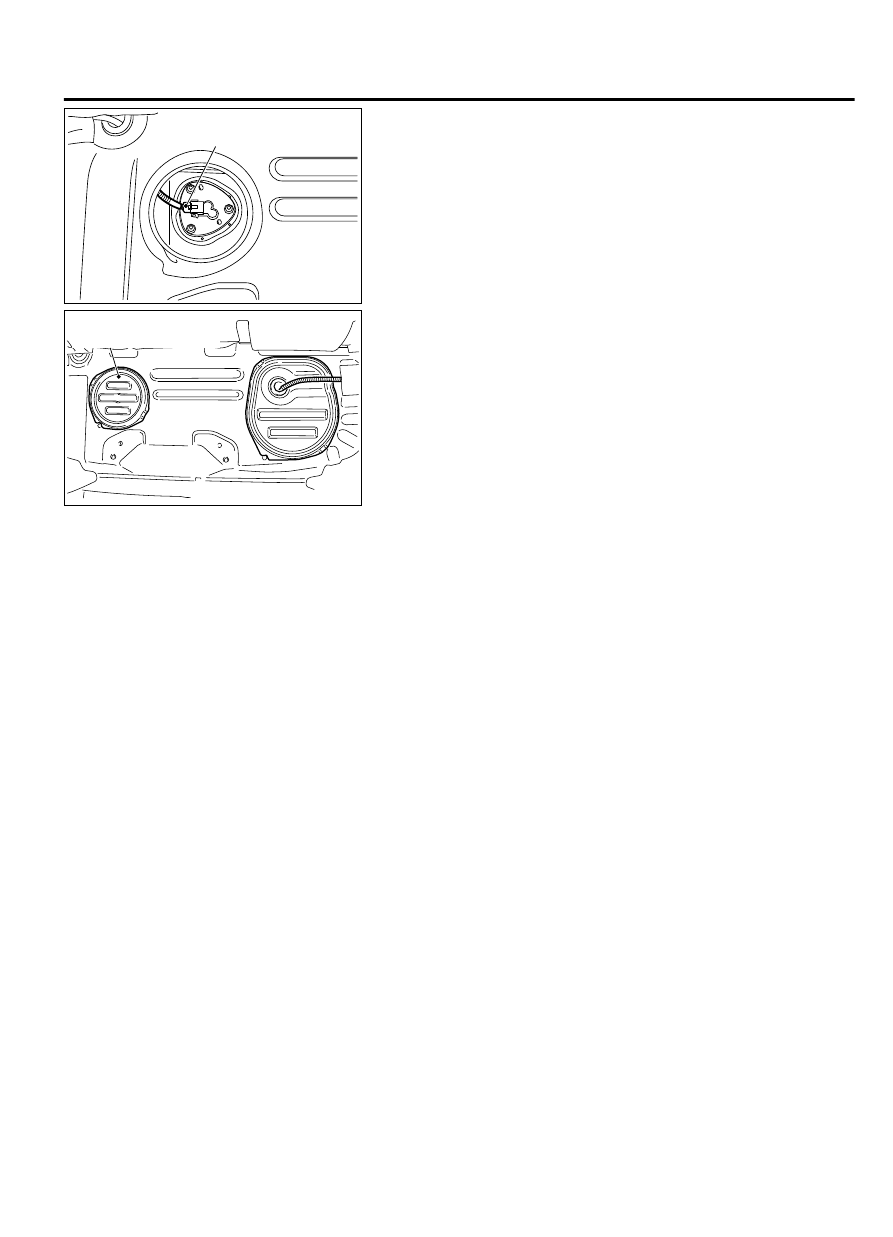

ZC6012310000

Floor inspection lid (LH)

1.

Remove the 2nd seat assembly and turn up the floor carpet.

2.

Remove the floor inspection lid (LH).

13B-16

FUEL SUPPLY

FUEL TANK
