Mitsubishi Outlander XL. Manual - part 423





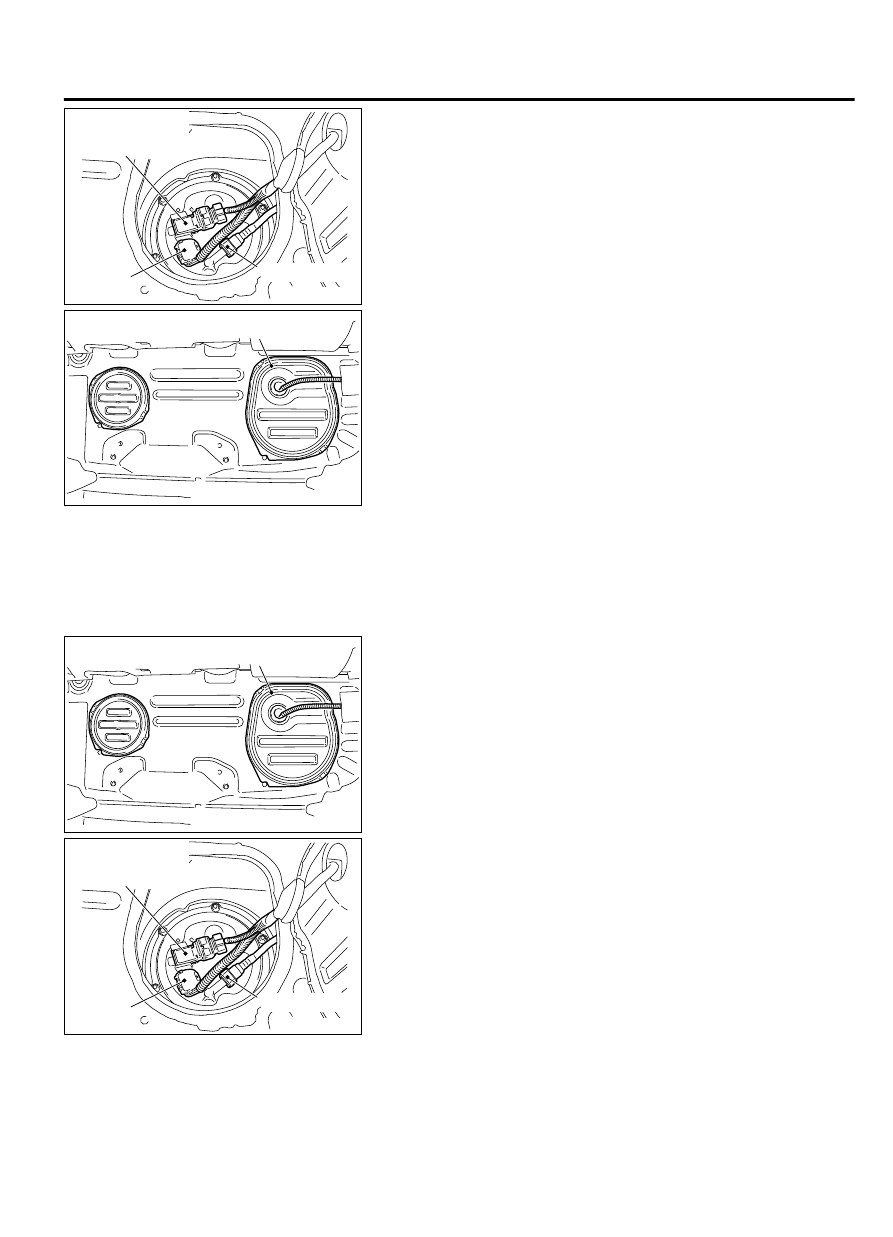

AC506219

ZC6012320001

Fuel pump
module
connector

Fuel main pipe

Fuel tank differential
pressure sensor
connector

14.

Connect  the  fuel  pump  module  connector  and  fuel  tank
differential pressure sensor connector.

ZC6012310000

Floor inspection lid (LH)

15.

Install the floor inspection lid (LH).

16.

Return the floor carpet to the original condition and install the
second seat assembly (Refer to GROUP 52A, Second Seat
Assembly P.52A-21).

FUEL PUMP MODULE REPLACEMENT <AWD>

M11305000049USA0000010001

1.

Remove the second seat assembly (Refer to GROUP 52A,
Second  Seat  Assembly  P.52A-21)  and  turn  up  the  floor
carpet.

ZC6012310000

Floor inspection lid (LH)

2.

Remove the floor inspection lid (LH).

AC506219

ZC6012320001

Fuel pump
module
connector

Fuel main pipe

Fuel tank differential
pressure sensor
connector

3.

Disconnect  the  fuel  pump  module  connector  and  fuel  tank
differential pressure sensor connector.

4.

Release the fuel pressure in the fuel line. [Refer to GROUP
13Aa,  On-vehicle  Service  -  Fuel  Pump  Connector
Disconnection  (How  to  Reduce  Pressurized  Fuel  Lines)  P.
13Aa-20.]

FUEL SUPPLY

13B-9

ON-VEHICLE SERVICE

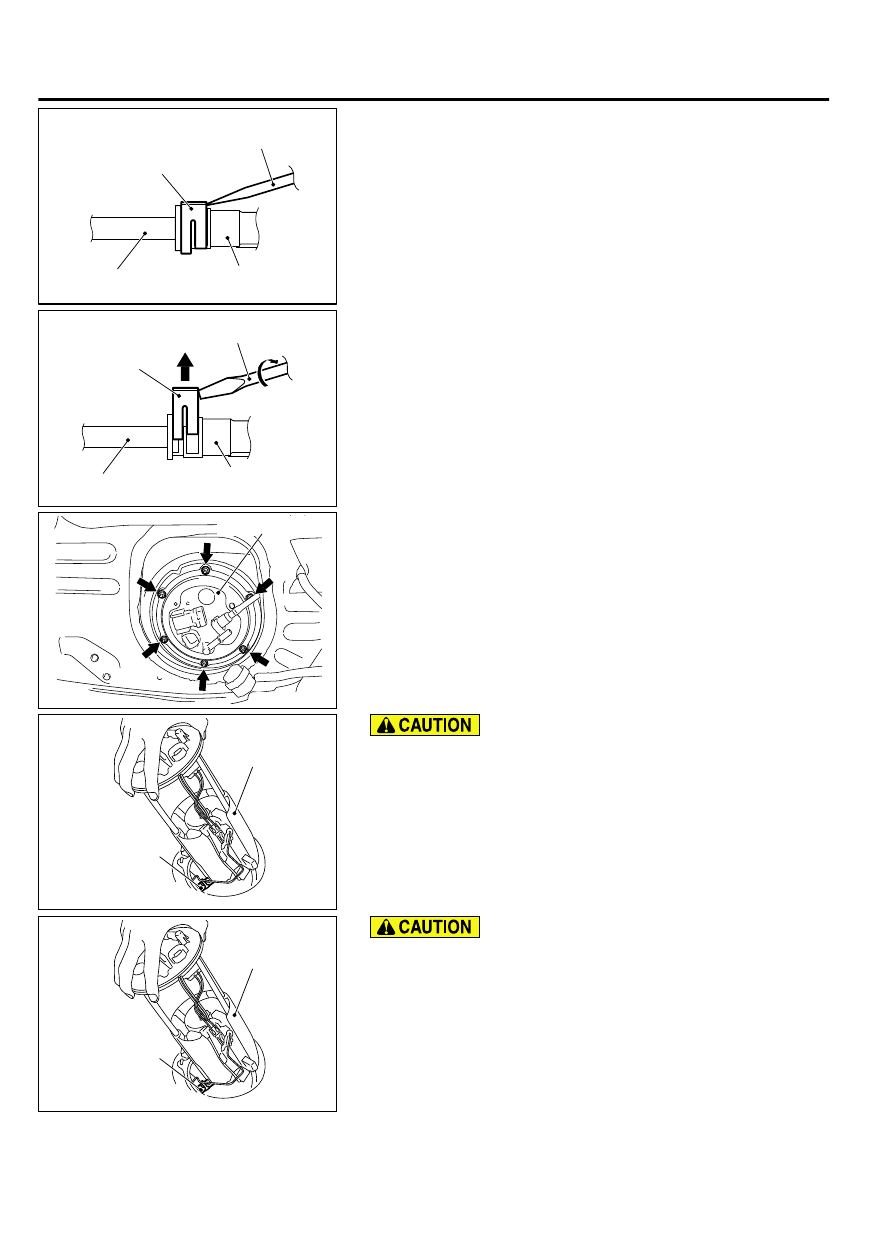

ZC3056040000

Fuel main pipe

Retainer

Fuel pump module

Flat-tip
screwdriver

5.

Insert a flat-tip screwdriver [6mm (0.24 inch) wide and 1mm
(0.04 inch) thick] into the retainer of the fuel main pipe.

ZC3056050001

Retainer

Fuel main pipe

Fuel pump module

Flat-tip screwdriver

6.

Turn the flat-tip screwdriver about 90 degrees to push up the
retainer, and disconnect the fuel main pipe from the fuel pump
module.

ZC6012330001

Fuel pump module

7.

Remove the mounting nuts of fuel pump module.

ZC305598 0000

Fuel tank
pump module

Suction hose

Pay attention not to damage the fuel level sensor and float
of  the  fuel  pump  module  when  removing  the  fuel  pump
module from the service hole.

8.

While  removing  the  fuel  pump  module  from  the  fuel  tank,
disconnect  the  suction  hose  from  the  fuel  pump  module  to
remove the fuel pump module from the service hole.

9.

Replace the fuel pump module gasket with a new one.



ZC305598 0000

Fuel tank
pump module

Suction hose

Pay attention not to damage the fuel level sensor and the
float of the fuel pump module when installing it to the fuel
tank. Pay attention to prevent the float of fuel level sensor
from  being  trapped  by  the  suction  hose  inside  the  fuel
tank.

When  installing  the  fuel  pump  module  to  the  fuel  tank,
check  that  the  fuel  level  sensor  moving  area  moves
smoothly.

13B-10

FUEL SUPPLY

ON-VEHICLE SERVICE

10.

While  inserting  the  fuel  pump  module  into  the  fuel  tank,
connect the suction hose to the fuel pump module to install
the fuel pump module to the fuel tank.
While inserting the fuel tank pump module into the fuel tank
from the service hole, connect the suction hose to the fuel
tank pump module to install the fuel tank pump module to the
fuel tank.

11.

Tighten the fuel pump module mounting nuts to the specified
torque.

Tightening torque: 2.5 ± 0.4 N·m (22 ± 4 in-lb)

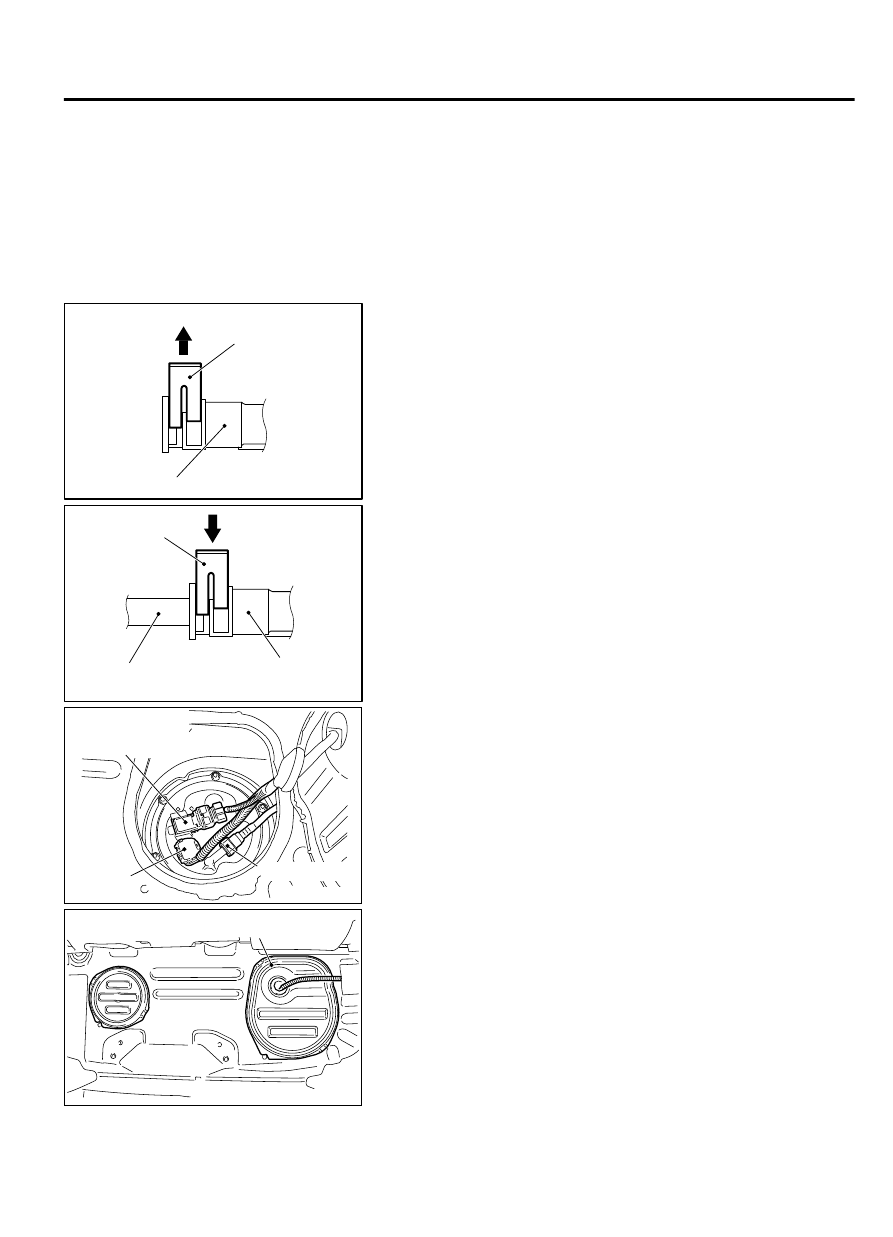

ZC3056060000

Fuel main pipe

Retainer

12.

Before the installation, push up the retainer of the fuel main
pipe.

ZC3056070000

Retainer

Fuel pump module

Fuel main pipe

13.

Connect  the  connector  of  fuel  main  pipe  to  the  fuel  pump
module securely and push down the retainer of the connector
to lock it firmly.

14.

After the installation, slightly pull the fuel main pipe to check
that  it  is  connected  securely.  At  this  time,  also  check  that
there is approximately 1 mm (0.04 inch) play.

AC506219

ZC6012320001

Fuel pump
module
connector

Fuel main pipe

Fuel tank differential
pressure sensor
connector

15.

Connect  the  fuel  pump  module  connector  and  fuel  tank
differential pressure sensor connector.

ZC6012310000

Floor inspection lid (LH)

16.

Install the floor inspection lid (LH).

17.

Return the floor carpet to the original condition and install the
second seat assembly (Refer to GROUP 52A, Second Seat
Assembly P.52A-21).

FUEL SUPPLY

13B-11

ON-VEHICLE SERVICE

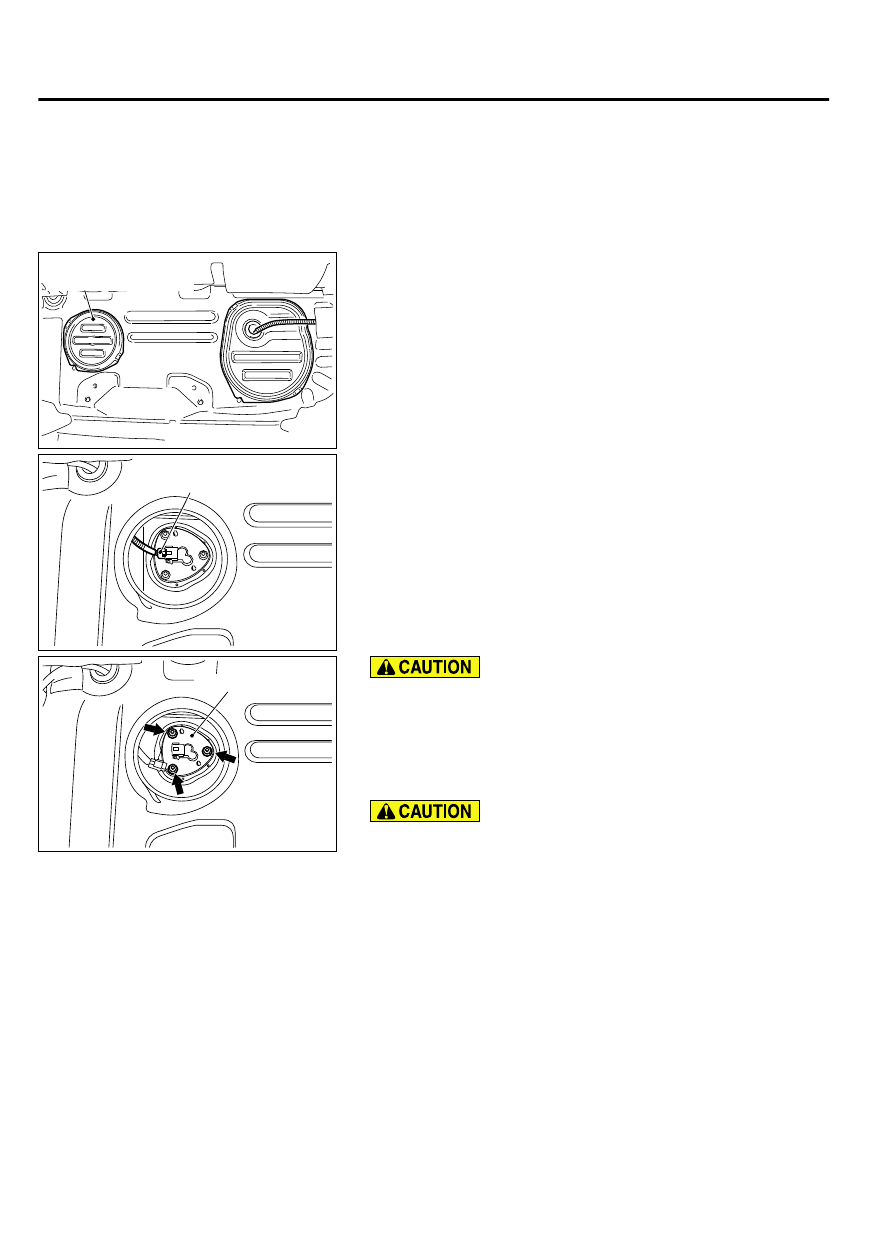

FUEL LEVEL SENSOR (SUB) REPLACEMENT

<AWD>

M11305000056USA0000010000

1.

Remove the second seat assembly (Refer to GROUP 52A,
Second  Seat  Assembly  P.52A-21)  and  turn  up  the  floor
carpet.

ZC6012360000

Floor inspection lid (RH)

2.

Remove the floor inspection lid (RH).

ZC6012370000

Fuel level sensor
(sub) connector

3.

Disconnect the fuel level sensor (sub) connector.



ZC6012380000

Fuel level sensor (sub)

Pay attention not to damage the fuel level sensor (sub) and
the float of the fuel level sensor (sub) when withdrawing it
from the service hole.

4.

Remove  the  fuel  level  sensor  (sub)  mounting  nuts,  and
remove the fuel level sensor (sub) from service hole.

5.

Replace the fuel level sensor (sub) gasket with a new one.

Pay attention not to damage the fuel level sensor (sub) and
the float of the fuel level sensor (sub) when installing it to
the fuel tank through the service hole.

6.

Install the fuel level sensor (sub) to the fuel tank through the
service hole, and tighten the mounting nuts to the specified
torque.

Tightening torque: 2.5 ± 0.4 N·m (22 ± 4 in-lb)

13B-12

FUEL SUPPLY

ON-VEHICLE SERVICE
