Mitsubishi Outlander XL. Manual - part 390





TROUBLESHOOTING HINTS (The most likely
causes for this case:)

Malfunction of the data link connector.

Open/short circuit or poor contact in the data link
connector.

Malfunction of the CAN communication.

Malfunction of the scan tool.

Malfunction of the ECM.



DIAGNOSIS

Required Special Tools:

MB991958: Scan tool (M.U.T.-III Sub Assembly)

MB991824: V.C.I.

MB991827: USB Cable

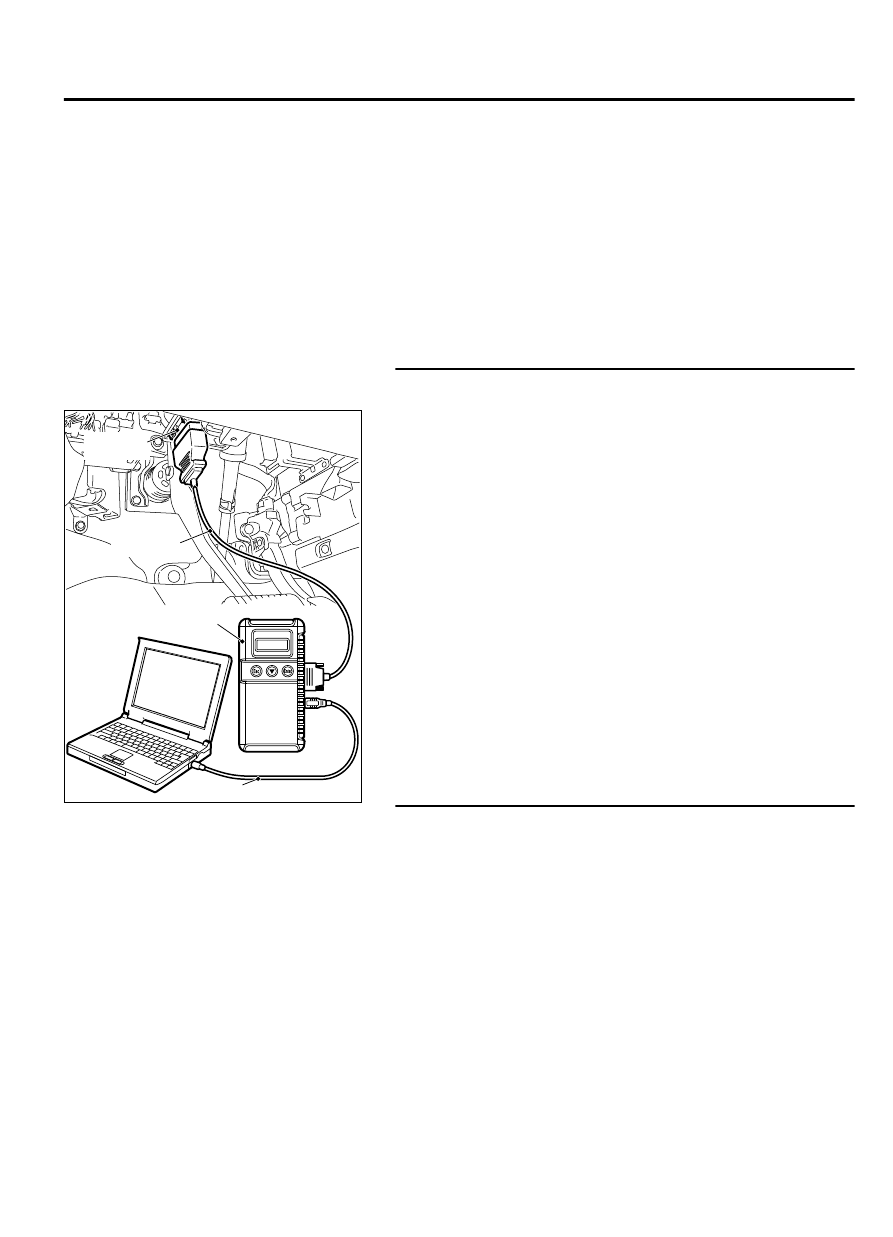

STEP 1. Check the vehicle communication interface (V.C.I.)
MB991824 operations.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

(1)

Connect the Scan tool to the data link connector.

(2)

When the power of V.C.I. is turned to ON, the indicator lamp
of the V.C.I. illuminates in green.

The indicator lamp of the V.C.I. illuminates in green.

Q:Is the indicator lamp of the V.C.I. illuminates in green?

YES:

 Go to Step 2.

NO:

 Use scan tool, perform CAN bus line diagnosis.

STEP 2. Measure the battery positive voltage.

(1)

Measure the battery positive voltage during cranking.

The voltage should be 8 volts or more.

Q:Is the measured voltage 8 volts or more?

YES:

 Go to Step 3.

NO:

 Check the battery. Refer to GROUP 54A, Battery -

Battery Check P.54Aa-2. Then confirm that the
malfunction symptom is eliminated.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-755

SYMPTOM PROCEDURES

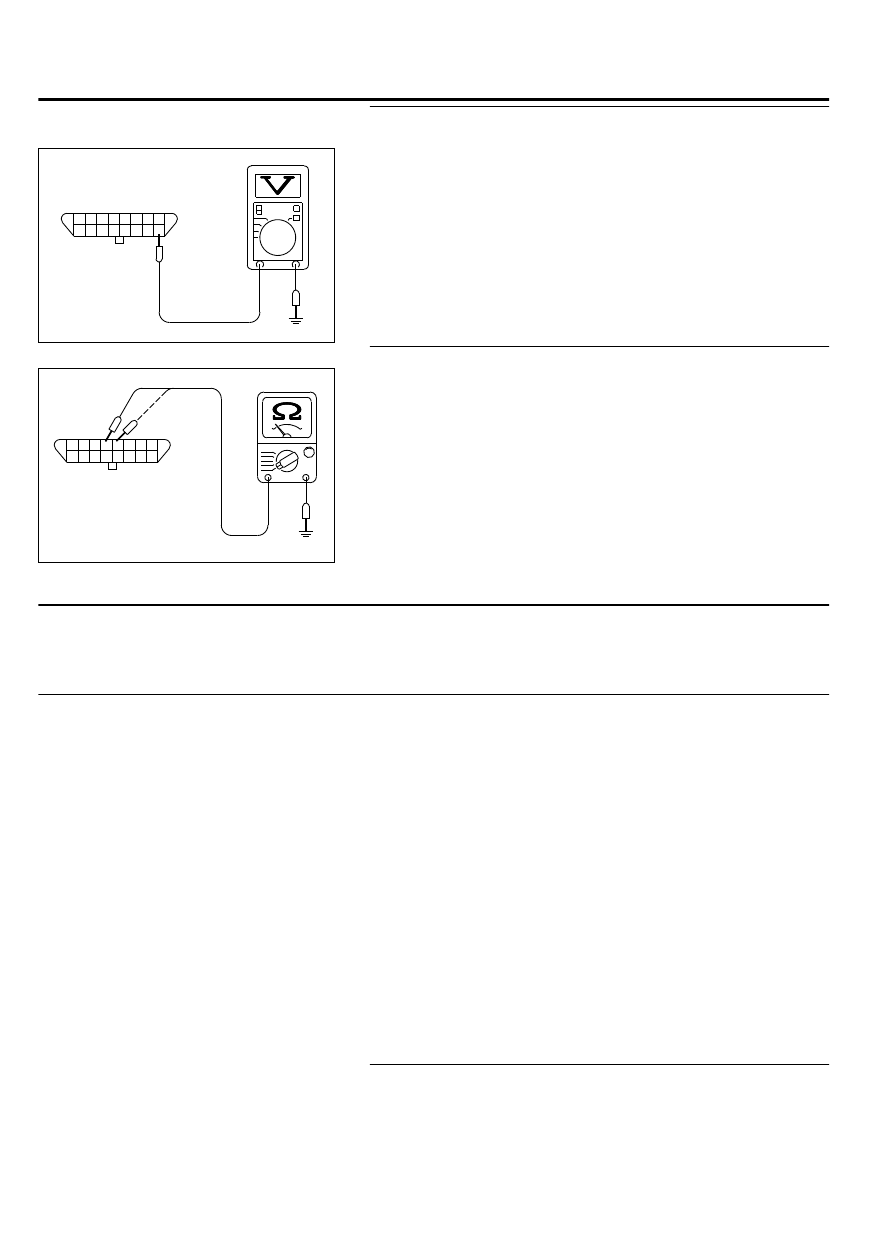

STEP 3. Measure the power supply voltage at data link
connector C-125.

ZK603182AA00

C-125 harness
connector:
component side

1 2 3 4 5 6 7 8

16

15

14

13

12

11

10

9

(1)

Measure voltage between terminal No. 16 and ground.

Voltage should be battery positive voltage.

Q:Is  battery  positive  voltage  (approximately  12  volts)

present?

YES:

 Go to Step 4.

NO:

 Repair an open circuit between ETACS-ECU connector

C-317 (terminal No. 8) and data link connector C-125
(terminal No. 16).Then confirm that the malfunction
symptom is eliminated.

STEP 4. Check the continuity at data link connector C-125.

ZK603183AA00

C-125 harness
connector:
component side

1 2 3 4 5 6 7 8

16

15

14

13

12

11

10

9

(1)

Check for the continuity between terminal No. 4, No. 5 and
ground.

Should be less than 2 ohms.

Q:Does continuity exist?

YES:

 Check and replace the scan tool. Then confirm that

the malfunction symptom is eliminated.

NO:

 Repair an open circuit or harness damage between data

link connector C-125 (terminal No. 4, No. 5) and ground.
Then confirm that the malfunction symptom is eliminated.

INSPECTION PROCEDURE 2: The Malfunction Indicator Lamp (SERVICE ENGINE
SOON or Check Engine Lamp) Does Not Illuminate Right after the Ignition Switch Is
Turned to the "ON" Position.

M11310100056USA0000010000



CIRCUIT OPERATION

The  combination  meter  causes  the  malfunction
indicator lamp (SERVICE ENGINE SOON or Check
Engine  Lamp)  to  illuminate  for  5  seconds
immediately after the ignition switch is turned to the
"ON" position occurred.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

Malfunction  of  the  malfunction  indicator  lamp
(SERVICE  ENGINE  SOON  or  Check  Engine
Lamp).

Open  or  shorted  malfunction  indicator  lamp
(SERVICE ENGINE SOON or Check Engine Lamp)
circuit.



DIAGNOSIS

STEP 1. Check the trouble symptoms.

(1)

Turn the ignition switch to the "ON" position.

13Ab-756

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

SYMPTOM PROCEDURES

The malfunction indicator lamp (SERVICE ENGINE SOON
or Check Engine Lamp) should illuminate immediately after
the ignition switch is turned to the "ON" position.

(2)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Does the malfunction indicator lamp (SERVICE ENGINE

SOON or Check Engine Lamp) illuminate?

YES:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

NO:

 Replace the combination meter.

INSPECTION PROCEDURE 3: The Malfunction Indicator Lamp (SERVICE ENGINE
SOON or Check Engine Lamp) Remains Illuminated and Never Goes Out.

M11310100057USA0000010000

COMMENT

In cases such as the above, the cause is probably
that the ECM is detecting a problem in a sensor or
actuator, or that one of the malfunctions listed below
has probably occurred.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

Short in the malfunction indicator lamp (SERVICE
ENGINE SOON or Check Engine Lamp) circuit.



DIAGNOSIS

Required Special Tools:

Scan Tool (M.U.T.-III Sub Assembly)

MB991824: V.C.I.

MB991827: USB Cable

MB991910: Main Harness A

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-757

SYMPTOM PROCEDURES

STEP 1. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

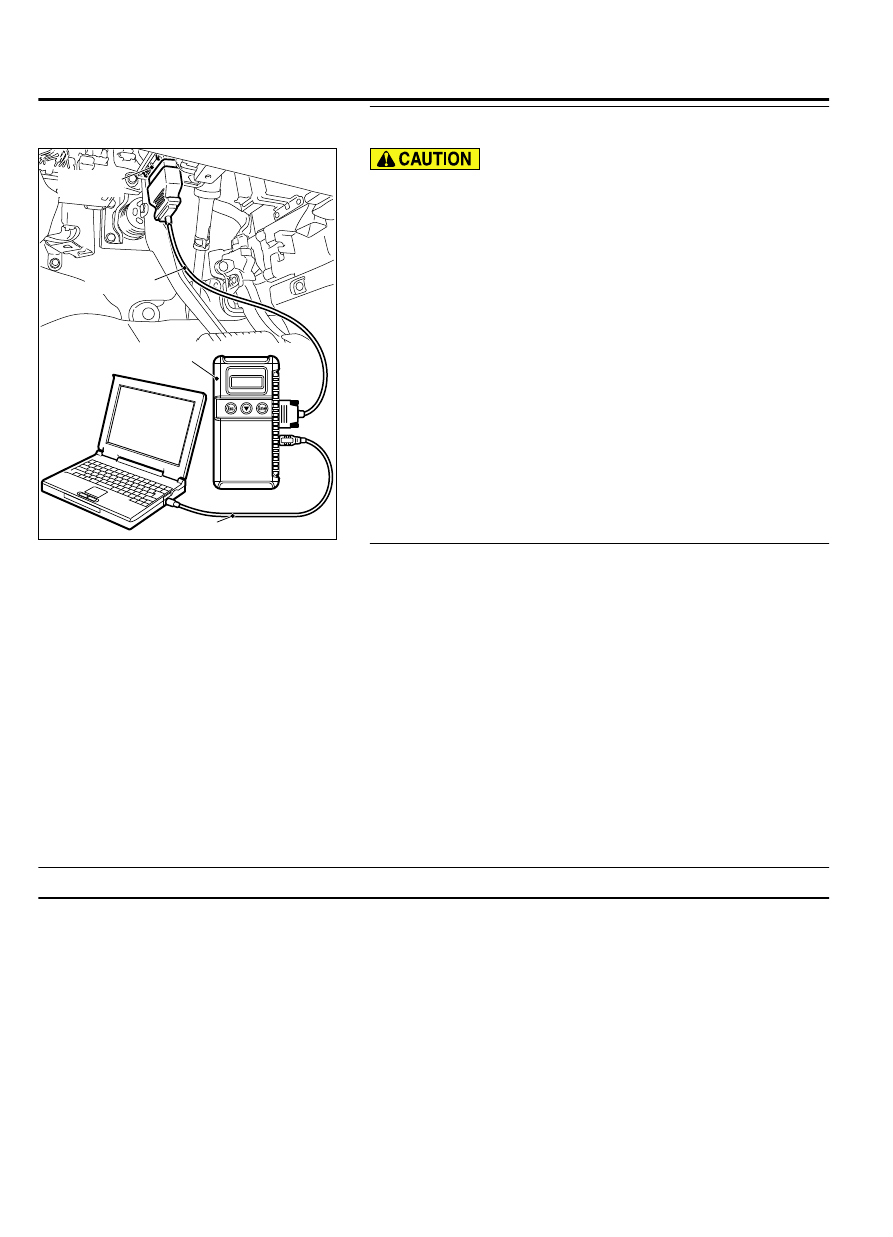

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Read the DTC.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is any DTC set?

YES:

 Refer to Diagnostic Trouble Code Chart P.13Ab-44.

NO:

 Go to Step 2.

STEP 2. Check the trouble symptoms.

(1)

Turn the ignition switch to the "ON" position.

The malfunction indicator lamp (SERVICE ENGINE SOON
or  Check  Engine  Lamp)  should  go  out  when  5  seconds
have  passed  after  the  ignition  switch  was  turned  to  the
"ON" position.

(2)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Does the malfunction indicator lamp (SERVICE ENGINE

SOON or Check Engine Lamp) go out?

YES:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

NO:

 Replace the combination meter.

INSPECTION PROCEDURE 4: Cranks, Won't Start

M11310100281USA0000010000

Cranks, Won't Start Circuit

Refer to Ignition circuit P.13Ab-826.

CIRCUIT OPERATION

Refer to Ignition circuit P.13Ab-826.

COMMENT

In cases such as the above, the cause is probably
no spark, fuel delivery, or fuel quality problems. In
addition,  foreign  materials  (water,  kerosene,  etc.)
may be mixed with the fuel.

TROUBLESHOOTING HINTS (The most likely
causes for this case:)

Malfunction of the immobilizer system.

13Ab-758

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

SYMPTOM PROCEDURES
