Q:Is DTC P2197 set?

YES:

 Retry the troubleshooting.

NO:

 The inspection is complete.

DTC P2228: Barometric Pressure Circuit Low Input

M11310100270USA0000010000

TECHNICAL DESCRIPTION

｠

The barometric pressure sensor outputs a voltage
which corresponds to the barometric pressure.

｠

The  ECM  checks  whether  this  voltage  is  within  a
specified range.

DESCRIPTIONS OF MONITOR METHODS

Barometric pressure sensor output voltage is out of
reasonable barometric pressure range.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-727

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC SET CONDITIONS

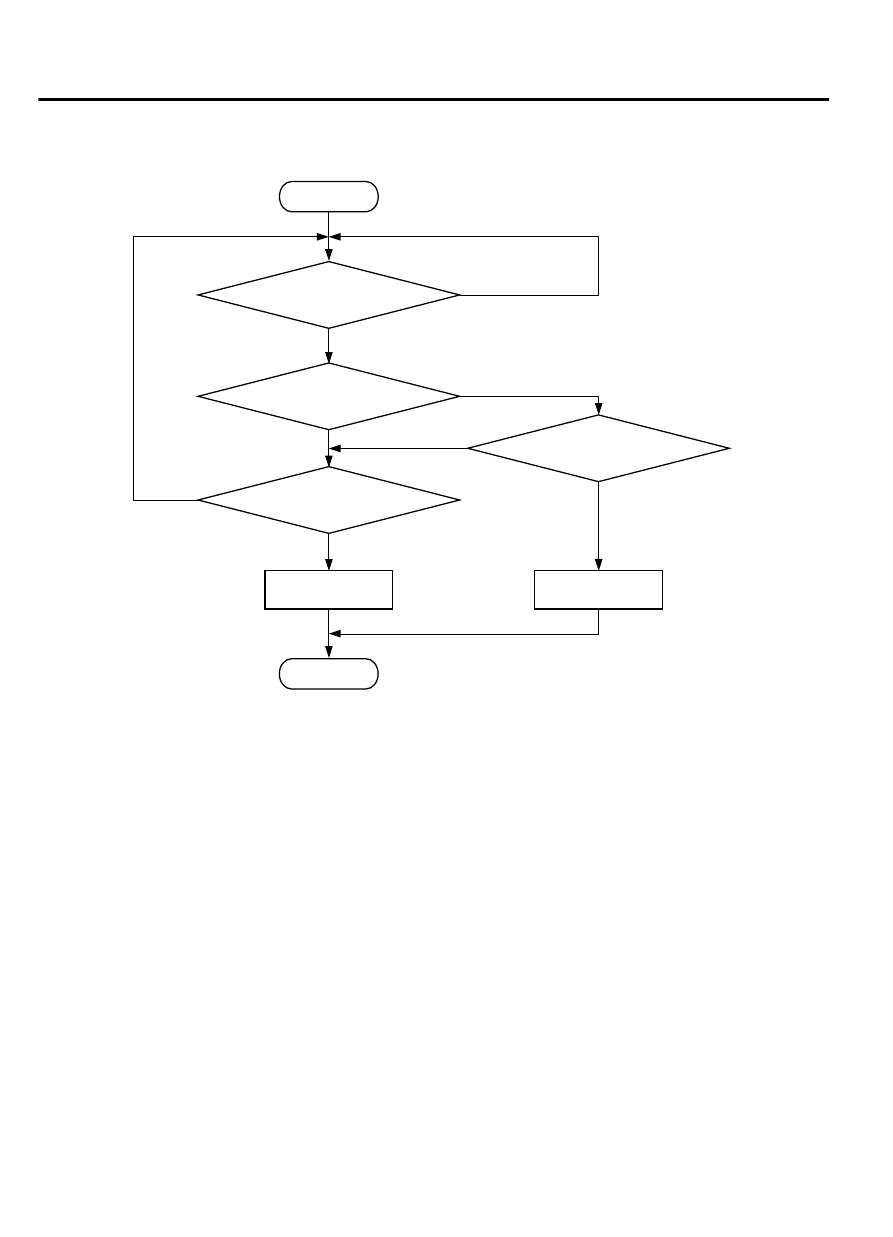

Logic Flow Chart

ZK603823AA00

Good

Malfunction

Start

End

No

No

No

No

Yes

Yes

Yes

Yes

Continuous

failure for 10secs

Monitoring

conditions

Barometric Pressure

< 371kPa

Barometric Pressure

< 846kPa

Check Conditions

｠

2 seconds or more have passed since the engine
starting sequence was completed.

｠

Battery positive voltage is higher than 8 volts.

Judgement Criterion

｠

Barometric  pressure  sensor  output  signal  has
continued  to  be  49  kPa  (14.5  in.Hg)  or  lower
(approximately 15,000 feet above sea level) for 10
seconds.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function - OBD-II Drive Cycle -
Pattern 24 P.13Ab-8.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

｠

ECM failed.



DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

13Ab-728

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

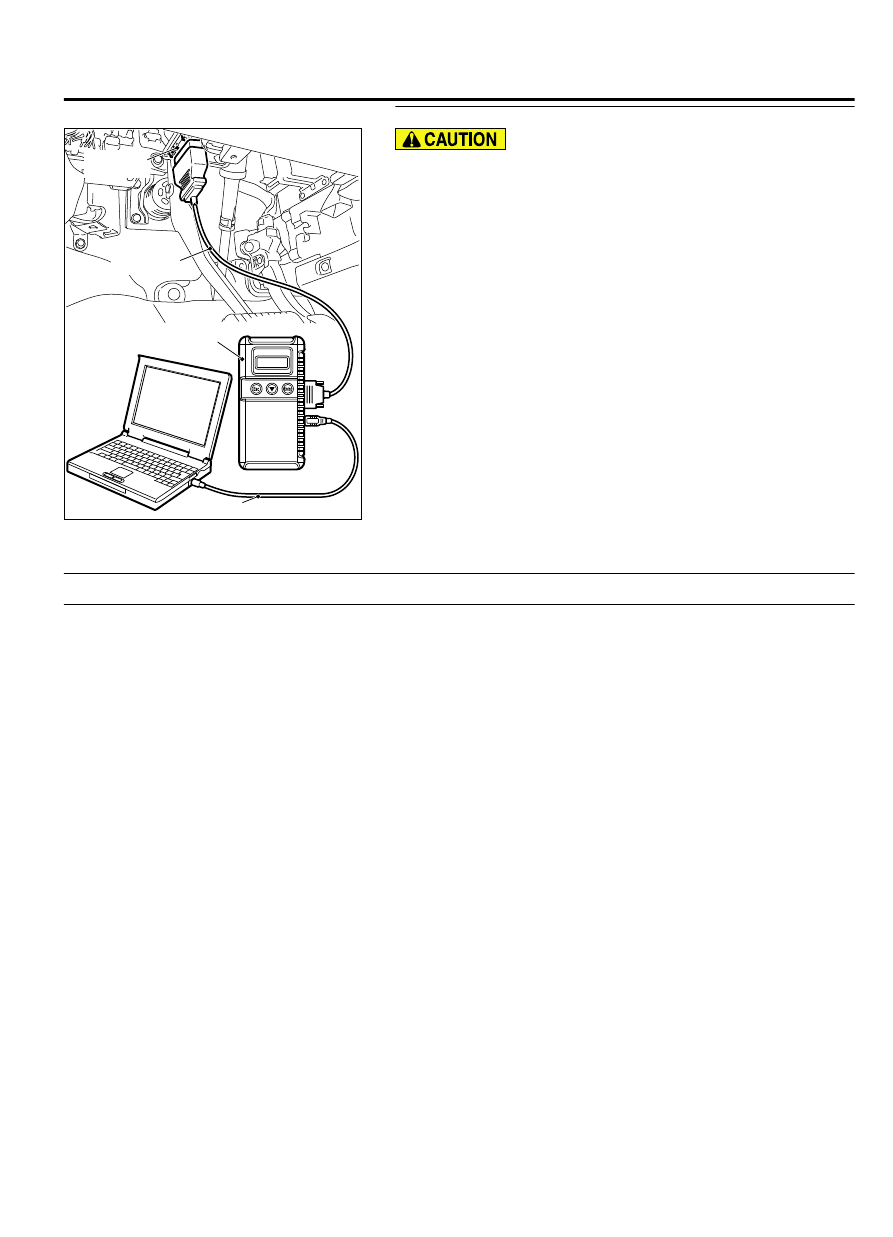

STEP 1. Test the OBD-II drive cycle.

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition  switch  to  the  "LOCK"  (OFF)  position  before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Carry out the test drive with the drive cycle pattern. Refer to
Diagnostic  Function  -  OBD-II  Drive  Cycle  -  Pattern  24  P.
13Ab-8.

(4)

Check the diagnosis trouble code (DTC).

Q:Is DTC P02228 set?

YES:

 Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8.

NO:

 It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

DTC P2229: Barometric Pressure Circuit High Input

M11310100271USA0000010000

TECHNICAL DESCRIPTION

｠

The barometric pressure sensor outputs a voltage
which corresponds to the barometric pressure.

｠

The  ECM  checks  whether  this  voltage  is  within  a
specified range.

DESCRIPTIONS OF MONITOR METHODS

Barometric pressure sensor output voltage is out of
reasonable barometric pressure range.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-729

DIAGNOSTIC TROUBLE CODE PROCEDURES

DTC SET CONDITIONS

Logic Flow Chart

ZK603823AA00

Good

Malfunction

Start

End

No

No

No

No

Yes

Yes

Yes

Yes

Continuous

failure for 10secs

Monitoring

conditions

Barometric Pressure

< 371kPa

Barometric Pressure

< 846kPa

Check Conditions

｠

2 seconds or more have passed since the engine
starting sequence was completed.

｠

Battery positive voltage is higher than 8 volts.

Judgement Criterion

｠

Barometric  pressure  sensor  output  signal  has
continued  to  be  113  kPa  (33.4  in.Hg)  or  higher
(approximately  4,000  ft  below  sea  level)  for  10
seconds.

OBD-II DRIVE CYCLE PATTERN

Refer to Diagnostic Function - OBD-II Drive Cycle -
Pattern 24 P.13Ab-8.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

｠

ECM failed.



DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

13Ab-730

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
