CIRCUIT OPERATION

｠

A 5-volt power supply is applied on the accelerator
pedal position sensor (sub) power terminal
(terminal No. 4) from the ECM (terminal No. 78).
The ground terminal (terminal No. 5) is grounded
with ECM (terminal No. 79).

TECHNICAL DESCRIPTION

｠

The accelerator pedal position sensor (sub) outputs
voltage which corresponds to the accelerator pedal
depression.

｠

The ECM checks whether the voltage is within a
specified range.

DESCRIPTIONS OF MONITOR METHODS

Accelerator pedal position sensor (sub) output
voltage is out of specified range.

MONITOR EXECUTION

Continuous

MONITOR EXECUTION CONDITIONS (Other
monitor and Sensor)

Other Monitor (There is no temporary DTC stored in
memory for the item monitored below)

｠

Not applicable

Sensor (The sensor below is determined to be
normal)

｠

Not applicable

DTC SET CONDITIONS

Logic Flow Chart

ZK603810AA00

Good

Malfunction

Start

End

Yes

Continuous

failure for 0.3sec

Output voltage < 0.2V(main)
< 0.2V(sub)

Check Condition

｠

Ignition switch is "ON" position.

Judgement Criterion

｠

Accelerator pedal position sensor (sub) output
voltage is 0.2 volt or less for 0.3 second.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-707

DIAGNOSTIC TROUBLE CODE PROCEDURES

OBD-II DRIVE CYCLE PATTERN

None.

TROUBLESHOOTING HINTS (The most likely
causes for this code to be set are:)

｠

Accelerator pedal position sensor failed.

｠

Connector damage.

｠

Harness damage.

｠

ECM failed.

DIAGNOSIS

Required Special Tools:

｠

MB991958: Scan Tool (M.U.T.-III Sub Assembly)

｠

MB991824: V.C.I.

｠

MB991827: USB Cable

｠

MB991910: Main Harness A

STEP 1. Check harness connector C-123 at accelerator
pedal position sensor and harness connector B-11 at ECM
for damage.

Q:Is the harness connector in good condition?

YES:

Go to Step 2.

NO:

Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection P.00E-2. Then go to Step 4.

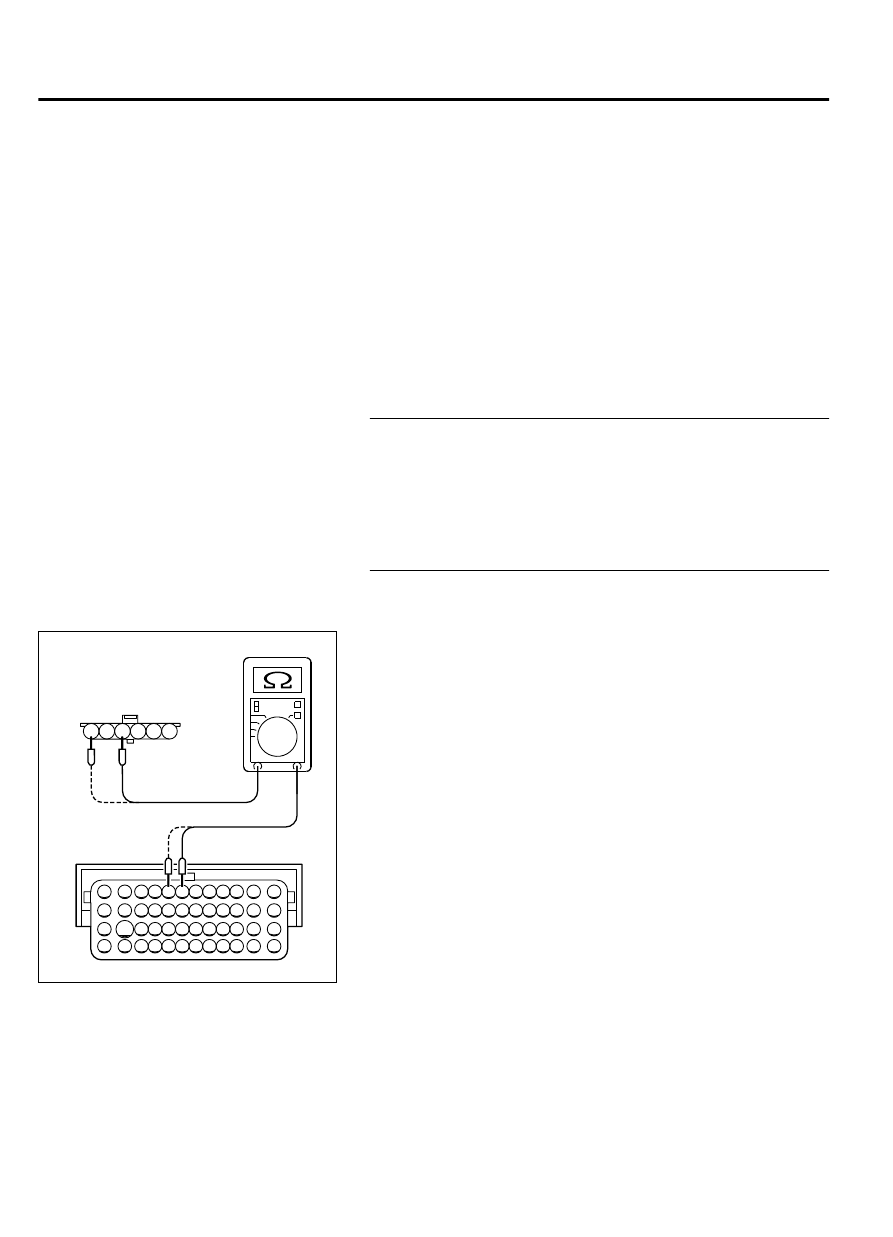

STEP 2. Check for open circuit or short circuit to ground or
harness damage between accelerator pedal position sensor
connector C-123 and ECM connector B-11.

ZK603294

82 81 80 79 78 77 76 75 74 73 72 71

94 93 92 91 90 89 88 87 86 85 84 83

99 98 97 96 95

100

101

102

103

104

105

106

112

113

114

109 108

107

110

111

115

116

117

118

6 5 4 3 2

C-123 harness connector:
component side

B-11 harness
connector:
component side

AA00

(1)

Disconnect the connector C-123 and B-11 measure at the
harness side.

(2)

Measure the resistance between connector C-123 and
connector B-11.

a
.

Connector C-123 (terminal No. 4) and connector B-11
(terminal No. 78).

b
.

Connector C-123 (terminal No. 6) and connector B-11
(terminal No. 77).

｠

Should be less than 2 ohms.

13Ab-708

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES

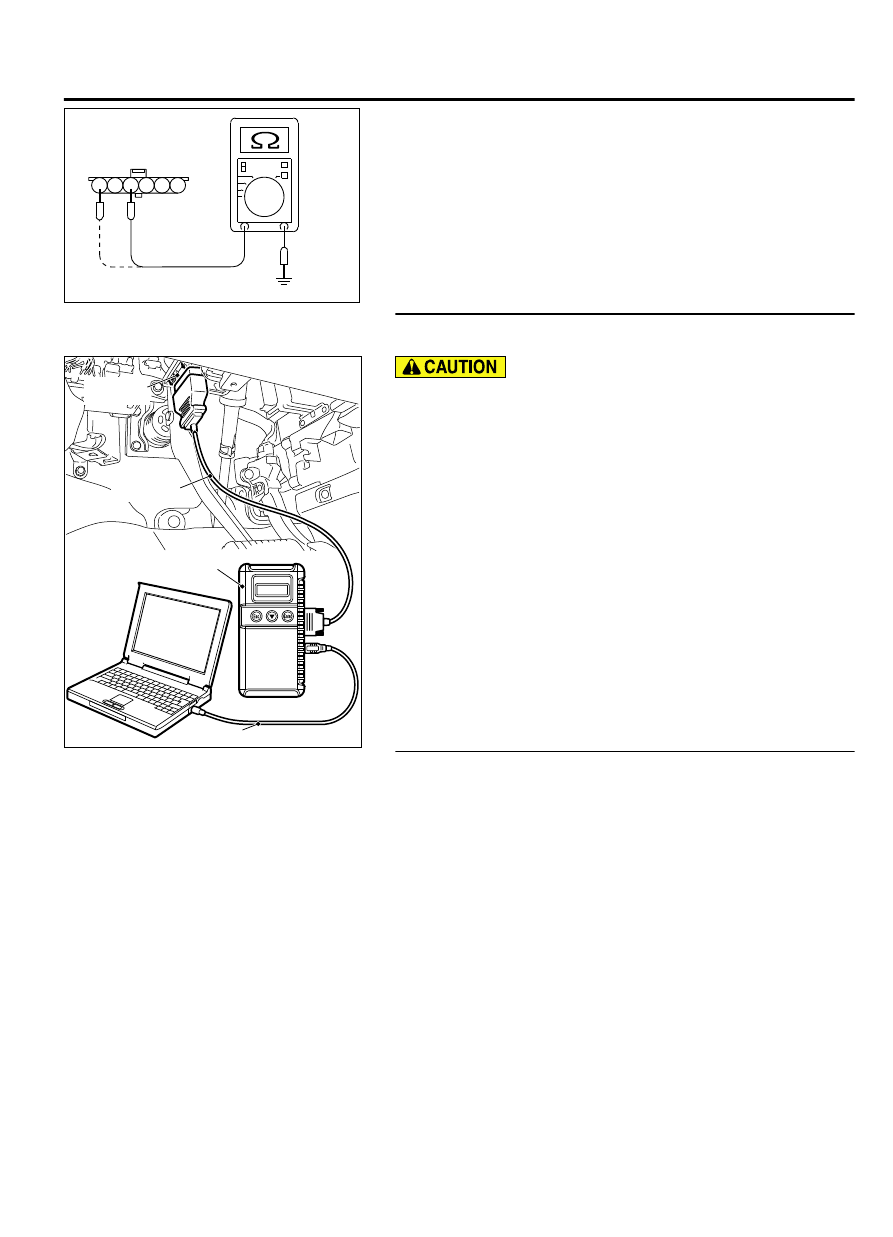

ZK603295AA00

C-123 harness
connector:
component side

6 5 4 3 2

(3)

Check for the continuity between connector C-123 and
ground.

a
.

Connector C-123 (terminal No. 4) and ground.

b
.

Connector C-123 (terminal No. 6) and ground.

｠

Not continuity.

Q:Is the harness wire in good condition?

YES:

Go to Step 3.

NO:

Repair it. Then go to Step 4.

STEP 3. Using scan tool MB991958, check data list item 12:
Accelerator Pedal Position Sensor (sub).

ZC501967

AC404789

ZC5019680000

MB991824

MB991827

MB991910

Data link

connector

To prevent damage to scan tool MB991958, always turn the
ignition switch to the "LOCK" (OFF) position before
connecting or disconnecting scan tool MB991958.

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Set scan tool MB991958 to the data reading mode for item
12, Accelerator Pedal Position Sensor (sub).

｠

Output voltage is between 0.4 and 0.6 volts when foot is
released from accelerator pedal.

｠

Output voltage is 2.0 volts or higher when accelerator
pedal is fully depressed.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is the sensor operating properly?

YES:

Go to Step 4.

NO:

Replace the accelerator pedal position sensor. Then

go to Step 4.

STEP 4. Using scan tool MB991958, read the diagnostic
trouble code (DTC).

(1)

Connect scan tool MB991958 to the data link connector.

(2)

Turn the ignition switch to the "ON" position.

(3)

Read the DTC again.

(4)

Turn the ignition switch to the "LOCK" (OFF) position.

Q:Is DTC P2127 set?

YES:

Replace the ECM. When the ECM is replaced, register

the ID code. Refer to GROUP 42B, ID Code Registration
Judgment Table <Vehicles with KOS> P.42B-12or GROUP
42C, ID Code Registration Judgment Table <Vehicles with
WCM> P.42C-8.

NO:

It can be assumed that this malfunction is

intermittent. Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points - How to Cope
with Intermittent Malfunctions P.00-15.

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

13Ab-709

DIAGNOSTIC TROUBLE CODE PROCEDURES

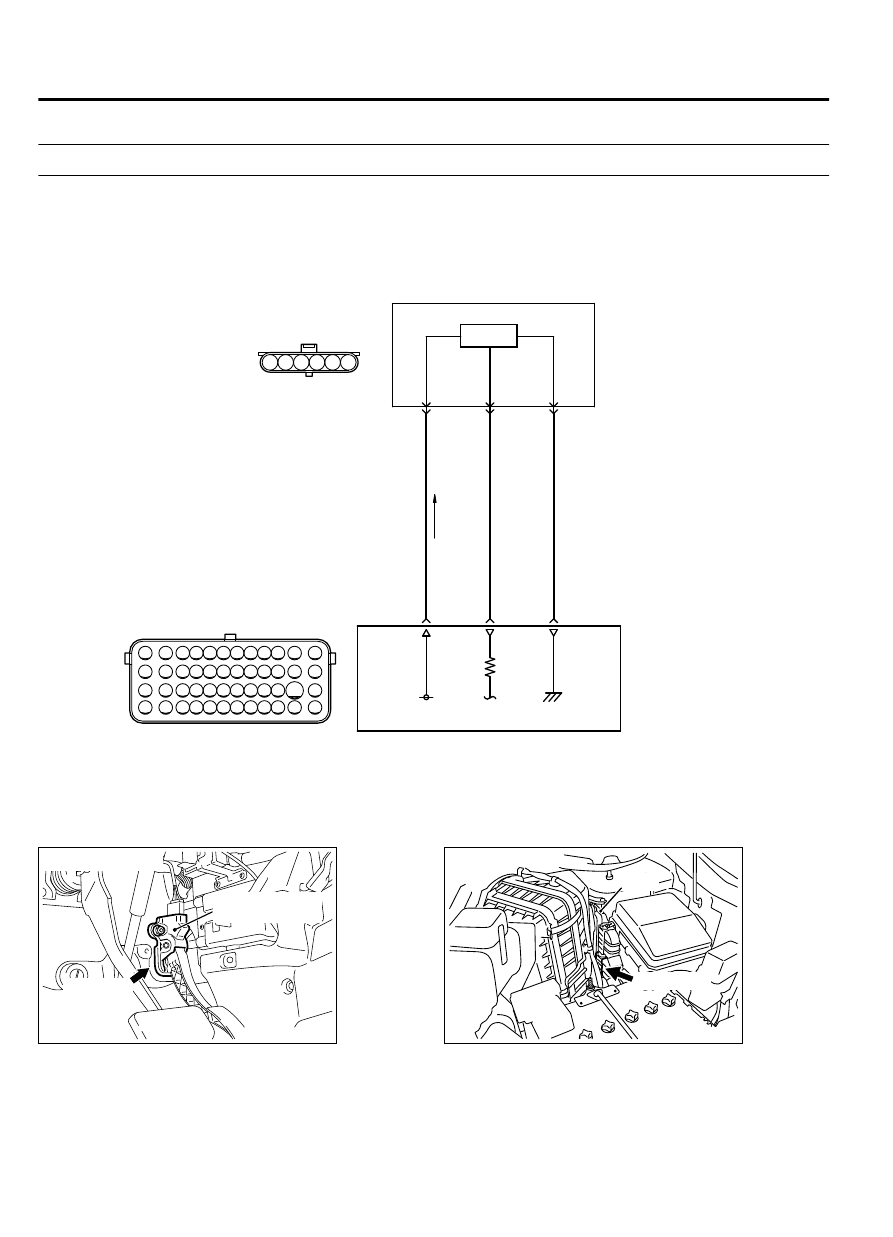

DTC P2128: Accelerator Pedal Position Sensor (Sub) Circuit High Input

M11310100265USA0000010000

ZK602863

71 72 73 74 75 76 77 78 79 80 81 82

83 84 85 86 87 88 89 90 91 92 93 94

95 96 97 98 99

100 101 102 103 104

112 113 114

109

108

107

110 111

115 116

106

105

118

117

1 2 3 4 5

AA00

5 V

ACCELERATOR
PEDAL POSITION
SENSOR (SUB)

YELLO

-RED

YELLO

-BLUE

BLA

CK-WHITE

ENGINE
CONTROL
MODULE

ACCELERATOR PEDAL POSITION SENSOR (SUB) CIRCUIT

B-11

C-123

HALL IC

ZK603633AA00

Accelerator pedal
position sensor

C-123 (B)

Connector: C-123

ZK603592

ECM

B-11 (GR)

Connector: B-11

AA00

13Ab-710

MULTIPORT INJECTION SYSTEM (MFI) <DIAGNOSIS>

DIAGNOSTIC TROUBLE CODE PROCEDURES
